FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck

Export reference
From $19,556
MSRP ¥14.08M CNY
Horsepower: 154
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 2.805ton
FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck exterior
View more photos (9)
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck is a Light Truck featuring 3.85m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 154 hp, 4X2 (6 wheels) drive and China V emissions.

China V 154 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA5041XXYP40K17L1E5A84-3
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 3.8m
engine: FotonISF3.8s5154
transmission: WLYWLY6TS55
Rear Axle Ratio: 4.875
Cab length: 5.998m
Cab width: 2.29m
Cab height: 3.11m
Front track width: 1650mm
rear track: 1540mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
market segment: Urban Distribution
Remarks: Front brake: optional disc brake.
Front/rear suspension: 1.2/1.498m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5154
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 115kW
Max hp: 154Horsepower
Max torque: 491N·m
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Engine Type: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: WLYWLY6TS55
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.85m
Cargo box width: 2.1m
Cargo box height: 2.1m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab: J6F single-row cab (bunk + driver seat headrest removable)
Cab width: 2010mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 150L
Chassis Specs
Front axle allowable load: 2050kg
Frame Dimensions: 216×75×6mm
rear axle description: 325H rear axle
rear axle allowable load: 2445kg
Axle ratio: 4.875
Leaf spring count: 3/10+4
Aluminum wheels:
clutch: Φ350
Tire
Tire Size: 7.00R16 10PR
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Wiper type:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster: none
LCD instrument cluster:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
lighting configuration
Headlight brand: none
Front fog lamp:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
maintenance service
Vehicle Warranty Period: 24 months unlimited mileage
24-hour service hotline:
Rescue service:

Photos

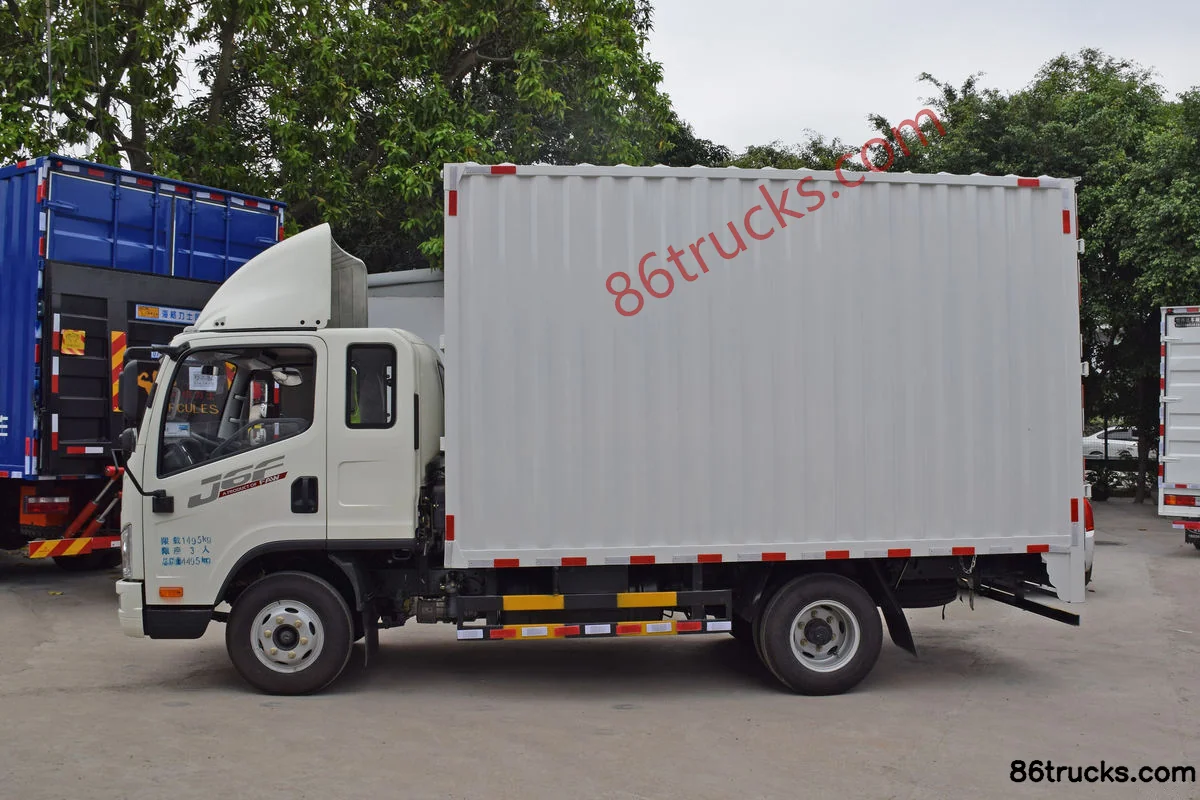

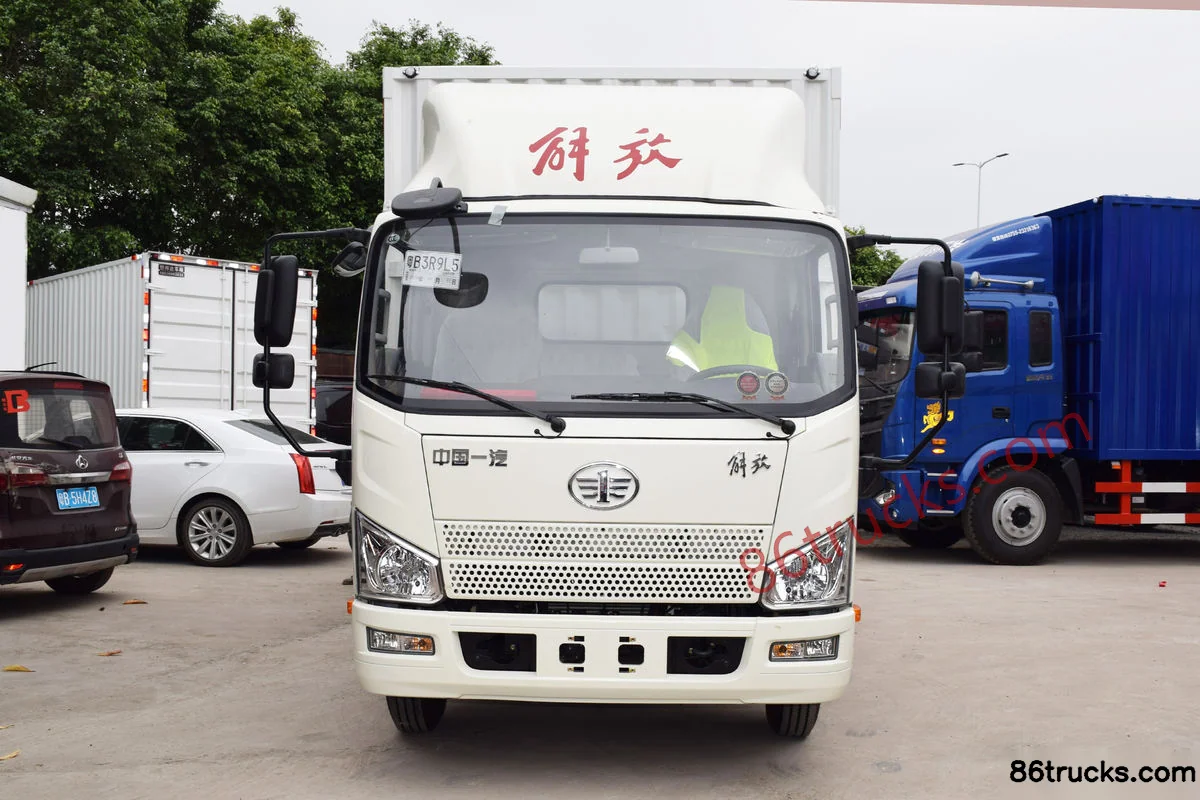

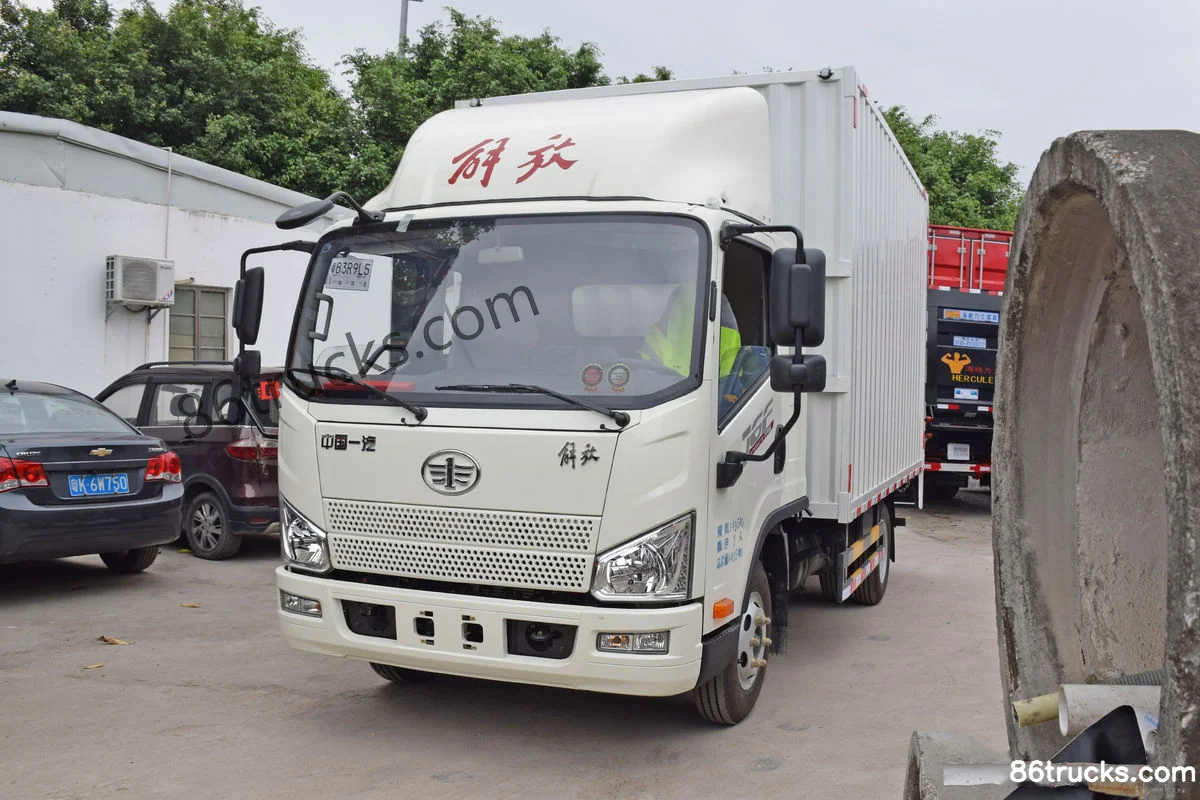

Exterior3

FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck Exterior (1) | 86Trucks FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck Exterior (2) | 86Trucks FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck Exterior (3) | 86Trucks

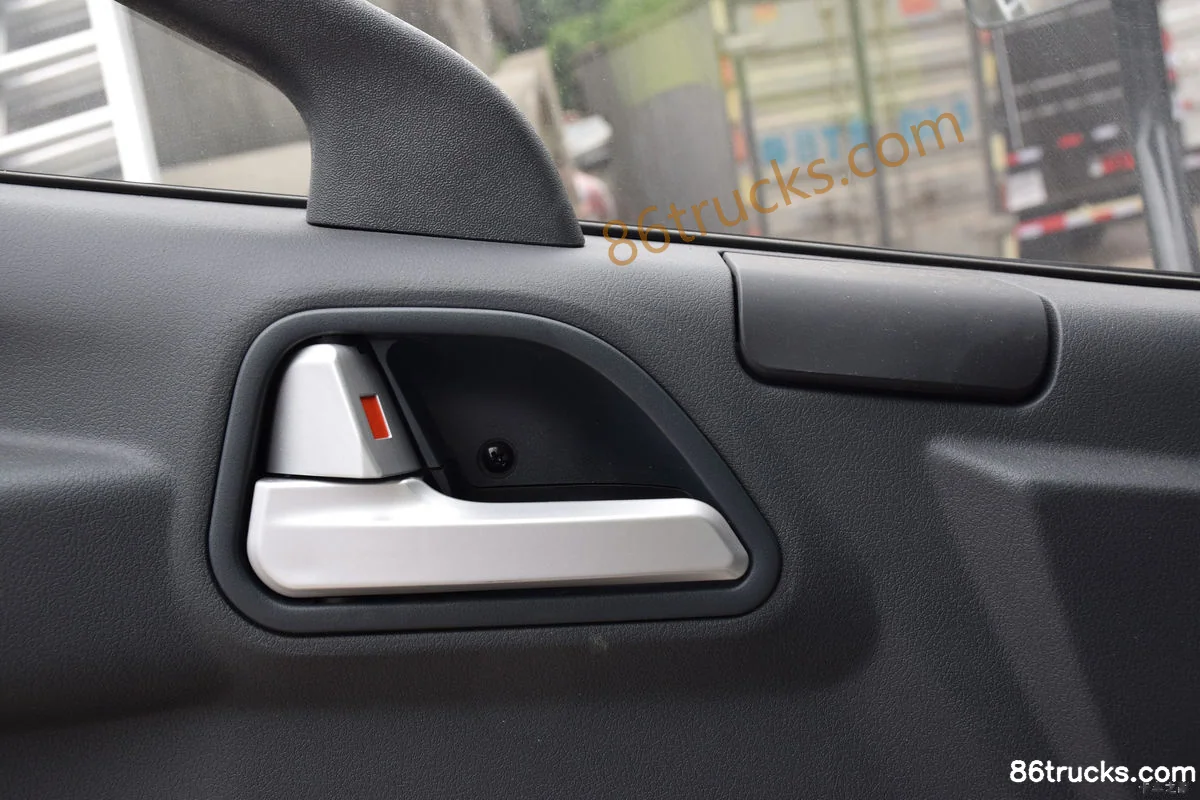

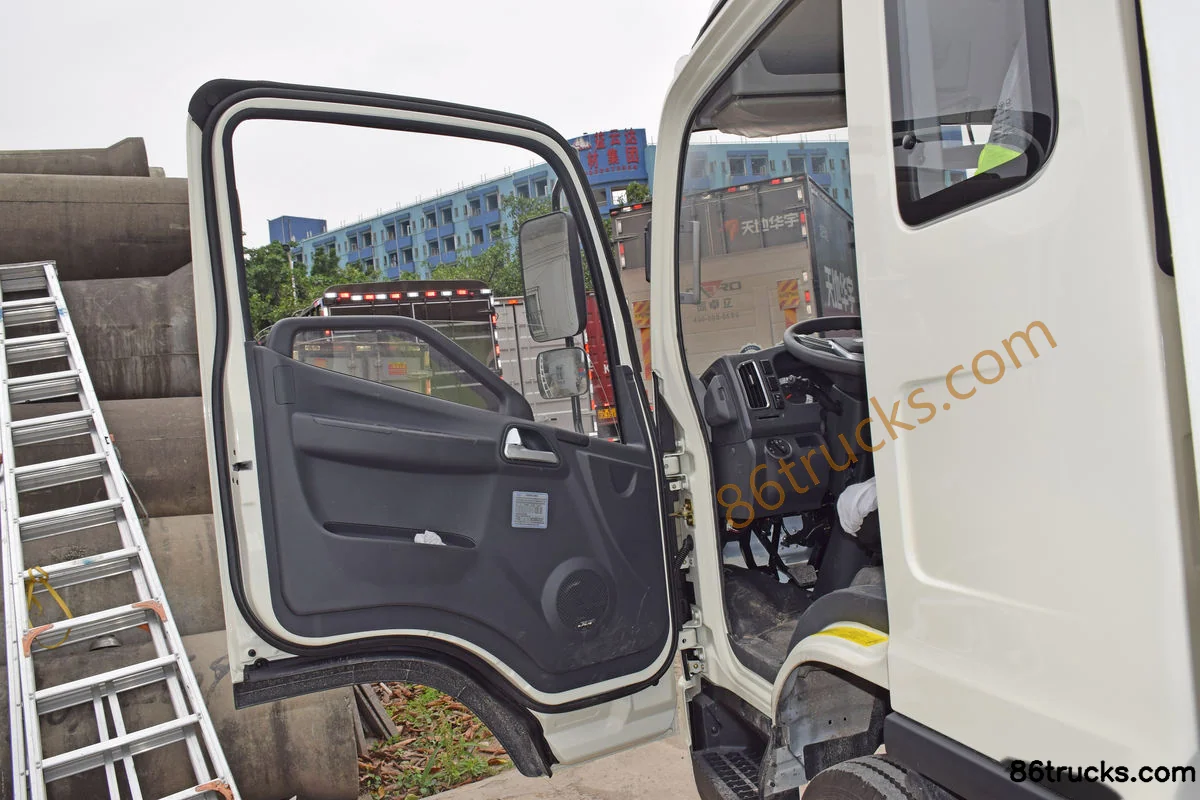

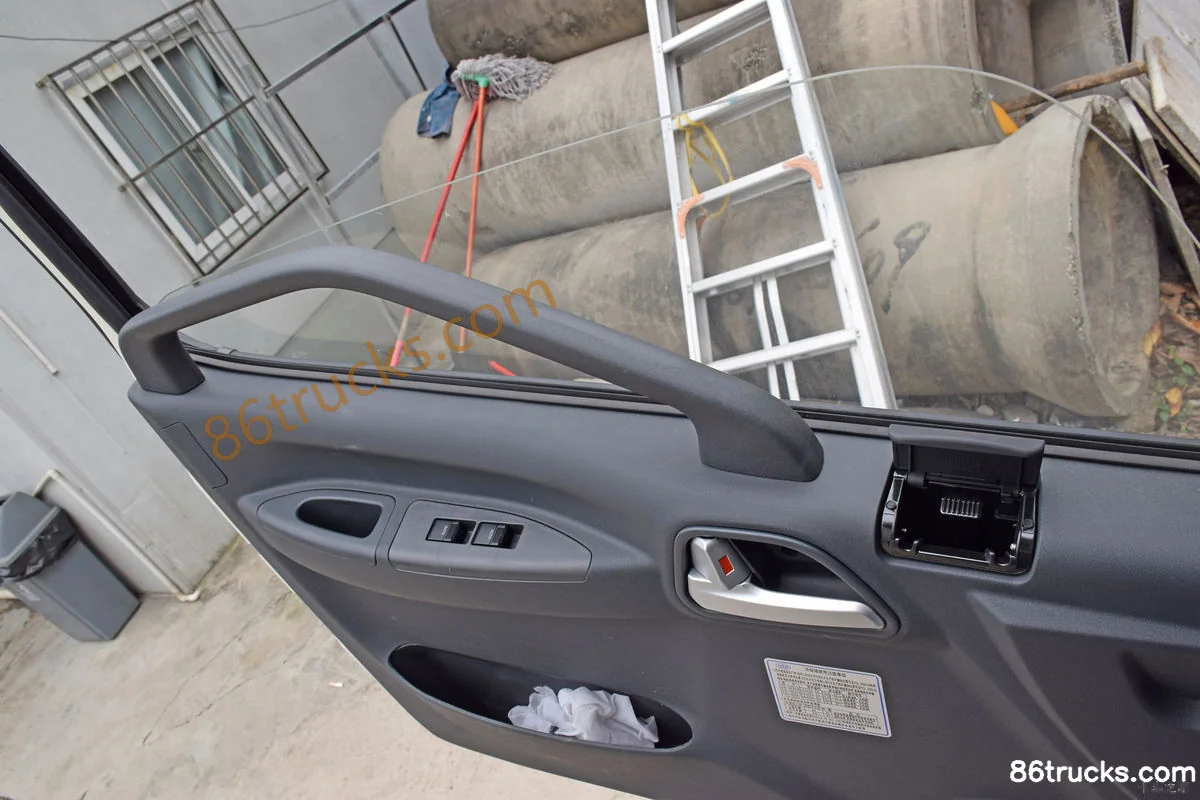

Cab3

FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck (1) | 86Trucks FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck (2) | 86Trucks FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck (3) | 86Trucks

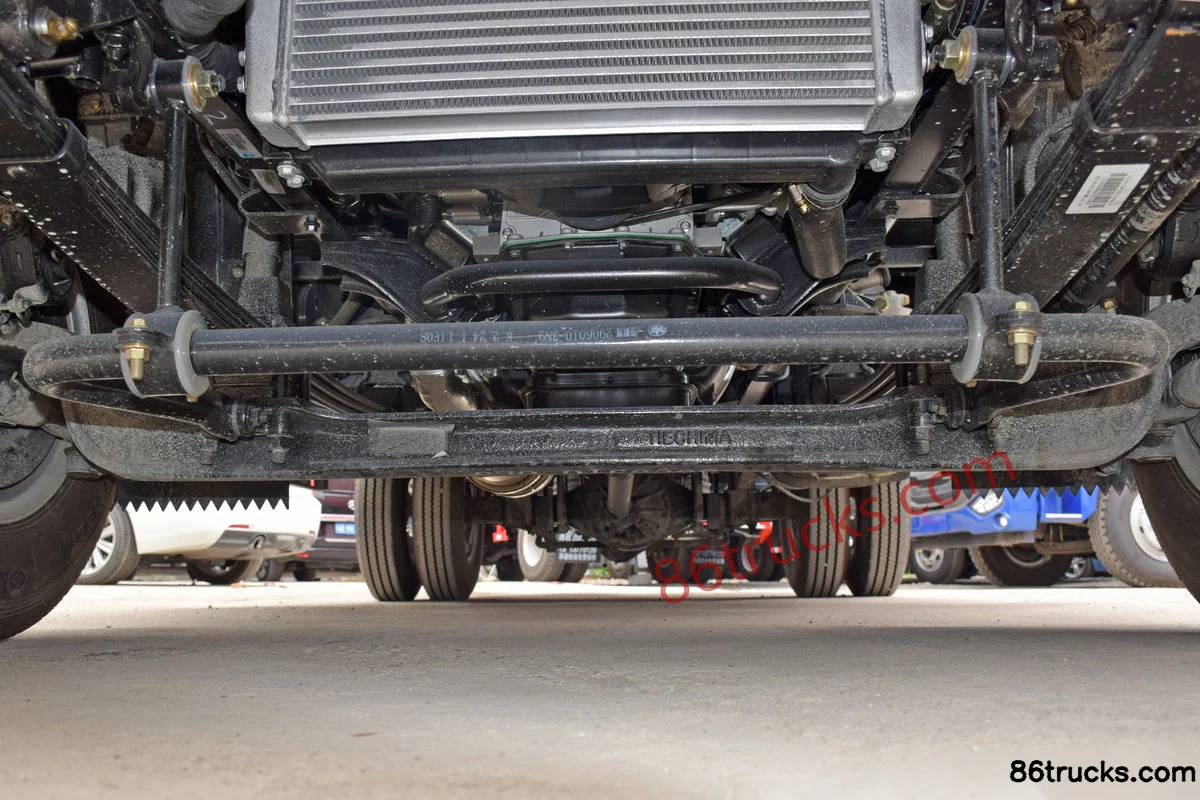

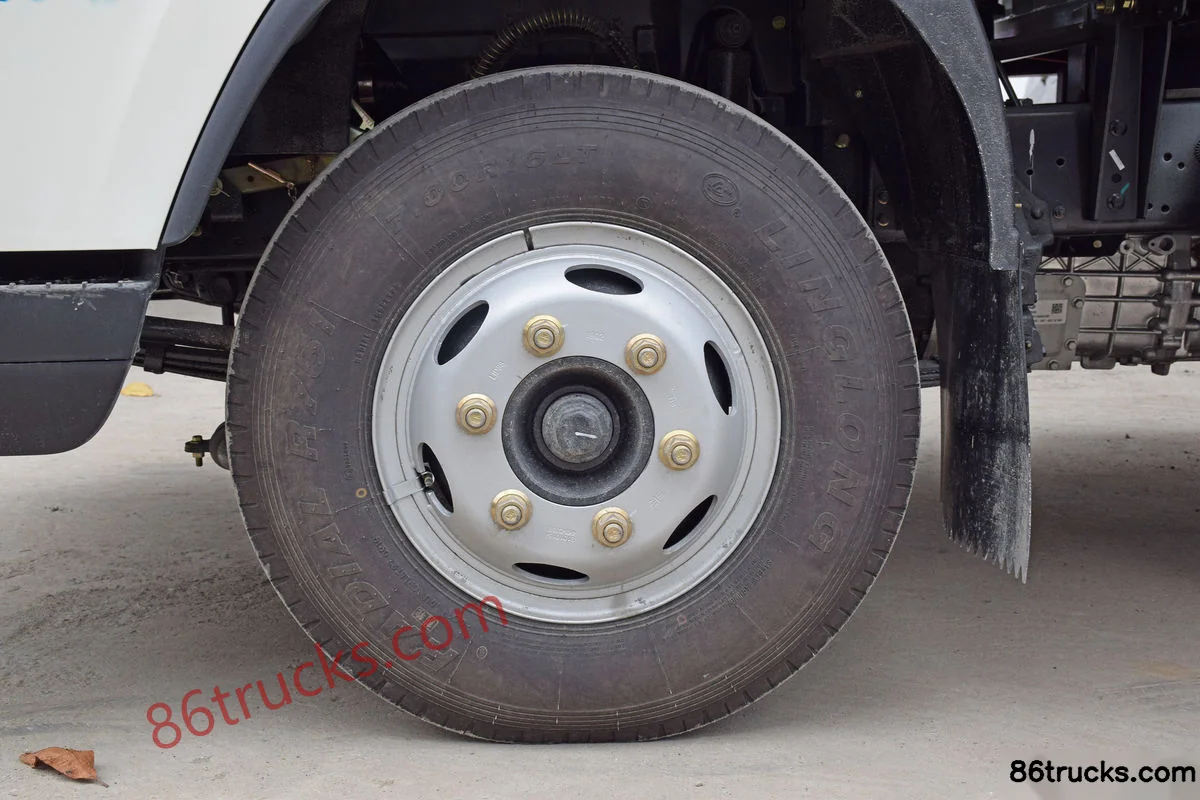

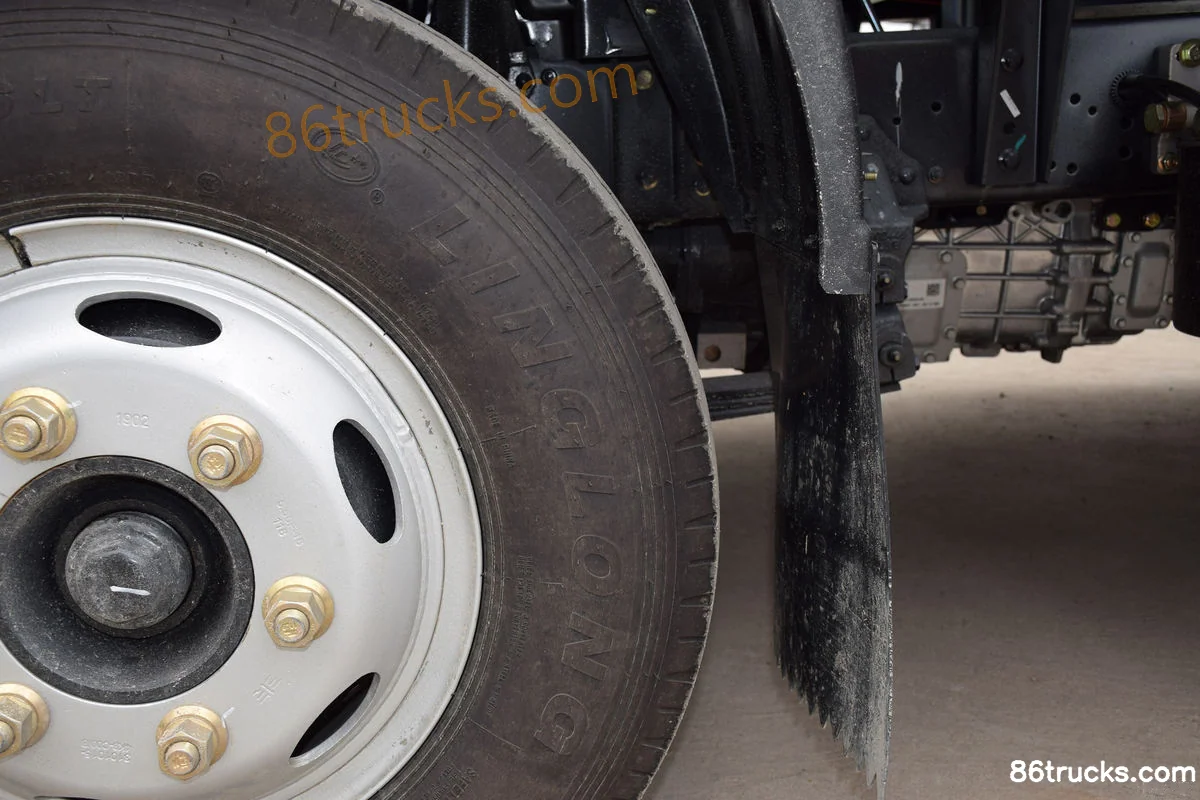

Chassis3

FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck Chassis (1) | 86Trucks FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck Chassis (2) | 86Trucks FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck Chassis (3) | 86Trucks

9 photos

FAQ

What is the export price of FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck, and what does it include?

FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck export reference is about From $19,556; MSRP is ¥14.08M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck?

Key specs of FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck: Drive: 4x2; Horsepower: 154 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck suited for?

FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck differ from other variants in the same series?

FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck belongs to FAW Jiefang J6F Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6F 154hp 4X2(6 wheels) 3.85m Semi-Cab Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
