Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck

Export reference
MSRP N/A
Horsepower: 168
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: Fast Gear
Curb Weight:: 6.06ton
seating capacity: 3Personnel
Rated payload: 7.99ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck is a Medium-duty truck featuring 6.7m cargo length, Stake type cargo body, 3Personnel volume and 7.99t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 168 hp, 4X2 (6 wheels) drive and China V emissions.

China V 168 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5146CCY-1
Type: stake truck
Drive type: 4X2
Wheelbase: 5250mm
Box length class: 6.7m
engine: FotonISF3.8s5168
transmission: Fast Gear6J70T
Rear Axle Ratio: 4.875
Cab length: 8.998m
Cab width: 2.495m
Cab height: 3.735m
Front track width: 1907mm
rear track: 1810mm
Curb Weight: 6.06ton
Rated payload: 7.99ton
GVWR: 14.245ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 11°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.35/2.398m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5168
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 125kW
Max hp: 168Horsepower
Max torque: 592N·m
Max torque speed: 1300-1700rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: Fast Gear6J70T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.7m
Cargo box width: 2.4m
Cargo box height: 0.55m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Semi-floating flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab

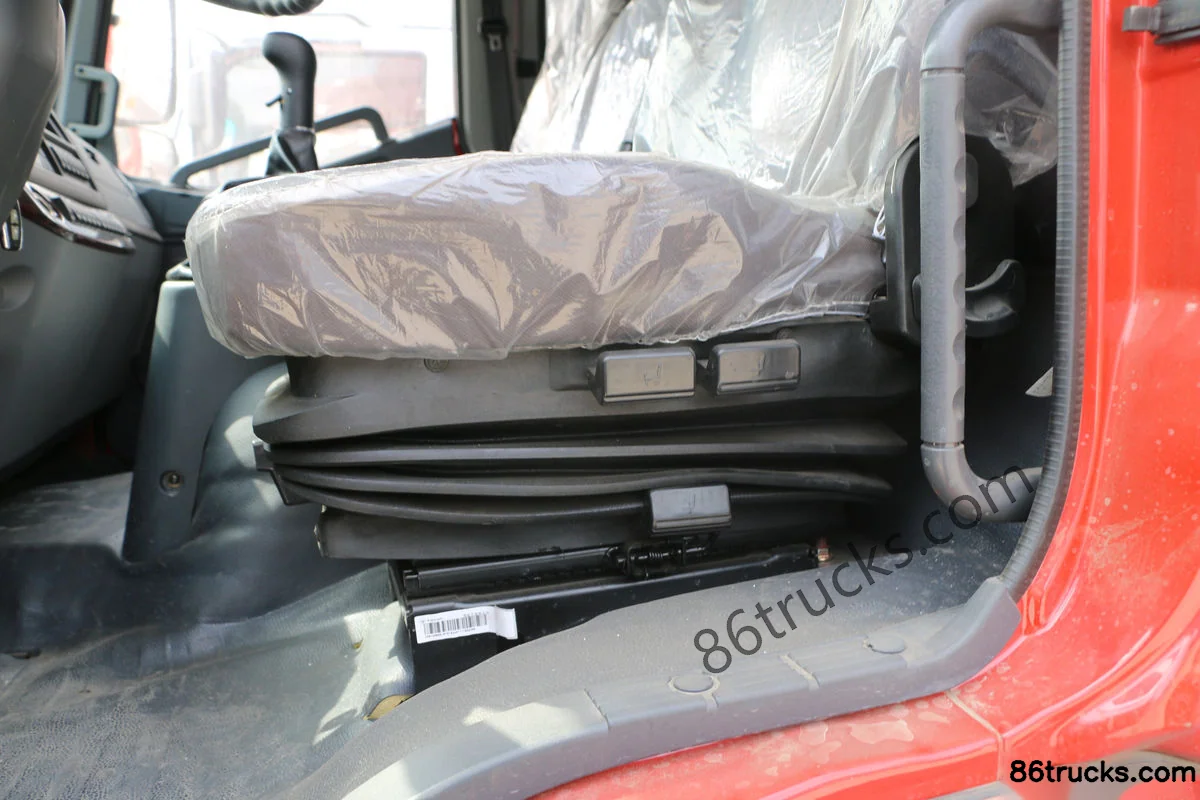

Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 5995kg
rear axle description: 1093Z
rear axle allowable load: 8250kg
Axle ratio: 4.875
Leaf spring count: 8/10+8
Tire
Tire Size: 9.00R20 (with spare tire)
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Manual
Independent Heater:
Power Windows:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Parking brake: Spring brake

Photos

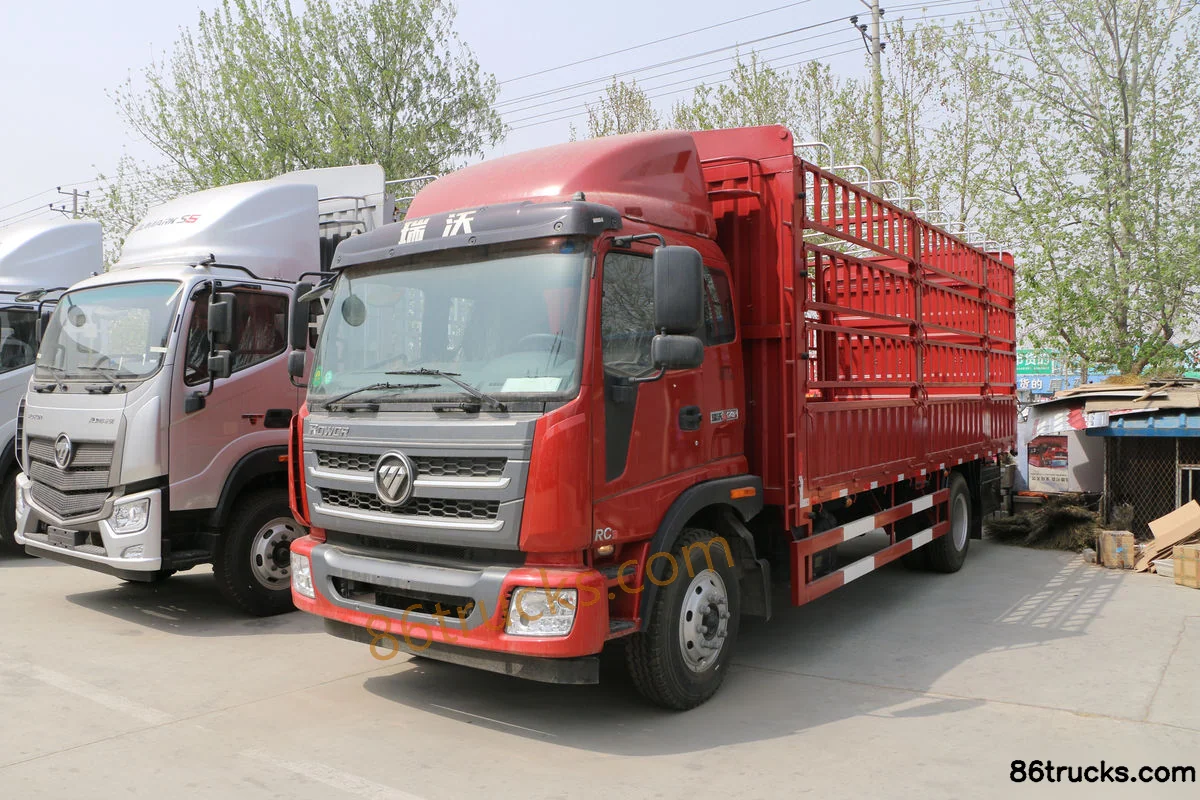

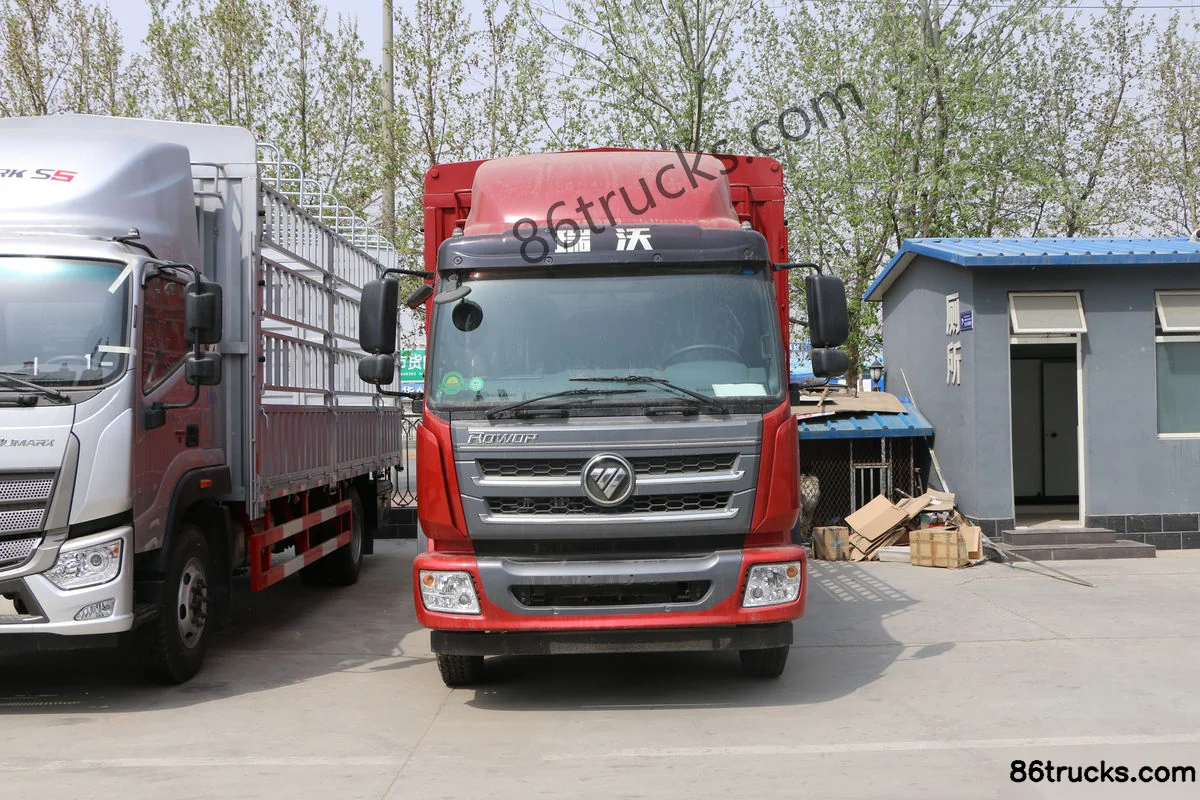

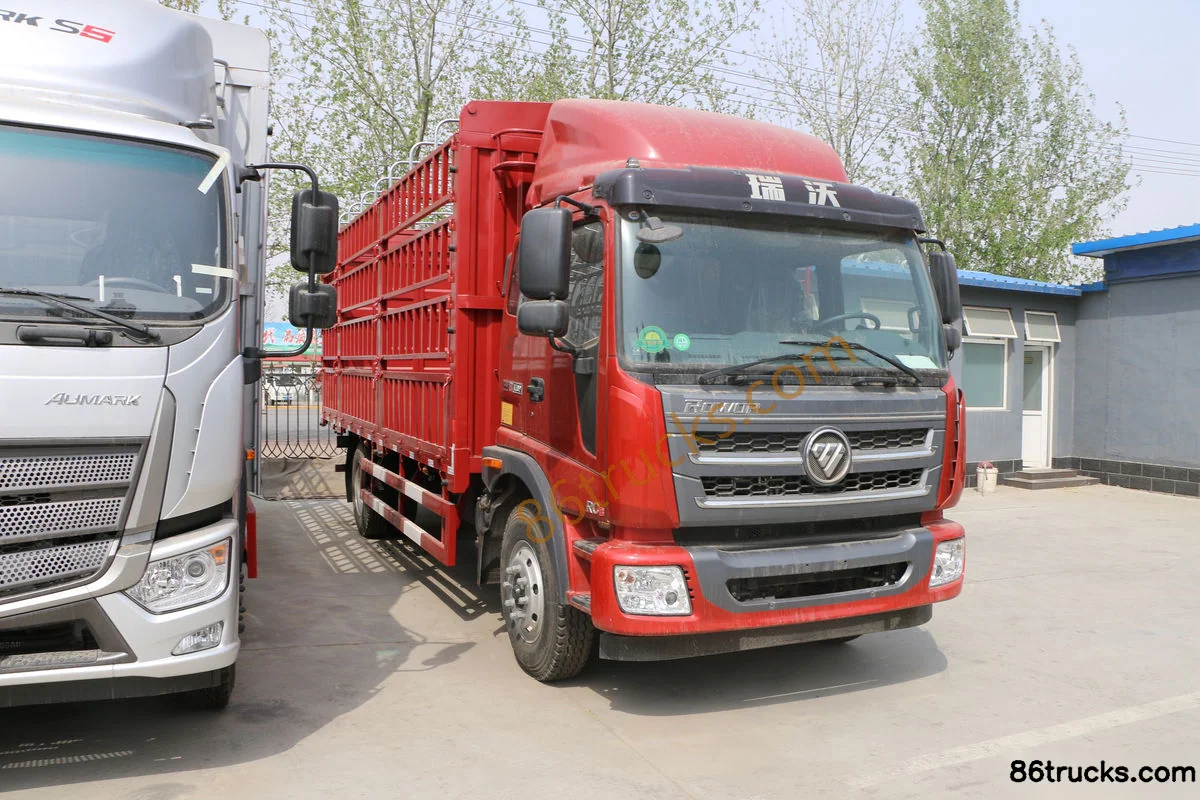

Exterior3

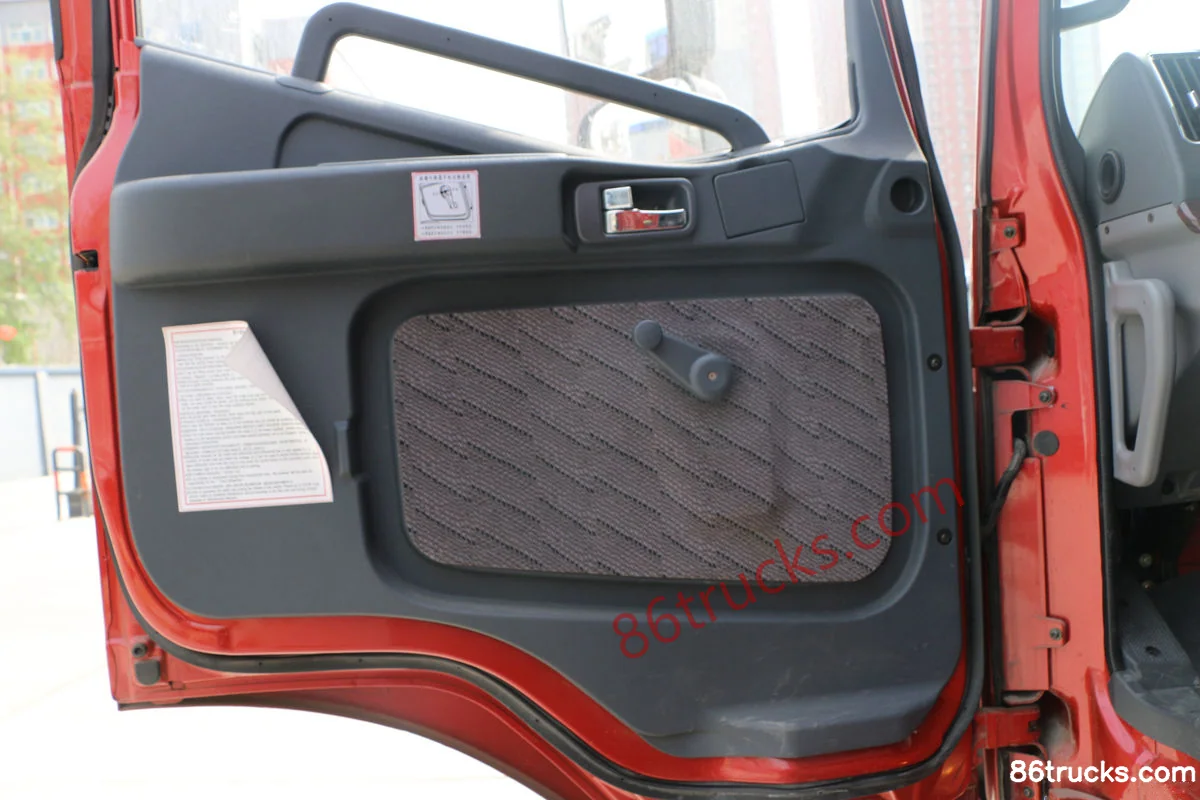

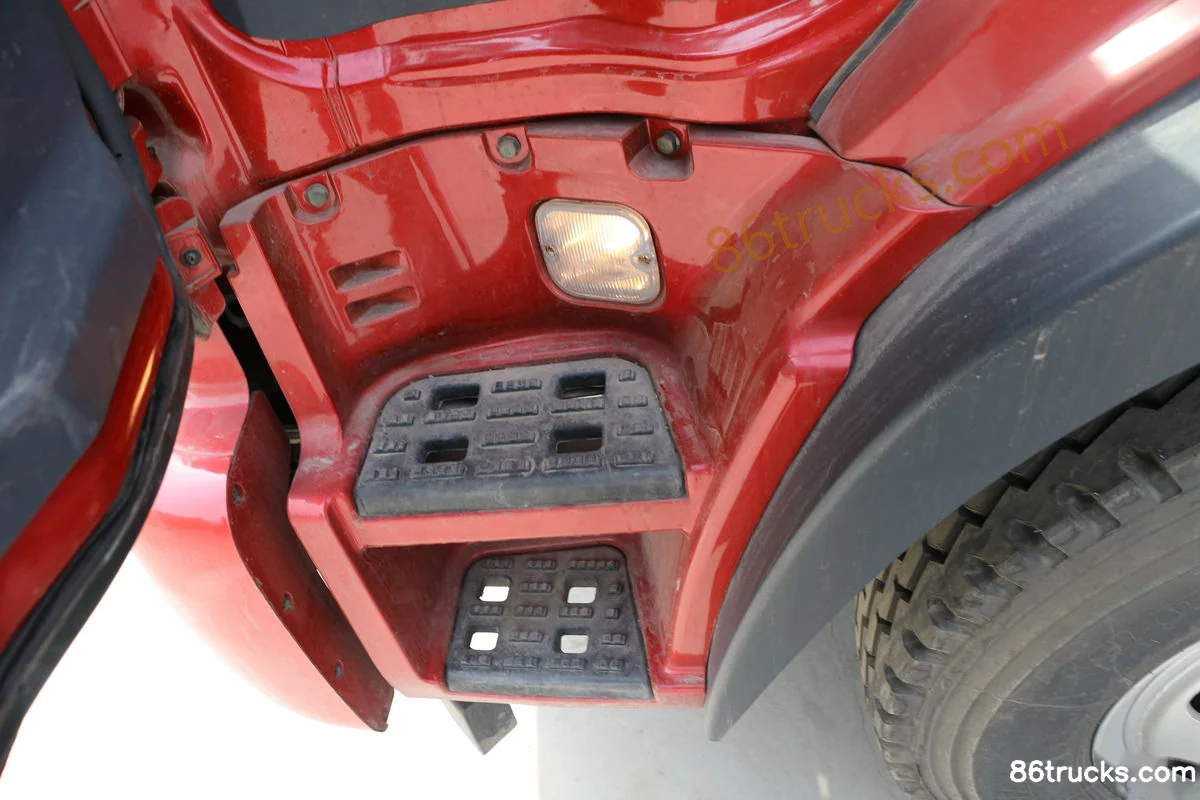

Cab3

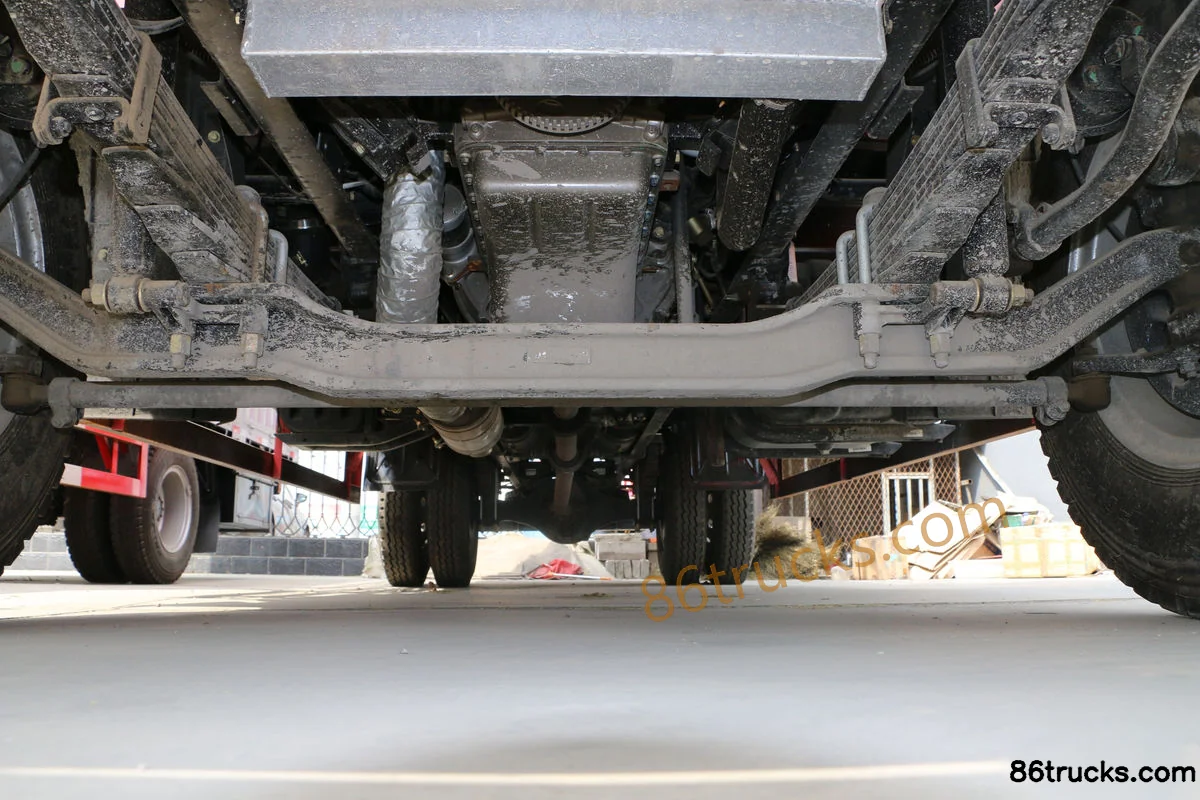

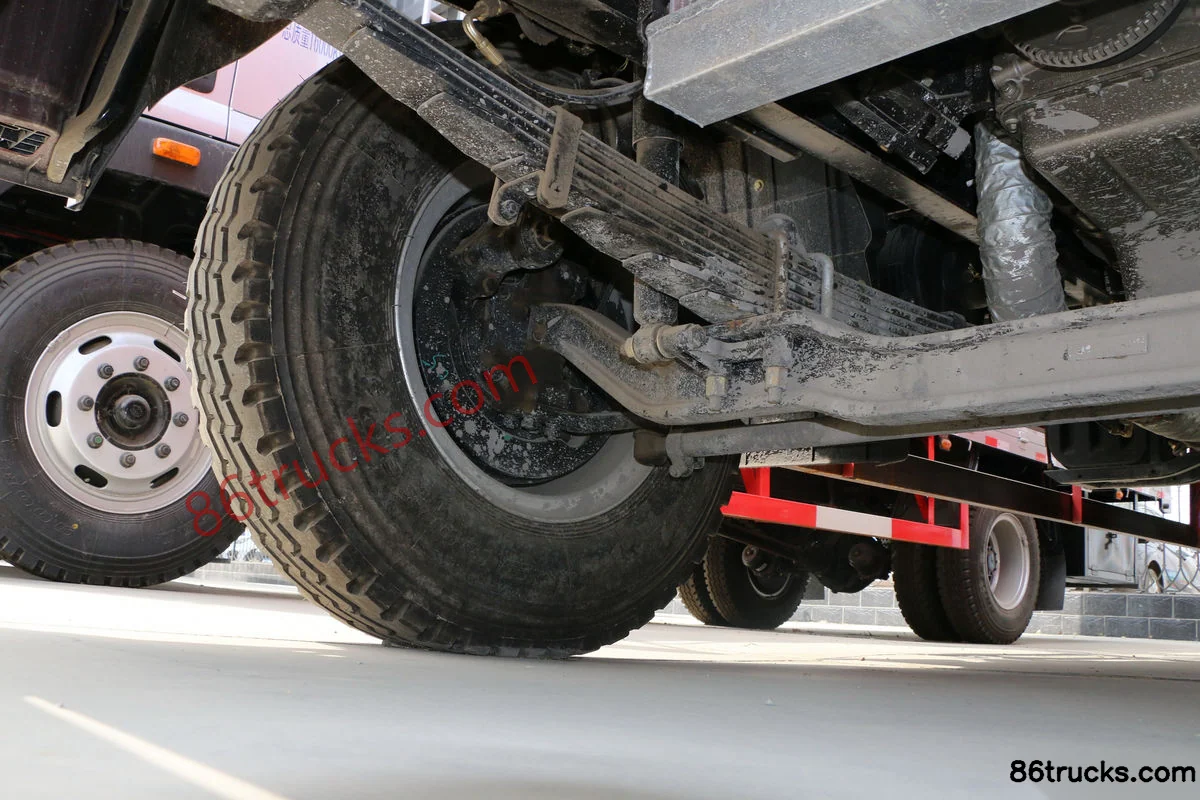

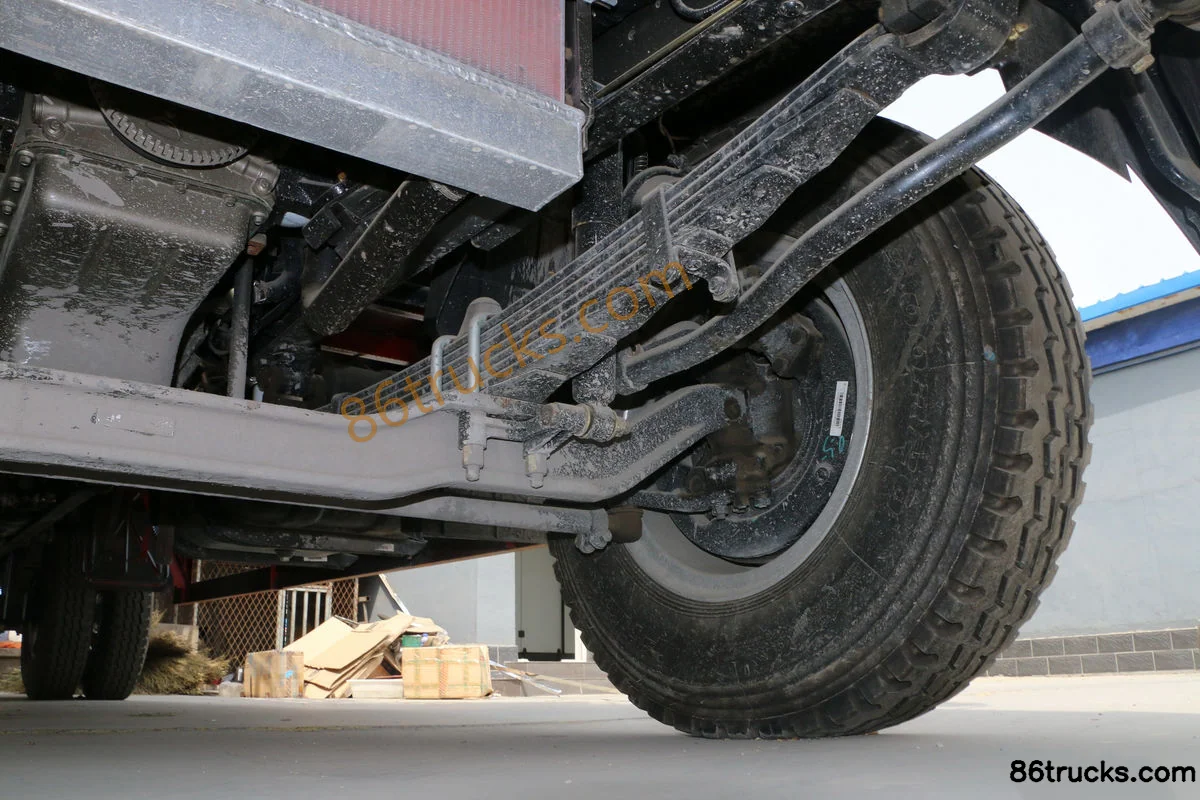

Chassis3

9 photos

FAQ

What emission standard does Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck?

Key specs of Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck: Drive: 4x2; Horsepower: 168 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck suited for?

Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck differ from other variants in the same series?

Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck belongs to FotonQ5 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
