FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck

Export reference
From $10,389
MSRP ¥7.48M CNY
Horsepower: 120
Emission: China II/Euro II
Fuel: Diesel
Engine: Dachai498
Transmission: FAW Jiefang
Curb Weight:: 3.49ton
FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck exterior
View more photos (3)
seating capacity: 3Personnel
Rated payload: 2.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The FAW Hongta FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck is a Light Truck featuring 5.24m cargo length, stake body cargo body, 3Personnel volume and 2.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dachai498 engine, 120 hp, 4X2 (6 wheels) drive and China II/Euro II emissions.

China II/Euro II 120 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA1062PK26L3
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3860mm
Box length class: 5.2m
engine: FAWCA4D32-12
transmission: FAW JiefangCA5T105-3C01
Cab length: 6.995m
Cab width: 2.26m
Cab height: 2.385m
Front track width: 1730mm
rear track: 1620mm
Curb Weight: 3.49ton
Rated payload: 2.8ton
GVWR: 6.485ton
Max. speed: 100km/h
Origin: Changchun, Jilin
tonnage class: Light Truck
market segment: Building materials, agricultural products
Remarks: Electric shutdown, sunroof, laminated glass, 24V electrical system, air brake, exhaust brake. This model's configuration and pricing apply to products manufactured by FAW Hongta Yunnan Automobile Manufacturing Company and FAW Group Harbin Light Truck Factory. 1. Chassis condition based on corresponding model ex-factory price: a. Type II chassis (without floor): single row deduct 2300 RMB/unit, one-and-a-half row deduct 2200 RMB/unit; b. Type II chassis with floor (without cargo side panels and racks): single row deduct 750 RMB/unit, one-and-a-half row deduct 650 RMB/unit; 2. Van body based on corresponding complete vehicle price: a. Type II van structure: single row add 7200 RMB/unit, one-and-a-half row add 6900 RMB/unit; b. Type III van structure: single row add 5300 RMB/unit, one-and-a-half row add 5100 RMB/unit; 3. Stake-side van based on original corresponding complete vehicle price: single row add 3600 RMB/unit, one-and-a-half row add 3400 RMB/unit.
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4D32-12
Engine info: Dachai498
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.168L
Emission standard: China II/Euro II
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 300N·m
Max torque speed: 2000rpm
Rated speed: 3400rpm
Engine Type: Vertical, inline, 4-cylinder, water-cooled, 4-stroke
Transmission Parameters
Transmission Model: FAW JiefangCA5T105-3C01
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.24m
Cargo box width: 2.115m
Cargo box height: 0.56m
*Cargo box interior width: 2.1150000095367
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
rear axle allowable load: 4000kg
Leaf spring count: 7/8+9
Tire
Tire Size: 7.50-16
Number of tires: 6pcs

Photos

Exterior3

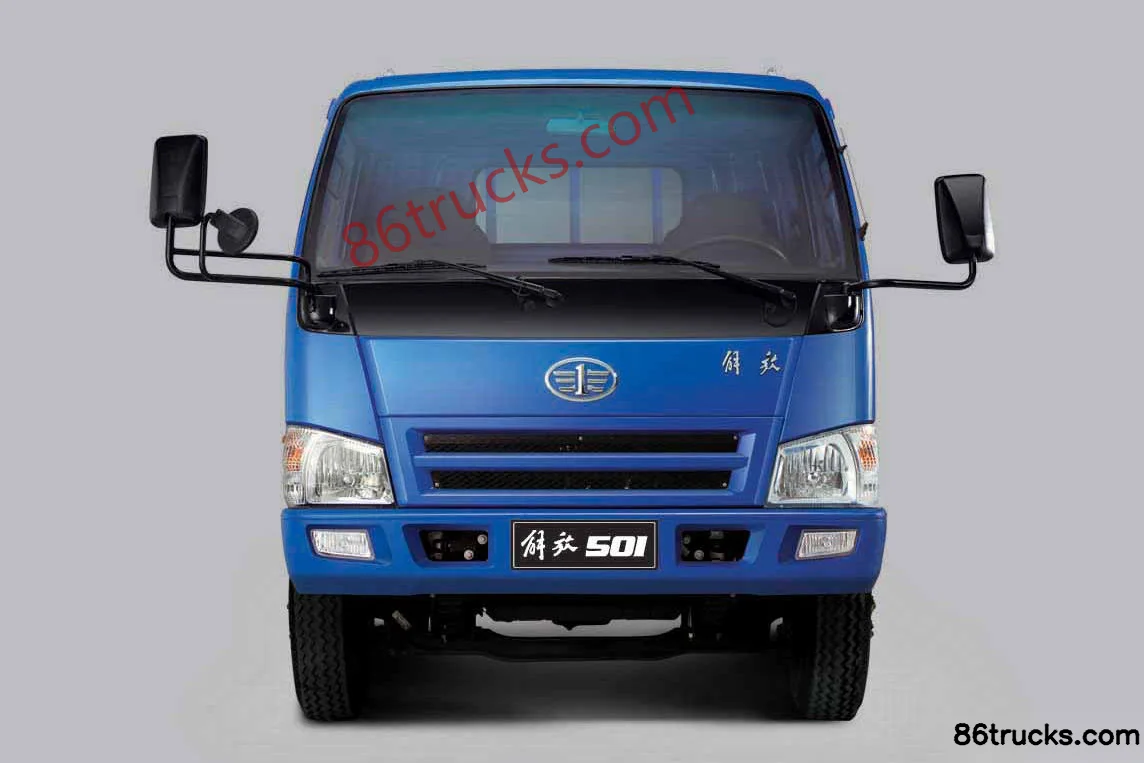

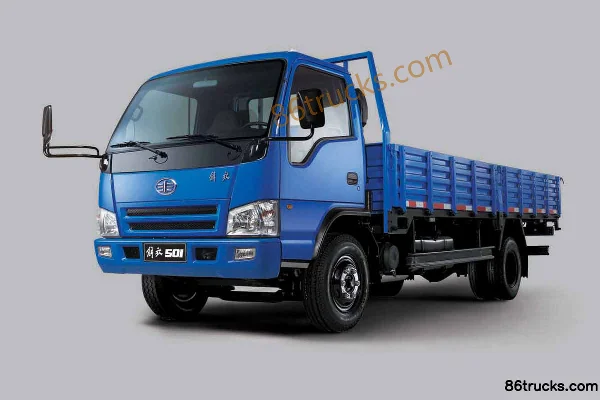

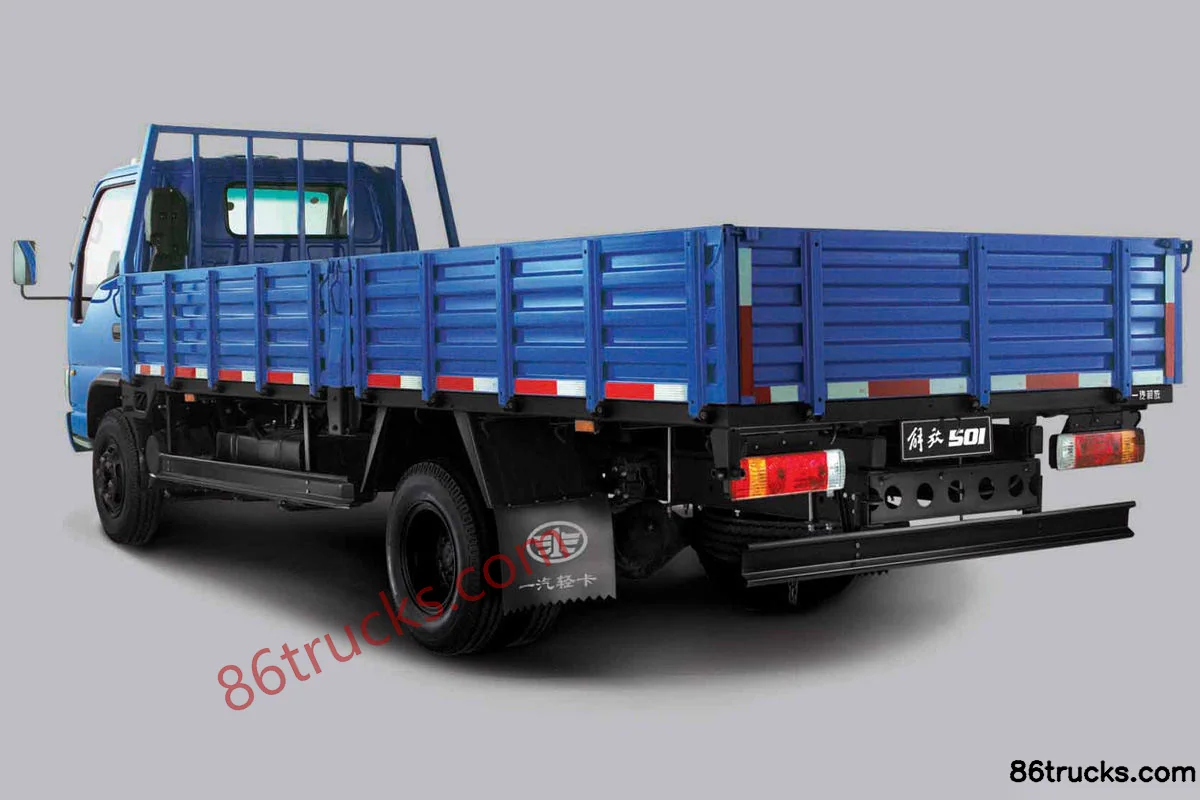

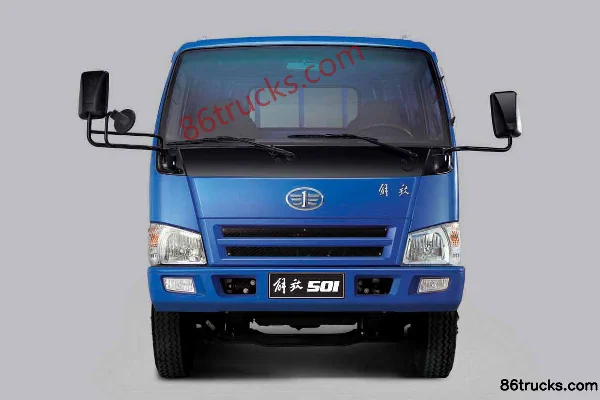

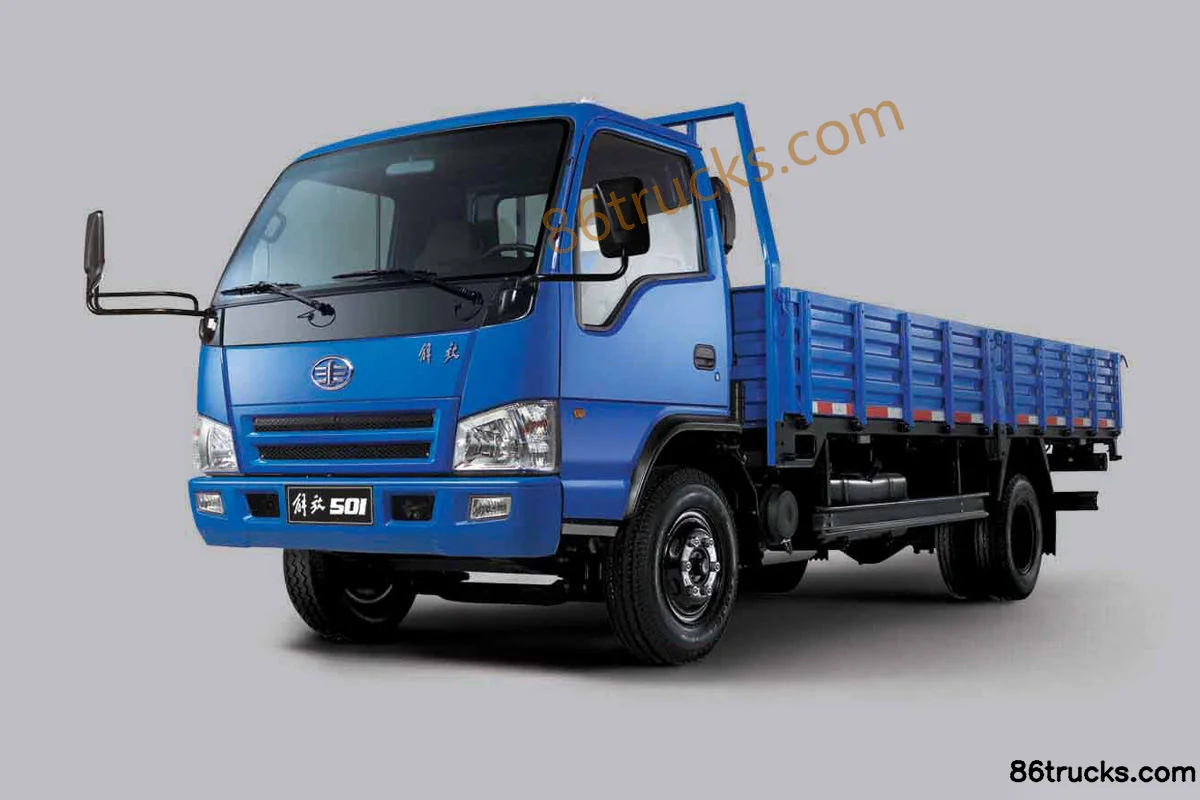

FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck Exterior (1) | 86Trucks FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck Exterior (2) | 86Trucks FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck Exterior (3) | 86Trucks

3 photos

FAQ

What is the export price of FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck, and what does it include?

FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck export reference is about From $10,389; MSRP is ¥7.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck use, and can it enter my country?

This model is listed as China II/Euro II. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck?

Key specs of FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck: Drive: 4x2; Horsepower: 120 hp; Emission: China II/Euro II; Fuel: Diesel; Engine: Dachai498; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck suited for?

FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck differ from other variants in the same series?

FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck belongs to FAW Hongta 501 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW-GM 501-K 120hp 4X2(6 wheels) 5.2m single-row cab flatbed cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
