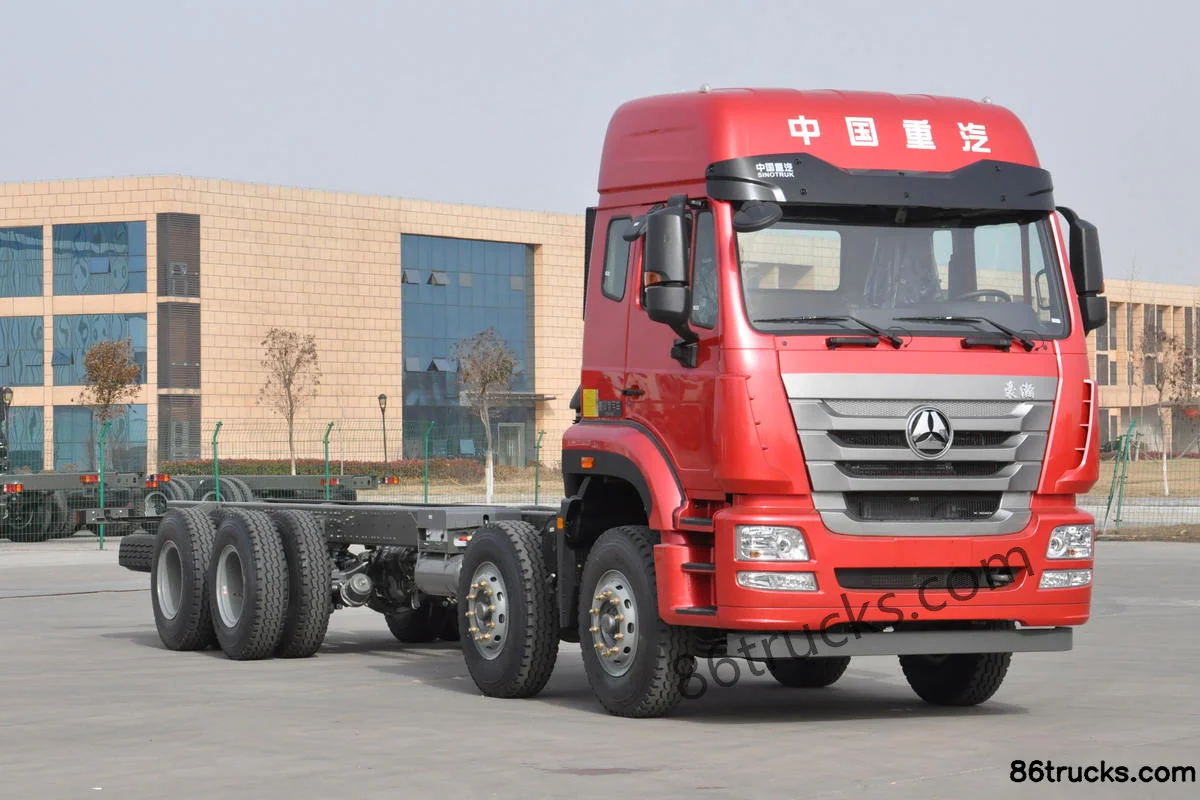

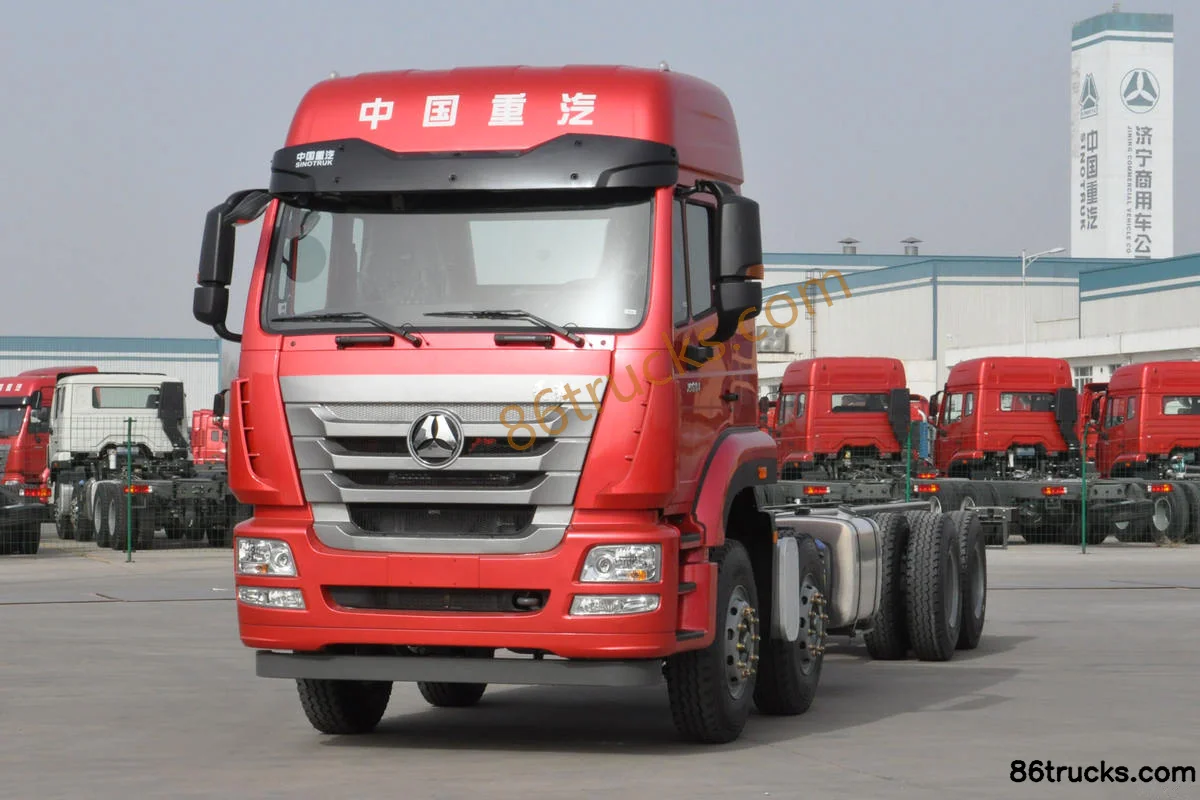

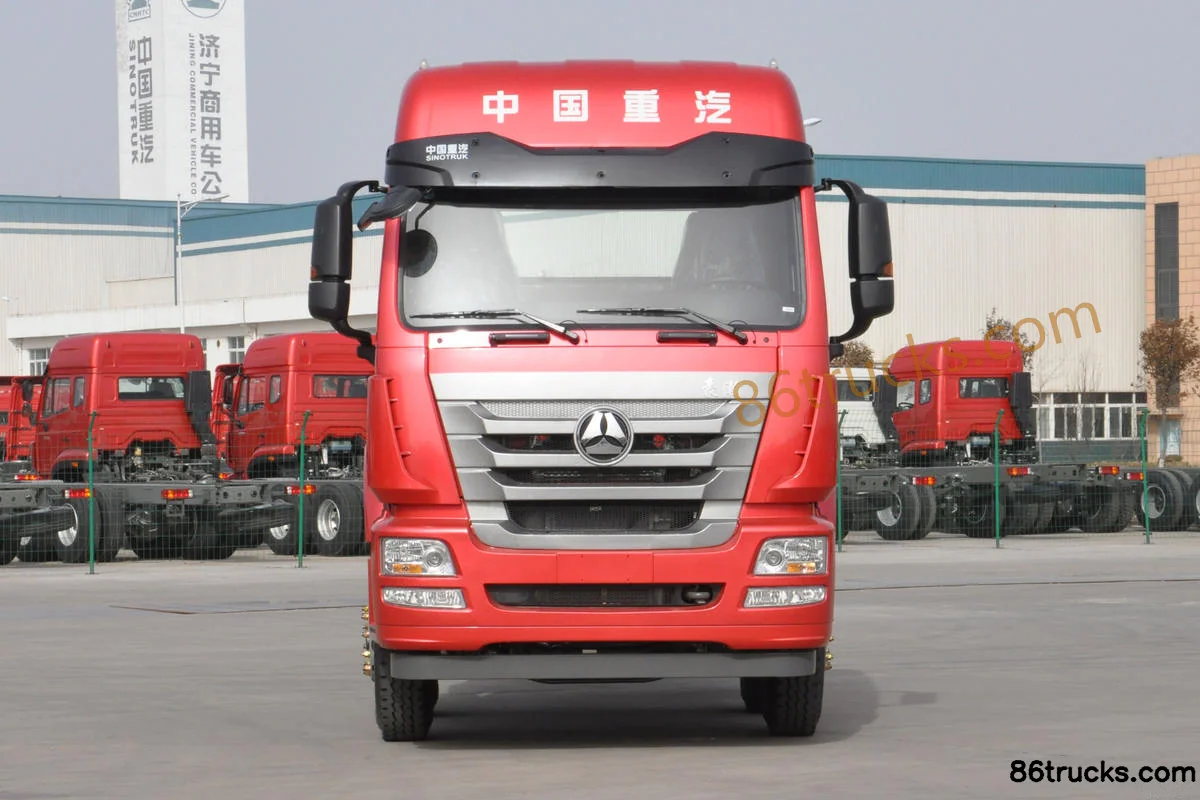

Sinotruk Howan J7B heavy truck 290 hp 8X4(12 wheels) cargo truck chassis

Export reference
From $43,292
MSRP ¥31.17M CNY
Horsepower: 290
Emission: China V
Fuel: LNG (liquefied natural gas)
Engine: Sinotruk6.9L
Transmission: Sinotruk
Curb Weight:: 11.69ton
seating capacity: 3Personnel
Rated payload: 19.18ton
Drive 8X4 (12 wheels)
Cargo box type: Chassis

Overview

The Sinotruk Howan J7B heavy truck 290 hp 8X4(12 wheels) cargo truck chassis is a Heavy truck featuring 9.5m cargo length, Chassis cargo body, 3Personnel volume and 19.18t payload. On the powertrain side, it comes with a Sinotruk6.9L engine, 290 hp, 8X4 (12 wheels) drive and China V emissions.

China V 290 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1315M4663E1L
Type: Chassis
Drive type: 8X4
Wheelbase: 1800+4600+1350mm
engine: SinotrukMT07.29-50
transmission: SinotrukHW16709XSTC
Rear Axle Ratio: 4.875
Cab length: 11.995m
Cab width: 2.496m
Cab height: 3.22m
Front track width: 2022/2022mm
rear track: 1830/1830mm
Curb Weight: 11.69ton
Rated payload: 19.18ton
GVWR: 31ton
Max. speed: 79km/h
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 16°
Front/rear suspension: 1.55/2.695m
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMT07.29-50
Engine info: Sinotruk6.9L
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1500rpm
Rated speed: 2300rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, electronic premix, spark ignition, lean burn
Transmission Parameters
Transmission Model: SinotrukHW16709XSTC
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 9.5m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 450L
Chassis Specs
Front axle description: H153
Front axle allowable load: 6500/7000kg
Frame Dimensions: 850×280×80×(8+5)mm
rear axle description: 153
rear axle allowable load: 17500 (tandem axle)kg
Axle ratio: 4.875
Leaf spring count: 4/4/-,4/4/5,4/4/12,11/11/12
Tire
Tire Size: 11.00R20,12.00R20,12R22.5/295/315
Number of tires: 12pcs
Control configuration
ABS:

Photos

Exterior3

3 photos

FAQ

What is the export price of Sinotruk Howan J7B heavy truck 290 hp 8X4(12 wheels) cargo truck chassis, and what does it include?

Sinotruk Howan J7B heavy truck 290 hp 8X4(12 wheels) cargo truck chassis export reference is about From $43,292; MSRP is ¥31.17M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Howan J7B heavy truck 290 hp 8X4(12 wheels) cargo truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Howan J7B heavy truck 290 hp 8X4(12 wheels) cargo truck chassis?

Key specs of Sinotruk Howan J7B heavy truck 290 hp 8X4(12 wheels) cargo truck chassis: Drive: 8x4; Horsepower: 290 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Engine: Sinotruk6.9L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Howan J7B heavy truck 290 hp 8X4(12 wheels) cargo truck chassis suited for?

Sinotruk Howan J7B heavy truck 290 hp 8X4(12 wheels) cargo truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Howan J7B heavy truck 290 hp 8X4(12 wheels) cargo truck chassis differ from other variants in the same series?

Sinotruk Howan J7B heavy truck 290 hp 8X4(12 wheels) cargo truck chassis belongs to Sinotruk J7B Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Howan J7B heavy truck 290 hp 8X4(12 wheels) cargo truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Howan J7B heavy truck 290 hp 8X4(12 wheels) cargo truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
