IVECO Daily medium truck 170hp 4X4(6 wheels) single-row cargo truck chassis

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: NAVECO
Curb Weight:: 2.7ton
Wheelbase:: 3400mm
Tire Size:: 255/100R16
seating capacity: 2Personnel
Drive 4X4 (6 wheels)
Cargo box type: Chassis
Horsepower 170

Overview

The IVECO Daily medium truck 170hp 4X4(6 wheels) single-row cargo truck chassis is a Medium-duty truck featuring Chassis cargo body, 2Personnel volume and 3400mm wheelbase. On the powertrain side, it comes with a FiatFPT F1CFL411F engine, 170 hp, 4X4 (6 wheels) drive and China V emissions.

China V 170 Diesel 4X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Type: Chassis
Drive type: 4X4
Wheelbase: 3400mm
engine: FiatFPT F1CFL411F
transmission: NAVECO 6-speed
Rear Axle Ratio: 4.875
Cab length: 5.42m
Cab width: 2.35m
Cab height: 2.597m
Curb Weight: 2.7ton
GVWR: 5.5ton
Max. speed: 90km/h
Origin: Italy
tonnage class: Medium-duty truck
Energy Type: Diesel
Engine parameters
Engine Brand: Fiat
Engine Model: FiatFPT F1CFL411F
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.998L
Emission standard: China V
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 400N·m
Max torque speed: 1250-2350rpm
Rated speed: 3500rpm
Engine Type: 4-cylinder inline, direct injection, turbocharged & intercooled, high-pressure common rail
Transmission Parameters
Transmission Model: NAVECO 6-speed
Transmission Brand: NAVECO
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row

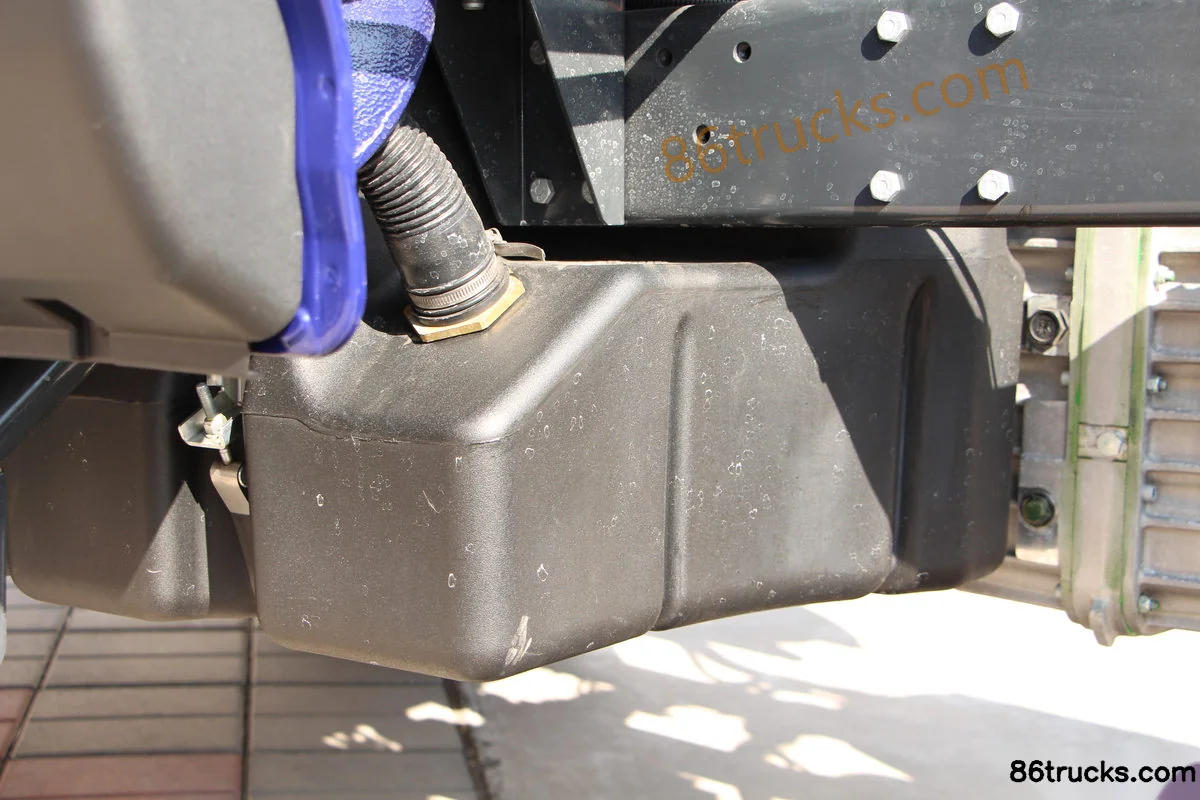

fuel tank
Fuel tank capacity: 90L
Chassis Specs
Axle ratio: 4.875
Tire
Tire Size: 255/100R16
Number of tires: 4pcs

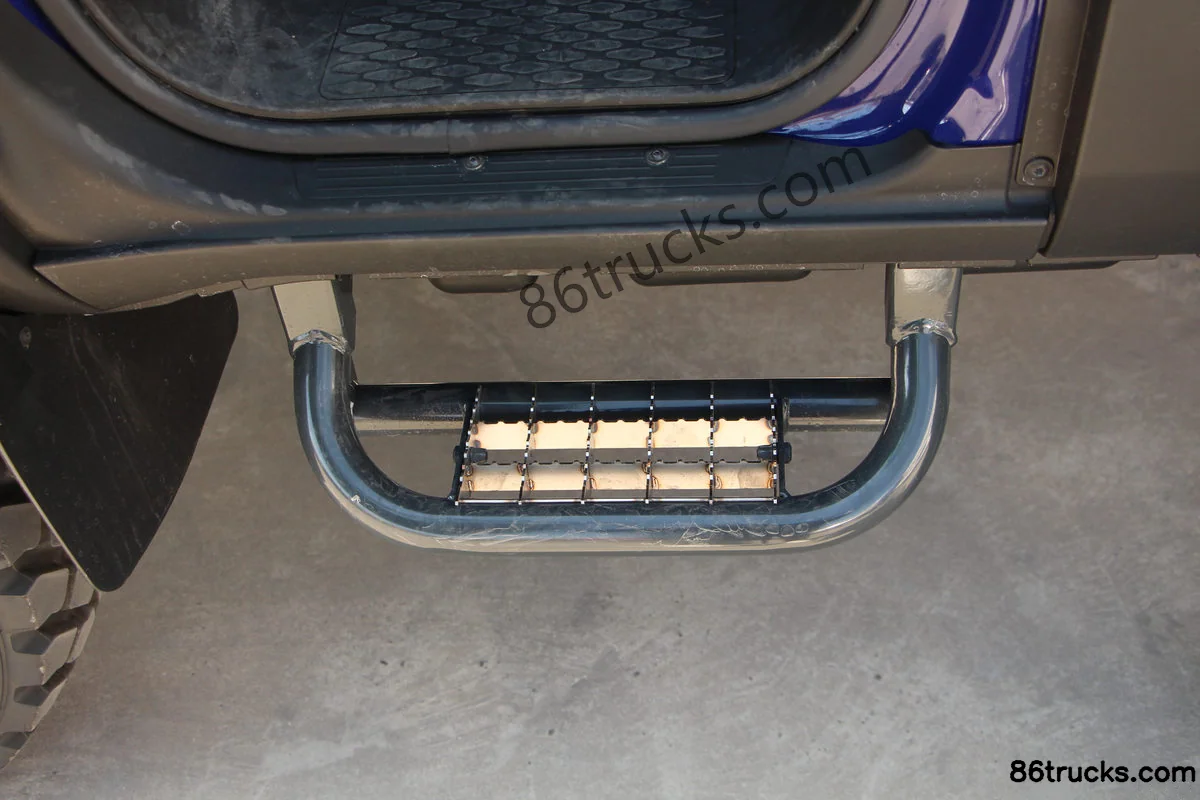

Photos

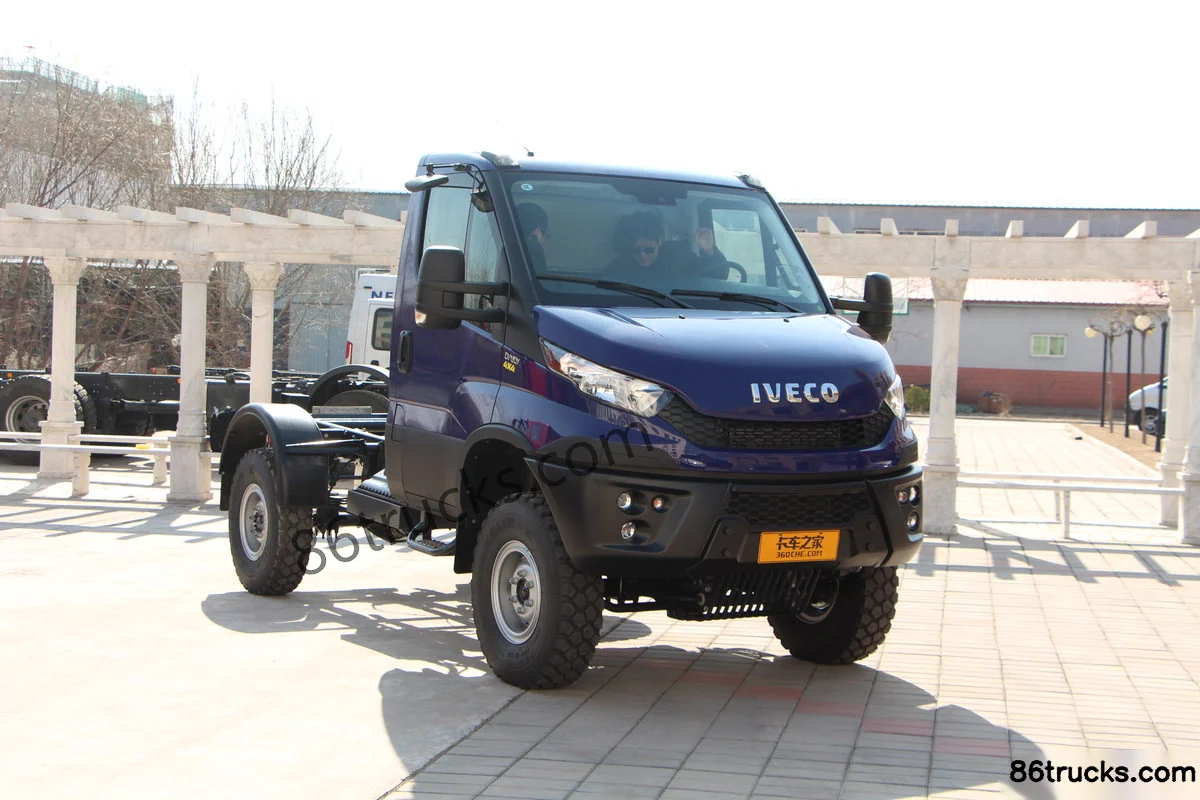

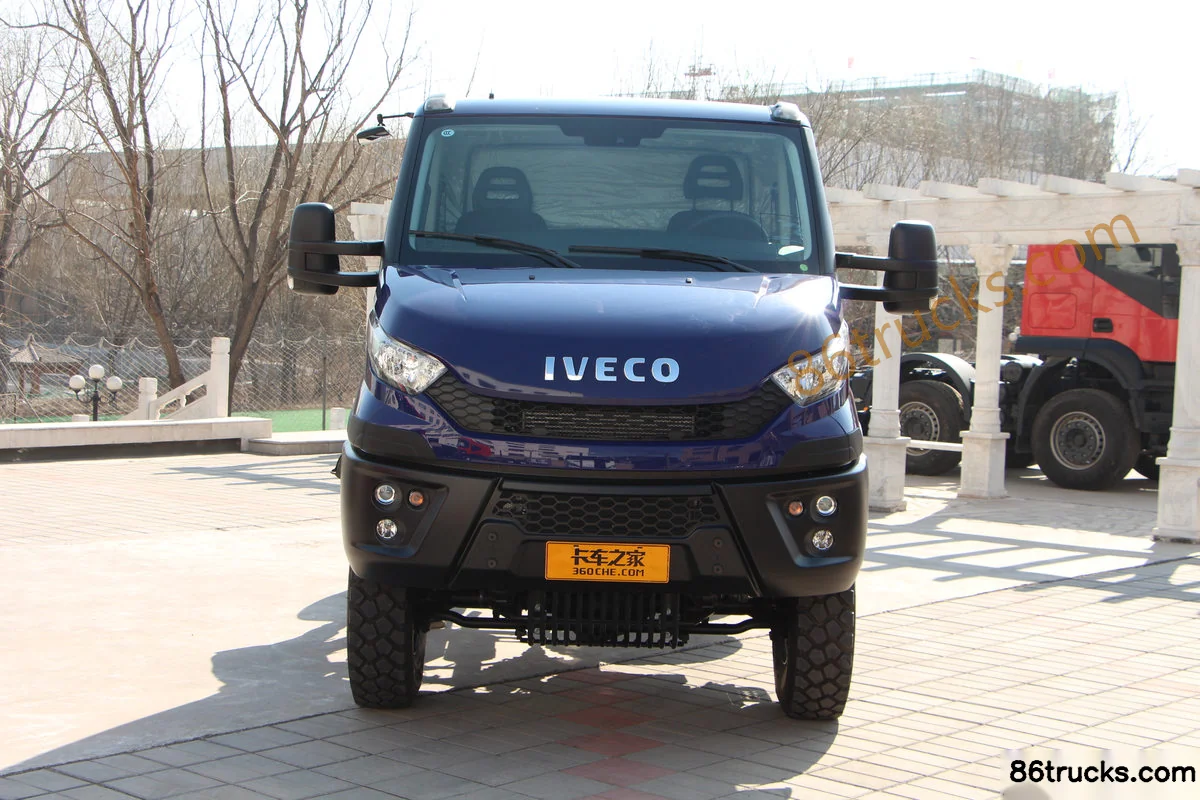

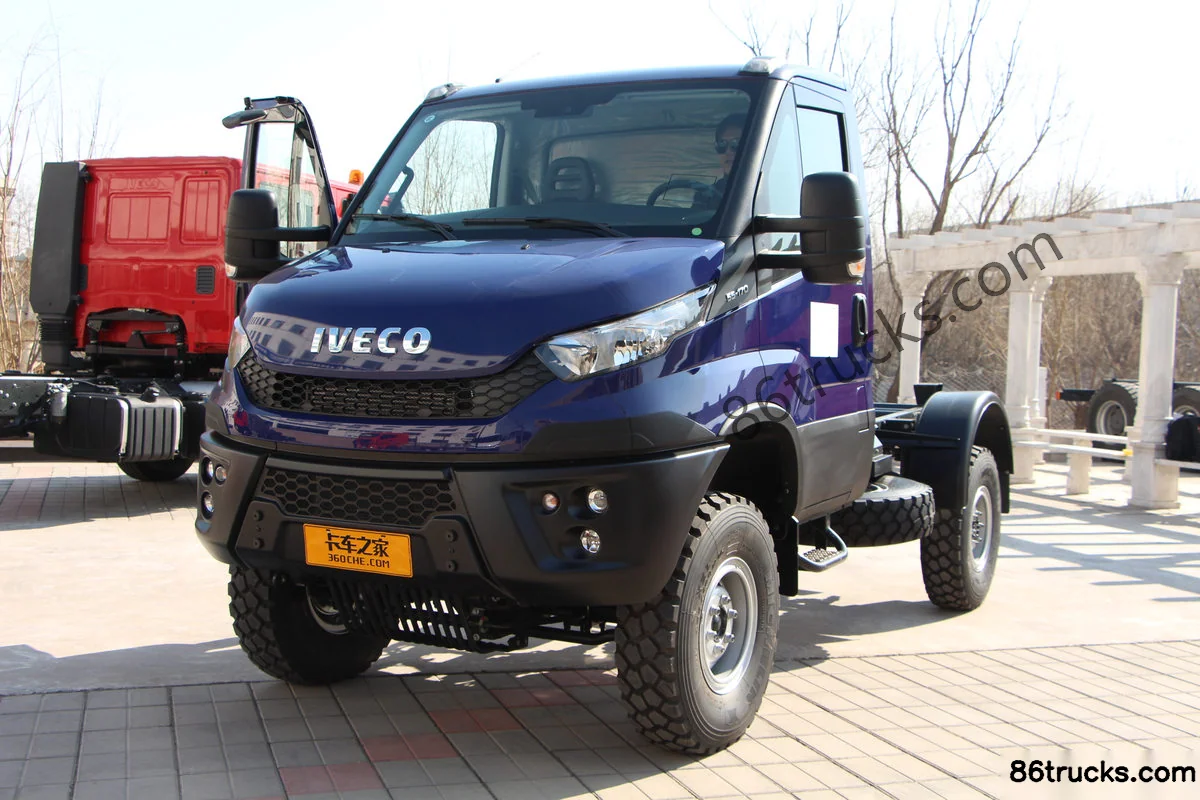

Exterior3

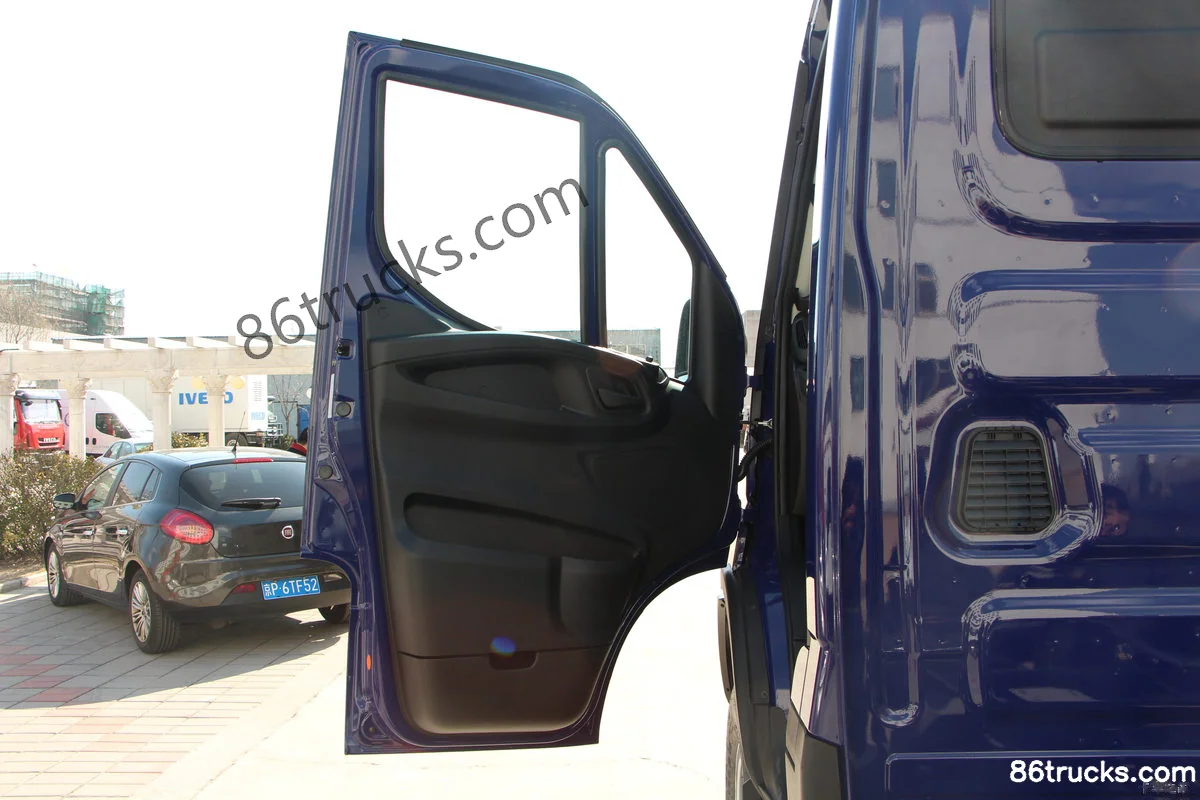

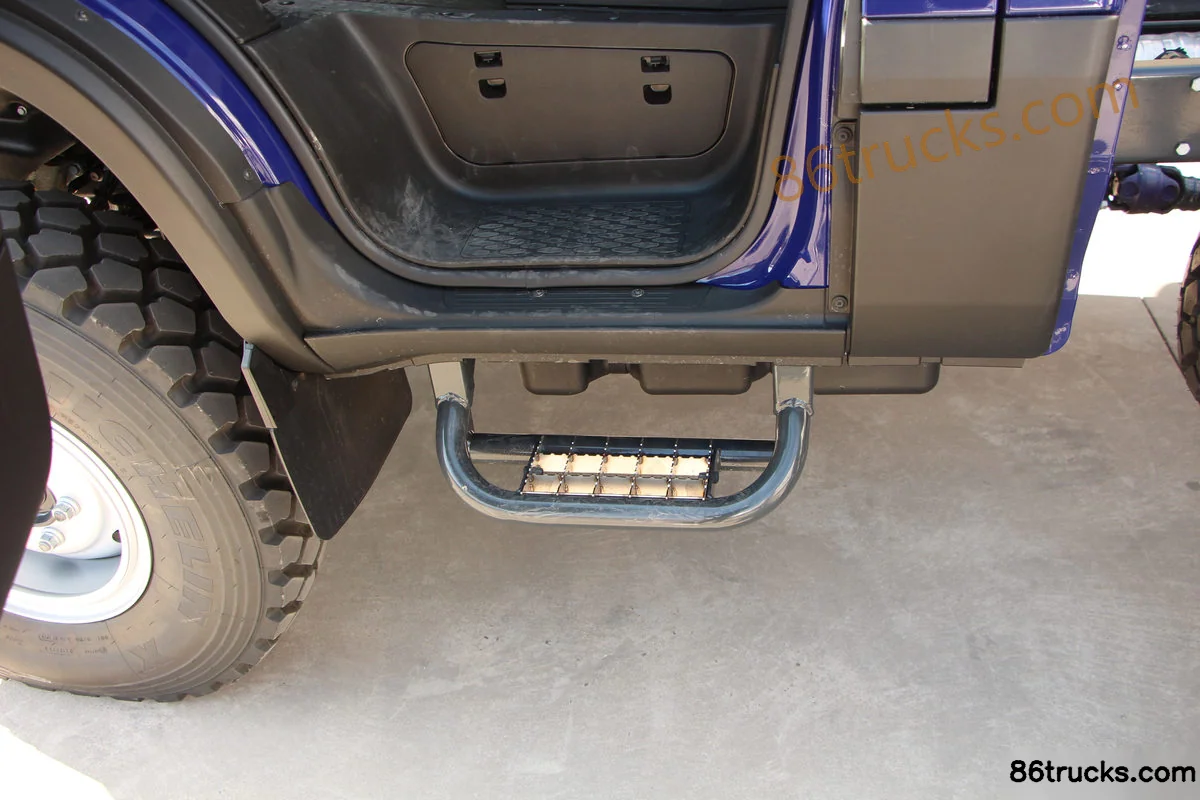

Cab3

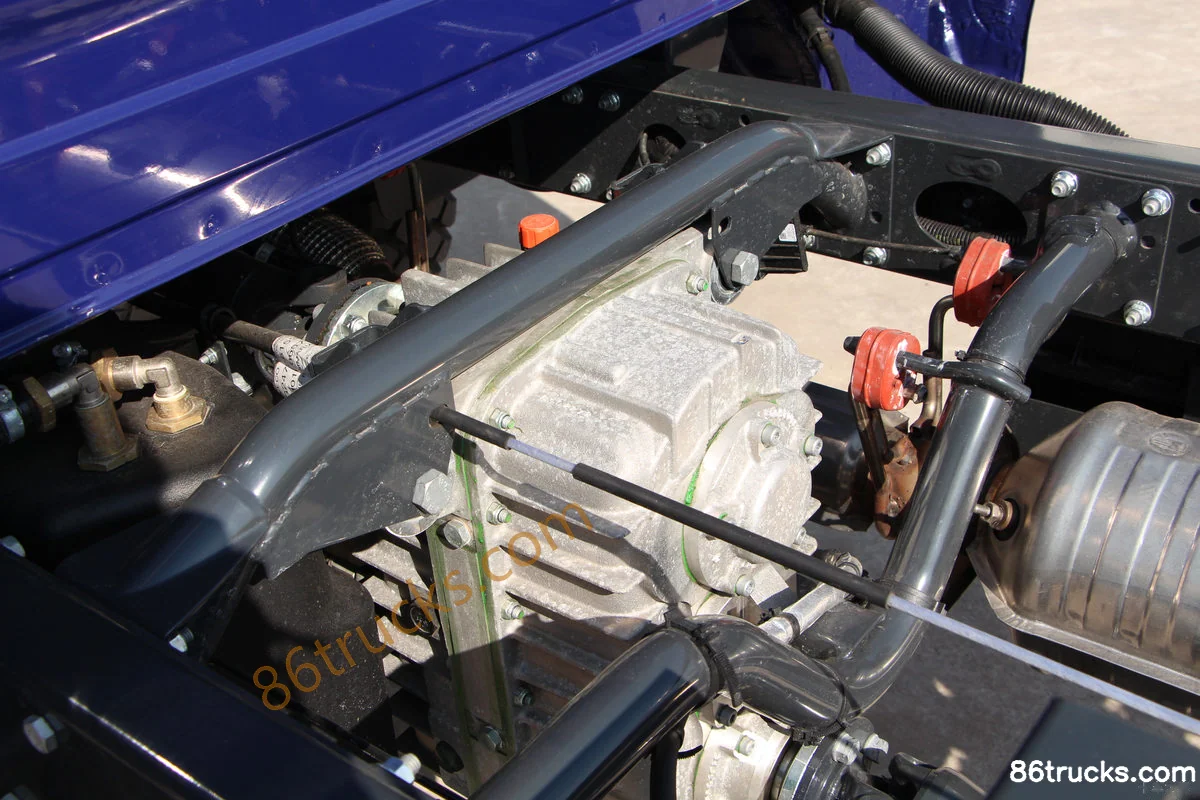

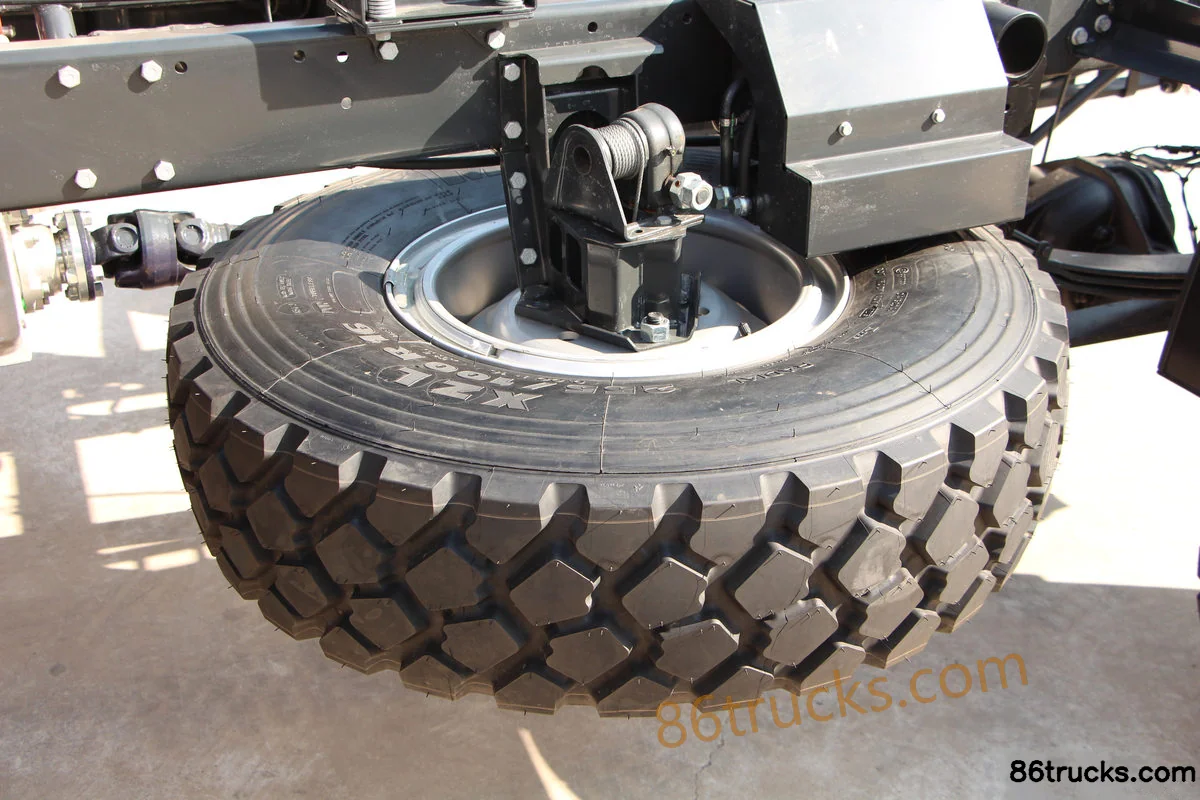

Chassis3

9 photos

FAQ

What emission standard does IVECO Daily medium truck 170hp 4X4(6 wheels) single-row cargo truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of IVECO Daily medium truck 170hp 4X4(6 wheels) single-row cargo truck chassis?

Key specs of IVECO Daily medium truck 170hp 4X4(6 wheels) single-row cargo truck chassis: Drive: 4x4; Horsepower: 170 hp; Emission: China V; Fuel: Diesel; Transmission: NAVECO. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is IVECO Daily medium truck 170hp 4X4(6 wheels) single-row cargo truck chassis suited for?

IVECO Daily medium truck 170hp 4X4(6 wheels) single-row cargo truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does IVECO Daily medium truck 170hp 4X4(6 wheels) single-row cargo truck chassis differ from other variants in the same series?

IVECO Daily medium truck 170hp 4X4(6 wheels) single-row cargo truck chassis belongs to IVECO Daily Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for IVECO Daily medium truck 170hp 4X4(6 wheels) single-row cargo truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export IVECO Daily medium truck 170hp 4X4(6 wheels) single-row cargo truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
