Dongfeng Liuqi Chenglong H5 Medium Truck 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 240
Emission: China V
Fuel: Diesel
Engine: Yuchai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 9.31ton
seating capacity: 3Personnel
Rated payload: 14.995ton
Drive 6X2 (8 wheels)
Cargo box type: Van body

Overview

The Dongfeng Liuqi Chenglong H5 Medium Truck 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck is a Medium-duty truck featuring 9.6m cargo length, Van body cargo body, 3Personnel volume and 14.995t payload. Its segment focus covers Agricultural product transport, logistics distribution and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai 6-cylinder engine, 240 hp, 6X2 (8 wheels) drive and China V emissions.

China V 240 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ5252XXYM3CB
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 1950+5450mm
Box length class: 9.6m
engine: YuchaiYC6JA240-50
transmission: Fast Gear8JS105TA
Rear Axle Ratio: 4.875
Cab length: 12m
Cab width: 2.55m
Cab height: 3.85m
Front track width: 2040/2040mm
rear track: 1860mm
Curb Weight: 9.31ton
Rated payload: 14.995ton
GVWR: 24.5ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 11°
market segment: Agricultural product transport, logistics distribution, LTL transport, daily bulk cargo
Front/rear suspension: 1.445/2.655m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA240-50
Engine info: Yuchai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 177kW
Max hp: 240Horsepower
Max torque: 950N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Common Rail SCR
Transmission Parameters
Transmission Model: Fast Gear8JS105TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.6m
Cargo box width: 2.45m
Cargo box height: 2.7m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 350L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 10/10/12+9
Tire
Tire Size: 11.00R20,11R22.5
Number of tires: 8pcs
Control configuration
ABS:

Photos

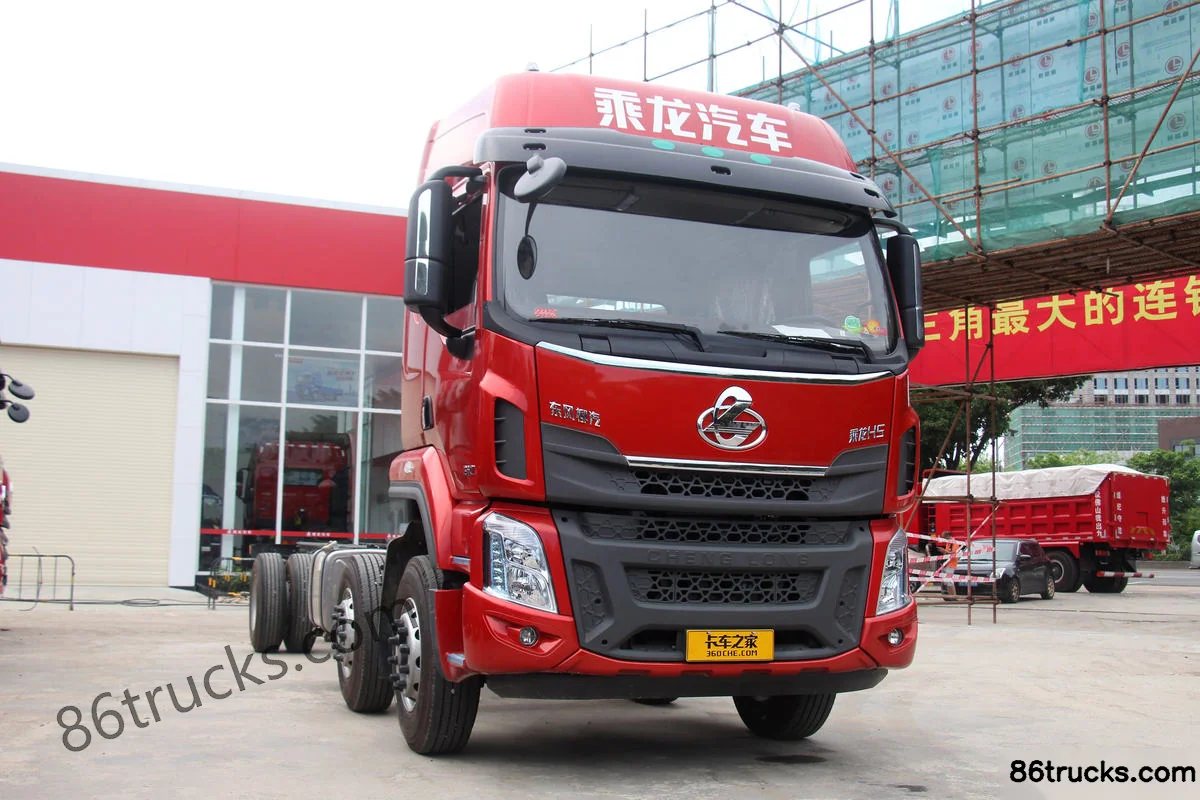

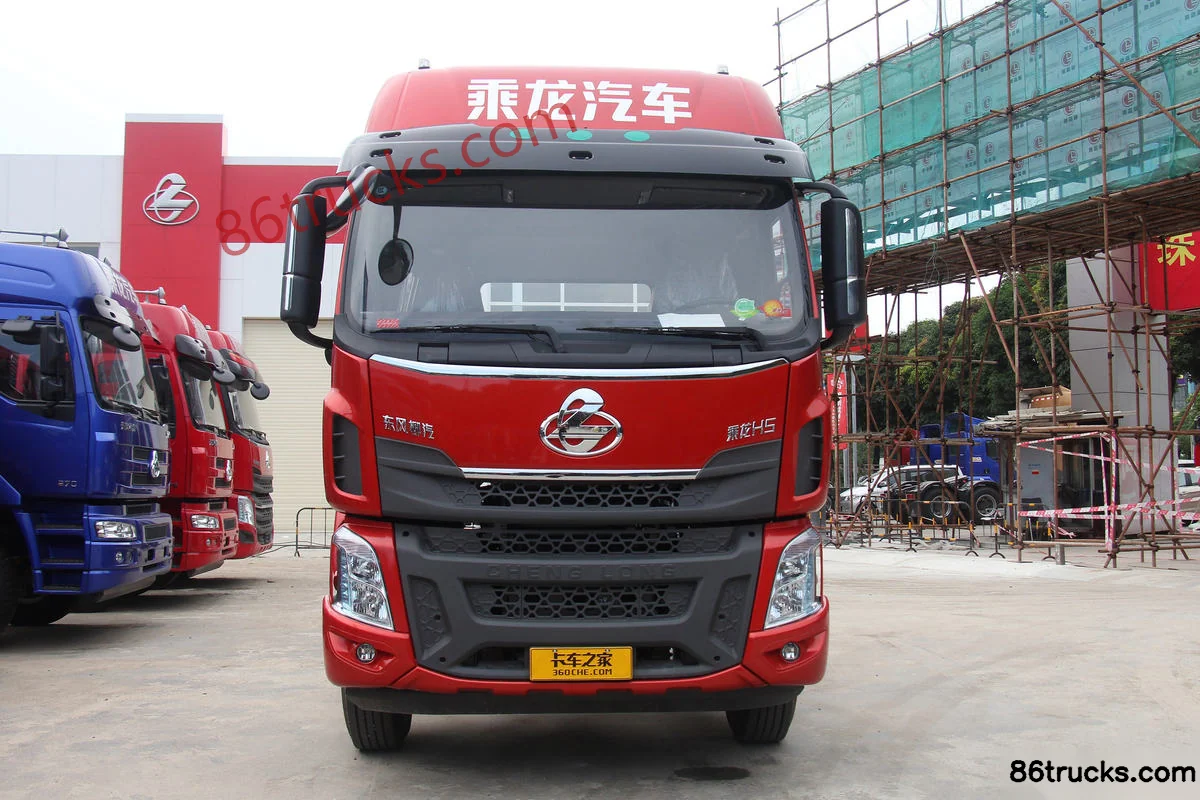

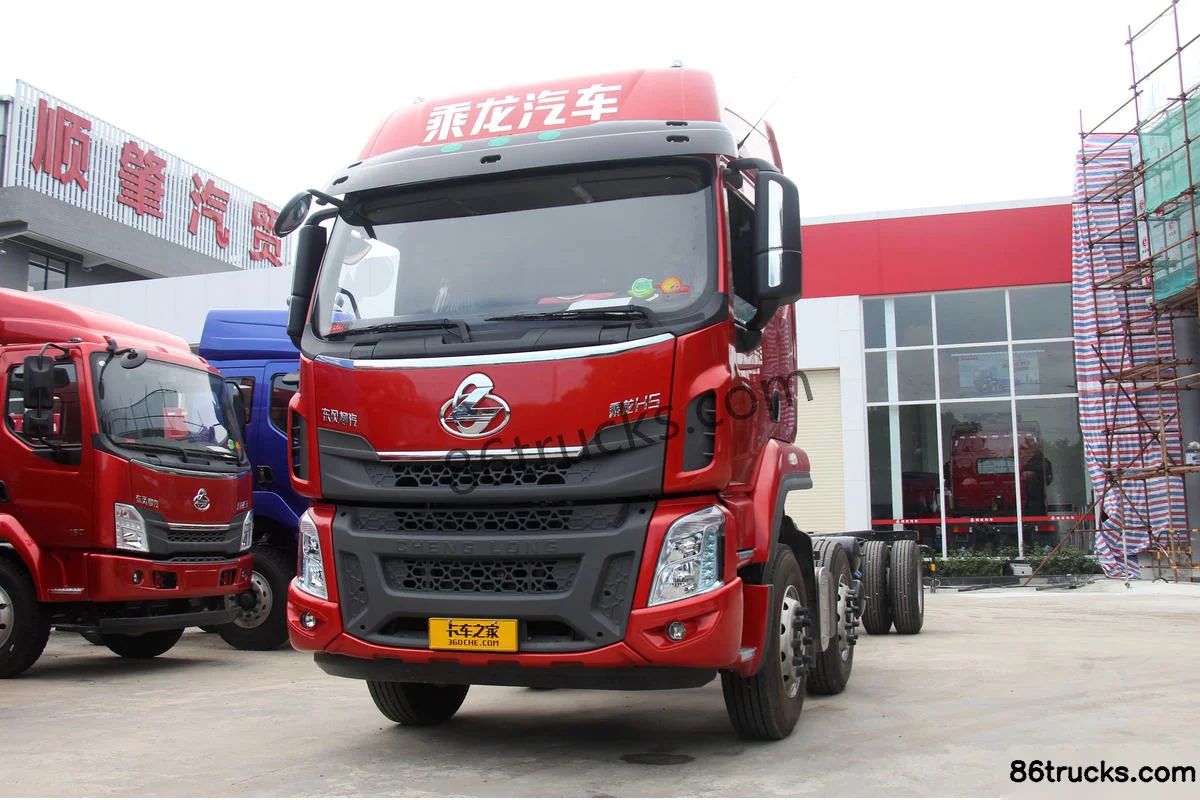

Exterior3

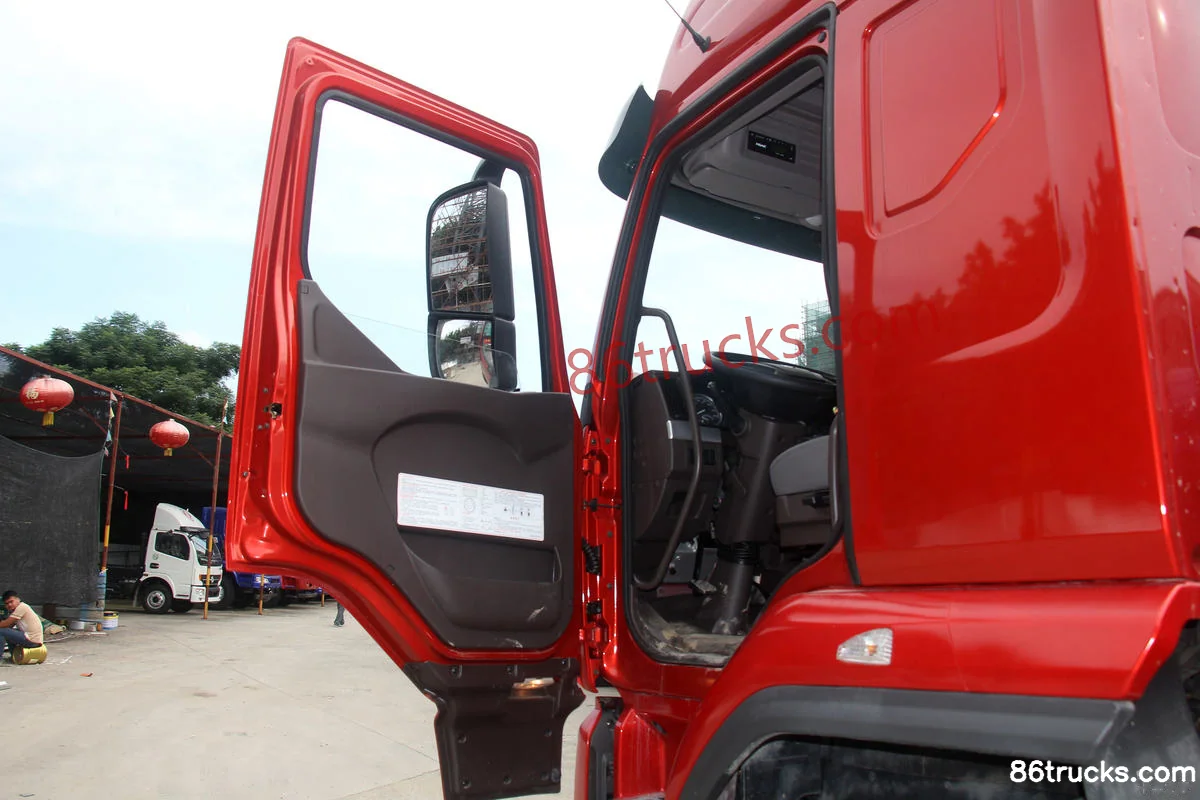

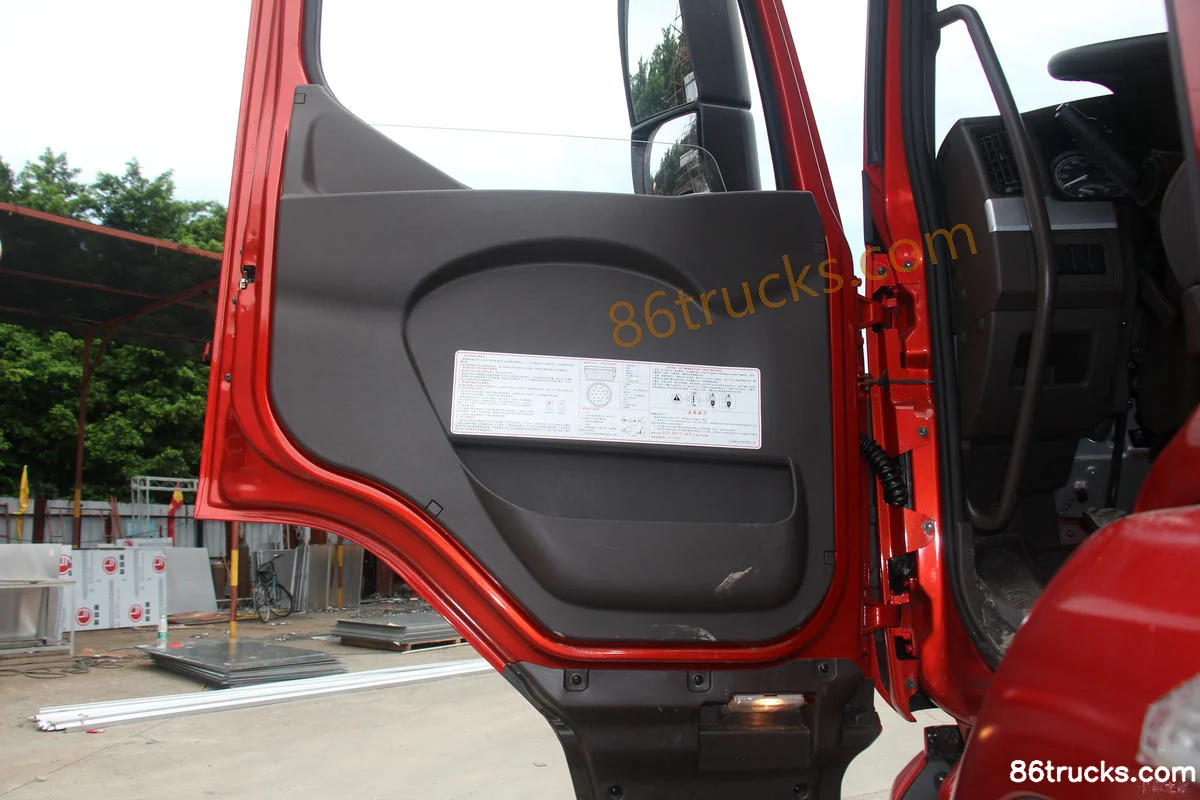

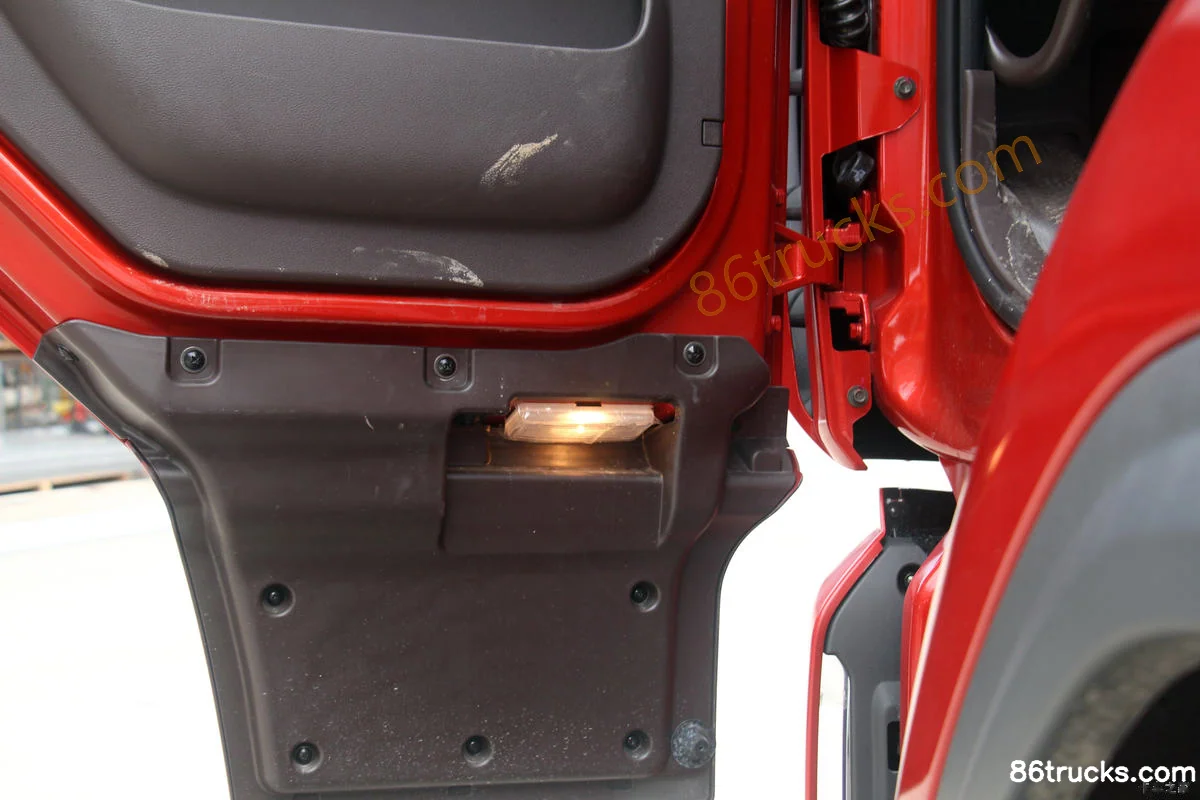

Cab3

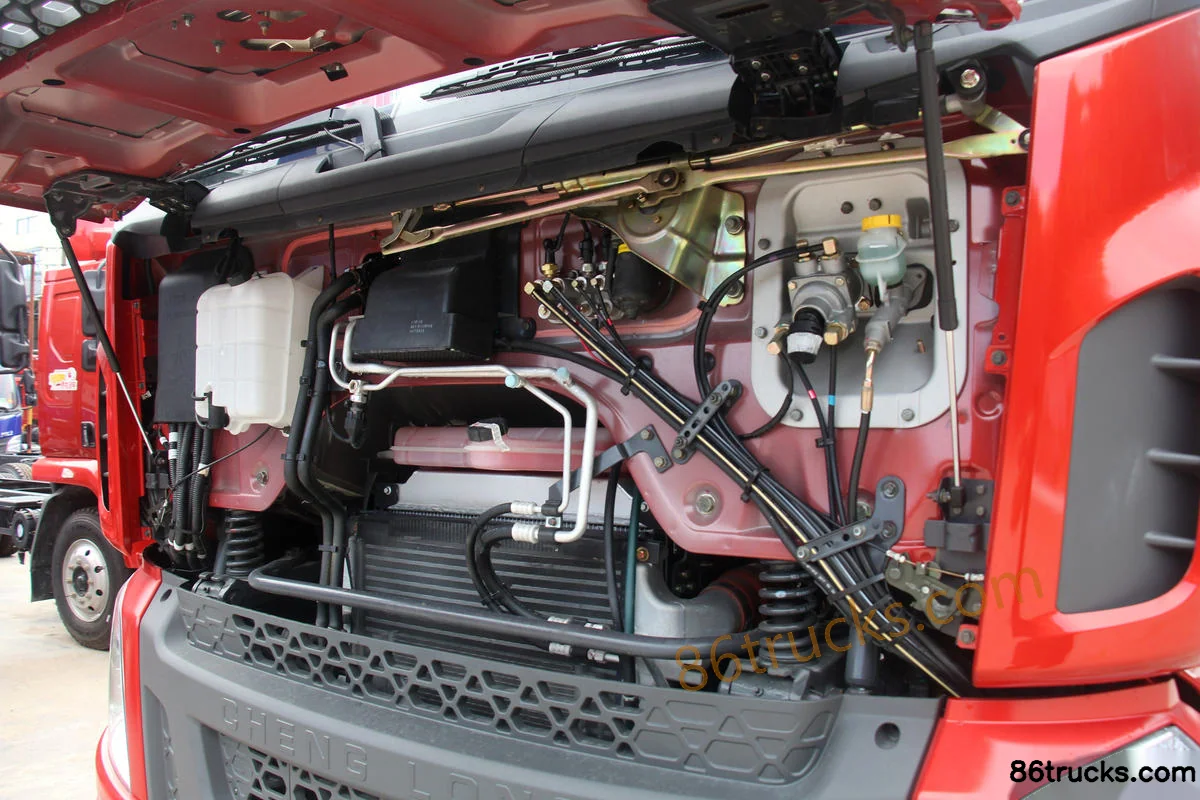

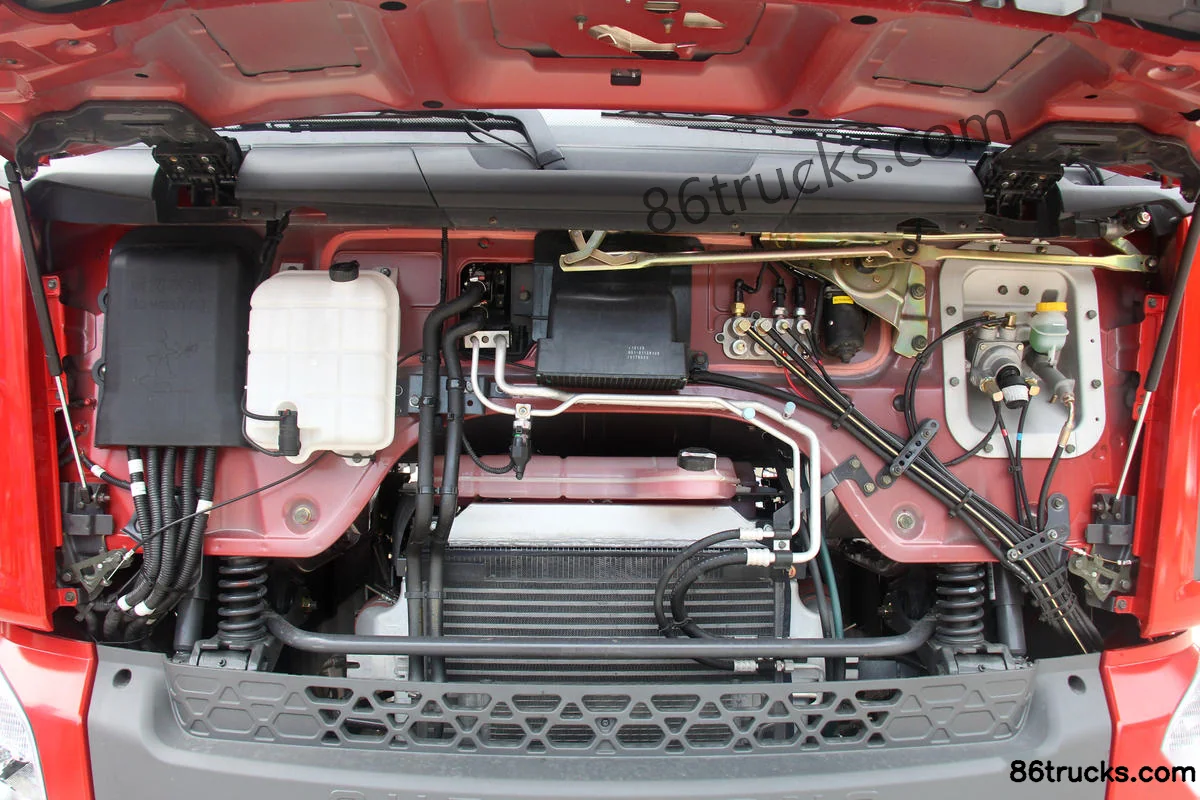

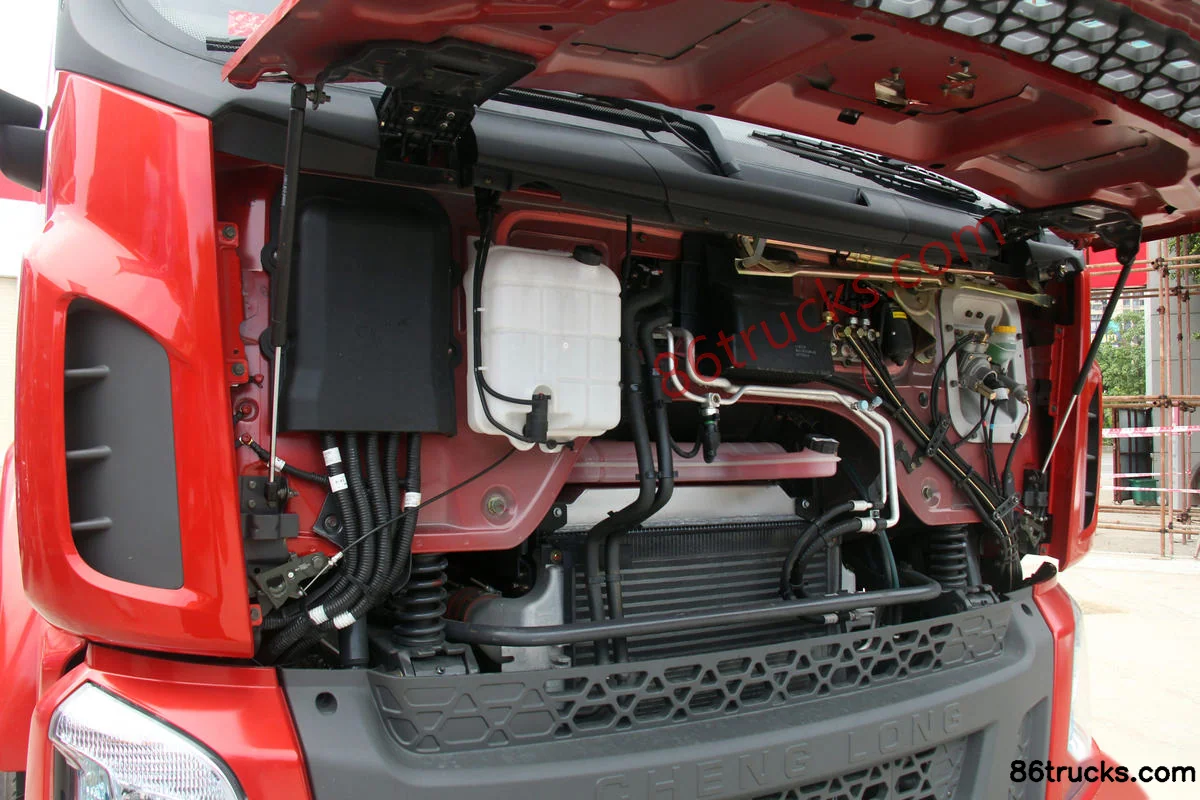

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Liuqi Chenglong H5 Medium Truck 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H5 Medium Truck 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck?

Key specs of Dongfeng Liuqi Chenglong H5 Medium Truck 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck: Drive: 6x2; Horsepower: 240 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H5 Medium Truck 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck suited for?

Dongfeng Liuqi Chenglong H5 Medium Truck 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Liuqi Chenglong H5 Medium Truck 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck differ from other variants in the same series?

Dongfeng Liuqi Chenglong H5 Medium Truck 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck belongs to Dongfeng H5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H5 Medium Truck 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H5 Medium Truck 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
