FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck

Export reference

MSRP N/A

Emission: China VI

Fuel: Diesel

Transmission: FAW Jiefang

Curb Weight:: 14.3ton

Wheelbase:: 1900+2600+1350mm

Tire Size:: 11.00R20

FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck exterior

View more photos (6)

Rated payload: 16.57ton

Drive 8X4 (12 wheels)

Horsepower 320

Cargo box length: 5.8m

Overview

The FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck is a Heavy truck featuring 16.57t payload, 31t GVW, 5.8m cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a DachaiCA6DK1-32E6 engine, 320 hp, China VI emissions and FAW Jiefang transmission.

China VI 320 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Model code (announced): CA3310P62K1LT4AE6

Drive type: 8X4

Wheelbase: 1900+2600+1350mm

engine: DachaiCA6DK1-32E6

transmission: FAW JiefangCA10TA130F

Rear Axle Ratio: 5.263

Cab length: 8.445m

Cab width: 2.55m

Cab height: 3.1m

Front track width: 1938/1938mm

rear track: 1860/1860mm

Curb Weight: 14.3ton

Rated payload: 16.57ton

GVWR: 31ton

Origin: Qingdao/Chengdu

tonnage class: Heavy truck

Approach angle: 21°

departure angle: 18°

Remarks: Digital instrument cluster, power windows, manual mirrors, side mesh pockets, lumbar support, single-DIN Beidou-compatible telematics system, front underrun protection, metal bumper, desert air filter, cab four-point coil spring suspension, electric hydraulic cab lift, LED turn signals, with FARIZON loan function, 120Ah maintenance-free battery, seat belt reminder, brake lining wear indicator.

Energy Type: Diesel

Engine parameters

Engine Brand: Dachai

Engine Model: DachaiCA6DK1-32E6

Number of cylinders: 6cylinder

fuel type: Diesel

Displacement: 7.2L

Emission standard: China VI

Max output power: 239kW

Max hp: 320Horsepower

Max torque: 1300N·m

Max torque speed: 1200-1700rpm

Rated speed: 2300rpm

Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC

Transmission Parameters

Transmission Model: FAW JiefangCA10TA130F

Transmission Brand: FAW Jiefang

Forward gears: 10Gear

Number of Reverse Gears: 2pcs

Body Parameters

Lifting type: Electric hydraulic lift device

Cargo box parameters

Cargo box length: 5.8m

Cargo box width: 2.2m

Cargo box height: 0.8m

Cab parameters

Cab: New J6L Full-Float Flat-Top Cab with Semi-Sleeper

Driver seat type: air suspension seat

fuel tank

Fuel tank material: aluminum alloy

Fuel tank capacity: 300L

Chassis Specs

Front axle description: New F5N-1950 Front Axle

Front axle allowable load: 6500/6500kg

Frame Dimensions: 270×75×(7+5)mm

rear axle description: Qingte Φ233 hub-reduction axle

rear axle allowable load: 18000 (tandem axle group)kg

Axle ratio: 5.263

Leaf spring count: 9/9/10

Tire

Tire Size: 11.00R20

Number of tires: 12pcs

Control configuration

ABS:

Stability control system:

EBS electronic braking system:

ASR traction control:

Inter-axle Differential Lock:

interior configuration

Steering Wheel Material: Plastic

steering wheel adjustment: Manual

Multifunction steering wheel:

AC control type: Manual

Onboard Refrigerator:

Independent Heater:

Power Windows:

Power Mirrors:

Electric Heated Rearview Mirror:

Power interface:

Reverse Camera:

Remote key:

Electronic Central Lock:

Exterior features

side skirt:

Aluminum air tank:

Diesel primary filter heating:

Multimedia features

Center Console Color Screen:

GPS/Beidou driving recorder:

External audio input (AUX/USB/iPod etc.):

Bluetooth / hands-free calling:

Radio:

lighting configuration

Headlight brand: none

Front fog lamp:

daytime running lights:

Headlight height adjustment:

LED taillight:

Service brake

Parking brake: Spring brake

Exhaust brake:

Front wheel brake: Drum Type

Rear Wheel Brake: Drum Type

smart configuration

Telematics System:

Cruise control (CCS):

Emergency Brake Assist (EBA):

Tire Pressure Monitoring System (TPMS):

Photos

Exterior3

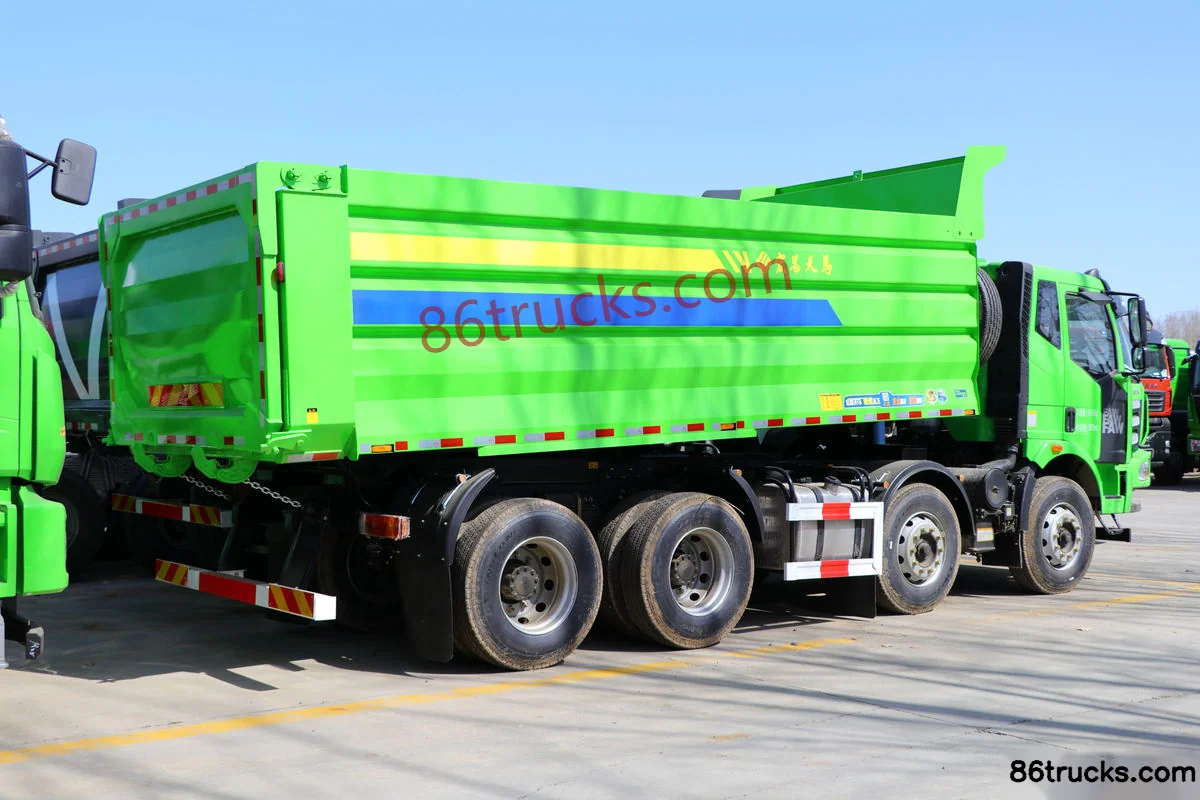

FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck Exterior (1) | 86Trucks

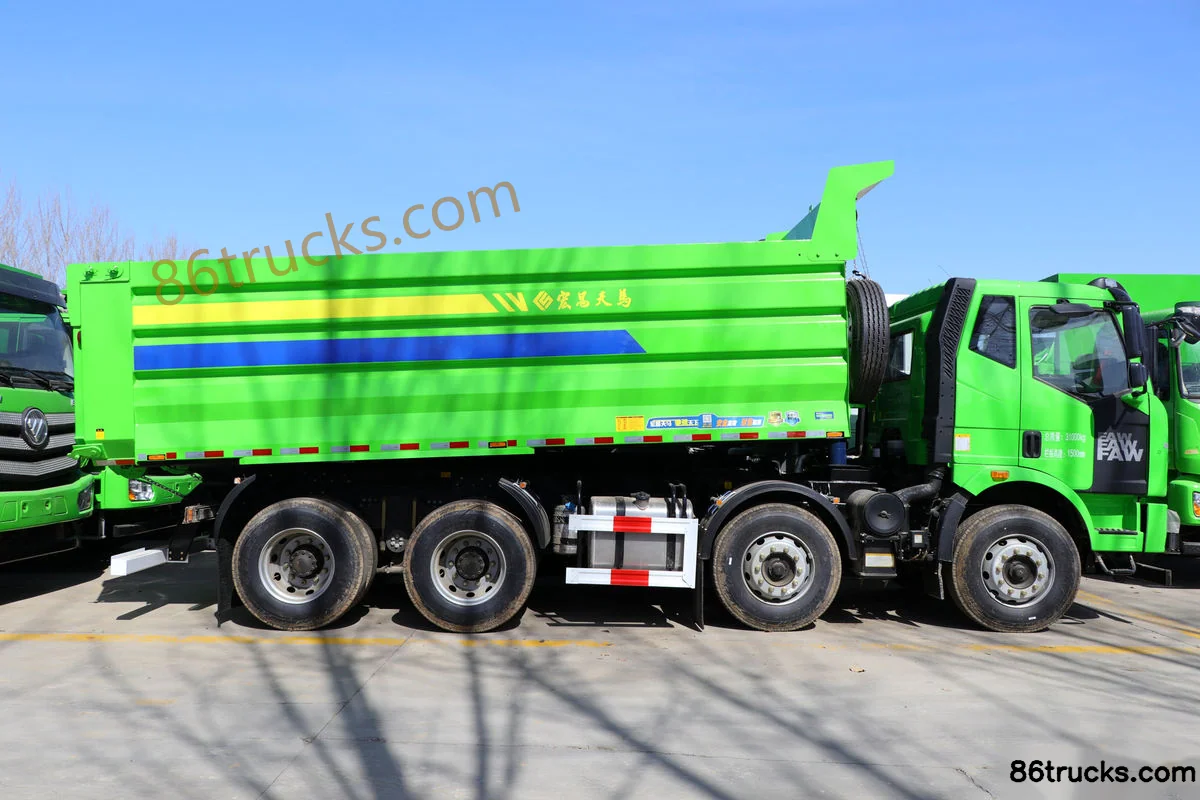

FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck Exterior (2) | 86Trucks

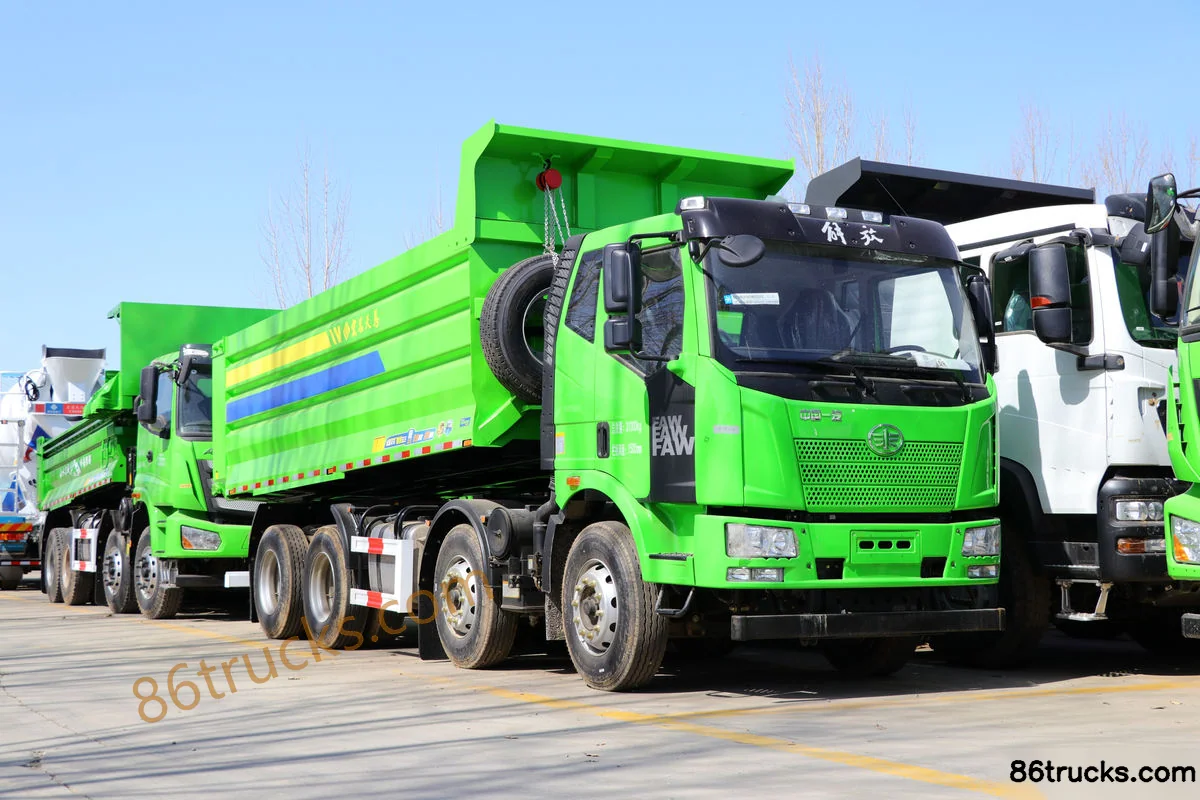

FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck Exterior (3) | 86Trucks

Chassis3

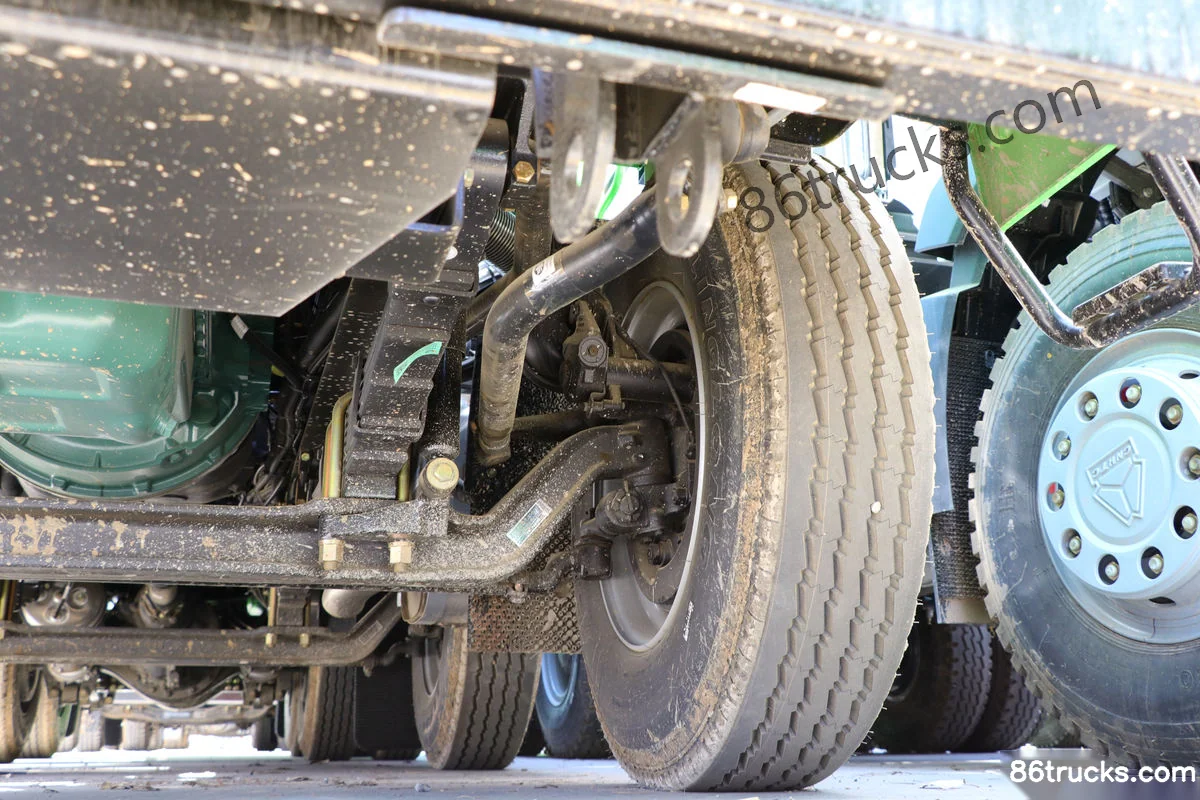

FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck Chassis (1) | 86Trucks

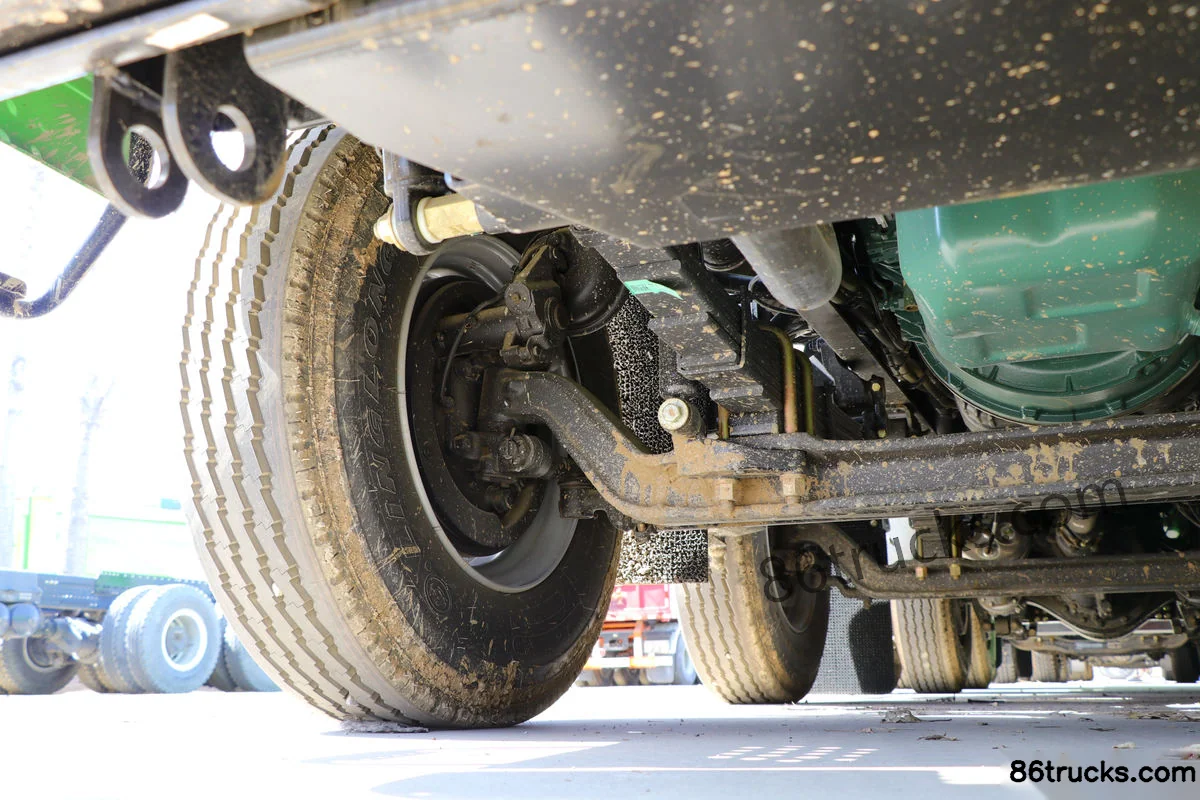

FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck Chassis (2) | 86Trucks

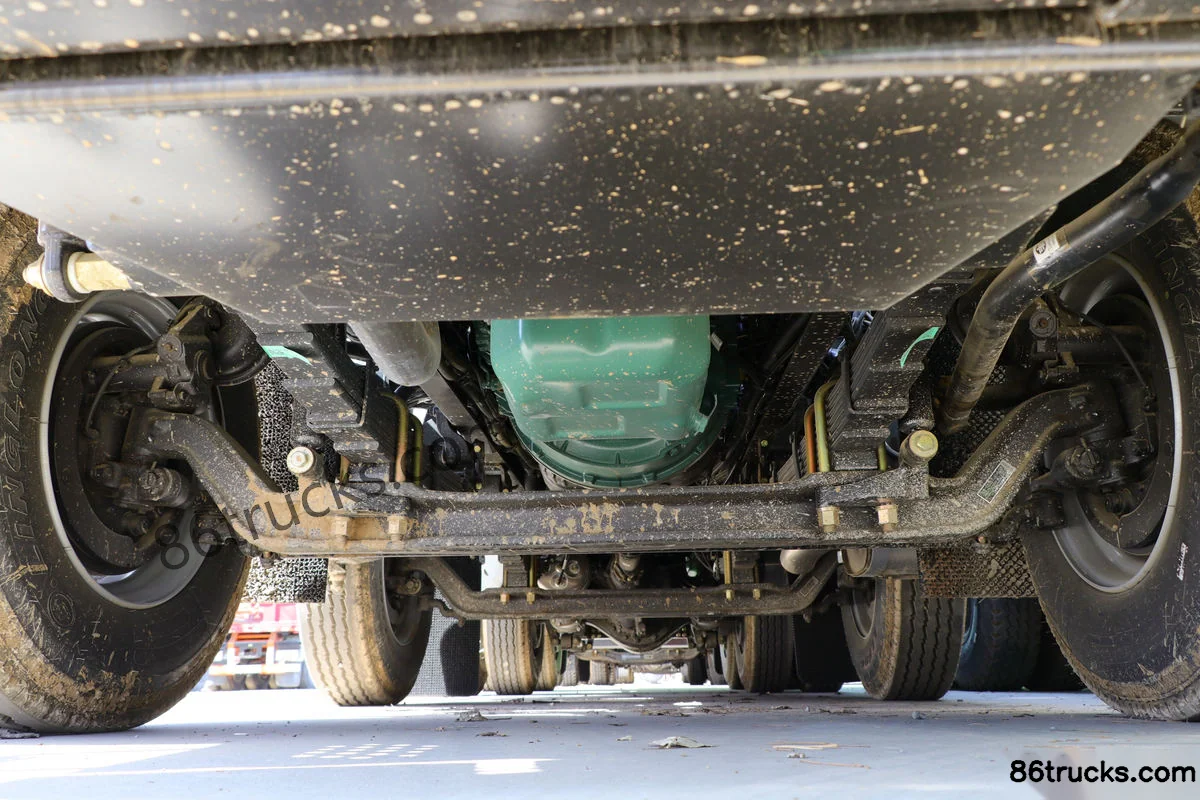

FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck Chassis (3) | 86Trucks

6 photos

FAQ

What emission standard does FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck?

Key specs of FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck: Drive: 8x4; Horsepower: 320 hp; Emission: China VI; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck suited for?

FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck differ from other variants in the same series?

FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck belongs to FAW Jiefang J6L Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L Heavy Truck 320 hp 8X4(12 wheels) 5.8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
