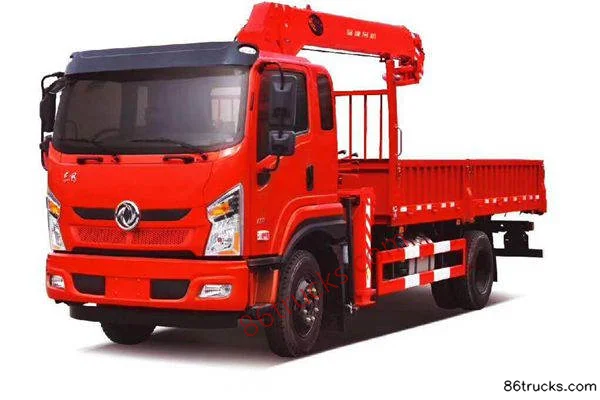

Dongfeng Changxing D1 160 hp 4X2(6 wheels) 5.8m truck-mounted crane

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Wheelbase:: 5100mm
Cab dimensions:: 9×2.5×3.95m
Type:: Truck with crane
GVWR:: 15.8ton
Lifting capacity: 8ton
Drive 4X2 (6 wheels)
Horsepower 160
Rated mass: 4.17ton

Overview

The Dongfeng Changxing D1 160 hp 4X2(6 wheels) 5.8m truck-mounted crane is a truck-mounted crane featuring 8ton tank capacity, 15.8t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 160 hp, China V emissions and Diesel fuel.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9×2.5×3.95m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 5100mm
Rated mass: 4.17ton
GVWR: 15.8ton
Front/rear suspension: 1.45/2.45m
Energy Type: Diesel
Body Parameters
Crane model: SQS200,QYS-8,SPS20000,ZLC2000
Lifting capacity: 8ton
crane self-weight: 3.5ton
Vehicle certification code: EQ5160JSQGZ5D
Body Brand: Dongfeng
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Dongfeng Changxing
Chassis Model: EQ1160GZ5DJ
Frame Dimensions: 280 (3-layer)mm
rear axle description: 5T/9T
Leaf spring count: 9/10+8,8/10+7
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85E
Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs
