Dongfeng Tianlong KC 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 13.5ton
Wheelbase:: 2050+3200+1350mm
Tire Size:: 12R22.5 18PR
Cab dimensions:: 10.34×2.52×3.995m
Truck Type:: Concrete mixer truck
Rated payload: 17.37ton
Drive 8X4 (12 wheels)
Horsepower 340
Emission China VI

Overview

The CIMC Lingyu Dongfeng Tianlong KC 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu brand) is a concrete mixer truck featuring 17.37t payload, 13.5ton GVW, 8X4 (12 wheels) drive and Sleeper cab cab. On the powertrain side, it comes with 340 hp, China VI emissions and Diesel fuel.

China VI 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.34×2.52×3.995m
Truck Type: Concrete mixer truck
Drive type: 8X4
Vehicle origin: Luoyang, Henan
Front/rear track width: 2040/2040;1860/1860mm
Wheelbase: 2050+3200+1350mm
Curb Weight: 13.5ton
Rated payload: 17.37ton
Max. speed: 89km/h
Front/rear suspension: 1.5/2.64m
Body Parameters
Mixing drum capacity: 7.95m³
Vehicle certification code: CLY5319GJB29E6
Body Brand: Lingyu
Engine parameters
Engine Model: DongfengDDi75E340-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.5L
Emission standard: China VI
Max output power: 250kW
Max hp: 340Horsepower
Chassis Specs
Chassis Series: Tianlong KC
Chassis Model: DFH1310A10
Leaf spring count: 3/3/4
Transmission Parameters
Number of gears: 10Gear
Transmission Model: 10-speed transmission
Cab parameters
Cab: Sleeper cab
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs

Photos

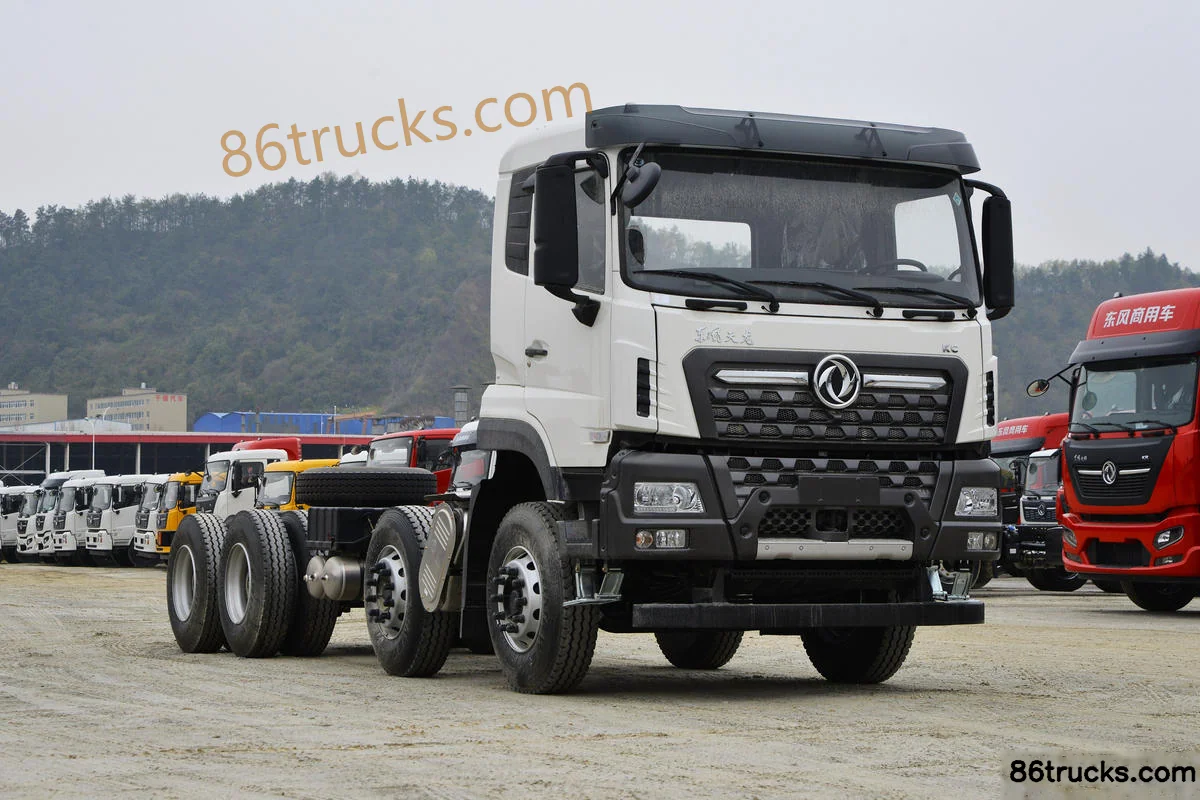

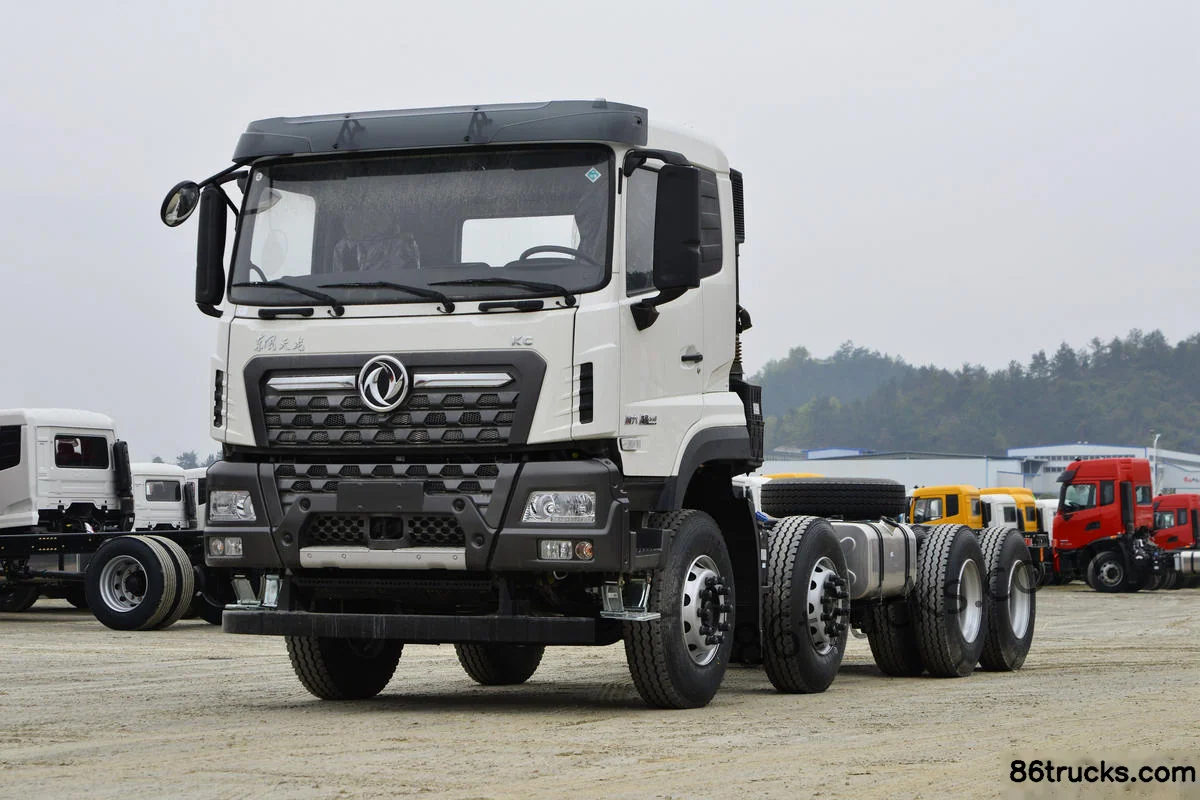

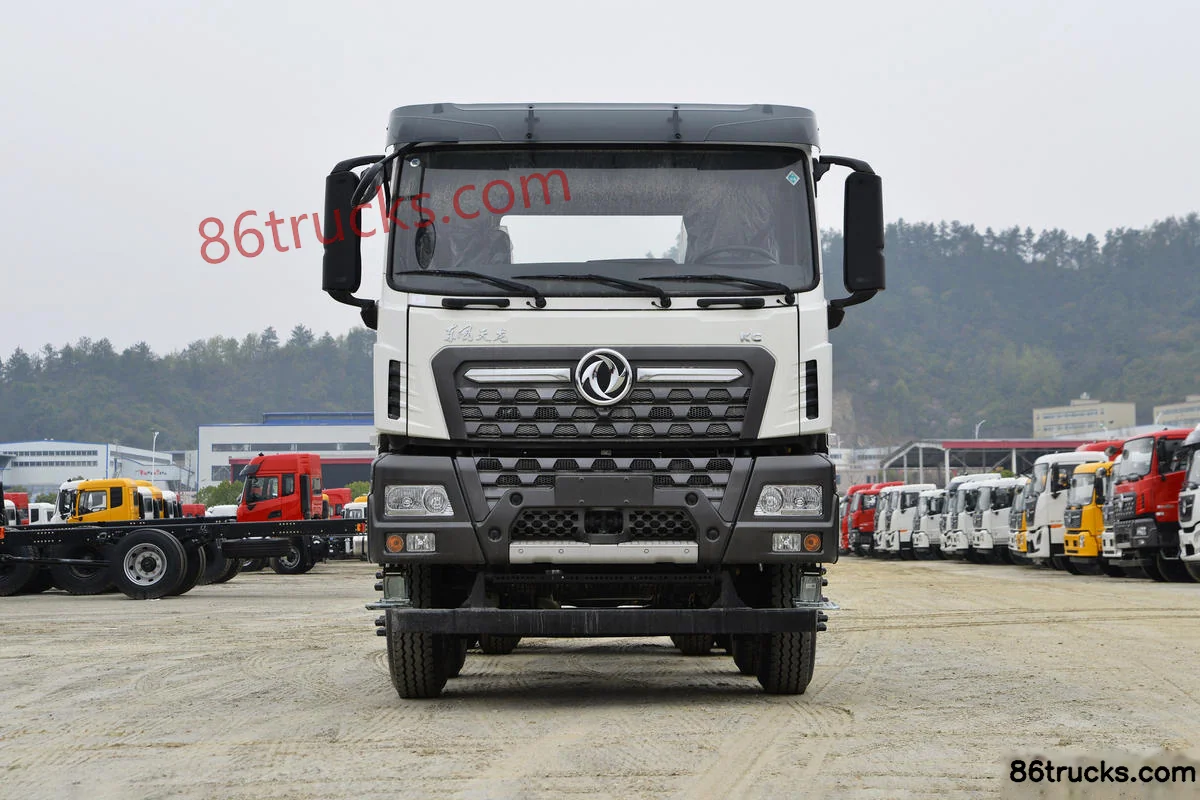

Exterior3

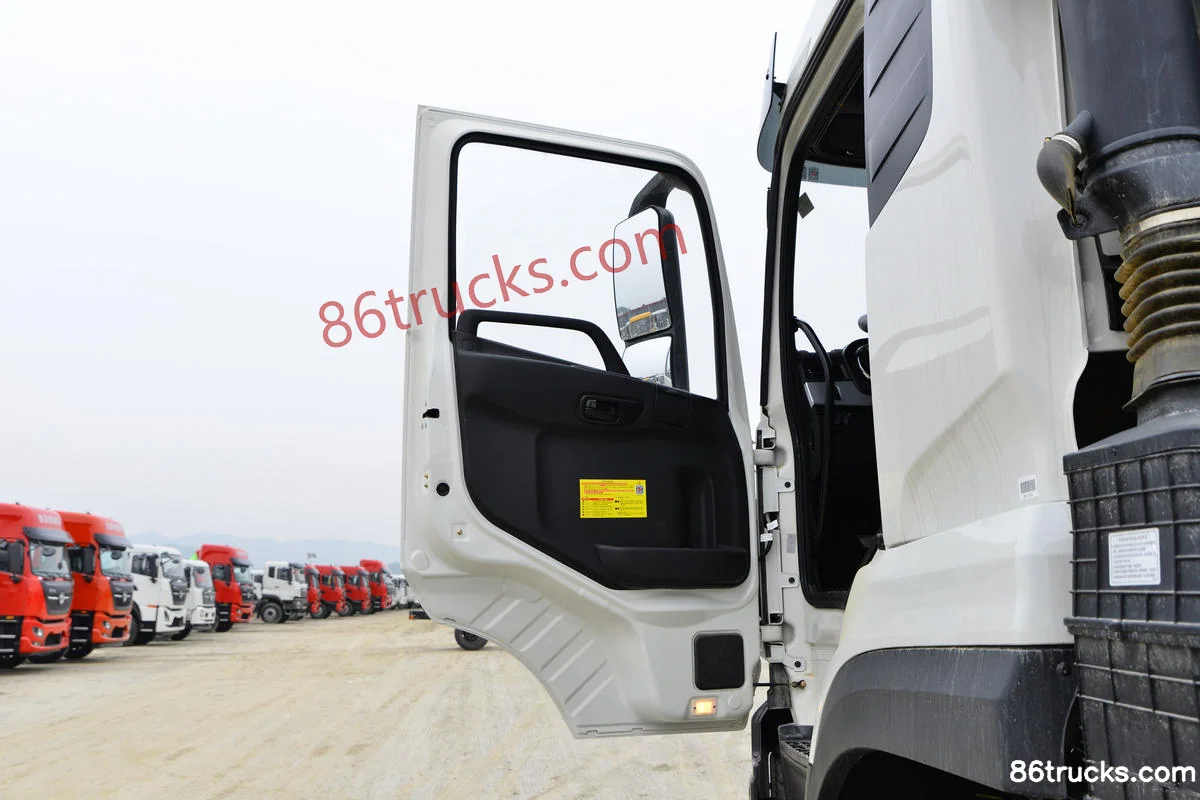

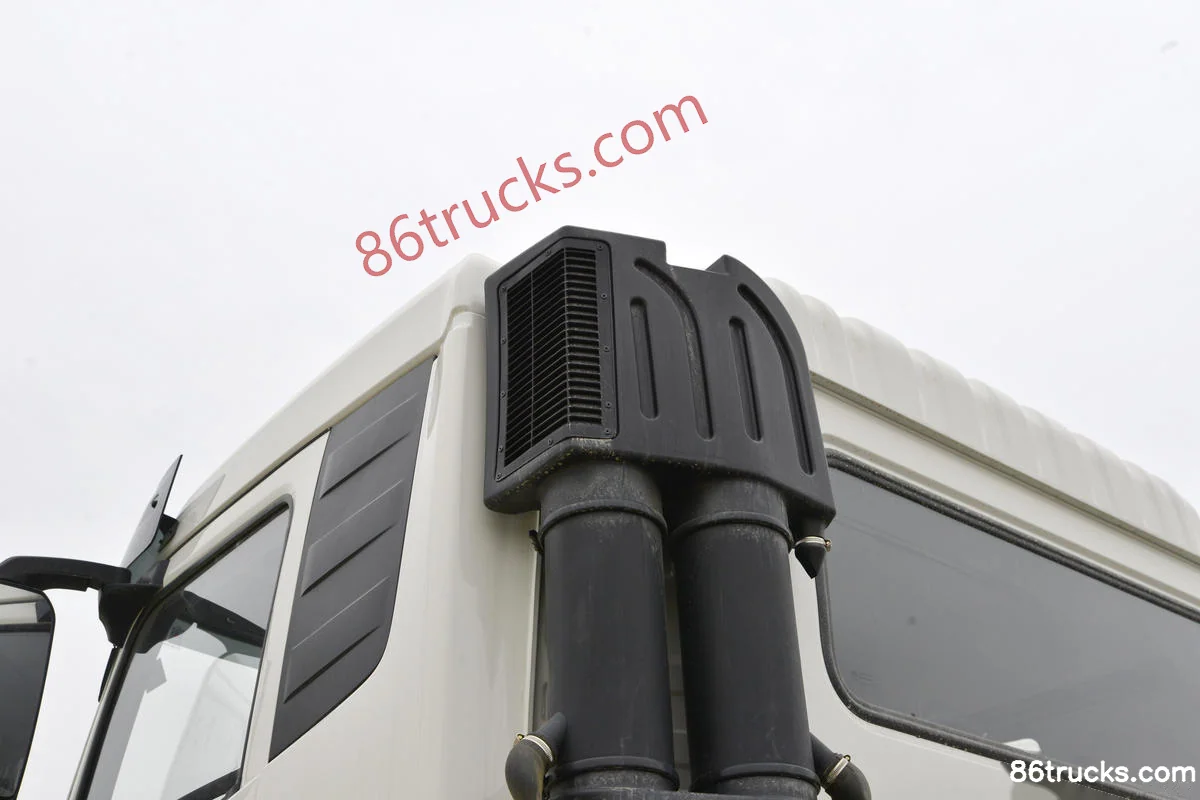

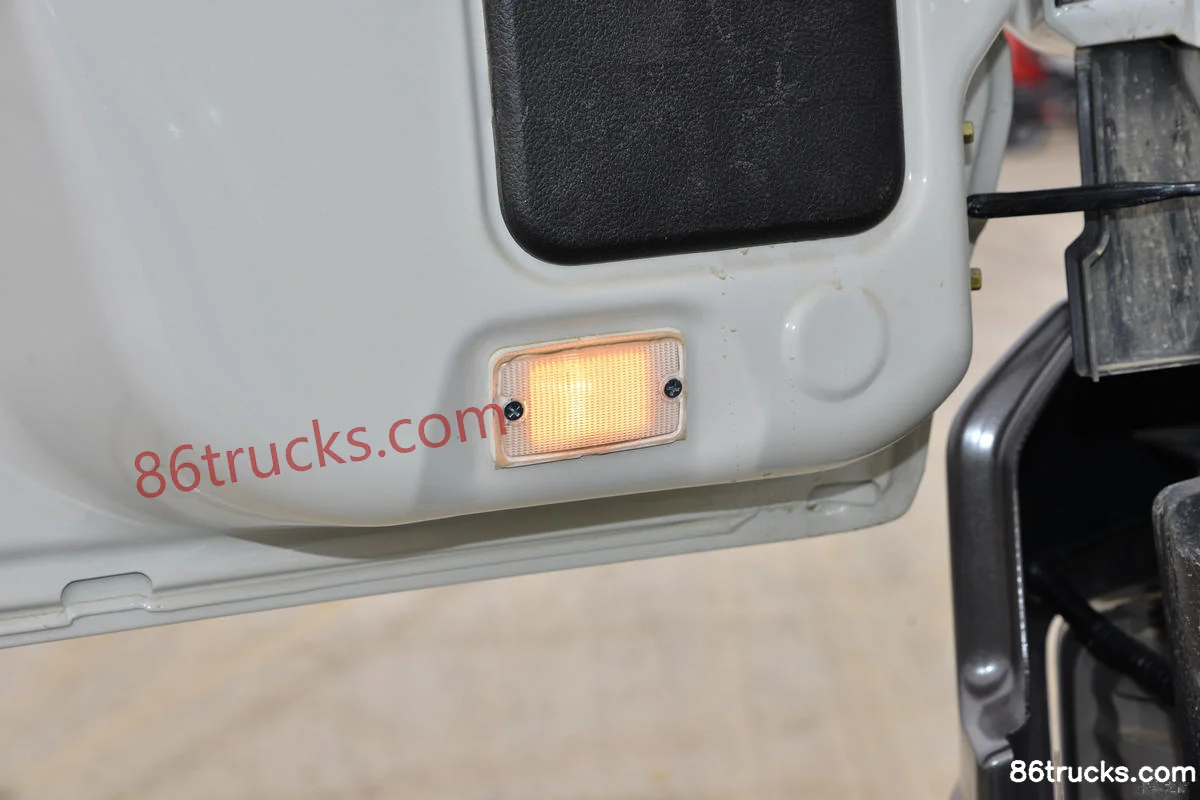

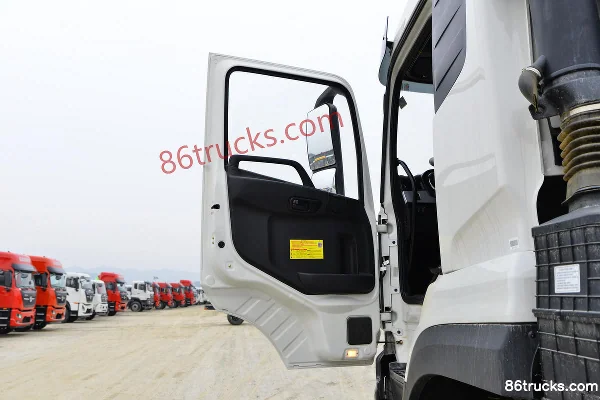

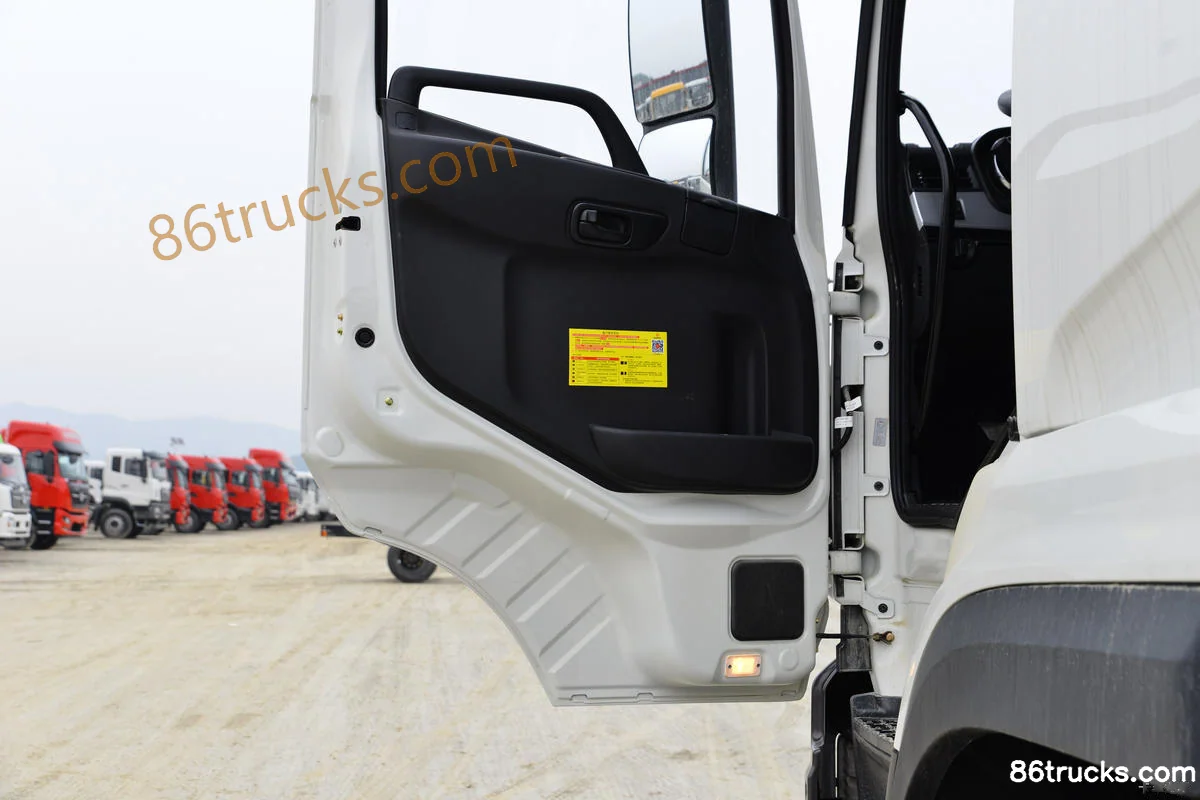

Cab3

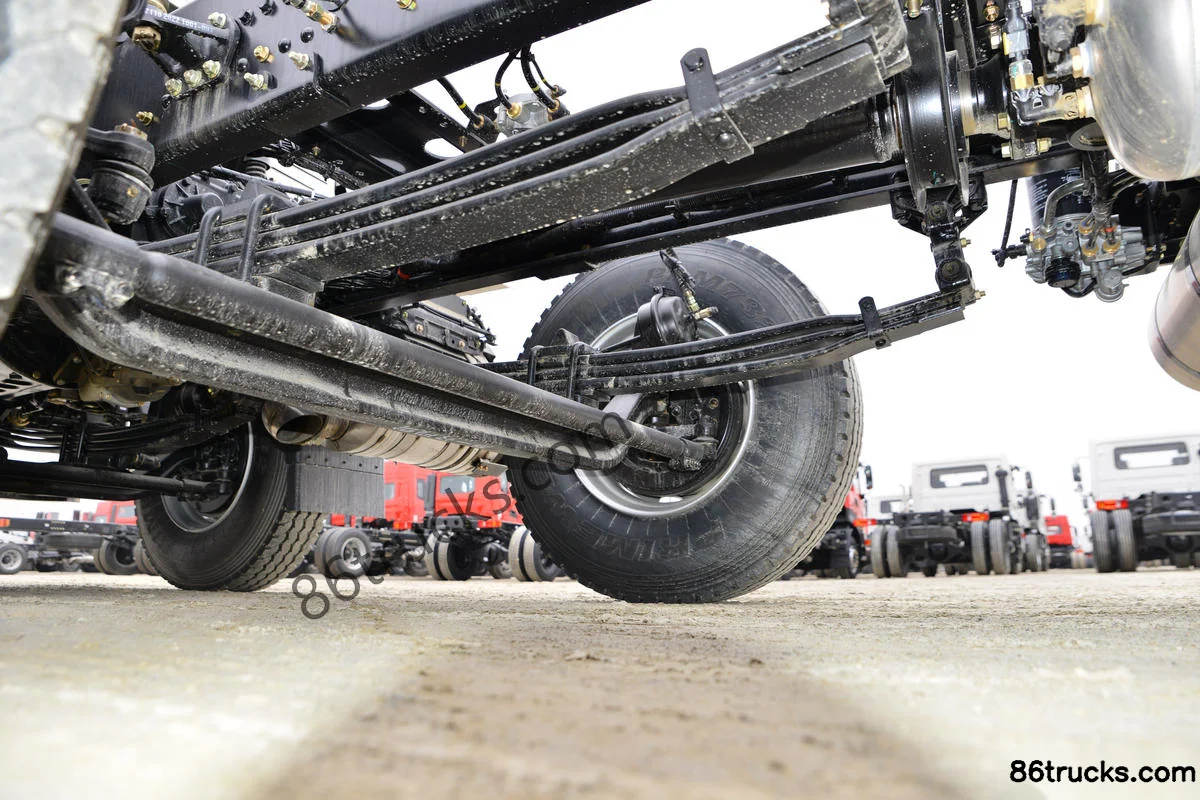

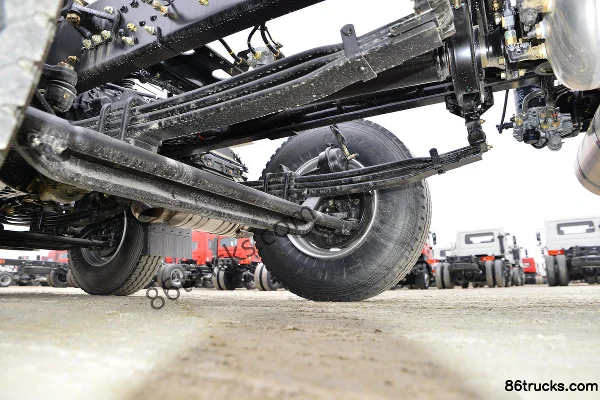

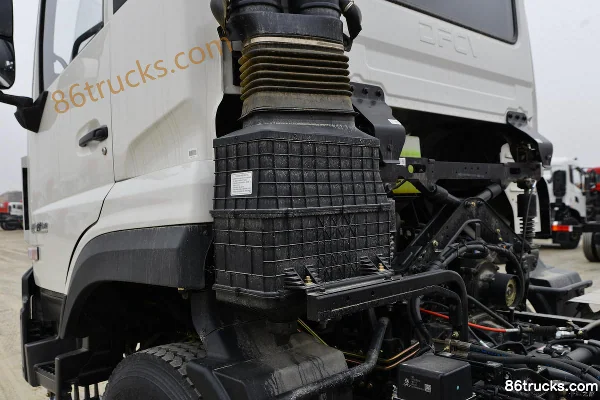

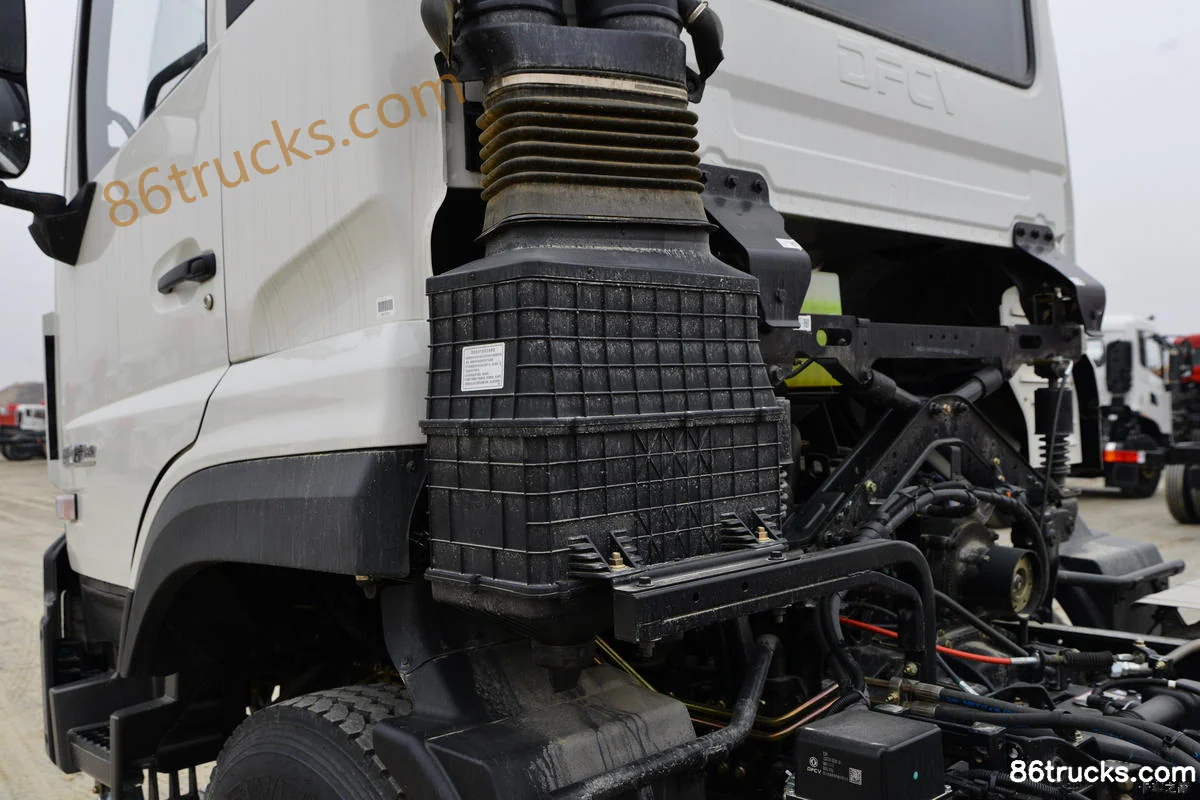

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Tianlong KC 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Tianlong KC 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu brand)?

Key specs of Dongfeng Tianlong KC 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu brand): Drive: 8x4; Horsepower: 340 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tianlong KC 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu brand) suited for?

Dongfeng Tianlong KC 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Tianlong KC 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu brand) differ from other variants in the same series?

Dongfeng Tianlong KC 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu brand) belongs to CIMC Lingyu Dongfeng Commercial Vehicle Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tianlong KC 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tianlong KC 340 hp 8X4(12 wheels) Concrete Mixer Truck (Lingyu brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
