Caterpillar 315DL Crawler Excavator

Export reference
MSRP N/A
Model:: 315DL
Engine Model:: crawler excavator
Tonnage:: 15ton
Bucket capacity:: 0.61cubic meter
boom length:: 5100mm
Arm Length:: 2250mm
Caterpillar 315DL Crawler Excavator exterior
View more photos (3)
Operating weight: 17.28ton
Bucket type: backhoe
Fuel Tank Capacity: 300L
Product power: Conventional Power

Overview

The Caterpillar 315DL Crawler Excavator is a excavator featuring 17.28ton GVW, backhoe bucket capacity, 300L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: 315DL
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 15ton
Bucket capacity: 0.61cubic meter
Operating weight: 17.28ton
boom length: 5100mm
Arm Length: 2250mm
Machine dimensions: 8.52×2.59×2.93mm
Track shoe width: 600mm
Track gauge: 1990mm
Counterweight ground clearance: 1030mm
Min ground clearance: 460cm
hydraulic system
Max flow of main pump: 150L/min
performance specs
Travel speed: 5.6km/h
Oil capacity
Fuel Tank Capacity: 300L
coolant: 22L
hydraulic oil tank: 106L
Engine Oil Capacity: 17.5L
Operating Range
Max digging radius: 8430mm
Max digging depth: 5720mm
Max digging height: 8740mm
Max unloading height: 6140mm
Max vertical digging depth: 4920mm
Engine parameters
Engine Model: CaterpillarCAT C4.2 ACERT
Max output power: 91kW

Photos

Exterior3

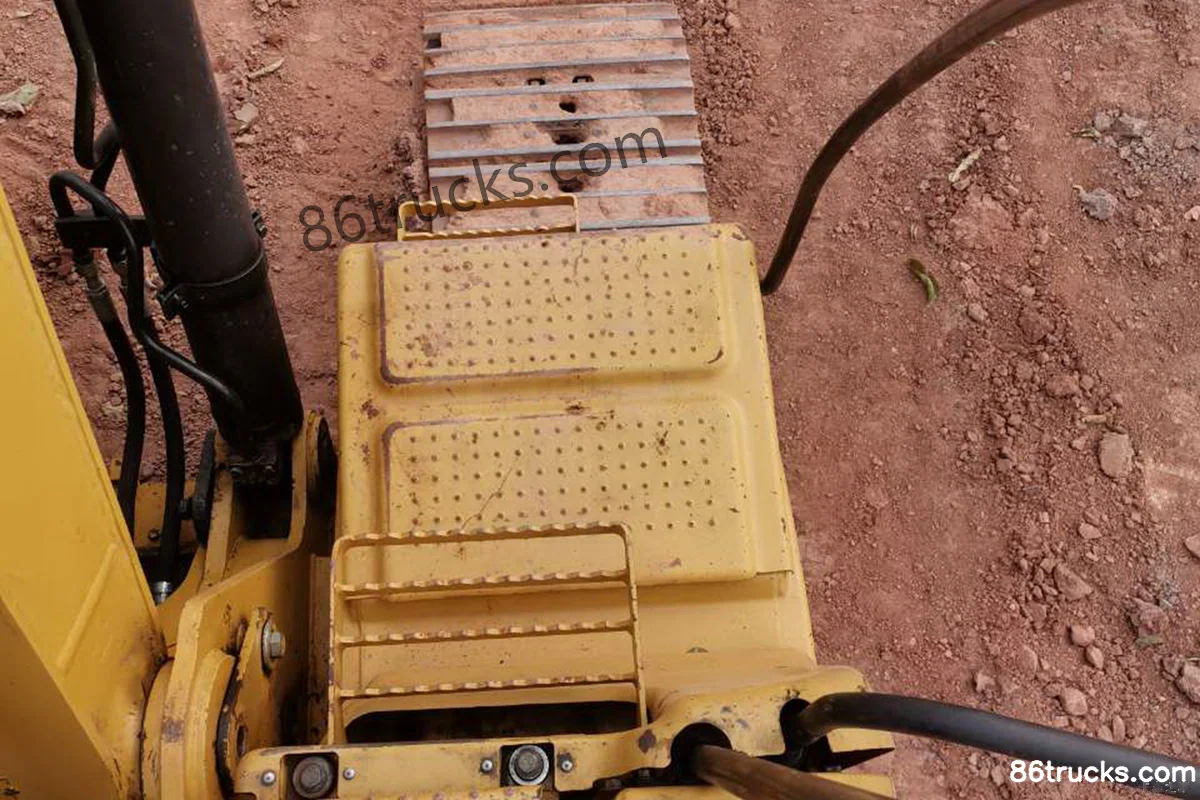

Caterpillar 315DL Crawler Excavator Exterior (1) | 86Trucks Caterpillar 315DL Crawler Excavator Exterior (2) | 86Trucks Caterpillar 315DL Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Caterpillar 315DL Crawler Excavator suited for?

Caterpillar 315DL Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Caterpillar 315DL Crawler Excavator differ from other variants in the same series?

Caterpillar 315DL Crawler Excavator belongs to Caterpillar Caterpillar crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Caterpillar 315DL Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Caterpillar 315DL Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
