SAIC Hongyan New Dakang 336 hp 6X4(10 wheels) Concrete Mixer Truck

Export reference
MSRP N/A
Curb Weight:: 12.87ton
Wheelbase:: 3225+1350mm
Tire Size:: 12.00-20,11.00-20
Cab dimensions:: 8.45×2.5×3.85m
Truck Type:: concrete mixer truck
Front/rear track width:: 2006;1850mm
Rated payload: 12ton
Drive 6X4 (10 wheels)
Horsepower 336
Emission China III / Euro III

Overview

The SAIC Hongyan New Dakang 336 hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck featuring 12t payload, 12.87ton GVW, 6X4 (10 wheels) drive and 8.45×2.5×3.85m cab. On the powertrain side, it comes with 336 hp and China III / Euro III emissions.

China III / Euro III 336 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.45×2.5×3.85m
Drive type: 6X4
Truck Type: concrete mixer truck
Front/rear track width: 2006;1850mm
Wheelbase: 3225+1350mm
Vehicle origin: Chongqing
Curb Weight: 12.87ton
Rated payload: 12ton
Max. speed: 80km/h
Front/rear suspension: 1.51/2.195m
Body Parameters
Mixing drum capacity: 5.5m³
Vehicle certification code: CQ5254GJBTRG324
Body Brand: SAIC Hongyan
Engine parameters
Engine Model: Weichai WP10.336
Number of cylinders: 6cylinder
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 247kW
Max hp: 336Horsepower
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Chassis Specs
Chassis Series: New Dakang
Chassis Model: CQ3254TRG324
Leaf spring count: 9/12
Tire
Tire Size: 12.00-20,11.00-20
Number of tires: 10pcs

Photos

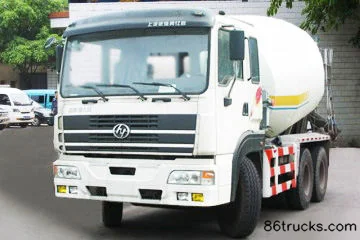

Exterior1
