FAW Jiefang J6P Heavy-Duty Pro 8X4(12 wheels) 8m electric dump truck CATL 600kWh

Export reference
MSRP N/A
Rated payload:: 4.37ton
Wheelbase:: 2000+4300+1350mm
Cargo box type:: Dump type
Model code (announced):: CA3310P66L6BT4BEVA5
Cab length:: 11.275m
GVWR:: 31ton
Drive 8X4 (12 wheels)
CLTC range: 480km
Motor 1 Brand: FAW Jiefang
Curb Weight: 26.5ton

Overview

The FAW Jiefang J6P Heavy-Duty Pro 8X4(12 wheels) 8m electric dump truck CATL 600kWh is a Heavy truck featuring 480km battery/range, FAW Jiefang motor, 8X4 (12 wheels) drive and 4.37t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3310P66L6BT4BEVA5
Drive type: 8X4
Wheelbase: 2000+4300+1350mm
Cab length: 11.275m
Cab width: 2.55m
Cab height: 3.6m
CLTC range: 480km
Curb Weight: 26.5ton
Rated payload: 4.37ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Changchun, Jilin
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: FAW Jiefang
Motor 1 Model: CAM255PT54/CAM255PT54
Motor Type: Permanent magnet synchronous motor
total rated power: 400kW
Peak power: 600kW
Motor 1 Peak Power: 300kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 600kWh
Cargo box parameters
Cargo box type: Dump type
Cargo box length: 8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: J6P Flat Floor Large Half-Sleeper Cab
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
lighting configuration
daytime running lights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

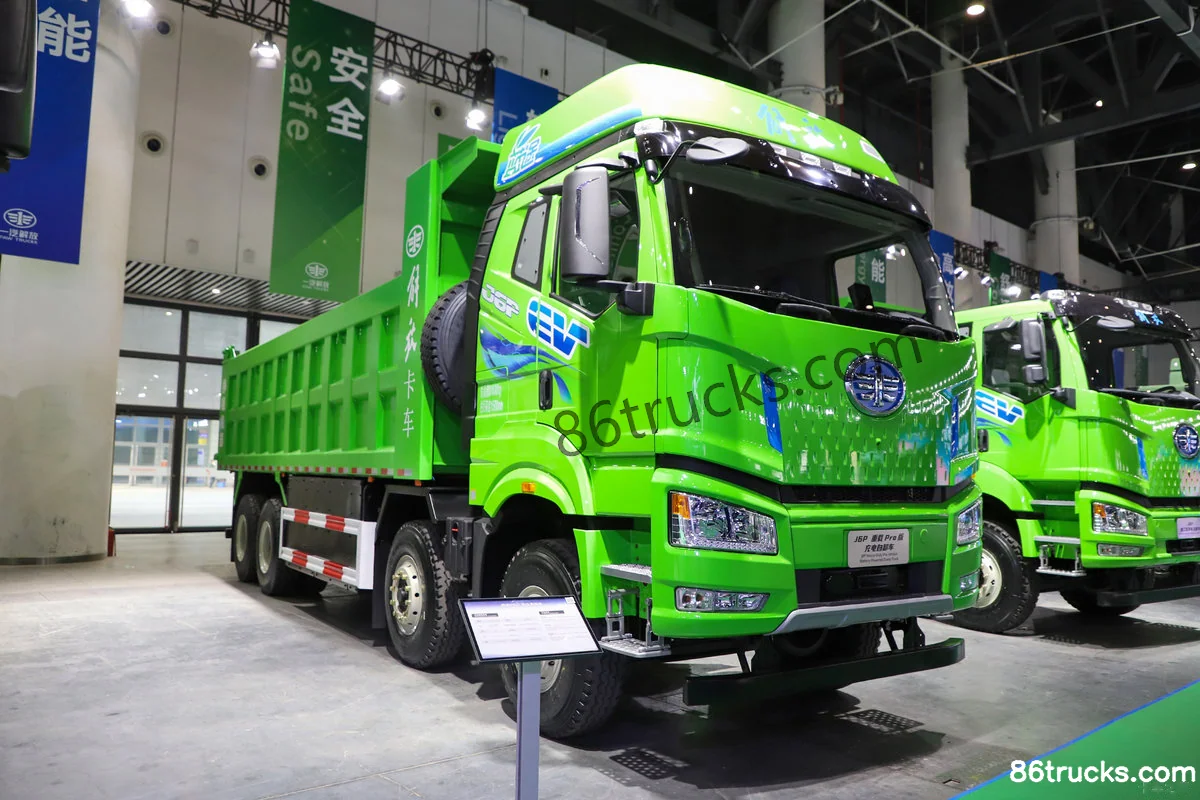

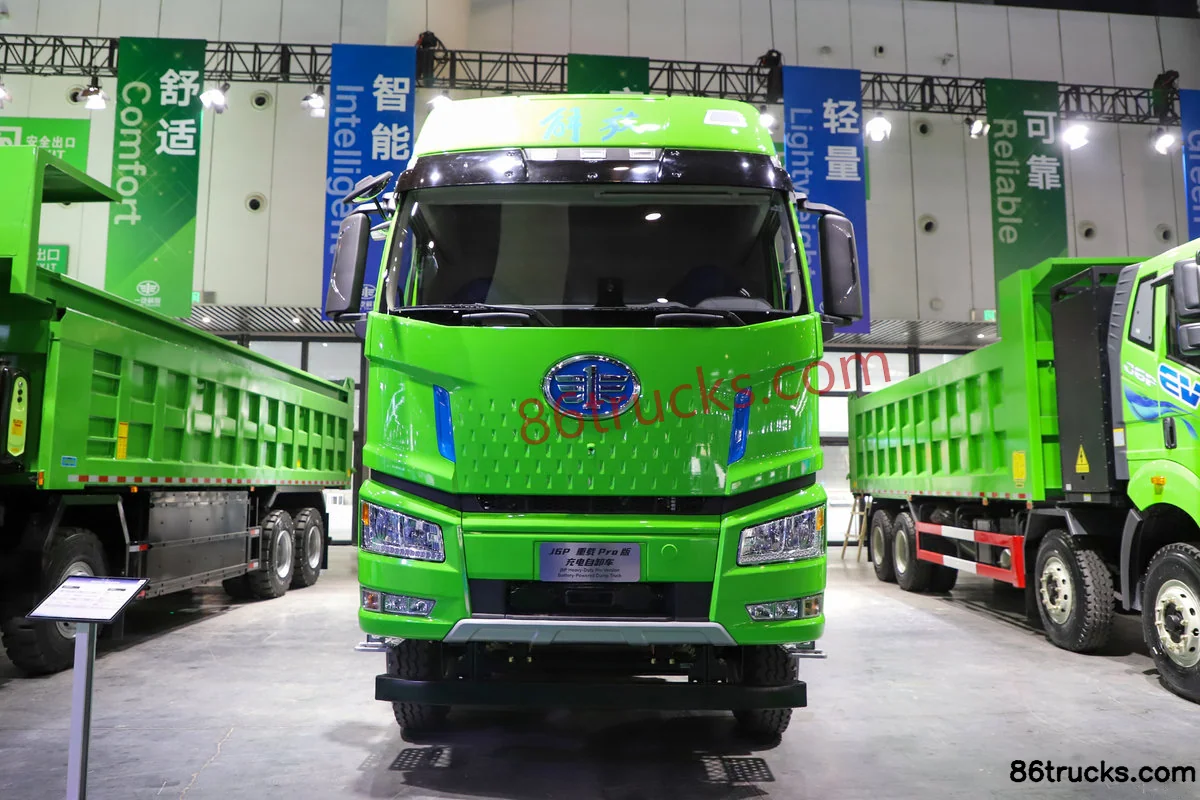

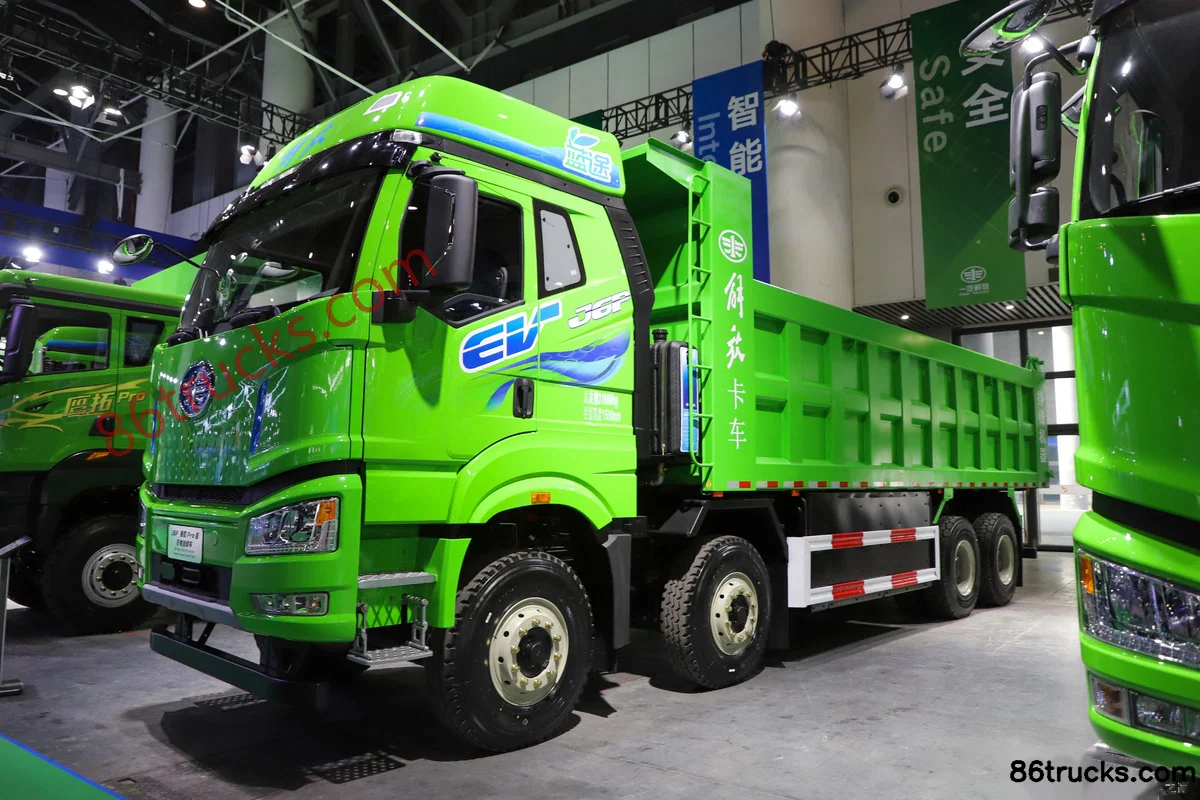

Exterior3

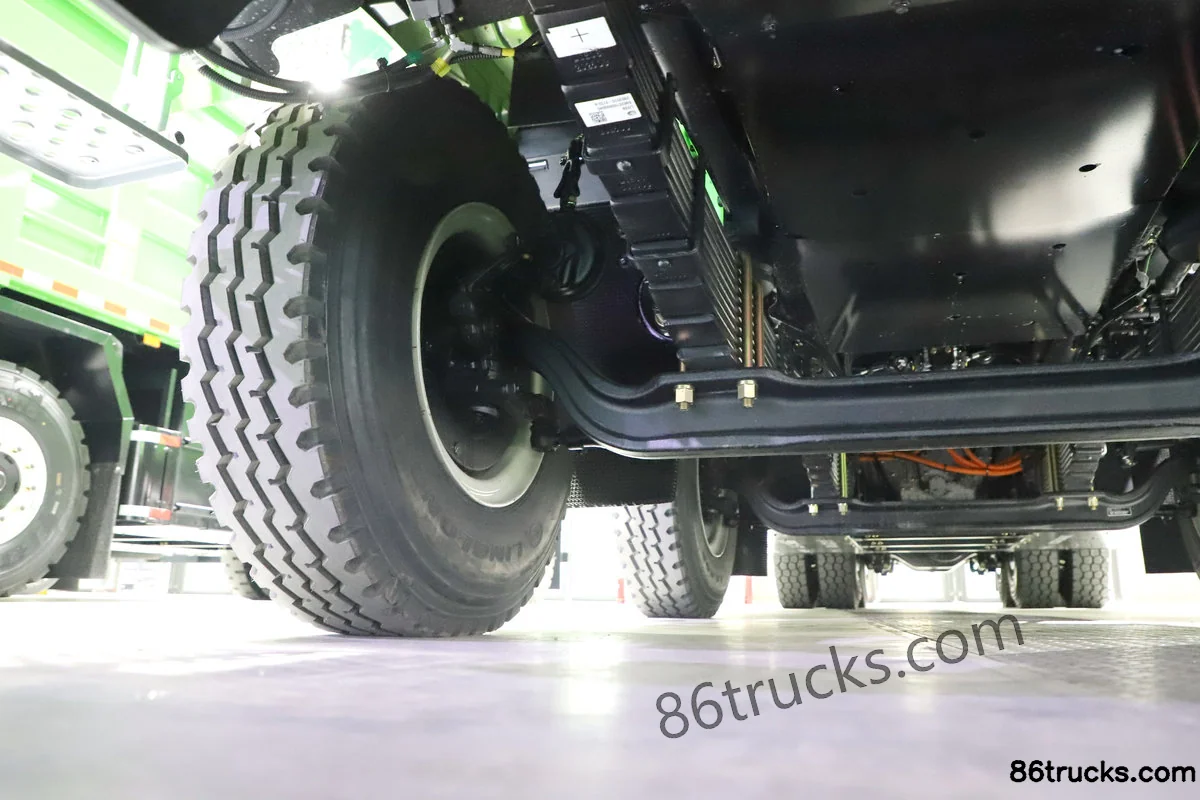

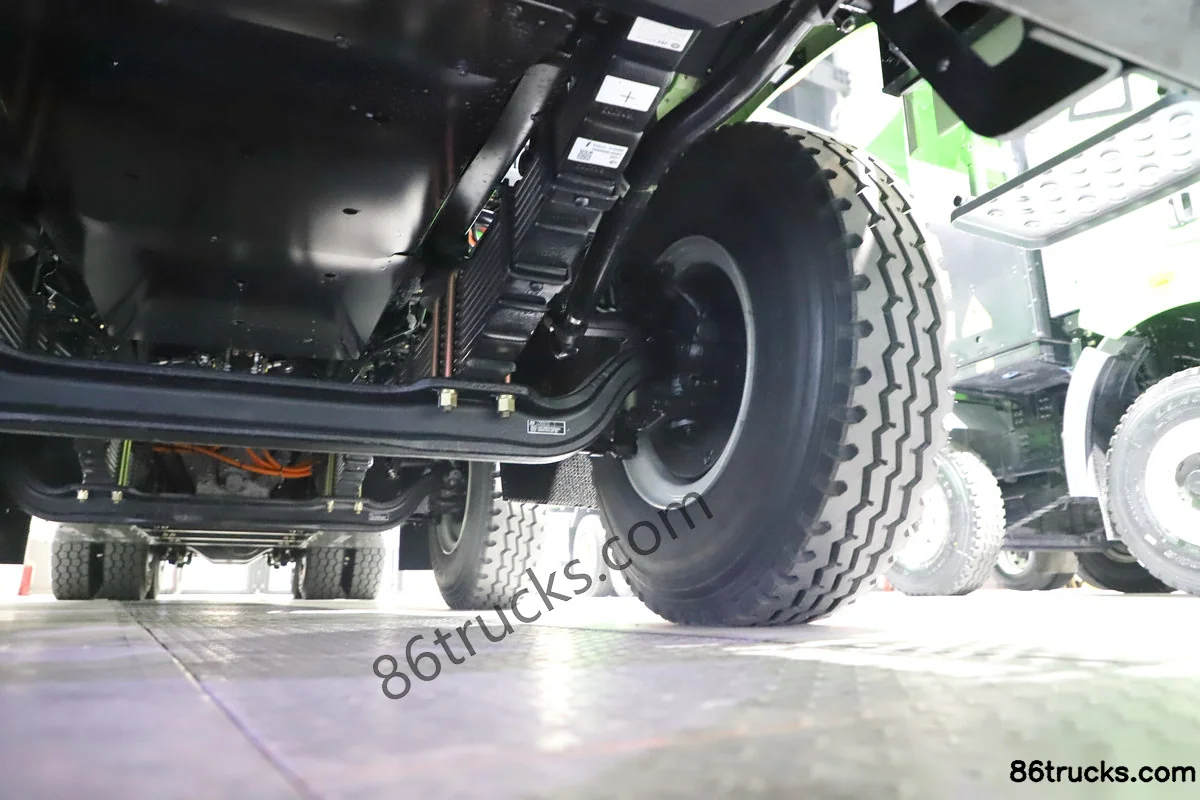

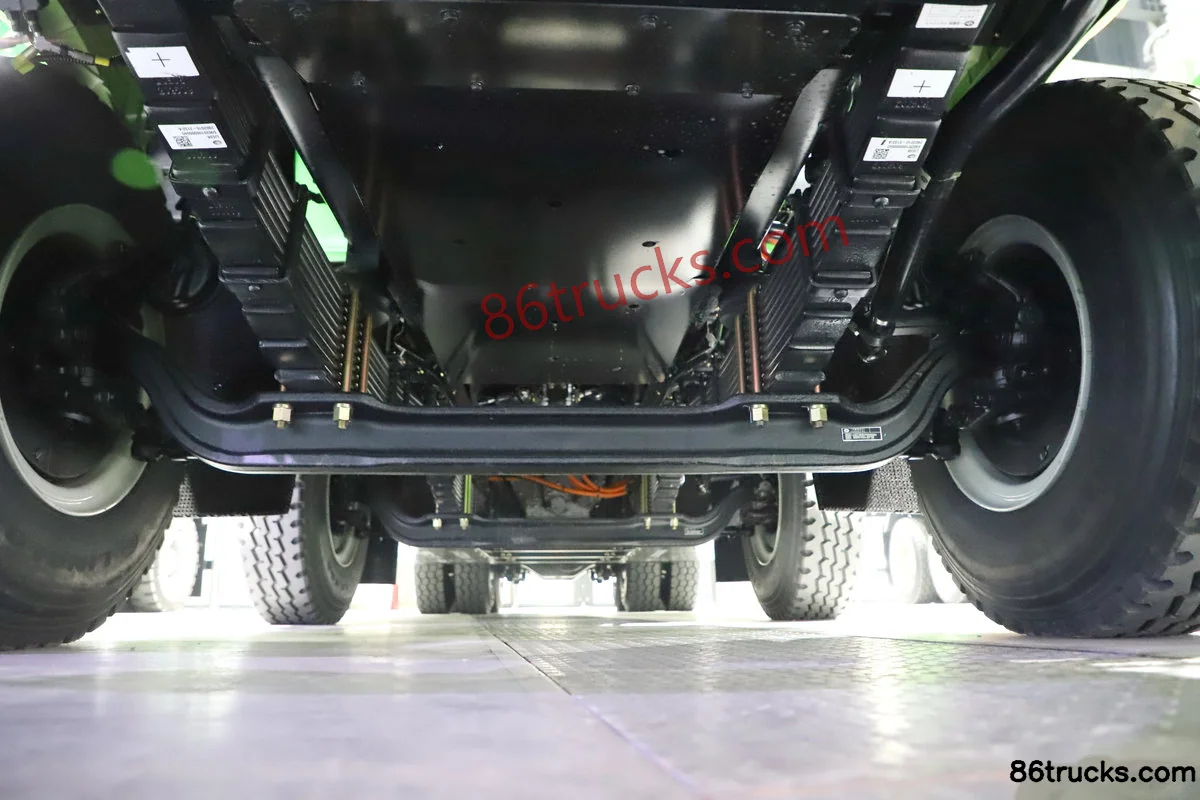

Chassis3

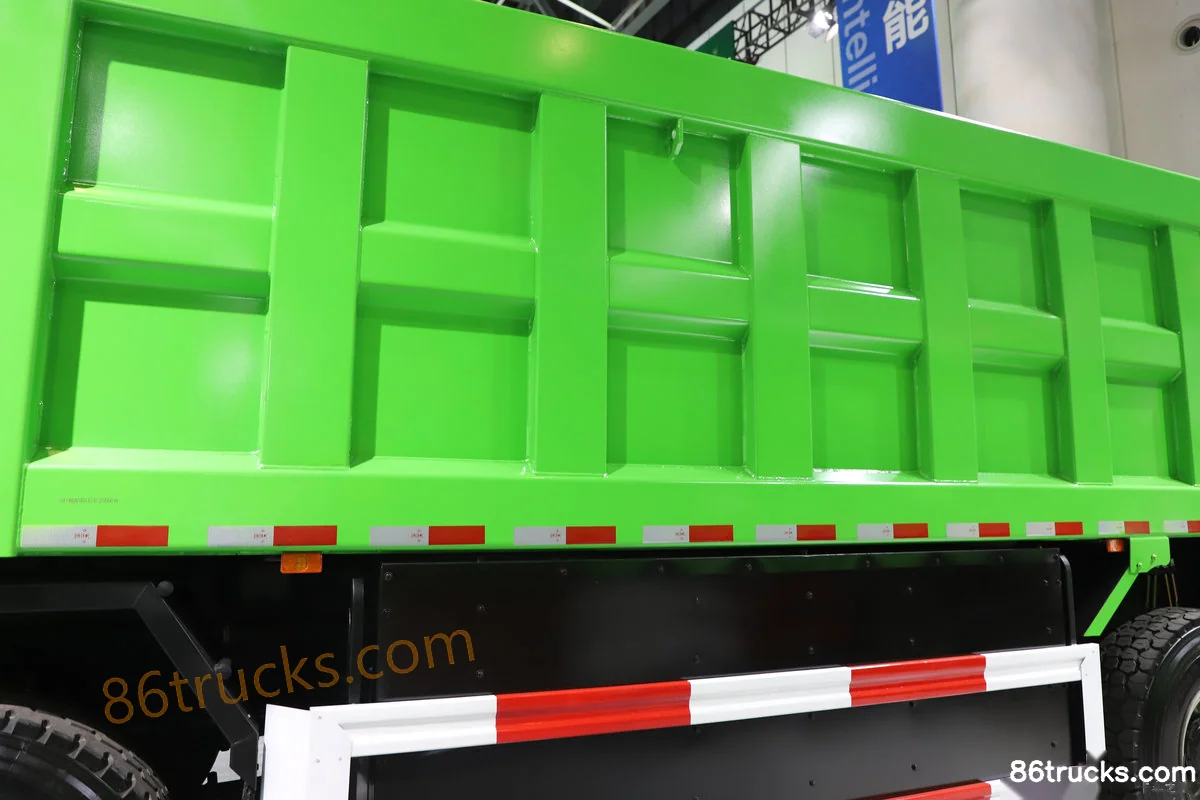

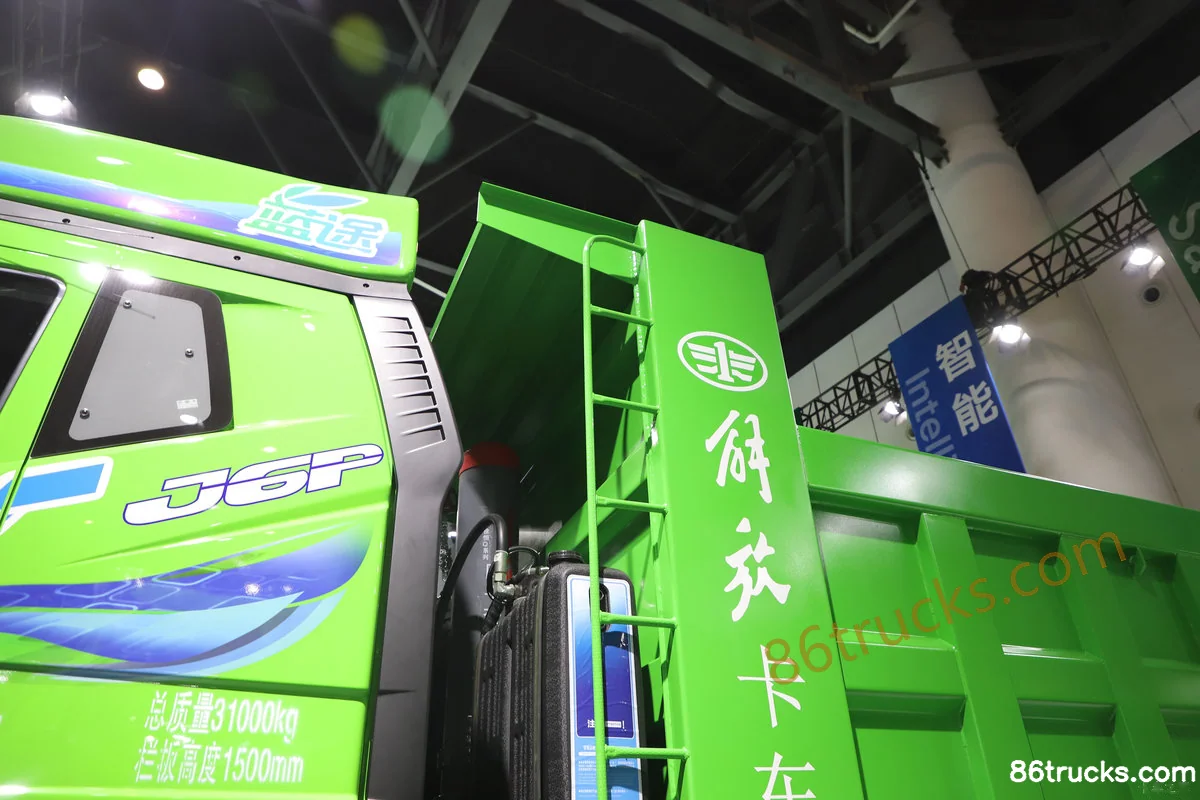

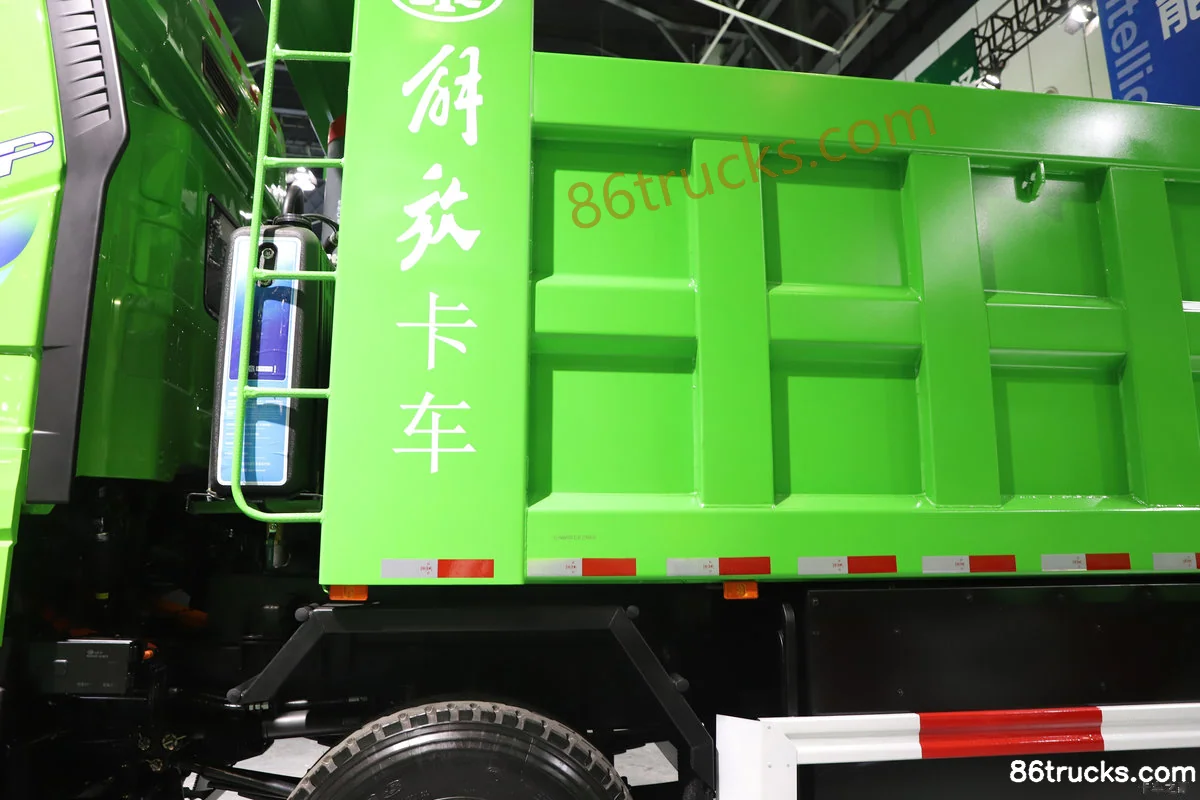

Body3

9 photos

FAQ

What are the key specs of FAW Jiefang J6P Heavy-Duty Pro 8X4(12 wheels) 8m electric dump truck CATL 600kWh?

Key specs of FAW Jiefang J6P Heavy-Duty Pro 8X4(12 wheels) 8m electric dump truck CATL 600kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6P Heavy-Duty Pro 8X4(12 wheels) 8m electric dump truck CATL 600kWh suited for?

FAW Jiefang J6P Heavy-Duty Pro 8X4(12 wheels) 8m electric dump truck CATL 600kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang J6P Heavy-Duty Pro 8X4(12 wheels) 8m electric dump truck CATL 600kWh differ from other variants in the same series?

FAW Jiefang J6P Heavy-Duty Pro 8X4(12 wheels) 8m electric dump truck CATL 600kWh belongs to FAW Jiefang J6P Heavy Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6P Heavy-Duty Pro 8X4(12 wheels) 8m electric dump truck CATL 600kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6P Heavy-Duty Pro 8X4(12 wheels) 8m electric dump truck CATL 600kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
