Aerospace Wanshan 220hp 6X4(10 wheels) concrete mixer truck

Export reference
From $30,556
MSRP ¥22M CNY
Fuel: Diesel
Curb Weight:: 9.6ton
Wheelbase:: 2800+1300mm
Tire Size:: 11.00R20
Cab dimensions:: 8.2×2.45×3.75m
Truck Type:: Concrete mixer truck
Rated payload: 15.205ton
Drive 6X4 (10 wheels)
Horsepower 220
Emission China V

Overview

The Aerospace Wanshan 220hp 6X4(10 wheels) concrete mixer truck is a concrete mixer truck featuring 15.205t payload, 9.6ton GVW, 6X4 (10 wheels) drive and 8.2×2.45×3.75m cab. On the powertrain side, it comes with 220 hp, China V emissions and Diesel fuel.

China V 220 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.2×2.45×3.75m
Drive type: 6X4
Truck Type: Concrete mixer truck
Vehicle origin: Xiaogan, Hubei
Front/rear track width: Front: 1880mm; Rear: 1765/1765
Wheelbase: 2800+1300mm
Curb Weight: 9.6ton
Rated payload: 15.205ton
Max. speed: 90km/h
Front/rear suspension: 1.45/2.65m
Body Parameters
Mixing drum capacity: 5.98m³
Vehicle certification code: WS5253GJBGA
Body Brand: Wanshan
Engine parameters
Engine Model: YuchaiYC4EG220-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.73L
Emission standard: China V
Max output power: 160kW
Max hp: 220Horsepower
Rated speed: 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Transmission Parameters
Number of gears: 8Gear
Transmission Model: 8-speed
Chassis Specs
Chassis Model: WS1253GJA
Leaf spring count: 9/7/10+8
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

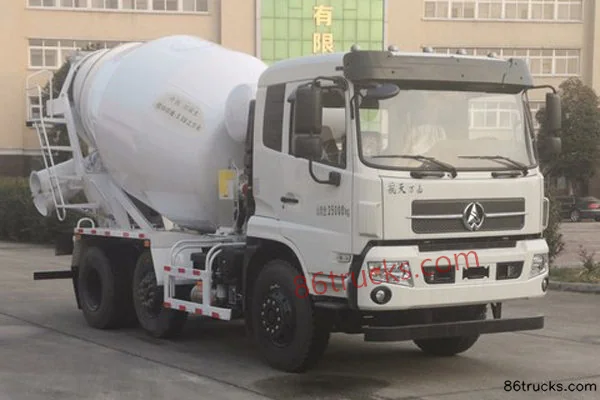

Exterior1

1 photos

FAQ

What is the export price of Aerospace Wanshan 220hp 6X4(10 wheels) concrete mixer truck, and what does it include?

Aerospace Wanshan 220hp 6X4(10 wheels) concrete mixer truck export reference is about From $30,556; MSRP is ¥22M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Aerospace Wanshan 220hp 6X4(10 wheels) concrete mixer truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Aerospace Wanshan 220hp 6X4(10 wheels) concrete mixer truck?

Key specs of Aerospace Wanshan 220hp 6X4(10 wheels) concrete mixer truck: Drive: 6x4; Horsepower: 220 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Aerospace Wanshan 220hp 6X4(10 wheels) concrete mixer truck suited for?

Aerospace Wanshan 220hp 6X4(10 wheels) concrete mixer truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Aerospace Wanshan 220hp 6X4(10 wheels) concrete mixer truck differ from other variants in the same series?

Aerospace Wanshan 220hp 6X4(10 wheels) concrete mixer truck belongs to Aerospace Wanshan WS series heavy truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Aerospace Wanshan 220hp 6X4(10 wheels) concrete mixer truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Aerospace Wanshan 220hp 6X4(10 wheels) concrete mixer truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
