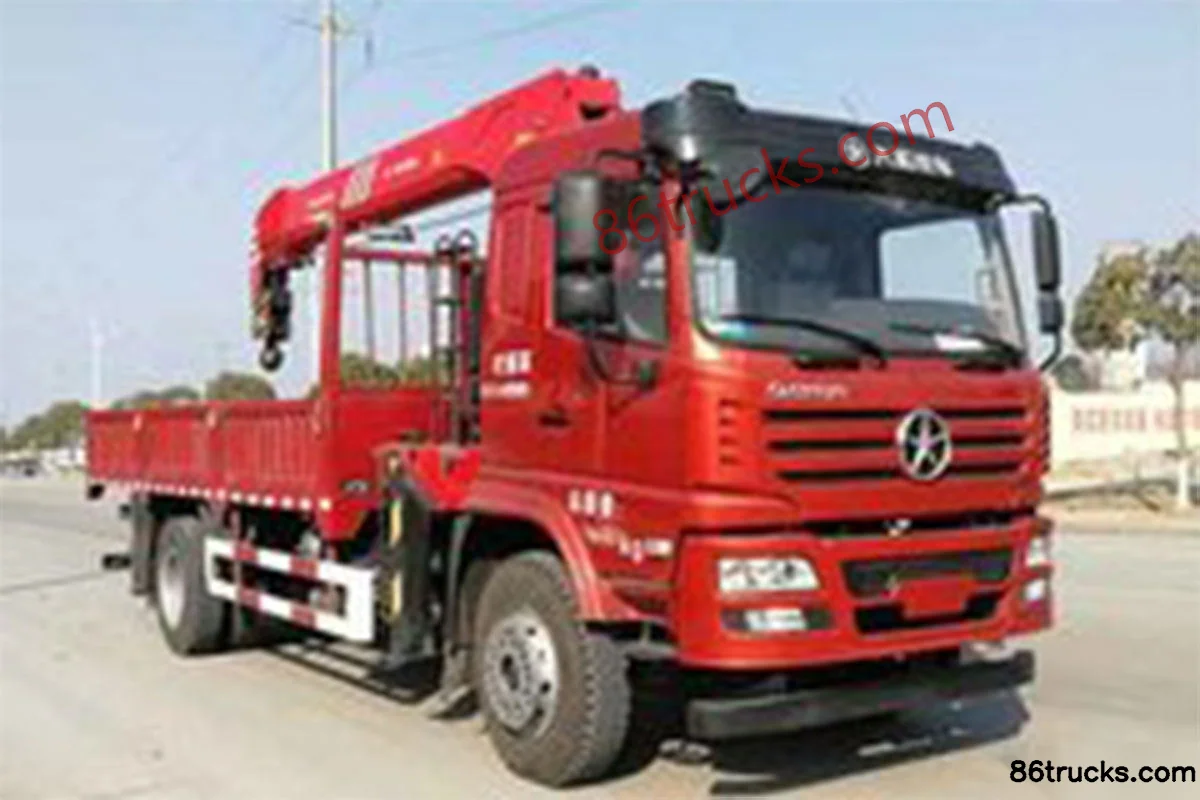

Dayun Fengdu 160 hp 4X2(6 wheels) 5.1 m truck-mounted crane (Zhuanzhi brand)

Export reference
From $38,472
MSRP ¥27.7M CNY
Fuel: Diesel
Wheelbase:: 4500mm
Cab dimensions:: 8.42×2.5×3.65m
Type:: truck-mounted crane
GVWR:: 16ton
Front/rear suspension:: 1.45/2.14m
Drive 4X2 (6 wheels)
Horsepower 160
Rated mass: 5.605ton
Emission China V

Overview

The Dayun Fengdu 160 hp 4X2(6 wheels) 5.1 m truck-mounted crane (Zhuanzhi brand) is a truck-mounted crane featuring 16t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 160 hp, China V emissions and Diesel fuel.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.42×2.5×3.65m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 4500mm
Rated mass: 5.605ton
GVWR: 16ton
Front/rear suspension: 1.45/2.14m
Energy Type: Diesel
Body Parameters
Crane model: SPS17500
Vehicle certification code: YZZ5162JSQDY
Body Brand: Zhuanzhi brand
Engine parameters
Injection System: Common Rail
Engine Brand: Yuchai
Engine Model: YuchaiYC4EG160-50
fuel type: Diesel
Displacement: 4.73L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1800rpm
Rated speed: 2500rpm
Chassis Specs
Chassis Brand: Dayun
Chassis Series: Fengdu
Chassis Model: DYQ1162D5AA
Leaf spring count: 9/10+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS105TA
Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs

Photos

Exterior1

1 photos

FAQ

What is the export price of Dayun Fengdu 160 hp 4X2(6 wheels) 5.1 m truck-mounted crane (Zhuanzhi brand), and what does it include?

Dayun Fengdu 160 hp 4X2(6 wheels) 5.1 m truck-mounted crane (Zhuanzhi brand) export reference is about From $38,472; MSRP is ¥27.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dayun Fengdu 160 hp 4X2(6 wheels) 5.1 m truck-mounted crane (Zhuanzhi brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun Fengdu 160 hp 4X2(6 wheels) 5.1 m truck-mounted crane (Zhuanzhi brand)?

Key specs of Dayun Fengdu 160 hp 4X2(6 wheels) 5.1 m truck-mounted crane (Zhuanzhi brand): Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun Fengdu 160 hp 4X2(6 wheels) 5.1 m truck-mounted crane (Zhuanzhi brand) suited for?

Dayun Fengdu 160 hp 4X2(6 wheels) 5.1 m truck-mounted crane (Zhuanzhi brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dayun Fengdu 160 hp 4X2(6 wheels) 5.1 m truck-mounted crane (Zhuanzhi brand) differ from other variants in the same series?

Dayun Fengdu 160 hp 4X2(6 wheels) 5.1 m truck-mounted crane (Zhuanzhi brand) belongs to Zhuanzhi Dayun Chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun Fengdu 160 hp 4X2(6 wheels) 5.1 m truck-mounted crane (Zhuanzhi brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun Fengdu 160 hp 4X2(6 wheels) 5.1 m truck-mounted crane (Zhuanzhi brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
