Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck

Export reference

MSRP N/A

Horsepower: 350

Emission: China VI

Fuel: Diesel

Curb Weight:: 9.9ton

Wheelbase:: 7100mm

Tire Size:: 295/80R22.5 18PR

Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck exterior

View more photos (9)

Fuel tank capacity: 600L

Rated payload: 7.97ton

Drive 4X2 (6 wheels)

Cargo box dimensions: 9.55×2.42×2.52m

Overview

The Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck is a Refrigerated Truck featuring 9.55×2.42×2.52m cargo body, 600L volume, 7.97t payload and 12×2.6×3.98m cab. On the powertrain side, it comes with 350 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 350 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Cab dimensions: 12×2.6×3.98m

Truck Type: Refrigerated Truck

Drive type: 4X2

Vehicle origin: Jinan, Shandong

Wheelbase: 7100mm

Front track width: 2058mm

rear track: 1860mm

Curb Weight: 9.9ton

Rated payload: 7.97ton

GVWR: 18ton

Max. speed: 89km/h

Front/rear suspension: 1.465/3.255m

Energy Type: Diesel

Engine parameters

Engine Model: MC07H.35-61

Number of cylinders: 6cylinder

fuel type: Diesel

Displacement: 7.36L

Emission standard: China VI

Max output power: 254kW

Max hp: 350Horsepower

Max torque: 1400N·m

Rated speed: 2200rpm

Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail

Cargo box parameters

Cargo box dimensions: 9.55×2.42×2.52m

Cargo box width: 2.42m

Cargo box height: 2.52m

Body Parameters

Vehicle certification code: ZZ5187XLCN711KF1

Body Brand: SinotrukHOWO

Chassis Specs

Chassis Brand: Sinotruk HOWO

Chassis Series: HOWOTS7

Chassis Model: ZZ1187N511KF1

Front axle description: 1094 self-adjusting arm front axle

Frame Dimensions: 250mm

rear axle description: MCJ09BGQ self-adjusting arm single rear axle

Axle ratio: 3.91

Leaf spring count: 3/7+3

Transmission Parameters

Number of gears: 10Gear

Transmission Model: 12-speed

fuel tank

Fuel tank capacity: 600L

Tire

Tire Size: 295/80R22.5 18PR

Number of tires: 6pcs

Control configuration

ABS:

Power steering:

clutch booster:

interior configuration

steering wheel adjustment:

Multifunction steering wheel:

AC control type: Manual

Power Windows:

Remote key:

Electronic Central Lock:

lighting configuration

LED headlight:

daytime running lights:

Headlight height adjustment:

Multimedia features

Center Console Color Screen:

GPS/Beidou driving recorder:

External audio input (AUX/USB/iPod etc.):

Service brake

Brake Type: Air brake

Parking brake: Spring brake

Front wheel brake: Drum Type

Rear Wheel Brake: Drum Type

Photos

Exterior3

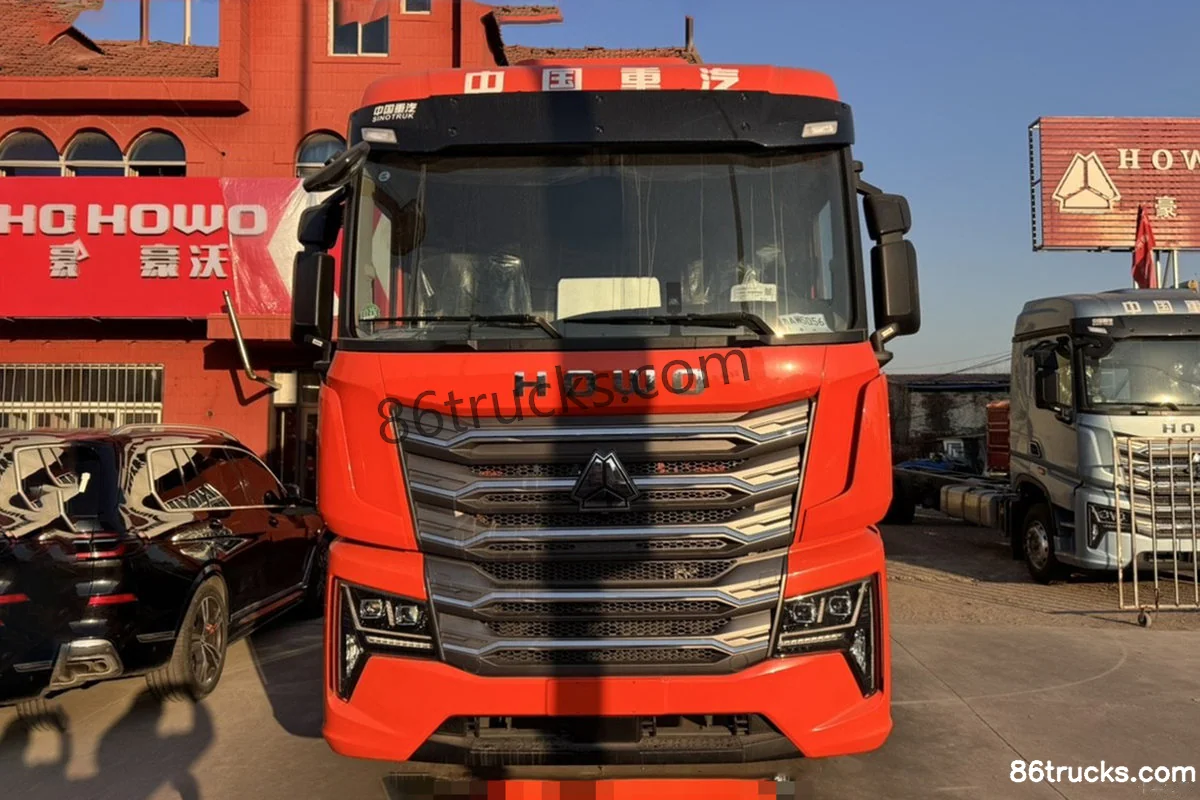

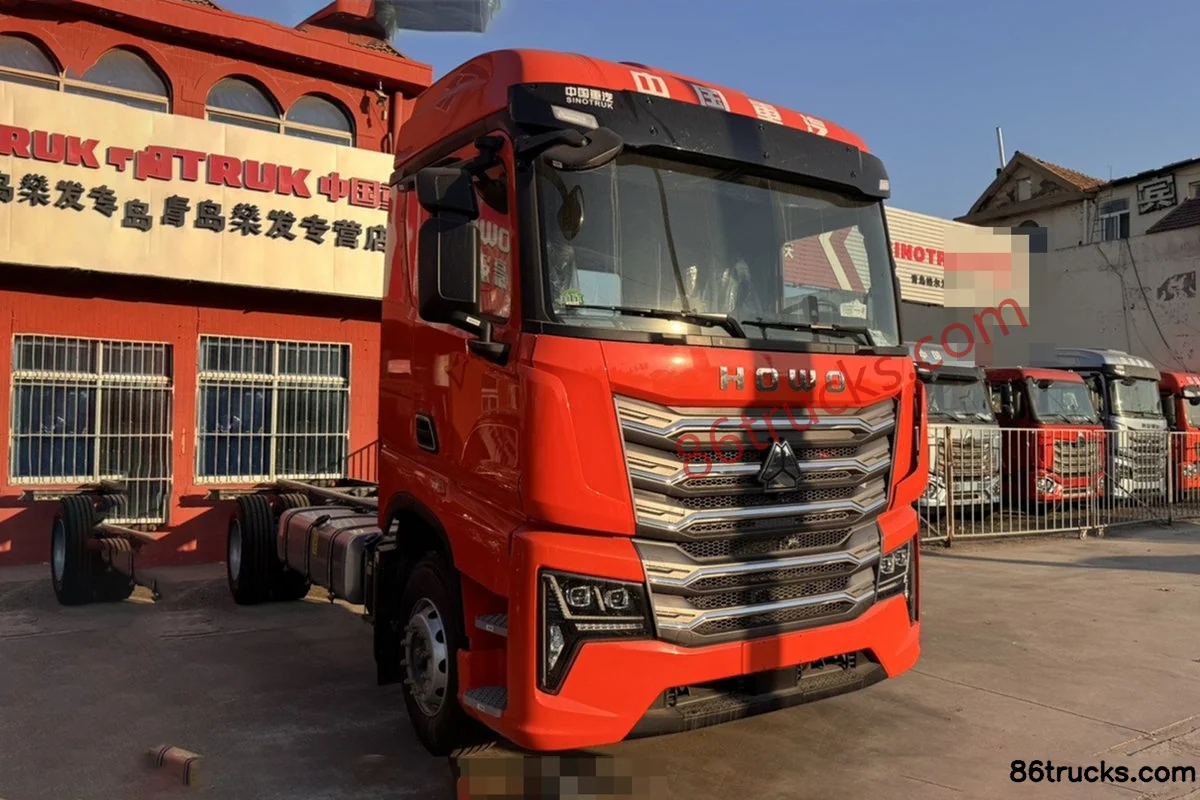

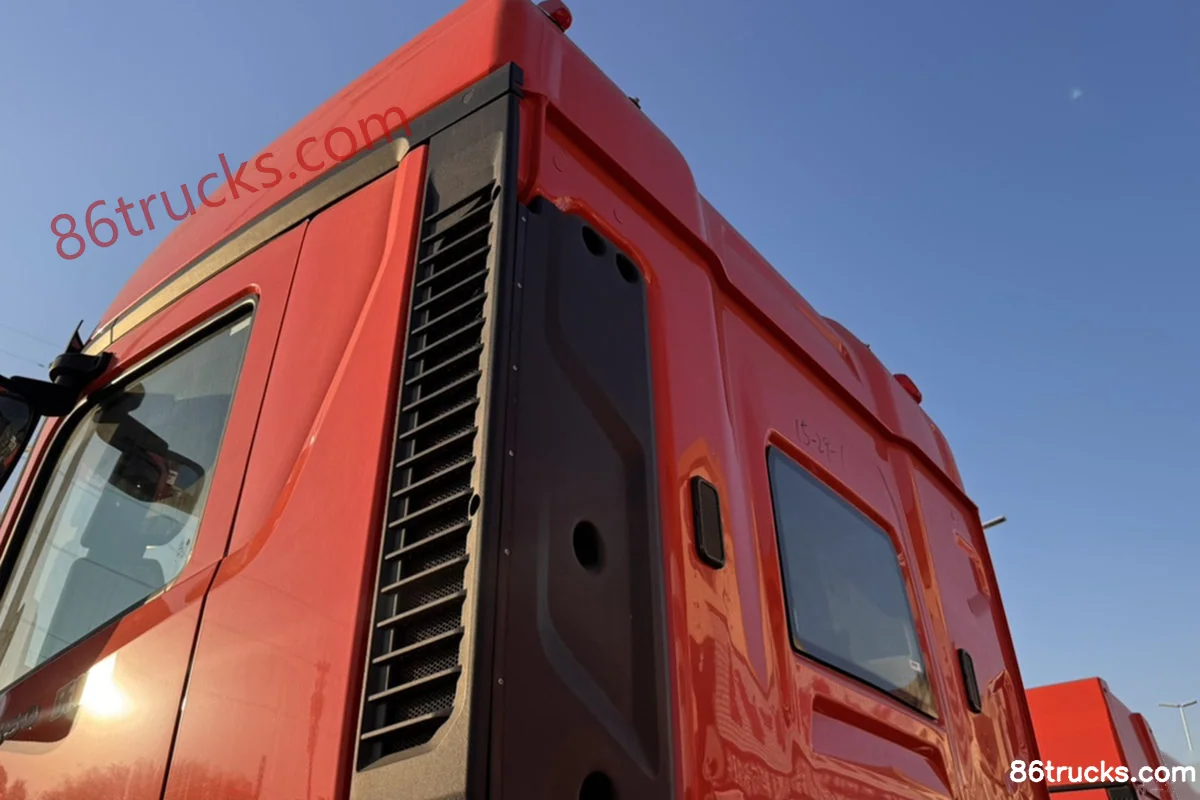

Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck Exterior (1) | 86Trucks

Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck Exterior (2) | 86Trucks

Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck Exterior (3) | 86Trucks

Cab3

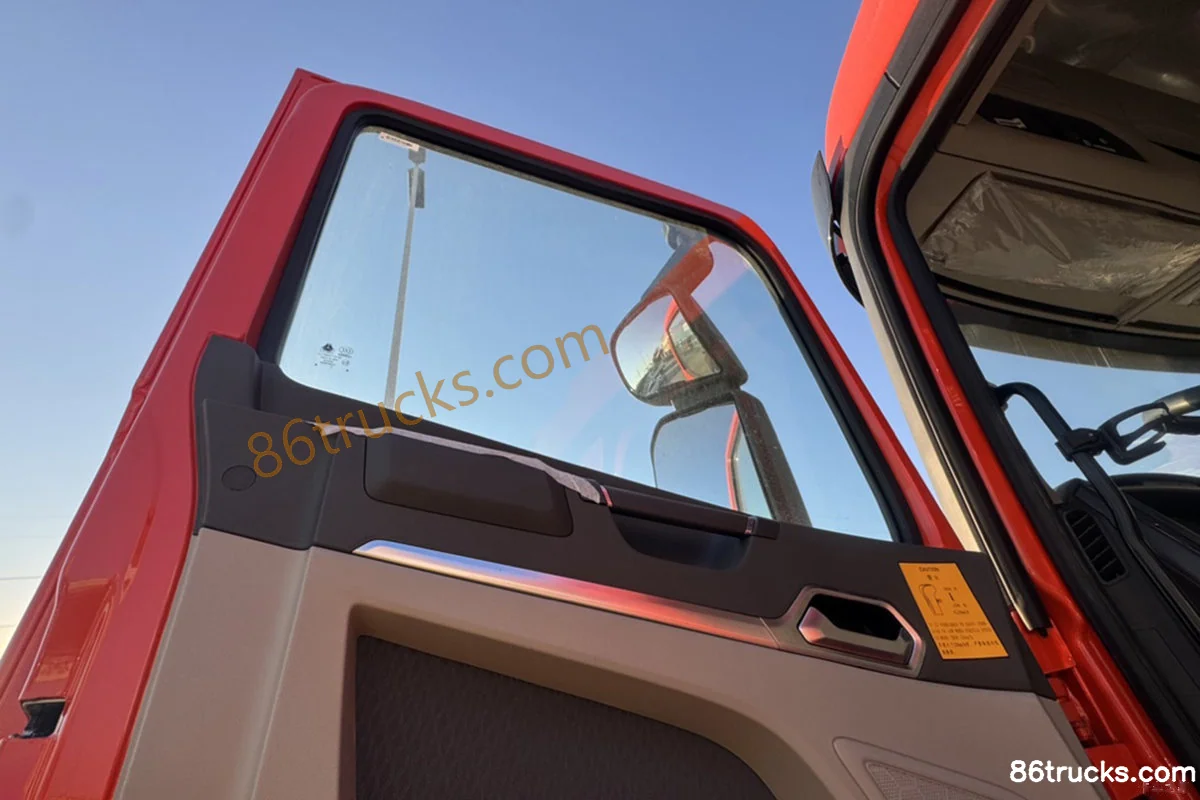

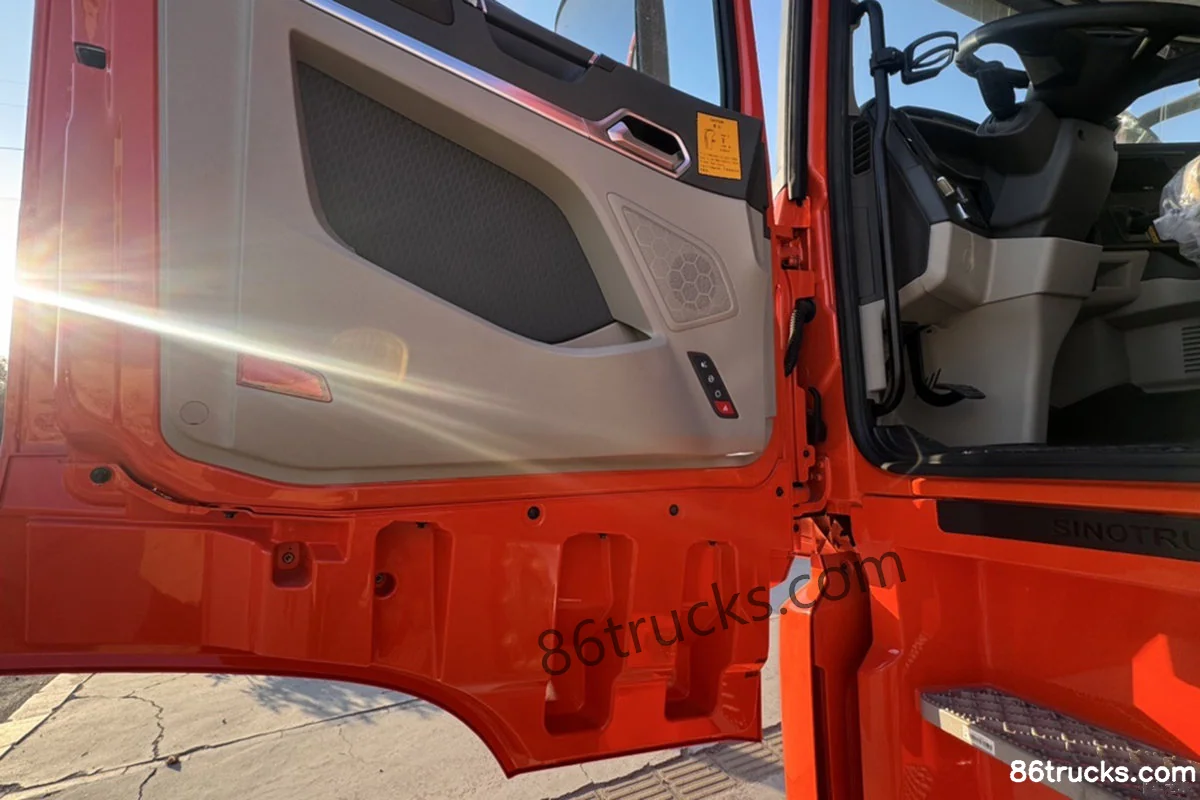

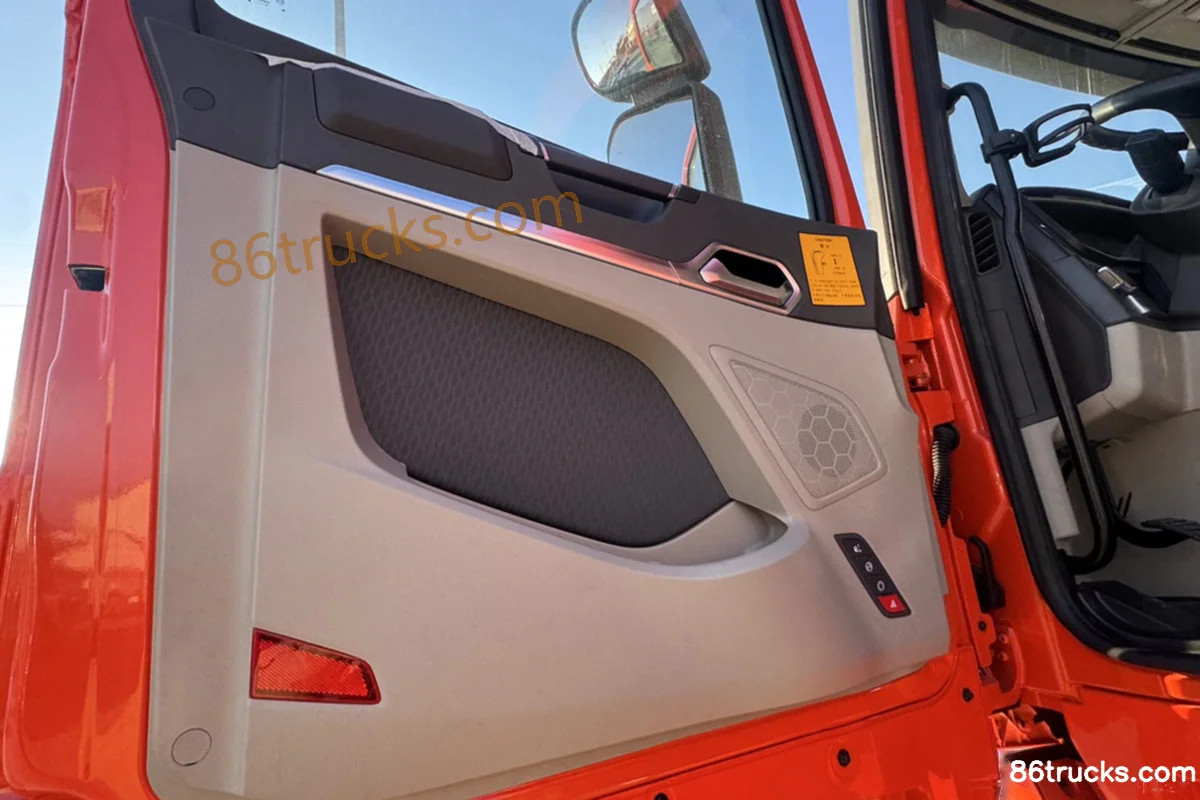

Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck Cab (1) | 86Trucks

Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck Cab (2) | 86Trucks

Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck Cab (3) | 86Trucks

Chassis3

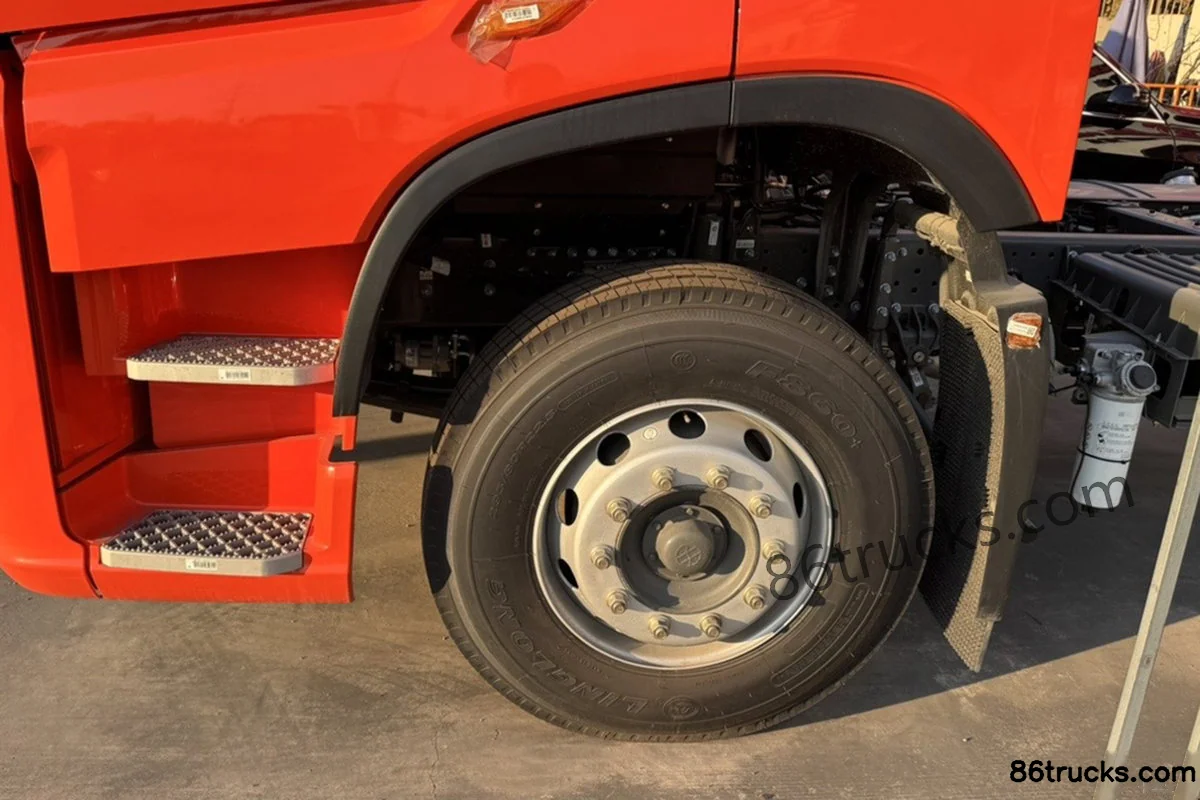

Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck Chassis (1) | 86Trucks

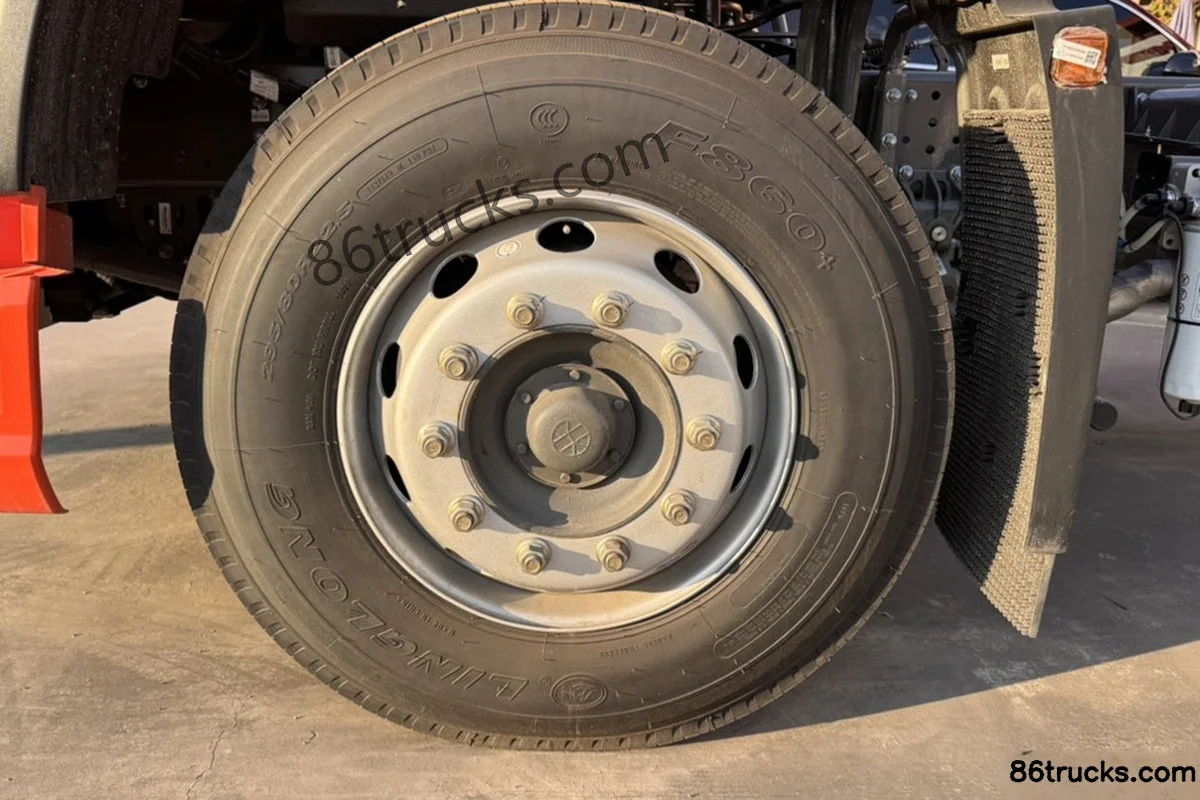

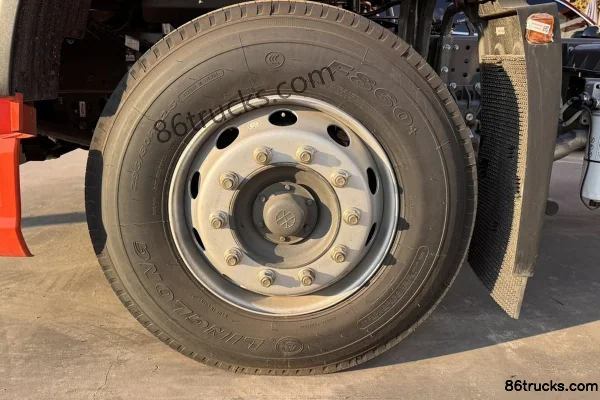

Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck Chassis (2) | 86Trucks

Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck?

Key specs of Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck: Drive: 4x2; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck suited for?

Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck differ from other variants in the same series?

Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck belongs to SinotrukHOWO TS7 (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO TS7 350 hp 4X2(6 wheels) 9.55m refrigerated truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
