Qingling Isuzu KV100 120 hp 4X2(6 wheels) 4.13m single-row van light truck

Export reference
MSRP N/A
Horsepower: 120
Emission: China VI
Fuel: Diesel
Engine: Qingling Isuzu4KH1
Curb Weight:: 2.805ton
Wheelbase:: 3360mm
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Qingling Isuzu KV100 120 hp 4X2(6 wheels) 4.13m single-row van light truck is a Light Truck featuring 4.13m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. On the powertrain side, it comes with a Qingling Isuzu4KH1 engine, 120 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QL5043XXYBUHAJ
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Qingling Isuzu4KH1CN6LB
transmission: 5-speed gearbox
Rear Axle Ratio: 5.375
Cab length: 5.995m
Cab width: 2.15m
Cab height: 3.075m
Front track width: 1685mm
rear track: 1525mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Chongqing
tonnage class: Light Truck
Approach angle: 19°
departure angle: 20°
Front/rear suspension: 1.11/1.525m
Energy Type: Diesel
Engine parameters
Engine Brand: Qingling Isuzu
Engine Model: Qingling Isuzu4KH1CN6LB
Engine info: Qingling Isuzu4KH1
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.999L
Emission standard: China VI
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 290N·m
Transmission Parameters
Transmission Model: 5-speed gearbox
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.13m
Cargo box width: 2.1m
Cargo box height: 2.1m
*Cargo box interior width: 2.1
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1750kg
rear axle allowable load: 2745kg
Leaf spring count: 3/3+2
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

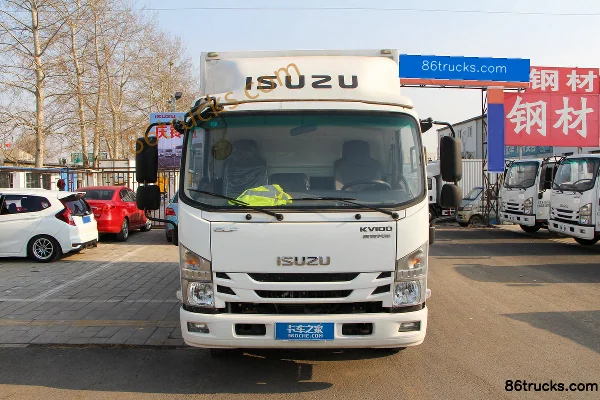

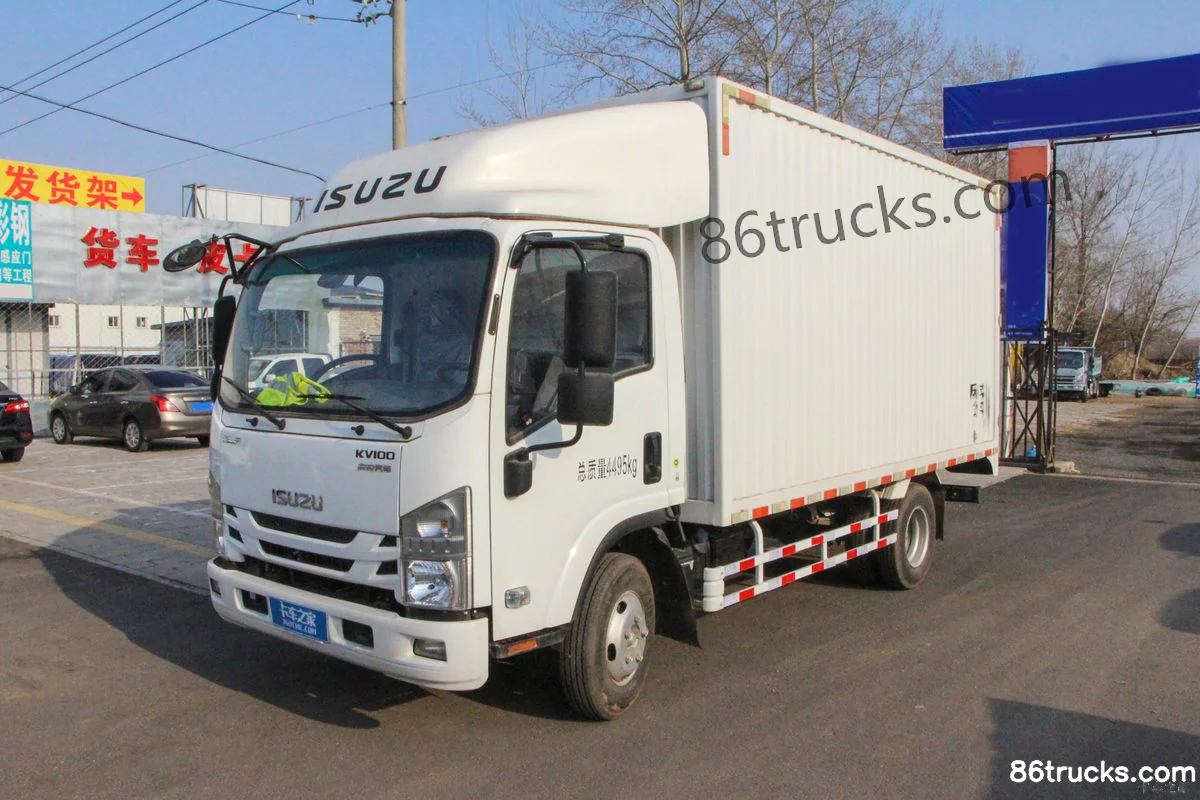

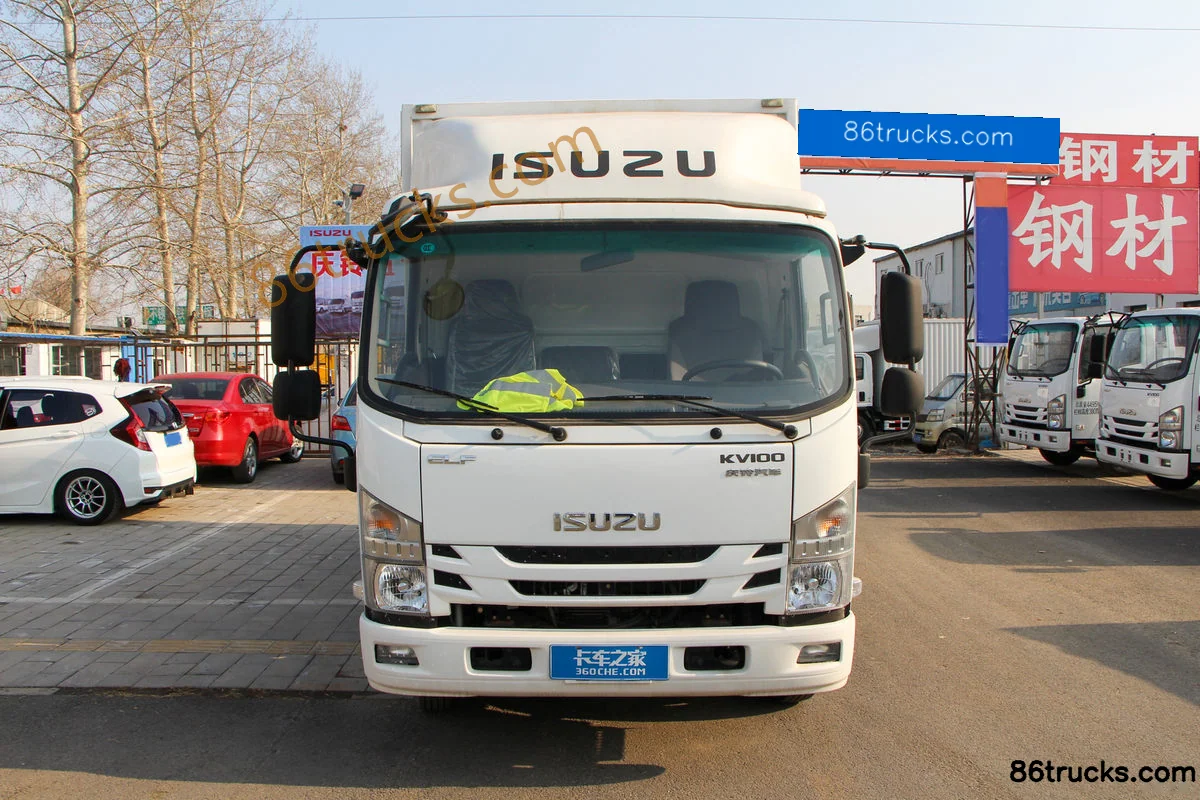

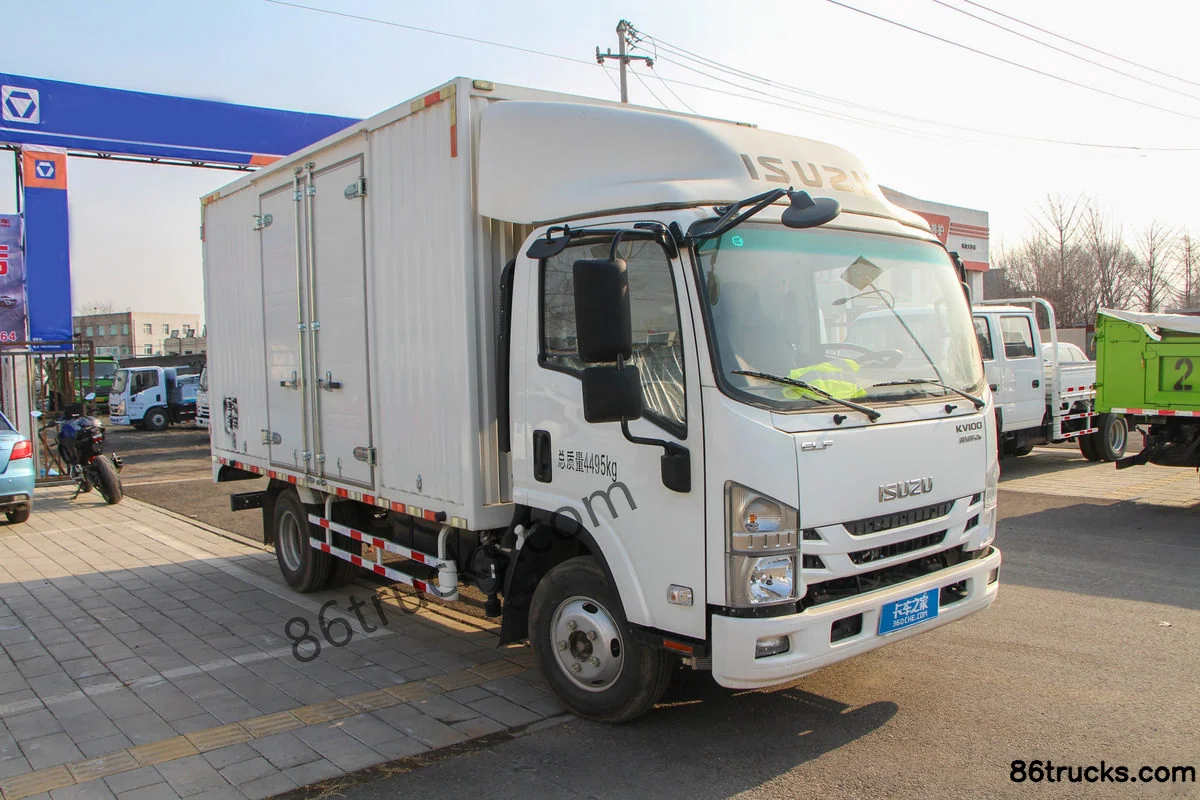

Exterior3

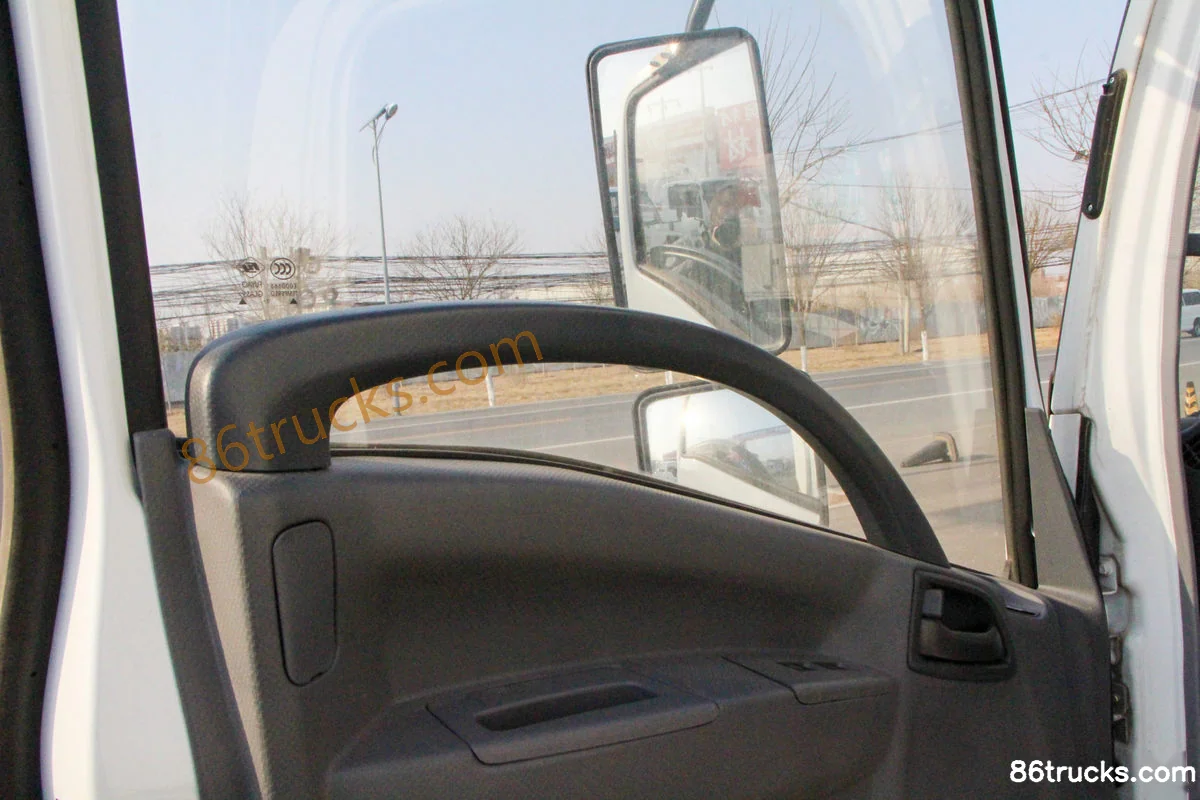

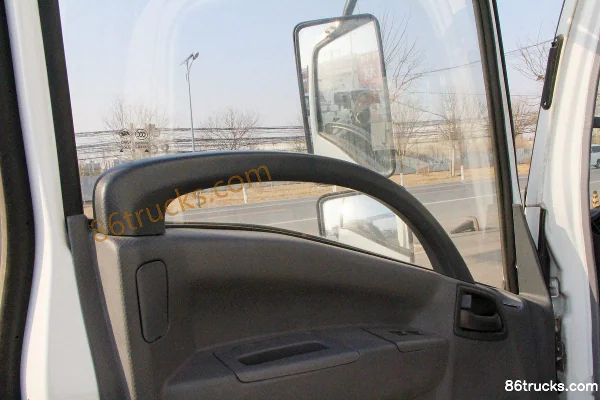

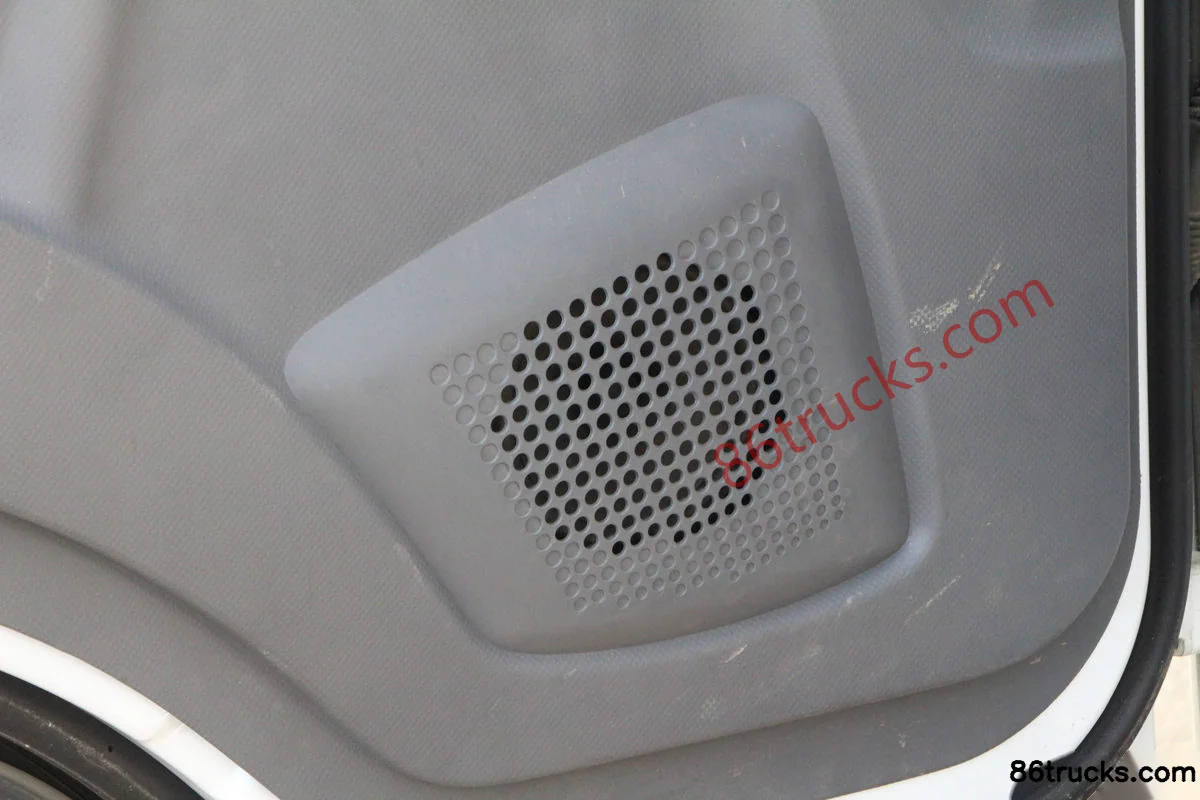

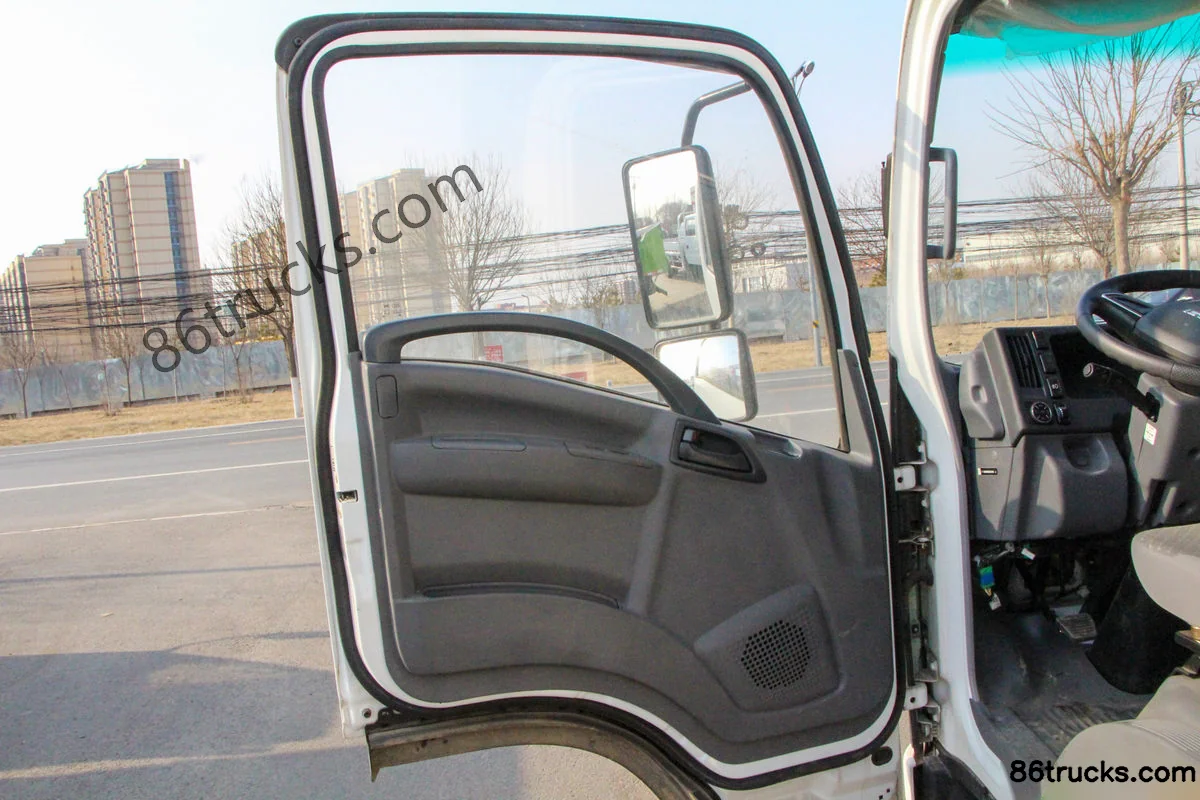

Cab3

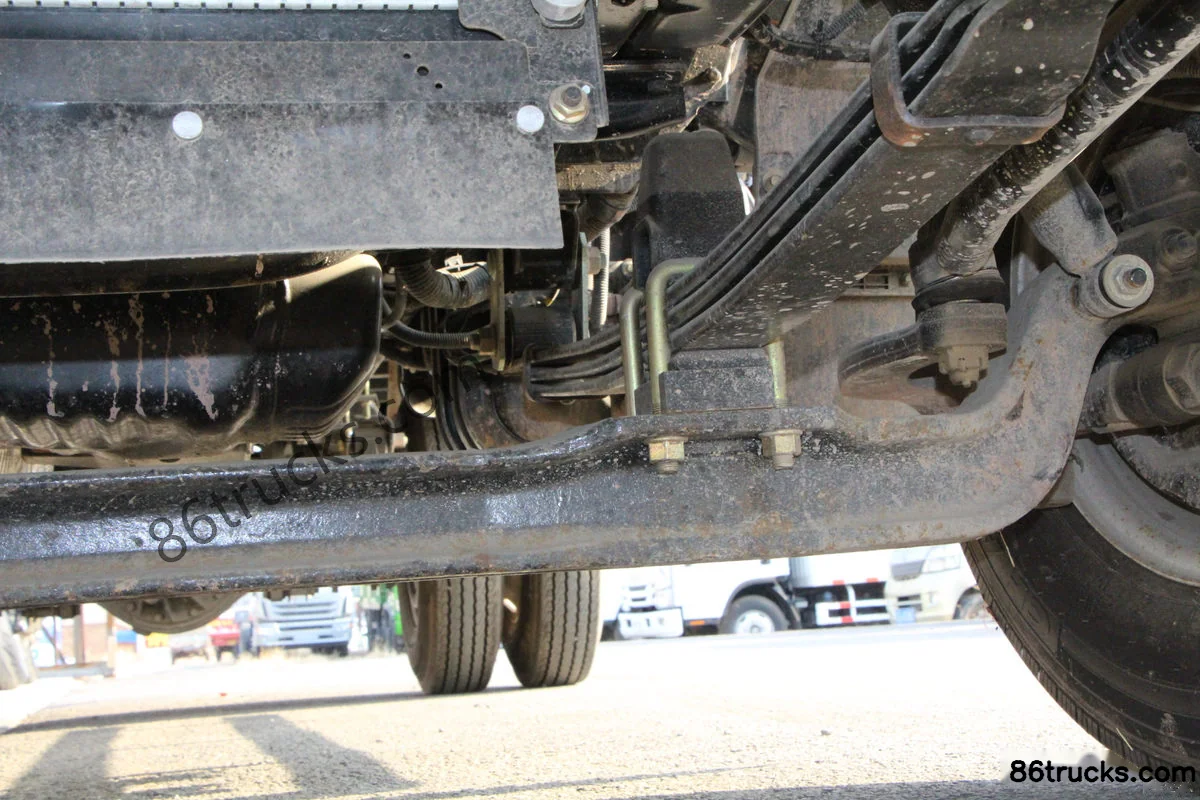

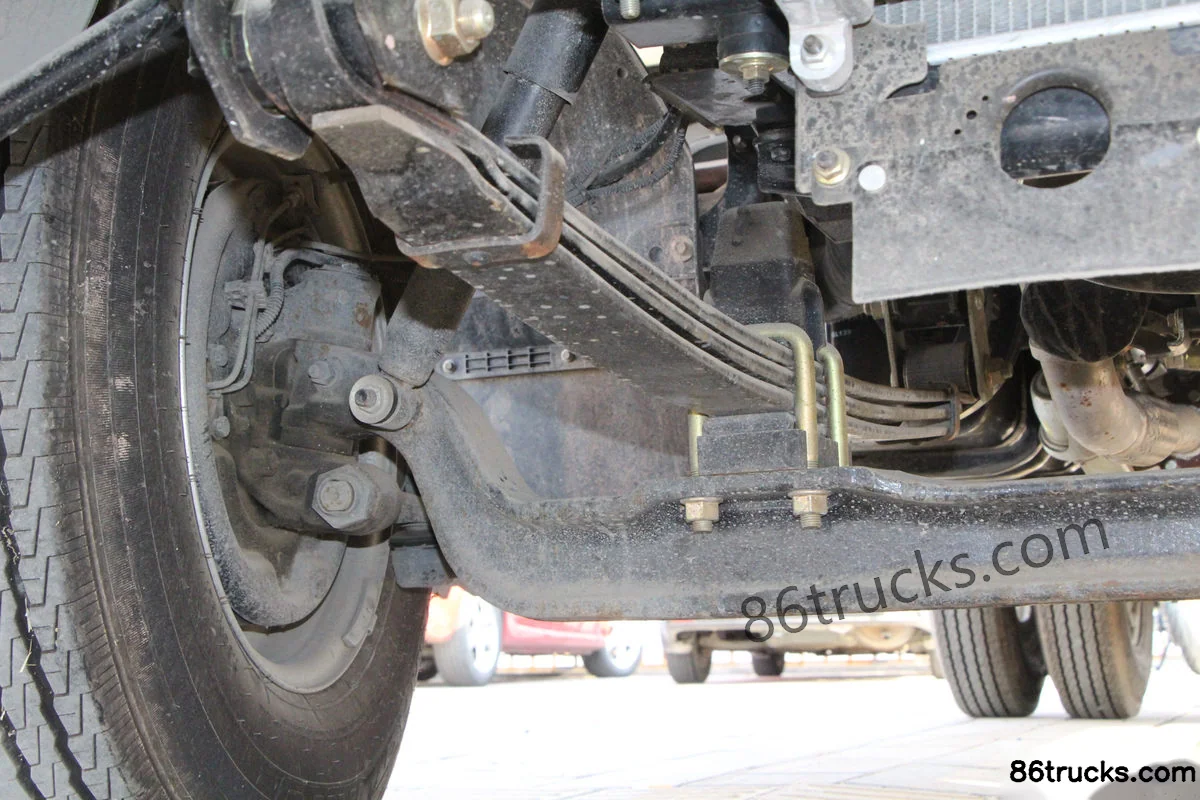

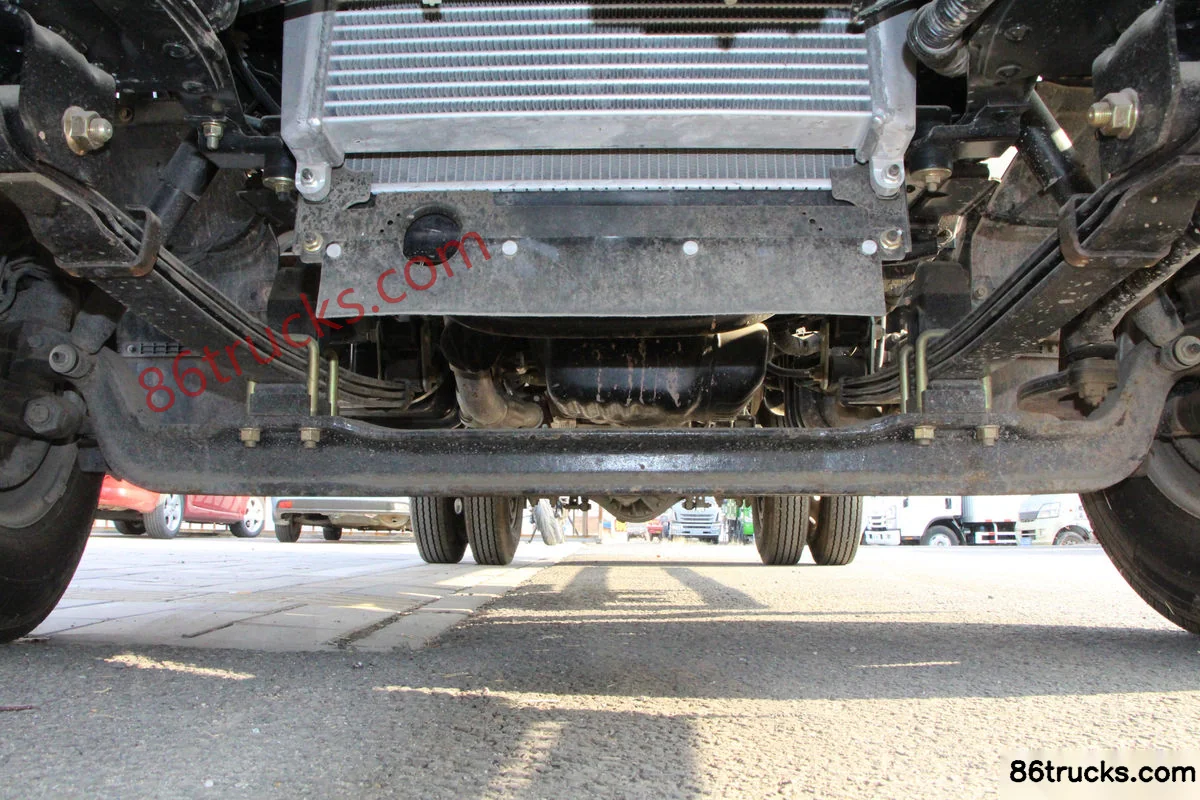

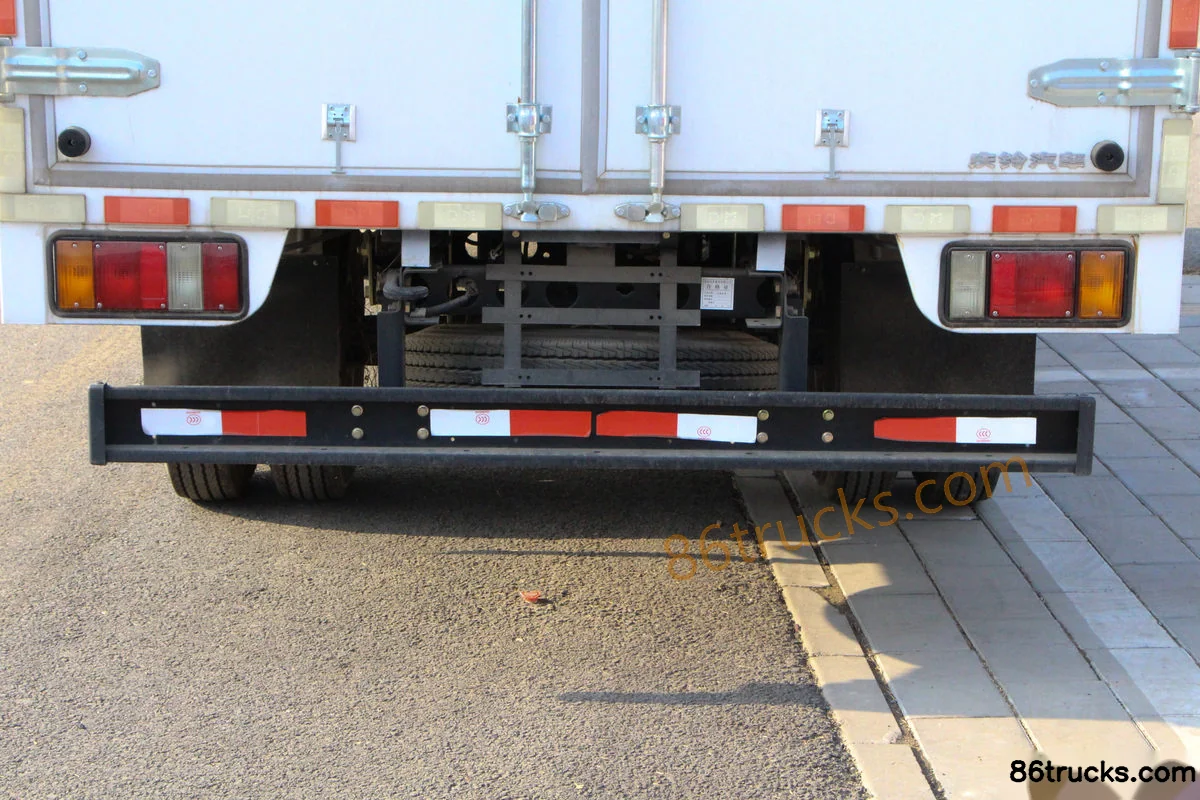

Chassis3

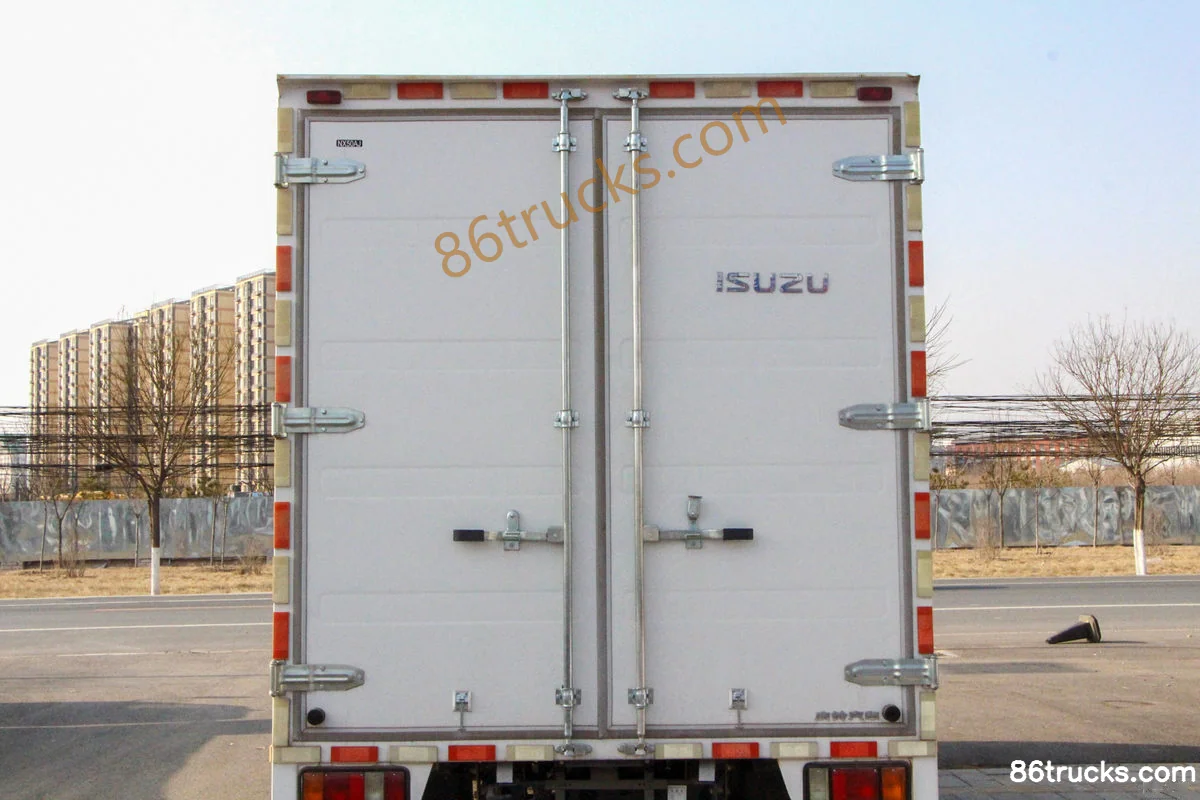

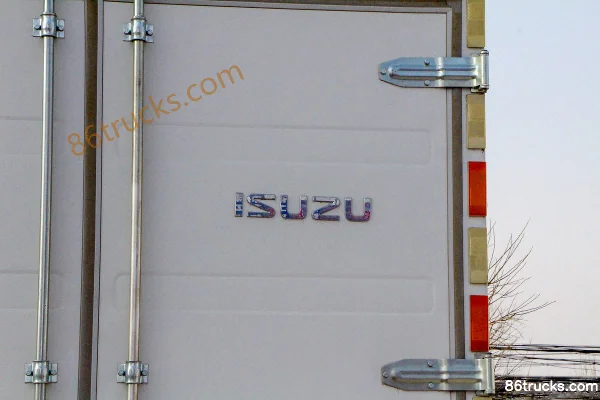

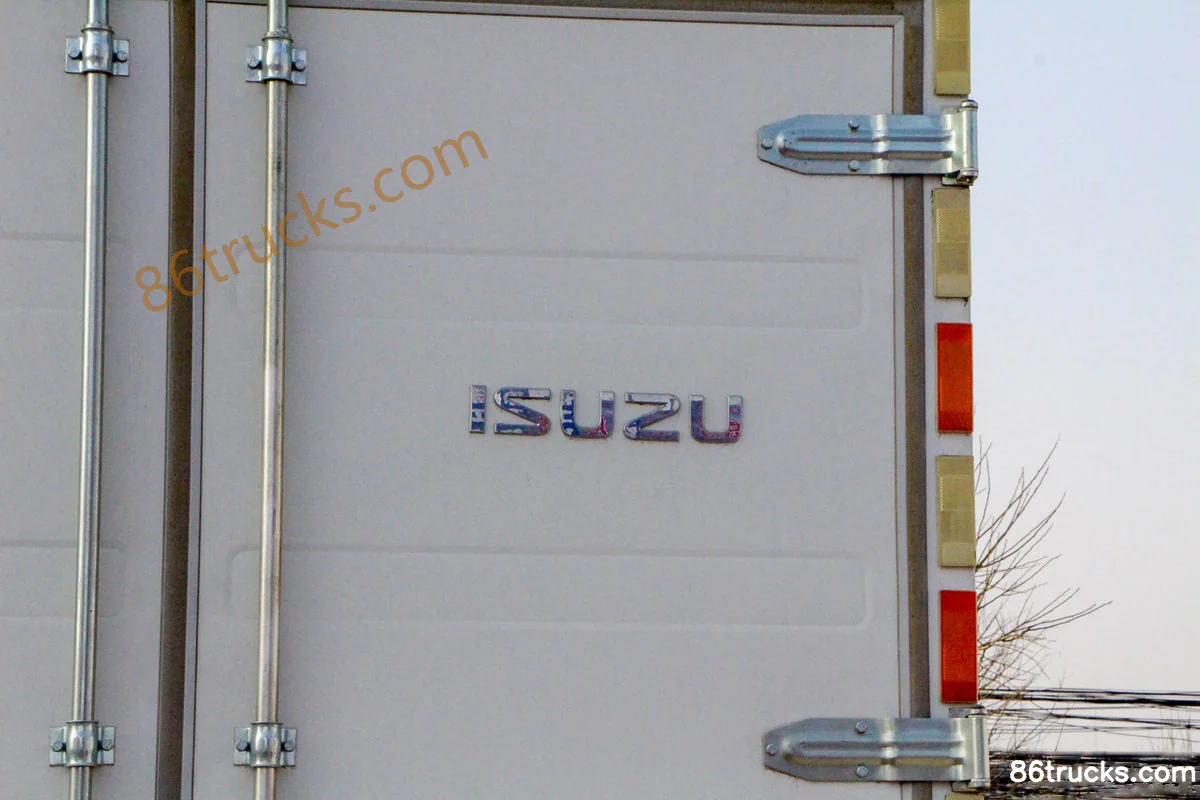

Body3

12 photos

FAQ

What emission standard does Qingling Isuzu KV100 120 hp 4X2(6 wheels) 4.13m single-row van light truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Qingling Isuzu KV100 120 hp 4X2(6 wheels) 4.13m single-row van light truck?

Key specs of Qingling Isuzu KV100 120 hp 4X2(6 wheels) 4.13m single-row van light truck: Drive: 4x2; Horsepower: 120 hp; Emission: China VI; Fuel: Diesel; Engine: Qingling Isuzu4KH1. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling Isuzu KV100 120 hp 4X2(6 wheels) 4.13m single-row van light truck suited for?

Qingling Isuzu KV100 120 hp 4X2(6 wheels) 4.13m single-row van light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Qingling Isuzu KV100 120 hp 4X2(6 wheels) 4.13m single-row van light truck differ from other variants in the same series?

Qingling Isuzu KV100 120 hp 4X2(6 wheels) 4.13m single-row van light truck belongs to Qingling IsuzuKV100 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling Isuzu KV100 120 hp 4X2(6 wheels) 4.13m single-row van light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling Isuzu KV100 120 hp 4X2(6 wheels) 4.13m single-row van light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
