NanJun Ruisheng 4X2(6 wheels) 3.95m Electric Dump Truck 98.04kWh

Export reference
From $45,667
MSRP ¥32.88M CNY
Rated payload:: 7.205ton
Wheelbase:: 3200mm
Cargo box length:: 3.95m
Model code (announced):: NJA3120EDH32BEV
Cab length:: 5.755m
GVWR:: 11.995ton
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Langao
Curb Weight: 4.66ton

Overview

The NanJun Ruisheng 4X2(6 wheels) 3.95m Electric Dump Truck 98.04kWh is a Medium-duty truck featuring CATL battery/range, Langao motor, 4X2 (6 wheels) drive and 7.205t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3120EDH32BEV
Drive type: 4X2
Wheelbase: 3200mm
Cab length: 5.755m
Cab width: 2.1m
Cab height: 2.12m
Curb Weight: 4.66ton
Rated payload: 7.205ton
GVWR: 11.995ton
Max. speed: 80km/h
Origin: Ziyang, Sichuan
tonnage class: Medium-duty truck
Energy Type: Electric
electric motor
Motor 1 Brand: Langao
Motor 1 Model: TZ342XSLGV01
Motor Type: Permanent magnet synchronous motor
total rated power: 105kW
Peak power: 165kW
Battery/Charging
Battery Brand: CATL
Battery capacity: 98.04kWh
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Fast Gear6E95
Cargo box parameters
Cargo box length: 3.95m
Cargo box width: 1.9m
Cargo box height: 0.8m
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 4190kg
rear axle description: 1068 80 shortened
rear axle allowable load: 7805kg
Tire
Tire Size: 245/70R19.5 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

Photos

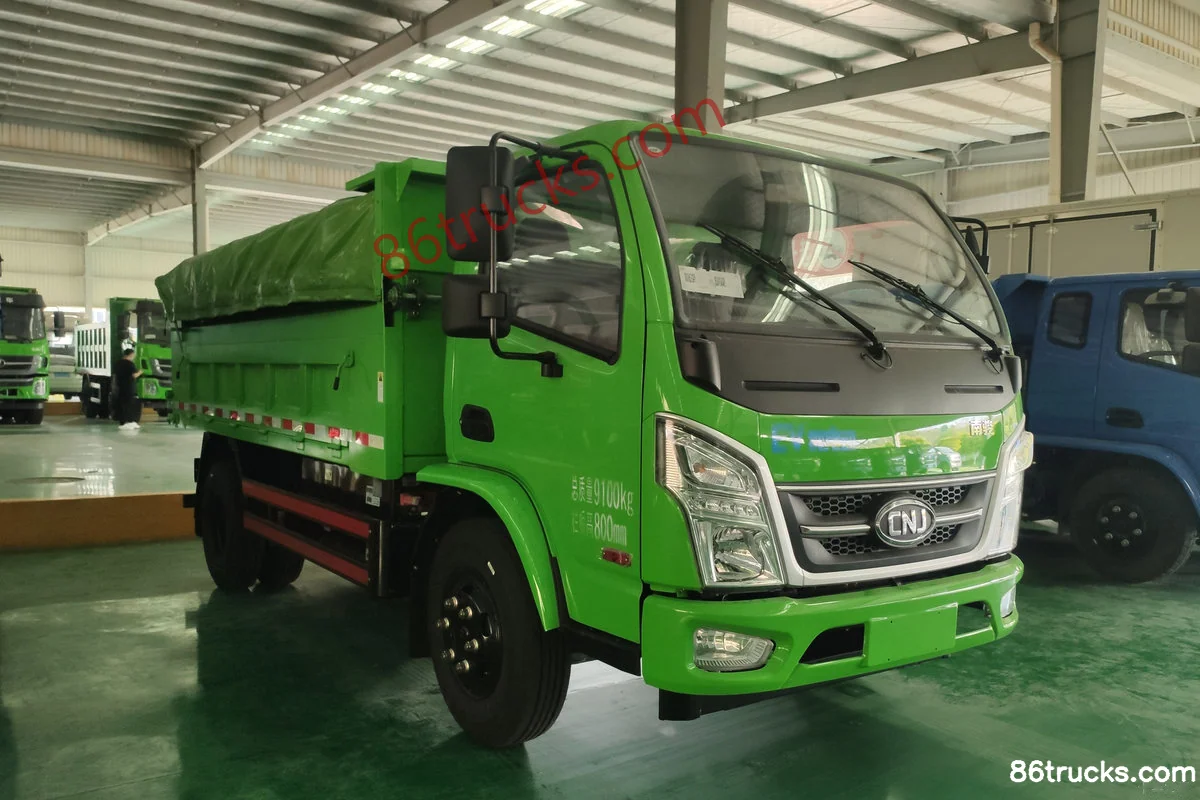

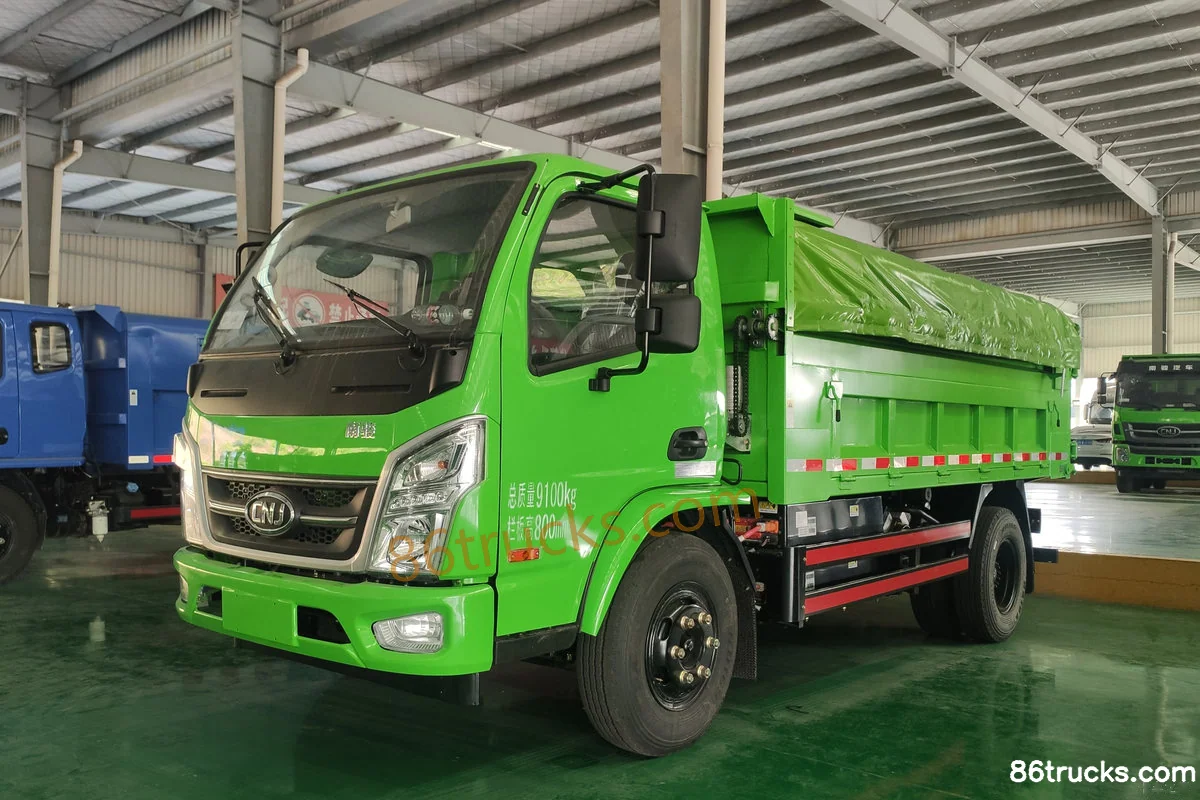

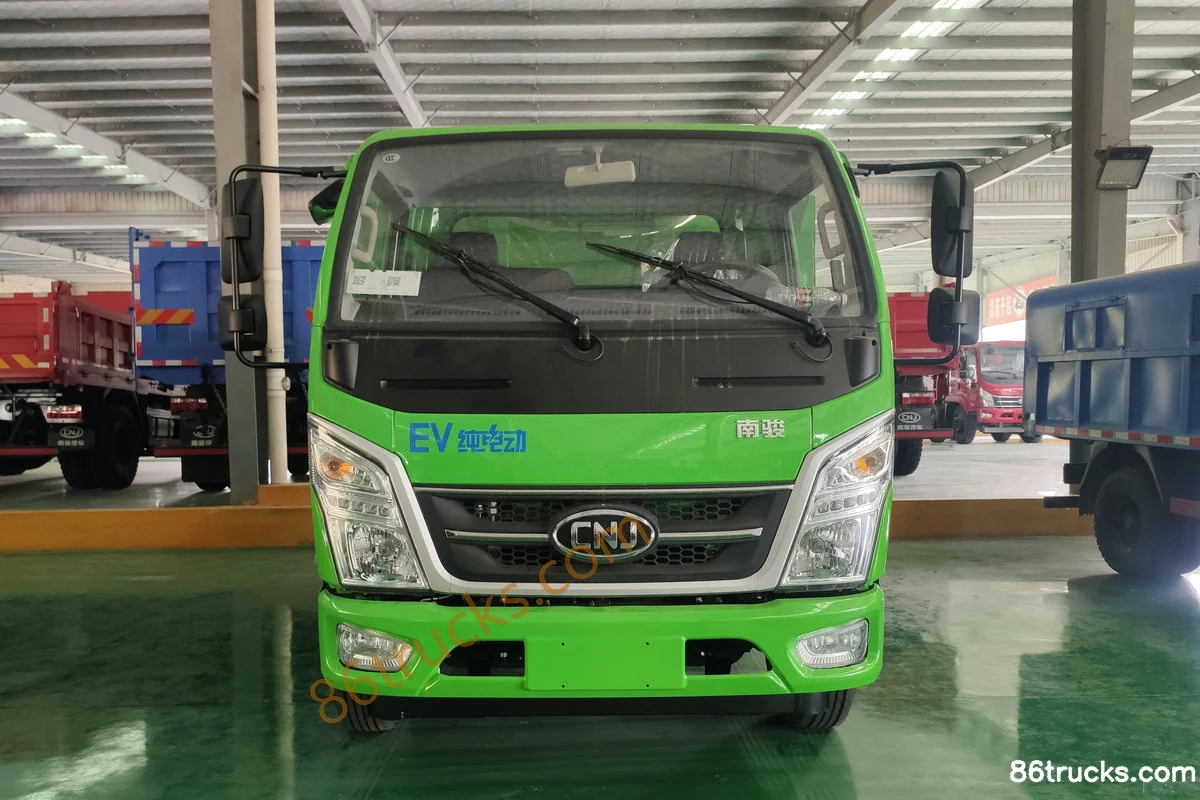

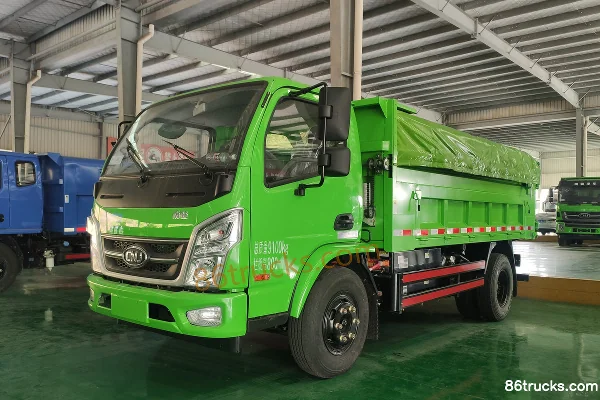

Exterior3

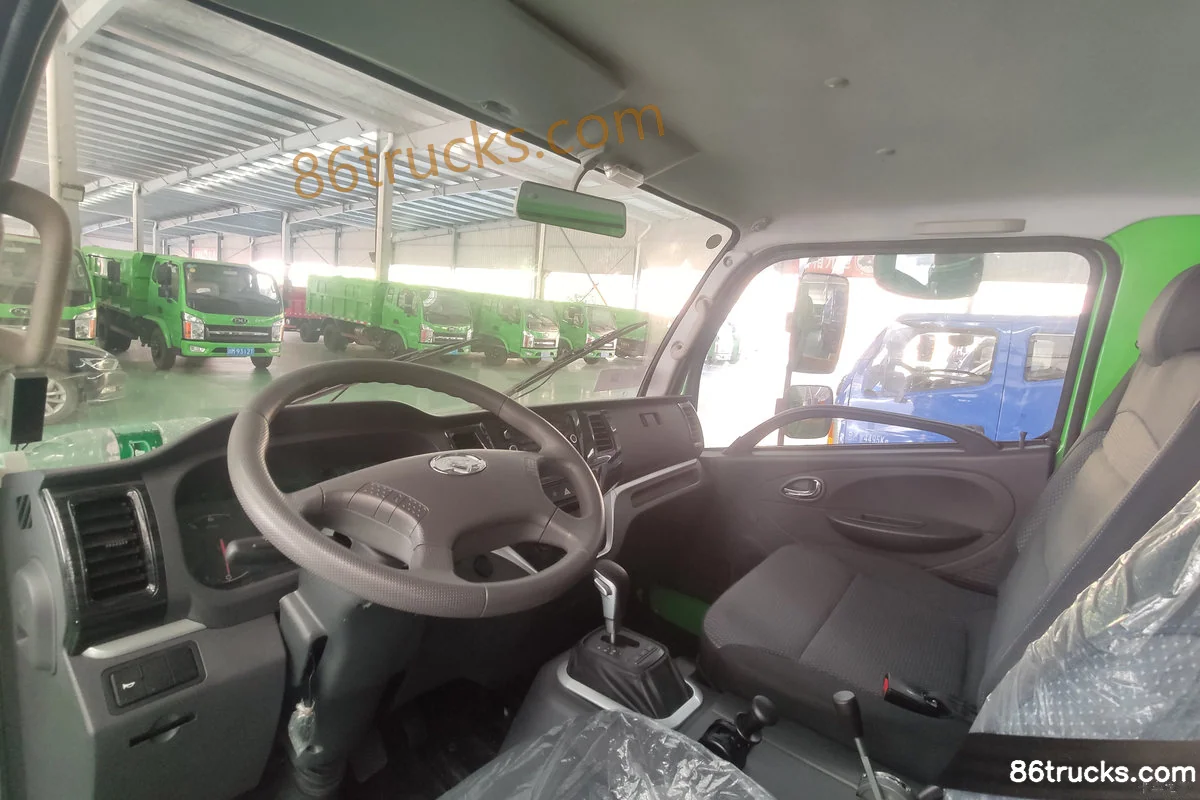

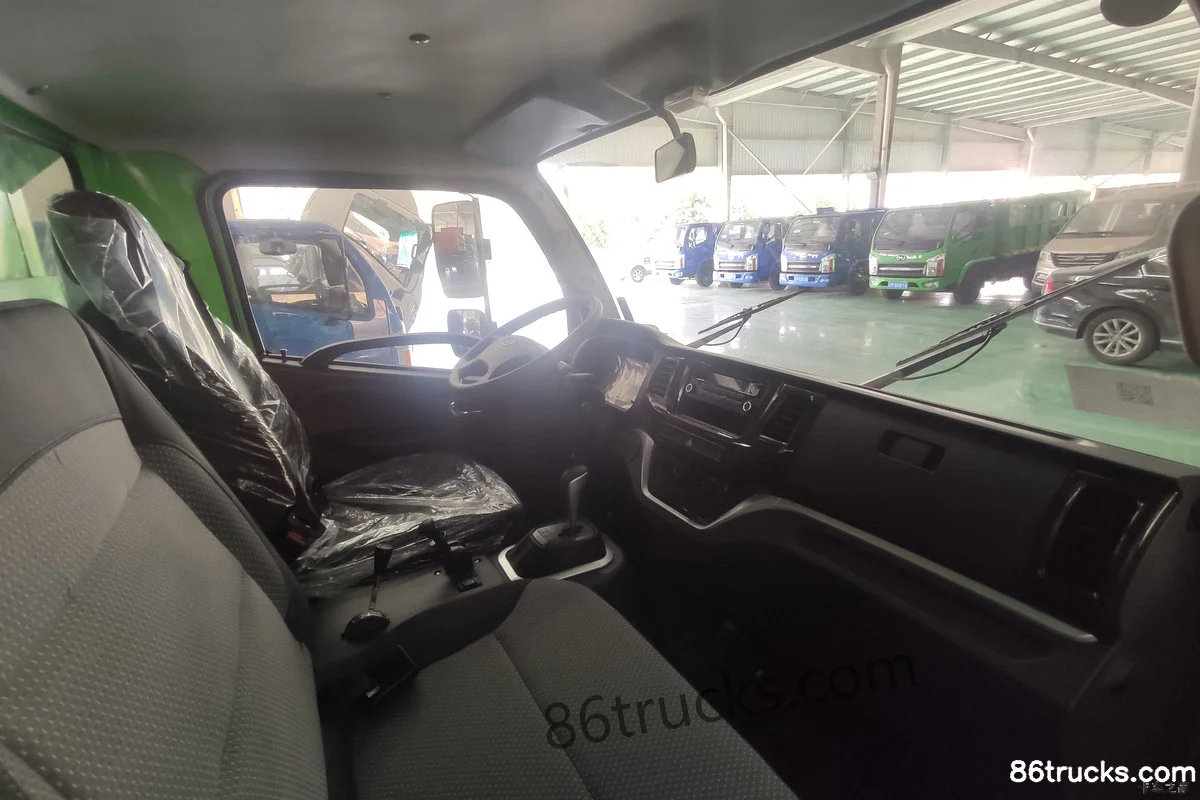

Cab2
