Xinyuan Jinbei T5 Standard Simple Edition 1.6L Gasoline 123 hp 4X2(6 wheels) Hydraulic Brake 3.4m Single Row Wing Opening Van Mini Truck

Export reference
From $8,042
MSRP ¥5.79M CNY
Horsepower: 123
Emission: China VI
Fuel: gasoline
Engine: Xinyuan Jinbei1.6L
Curb Weight:: 1.565ton
Wheelbase:: 3400mm
seating capacity: 2Personnel
Rated payload: 0.7ton
Drive 4X2 (6 wheels)
Cargo box type: Wing Van

Overview

The Xinyuan Jinbei T5 Standard Simple Edition 1.6L Gasoline 123 hp 4X2(6 wheels) Hydraulic Brake 3.4m Single Row Wing Opening Van Mini Truck is a mini truck featuring 3.4m cargo length, Wing Van cargo body, 2Personnel volume and 0.7t payload. On the powertrain side, it comes with a Xinyuan Jinbei1.6L engine, 123 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 123 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JKC5024XYKD6L5
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3400mm
Box length class: 3.4m
engine: Xinyuan JinbeiSWD16MS
transmission: 5-speed gearbox
Rear Axle Ratio: 4.778
Cab length: 5.515m
Cab width: 1.77m
Cab height: 2.16m
Front track width: 1480mm
rear track: 1338mm
Curb Weight: 1.565ton
Rated payload: 0.7ton
GVWR: 2.395ton
Max. speed: 120km/h
Origin: Chongqing
tonnage class: mini truck
Approach angle: 38°
departure angle: 22°
Front/rear suspension: 0.68/1.435m
Version: Standard basic version
Energy Type: gasoline
Engine parameters
Engine Brand: Xinyuan Jinbei
Engine Model: Xinyuan JinbeiSWD16MS
Engine info: Xinyuan Jinbei1.6L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.599L
Emission standard: China VI
Max output power: 91kW
Max hp: 123Horsepower
Max torque: 162N·m
Transmission Parameters
Transmission Model: 5-speed gearbox
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 3.4m
Cargo box width: 1.68m
Cargo box height: 1.24m
*Cargo box interior width: 1.68
Cab parameters
Cab width: 1680mm
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 56L
Chassis Specs
Front axle allowable load: 665kg
rear axle allowable load: 1730kg
Axle ratio: 4.778
Leaf spring count: 5/5+3
Tire
Tire Size: 175/70R14LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Optional manual.
Power Windows:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

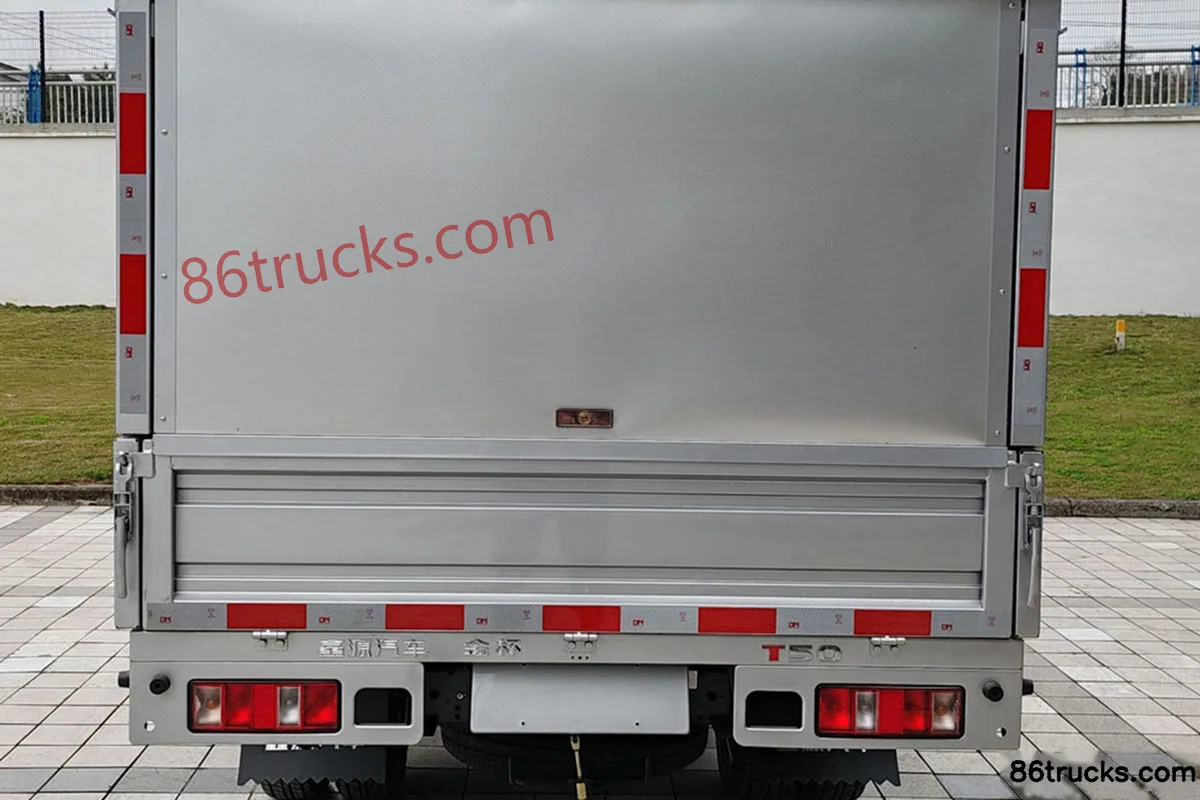

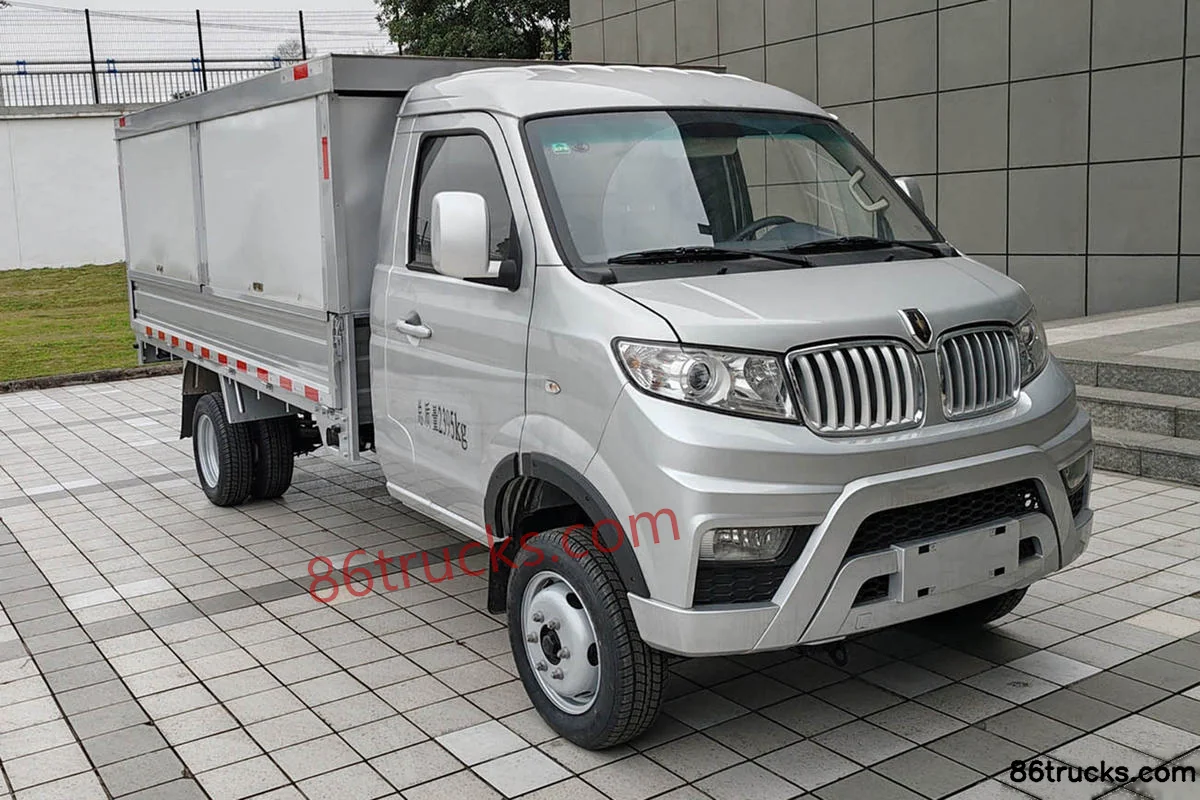

Photos

Exterior2

2 photos

FAQ

What is the export price of Xinyuan Jinbei T5 Standard Simple Edition 1.6L Gasoline 123 hp 4X2(6 wheels) Hydraulic Brake 3.4m Single Row Wing Opening Van Mini Truck, and what does it include?

Xinyuan Jinbei T5 Standard Simple Edition 1.6L Gasoline 123 hp 4X2(6 wheels) Hydraulic Brake 3.4m Single Row Wing Opening Van Mini Truck export reference is about From $8,042; MSRP is ¥5.79M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Xinyuan Jinbei T5 Standard Simple Edition 1.6L Gasoline 123 hp 4X2(6 wheels) Hydraulic Brake 3.4m Single Row Wing Opening Van Mini Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Xinyuan Jinbei T5 Standard Simple Edition 1.6L Gasoline 123 hp 4X2(6 wheels) Hydraulic Brake 3.4m Single Row Wing Opening Van Mini Truck?

Key specs of Xinyuan Jinbei T5 Standard Simple Edition 1.6L Gasoline 123 hp 4X2(6 wheels) Hydraulic Brake 3.4m Single Row Wing Opening Van Mini Truck: Drive: 4x2; Horsepower: 123 hp; Emission: China VI; Fuel: gasoline; Engine: Xinyuan Jinbei1.6L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Xinyuan Jinbei T5 Standard Simple Edition 1.6L Gasoline 123 hp 4X2(6 wheels) Hydraulic Brake 3.4m Single Row Wing Opening Van Mini Truck suited for?

Xinyuan Jinbei T5 Standard Simple Edition 1.6L Gasoline 123 hp 4X2(6 wheels) Hydraulic Brake 3.4m Single Row Wing Opening Van Mini Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Xinyuan Jinbei T5 Standard Simple Edition 1.6L Gasoline 123 hp 4X2(6 wheels) Hydraulic Brake 3.4m Single Row Wing Opening Van Mini Truck differ from other variants in the same series?

Xinyuan Jinbei T5 Standard Simple Edition 1.6L Gasoline 123 hp 4X2(6 wheels) Hydraulic Brake 3.4m Single Row Wing Opening Van Mini Truck belongs to Jinbei T5 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Xinyuan Jinbei T5 Standard Simple Edition 1.6L Gasoline 123 hp 4X2(6 wheels) Hydraulic Brake 3.4m Single Row Wing Opening Van Mini Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Xinyuan Jinbei T5 Standard Simple Edition 1.6L Gasoline 123 hp 4X2(6 wheels) Hydraulic Brake 3.4m Single Row Wing Opening Van Mini Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
