Yagu 22.5x11(8 wheels).75 Aluminum Alloy Wheel (Part No.: T117526)

Export reference
MSRP N/A
Product ID:: T117526
Max load capacity:: 4500kg
Weight:: 23kg
Specifications: 22.5x11.75
Material: aluminum alloy
bolt hole diameter: 26mm

Overview

The Yagu 22.5x11(8 wheels).75 Aluminum Alloy Wheel (Part No.: T117526) is a parts product with spec 22.5x11.75, aluminum alloy material and 26mm size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Product ID: T117526
Specifications: 22.5x11.75
Max load capacity: 4500kg
Weight: 23kg
Web plate thickness: 24mm
bolt hole diameter: 26mm
number of bolt holes: 10
Pitch circle diameter: 335mm
Center Hole Diameter: 281.1mm
Material: aluminum alloy
Reference tire specification: Michelin 385/65R22.5 XTE 3;Goodyear 385/65R22.5 RHT II
Remarks: Center hole positioning

Photos

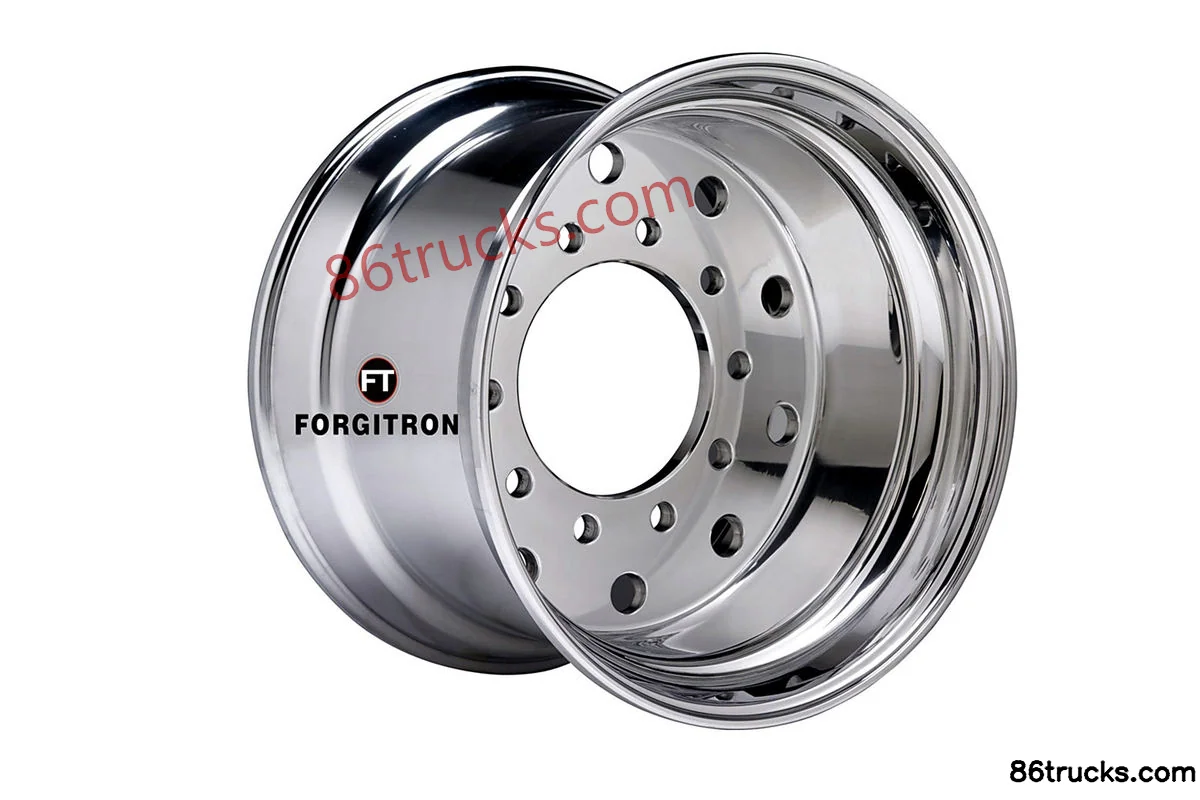

Exterior1

1 photos

FAQ

What transport jobs is Yagu 22.5x11(8 wheels).75 Aluminum Alloy Wheel (Part No.: T117526) suited for?

Match Yagu 22.5x11(8 wheels).75 Aluminum Alloy Wheel (Part No.: T117526) to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Yagu 22.5x11(8 wheels).75 Aluminum Alloy Wheel (Part No.: T117526) differ from other variants in the same series?

Yagu 22.5x11(8 wheels).75 Aluminum Alloy Wheel (Part No.: T117526) belongs to Yagu 22.5-inch wheel (Wheel). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yagu 22.5x11(8 wheels).75 Aluminum Alloy Wheel (Part No.: T117526)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yagu 22.5x11(8 wheels).75 Aluminum Alloy Wheel (Part No.: T117526)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
