JAC Shuailing i3 4.5T Electric Hook Lift Garbage Truck 62.05kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.825ton
Wheelbase:: 3100mm
Model code (announced):: HFC5040ZXXEV2Z
Truck Type:: Battery Electric Hook-Lift Refuse Truck
Cab length:: 5.29m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
CLTC range: 290km
Motor 1 Brand: SAIC Motor
Curb Weight: 2.54ton

Overview

The JAC Shuailing i3 4.5T Electric Hook Lift Garbage Truck 62.05kWh 4X2(6 wheels) is a Electric Garbage Truck featuring 290km battery/range, SAIC Motor motor, 4X2 (6 wheels) drive and 1.825t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5040ZXXEV2Z
Truck Type: Battery Electric Hook-Lift Refuse Truck
Drive type: 4X2
Wheelbase: 3100mm
Cab length: 5.29m
Cab width: 1.665m
Cab height: 1.99m
CLTC range: 290km
Curb Weight: 2.54ton
Rated payload: 1.825ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Hefei, Anhui
Energy Type: Electric
electric motor
Motor 1 Brand: SAIC Motor
Motor 1 Model: TZ230XS64FF
Motor Type: Permanent magnet synchronous motor
Peak power: 120kW
total peak torque: 340N·m
Body Parameters
Special Function Description: This vehicle is equipped with a hydraulic loading/unloading mechanism for container waste transfer.
Body Brand: JAC Brand
Battery/Charging
Battery Brand: Oupeng
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 62.05kWh
Battery total voltage: 307.2V
Energy Density: 135.58
Battery Model: 307.2V202Ah96S1P
Chassis Specs
Front axle load: 1500ton
Chassis Series: Shuailing i3
Chassis Model: HFC1041EV2Z
Leaf spring count: 3/4+2,3/6,3/5,4/5
Tire
Tire Size: 2995
Number of tires: 6pcs

Photos

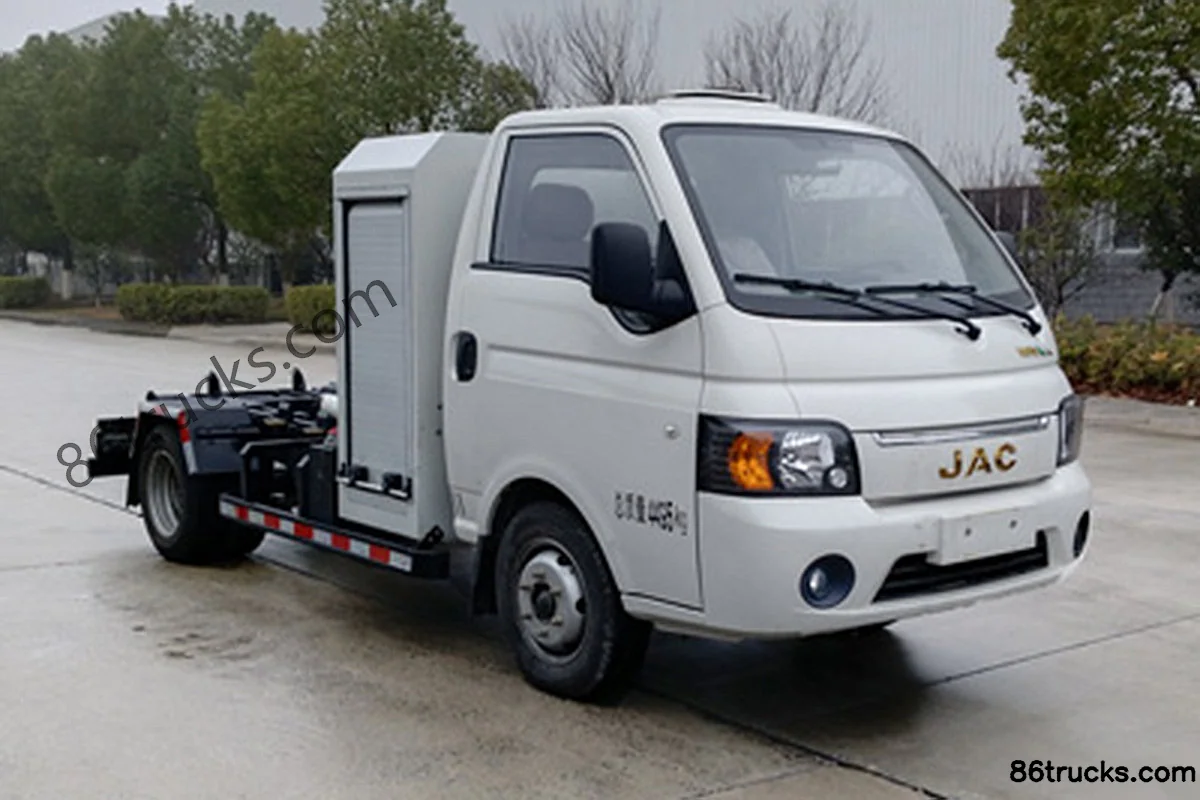

Exterior1

1 photos

FAQ

What are the key specs of JAC Shuailing i3 4.5T Electric Hook Lift Garbage Truck 62.05kWh 4X2(6 wheels)?

Key specs of JAC Shuailing i3 4.5T Electric Hook Lift Garbage Truck 62.05kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing i3 4.5T Electric Hook Lift Garbage Truck 62.05kWh 4X2(6 wheels) suited for?

JAC Shuailing i3 4.5T Electric Hook Lift Garbage Truck 62.05kWh 4X2(6 wheels) is a Electric Garbage Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Shuailing i3 4.5T Electric Hook Lift Garbage Truck 62.05kWh 4X2(6 wheels) differ from other variants in the same series?

JAC Shuailing i3 4.5T Electric Hook Lift Garbage Truck 62.05kWh 4X2(6 wheels) belongs to JACEX5 (Electric Garbage Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing i3 4.5T Electric Hook Lift Garbage Truck 62.05kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing i3 4.5T Electric Hook Lift Garbage Truck 62.05kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
