Sinotruk Haohan N5G 310hp 8X4(12 wheels) Concrete Mixer Truck (Jiangshan Shenjian Brand) (HJS5316GJBNE)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 14.5ton
Wheelbase:: 1800+3050+1350mm
Tire Size:: 12R22.5(11R22.5/10.00R20/11.00R20)
Cab dimensions:: 9.97×2.525×3.95m
Truck Type:: concrete mixer truck
Rated payload: 16.37ton
Drive 8X4 (12 wheels)
Horsepower 310
Emission China V

Overview

The 江山神剑牌 Sinotruk Haohan N5G 310hp 8X4(12 wheels) Concrete Mixer Truck (Jiangshan Shenjian Brand) (HJS5316GJBNE) is a concrete mixer truck featuring 16.37t payload, 14.5ton GVW, 8X4 (12 wheels) drive and 9.97×2.525×3.95m cab. On the powertrain side, it comes with 310 hp, China V emissions and Diesel fuel.

China V 310 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.97×2.525×3.95m
Drive type: 8X4
Truck Type: concrete mixer truck
Wheelbase: 1800+3050+1350mm
Vehicle origin: Xiangyang, Hubei
Front/rear track width: Front: 2020/2020mm; Rear: 1850/1850
Curb Weight: 14.5ton
Rated payload: 16.37ton
Max. speed: 82km/h
Front/rear suspension: 1.55/2.22m
Body Parameters
Mixing drum capacity: 7.5m³
Vehicle certification code: HJS5316GJBNE
Body Brand: Jiangshan Shenjian Brand
Engine parameters
Engine Model: SinotrukMC07.31-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Rated speed: 2300rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Chassis Specs
Chassis Series: Hohan J5G
Chassis Model: ZZ1315N3063E1
Front axle description: G116
Frame Dimensions: 850×300×80×(8+5)mm
rear axle description: 153
Axle ratio: 4.875
Leaf spring count: 4/4/5
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW13710L
Tire
Tire Size: 12R22.5(11R22.5/10.00R20/11.00R20)
Number of tires: 12pcs

Photos

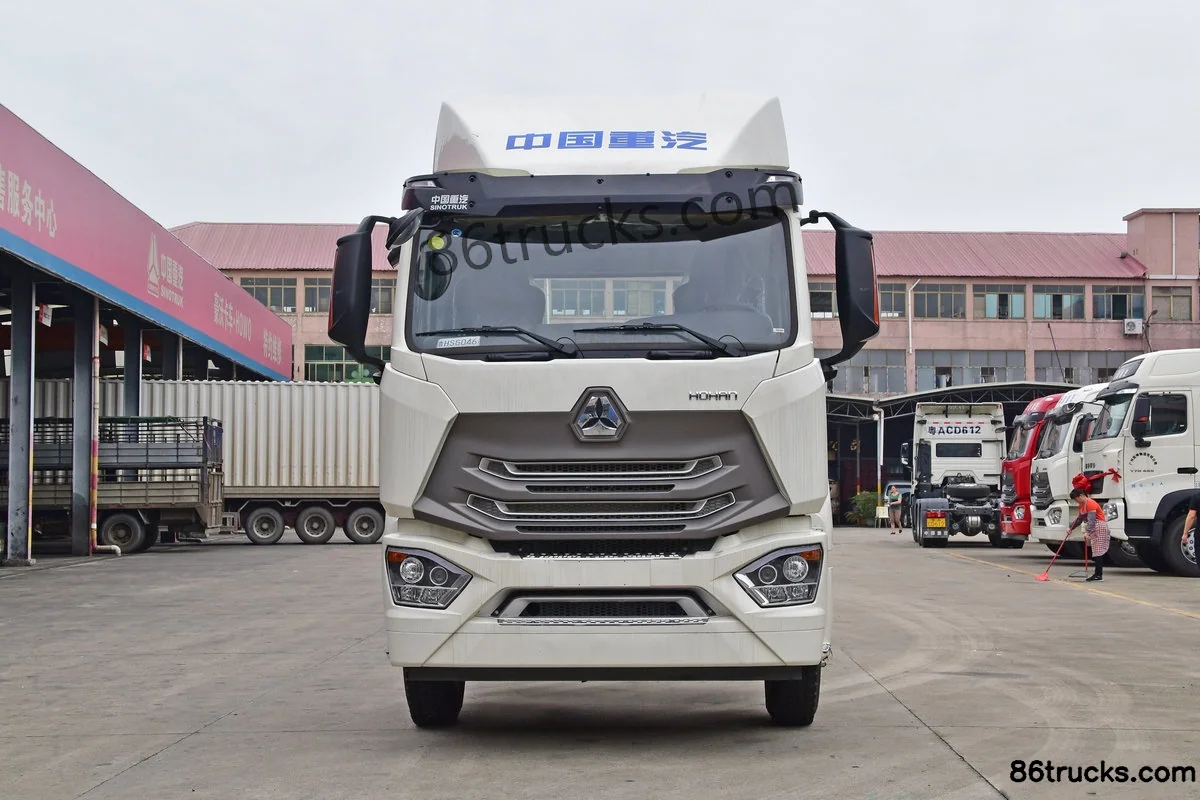

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Haohan N5G 310hp 8X4(12 wheels) Concrete Mixer Truck (Jiangshan Shenjian Brand) (HJS5316GJBNE) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haohan N5G 310hp 8X4(12 wheels) Concrete Mixer Truck (Jiangshan Shenjian Brand) (HJS5316GJBNE)?

Key specs of Sinotruk Haohan N5G 310hp 8X4(12 wheels) Concrete Mixer Truck (Jiangshan Shenjian Brand) (HJS5316GJBNE): Drive: 8x4; Horsepower: 310 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haohan N5G 310hp 8X4(12 wheels) Concrete Mixer Truck (Jiangshan Shenjian Brand) (HJS5316GJBNE) suited for?

Sinotruk Haohan N5G 310hp 8X4(12 wheels) Concrete Mixer Truck (Jiangshan Shenjian Brand) (HJS5316GJBNE) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Haohan N5G 310hp 8X4(12 wheels) Concrete Mixer Truck (Jiangshan Shenjian Brand) (HJS5316GJBNE) differ from other variants in the same series?

Sinotruk Haohan N5G 310hp 8X4(12 wheels) Concrete Mixer Truck (Jiangshan Shenjian Brand) (HJS5316GJBNE) belongs to Jiangshan Shenjian Sinotruk chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haohan N5G 310hp 8X4(12 wheels) Concrete Mixer Truck (Jiangshan Shenjian Brand) (HJS5316GJBNE)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haohan N5G 310hp 8X4(12 wheels) Concrete Mixer Truck (Jiangshan Shenjian Brand) (HJS5316GJBNE)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
