FARIZON F1E 4X2(6 wheels) 3.16m Single Row Electric Refrigerated Truck (Bawanglong) Xuanwu 51.39kWh

Export reference
From $24,014
MSRP ¥17.29M CNY
Rated payload:: 1.17ton
Wheelbase:: 3360mm
Cargo box width:: 1.66m
Model code (announced):: BWL5031XLCBEVGS5
Cab length:: 5.38m
GVWR:: 3.2ton
Drive 4X2 (6 wheels)
Battery Brand: Xuanwu
Motor 1 Brand: Smart Core
Curb Weight: 1.9ton

Overview

The FARIZON F1E 4X2(6 wheels) 3.16m Single Row Electric Refrigerated Truck (Bawanglong) Xuanwu 51.39kWh is a Electric Refrigerated Truck featuring Xuanwu battery/range, Smart Core motor, 4X2 (6 wheels) drive and 1.17t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BWL5031XLCBEVGS5
Drive type: 4X2
Wheelbase: 3360mm
Cab length: 5.38m
Cab width: 1.78m
Cab height: 2.67m
Curb Weight: 1.9ton
Rated payload: 1.17ton
GVWR: 3.2ton
Max. speed: 90km/h
Origin: Leshan, Sichuan
Energy Type: Electric
electric motor
Motor 1 Brand: Smart Core
Motor 1 Model: TZ180XSDSZX02
Motor Type: Permanent magnet synchronous motor
total rated power: 35kW
Peak power: 72kW
Battery/Charging
Battery Brand: Xuanwu
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 51.39kWh
Body Parameters
Refrigeration unit: Standard: Huoxing (Mars) EV388
Chassis Specs
Chassis Series: F1E
Chassis Model: ZB1031BEVGSJ5
Leaf spring count: -/6
Cargo box parameters
Cargo box width: 1.66m
Cargo box height: 1.7m
Safety features
Remote key:
Tire
Tire Size: 195/70R15LT 12PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

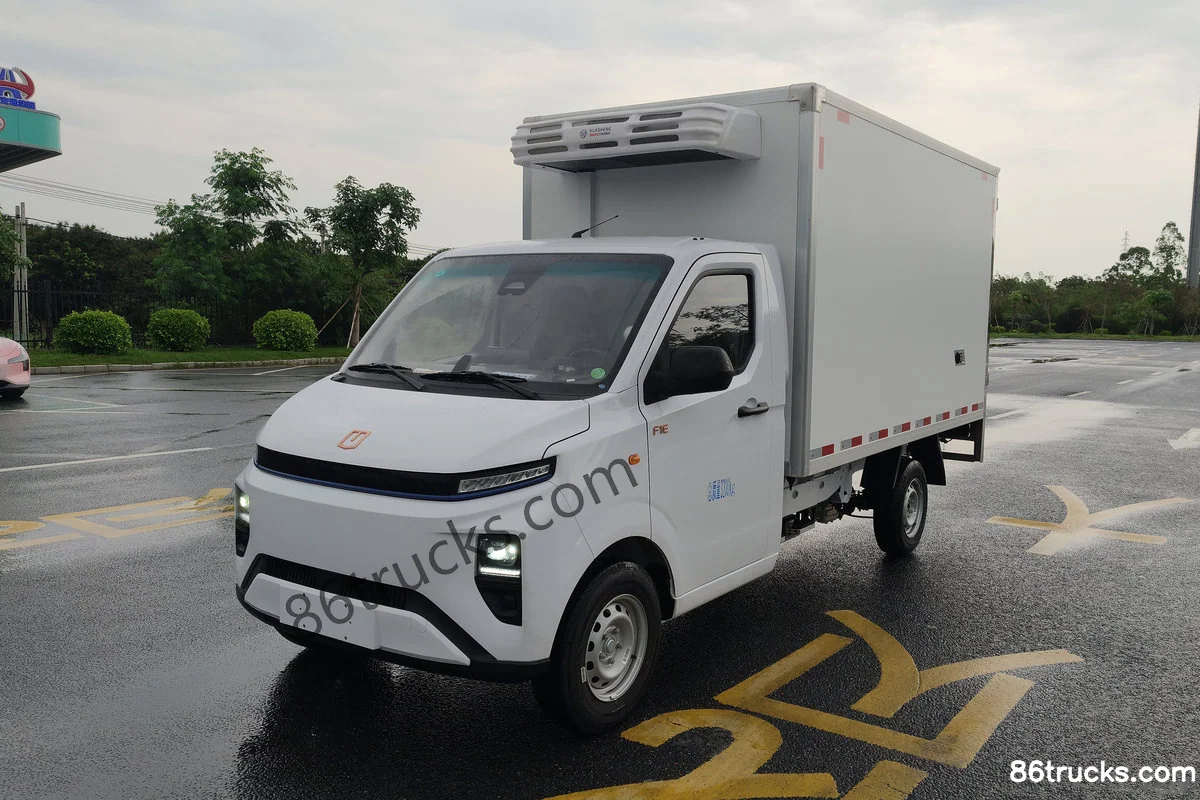

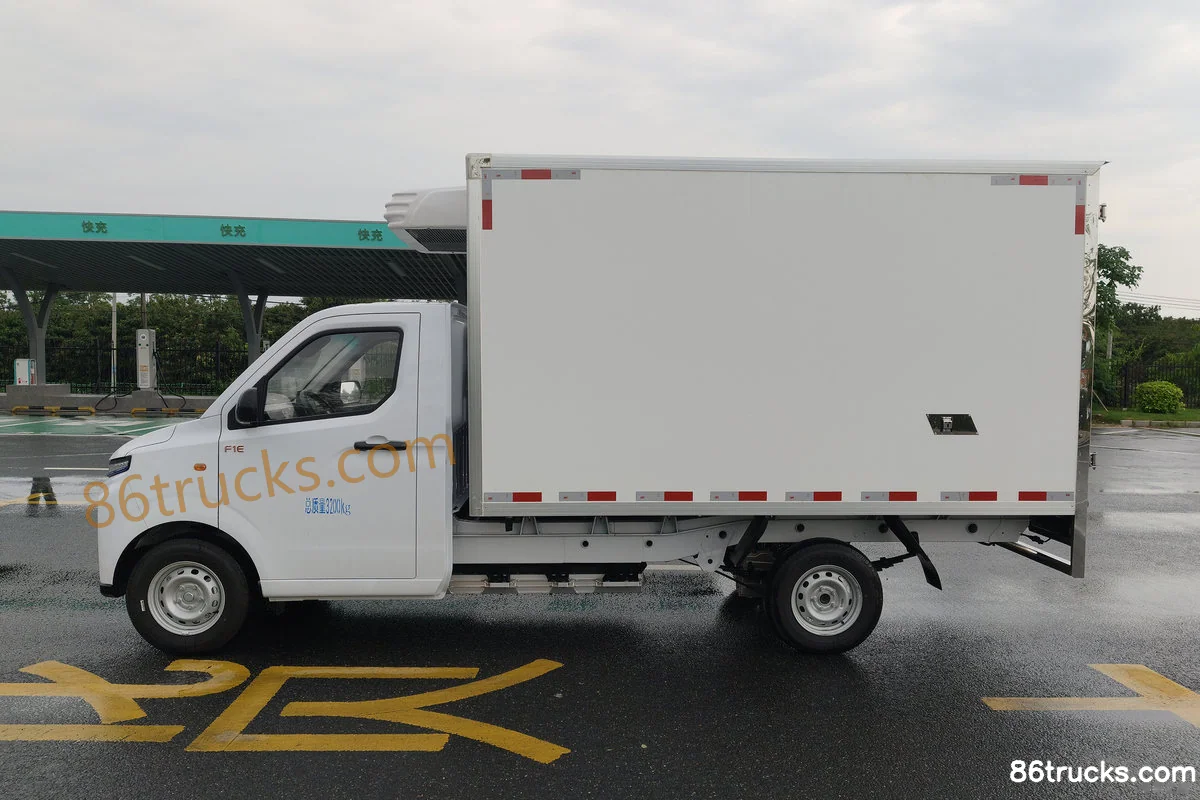

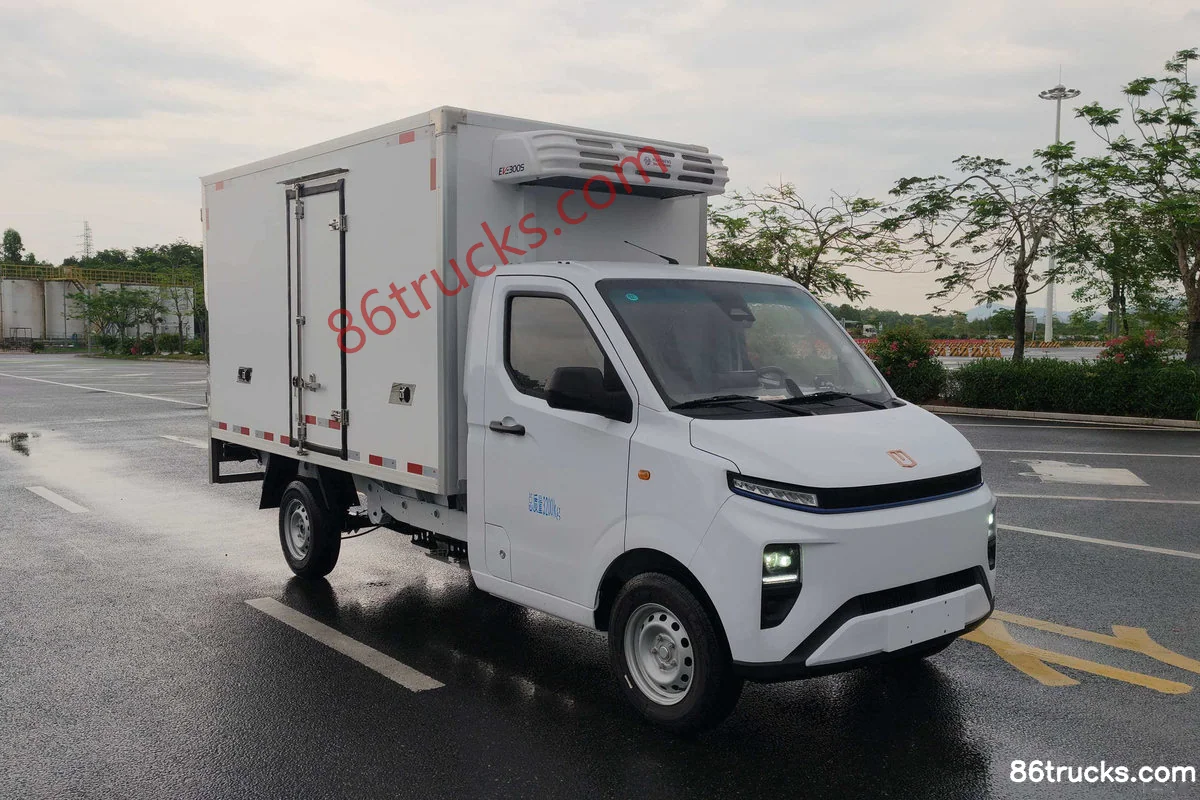

Photos

Exterior3

3 photos

FAQ

What is the export price of FARIZON F1E 4X2(6 wheels) 3.16m Single Row Electric Refrigerated Truck (Bawanglong) Xuanwu 51.39kWh, and what does it include?

FARIZON F1E 4X2(6 wheels) 3.16m Single Row Electric Refrigerated Truck (Bawanglong) Xuanwu 51.39kWh export reference is about From $24,014; MSRP is ¥17.29M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of FARIZON F1E 4X2(6 wheels) 3.16m Single Row Electric Refrigerated Truck (Bawanglong) Xuanwu 51.39kWh?

Key specs of FARIZON F1E 4X2(6 wheels) 3.16m Single Row Electric Refrigerated Truck (Bawanglong) Xuanwu 51.39kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FARIZON F1E 4X2(6 wheels) 3.16m Single Row Electric Refrigerated Truck (Bawanglong) Xuanwu 51.39kWh suited for?

FARIZON F1E 4X2(6 wheels) 3.16m Single Row Electric Refrigerated Truck (Bawanglong) Xuanwu 51.39kWh is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does FARIZON F1E 4X2(6 wheels) 3.16m Single Row Electric Refrigerated Truck (Bawanglong) Xuanwu 51.39kWh differ from other variants in the same series?

FARIZON F1E 4X2(6 wheels) 3.16m Single Row Electric Refrigerated Truck (Bawanglong) Xuanwu 51.39kWh belongs to Bawanglong FARIZON chassis (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FARIZON F1E 4X2(6 wheels) 3.16m Single Row Electric Refrigerated Truck (Bawanglong) Xuanwu 51.39kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FARIZON F1E 4X2(6 wheels) 3.16m Single Row Electric Refrigerated Truck (Bawanglong) Xuanwu 51.39kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
