JAC Junling V6 160 hp 4X2(6 wheels) 3308mm Wheelbase Sleeper Cab Light Truck Chassis

Export reference
From $16,528
MSRP ¥11.9M CNY
Horsepower: 160
Emission: China IV
Fuel: Diesel
Engine: MaxxForce 3.2L
Transmission: Lu'an
Curb Weight:: 2.5ton
seating capacity: 3Personnel
Rated payload: 1.79ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The JAC Junling V6 160 hp 4X2(6 wheels) 3308mm Wheelbase Sleeper Cab Light Truck Chassis is a Light Truck featuring 3.85m cargo length, Chassis cargo body, 3Personnel volume and 1.79t payload. On the powertrain side, it comes with a MaxxForce 3.2L engine, 160 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1043P91K6C2
Type: Chassis
Drive type: 4X2
Wheelbase: 3308mm
engine: MaxxForce JND408D160-47
transmission: Lu'an LC6T450
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.096m
Cab height: 2.28m
Front track width: 1665mm
rear track: 1525mm
Curb Weight: 2.5ton
Rated payload: 1.79ton
GVWR: 4.485ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 23°
departure angle: 14°
Remarks: Optional ratio 4.77
Front/rear suspension: 1.105/1.582m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: MaxxForce JND408D160-47
Engine info: MaxxForce 3.2L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.185L
Emission standard: China IV
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 450N·m
Max torque speed: 1500-2200rpm
Rated speed: 3000rpm
Engine Type: Turbocharged Intercooled, High-Pressure Common Rail, High-Pressure Direct Injection
Transmission Parameters
Transmission Model: Lu'an LC6T450
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 3.85m
Cargo box width: 1.96m
Cargo box height: 0.4m
*Cargo box interior width: 1.960000038147
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1620kg
rear axle allowable load: 2865kg
Axle ratio: 4.33
Leaf spring count: 12/8+6
Tire
Tire Size: 7.50R16LT
Number of tires: 6pcs
Control configuration
ABS:

Photos

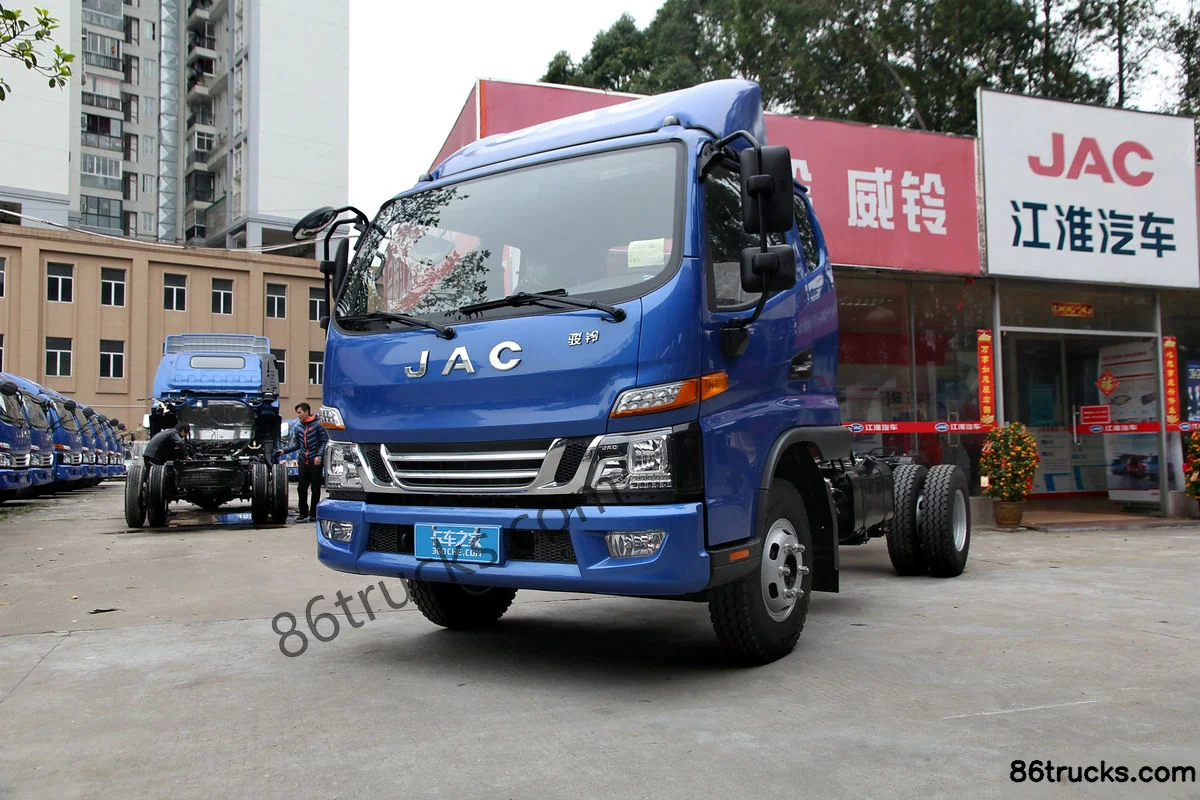

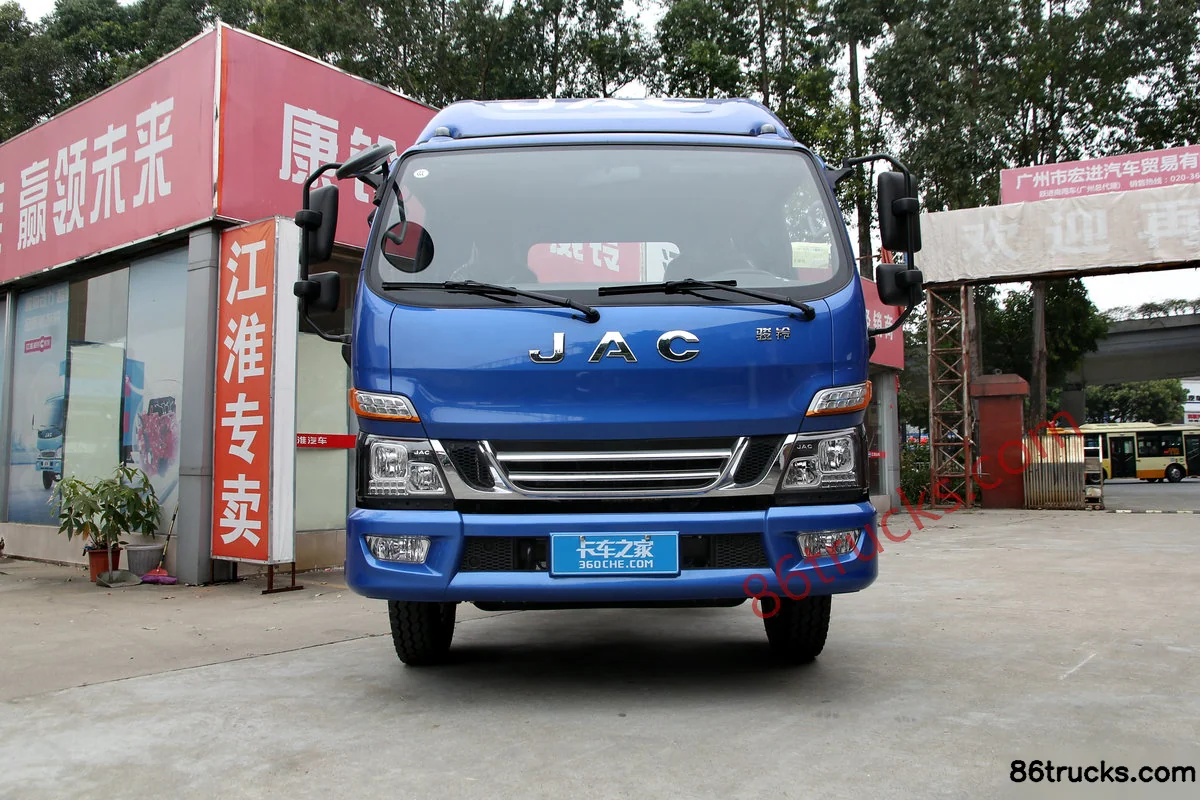

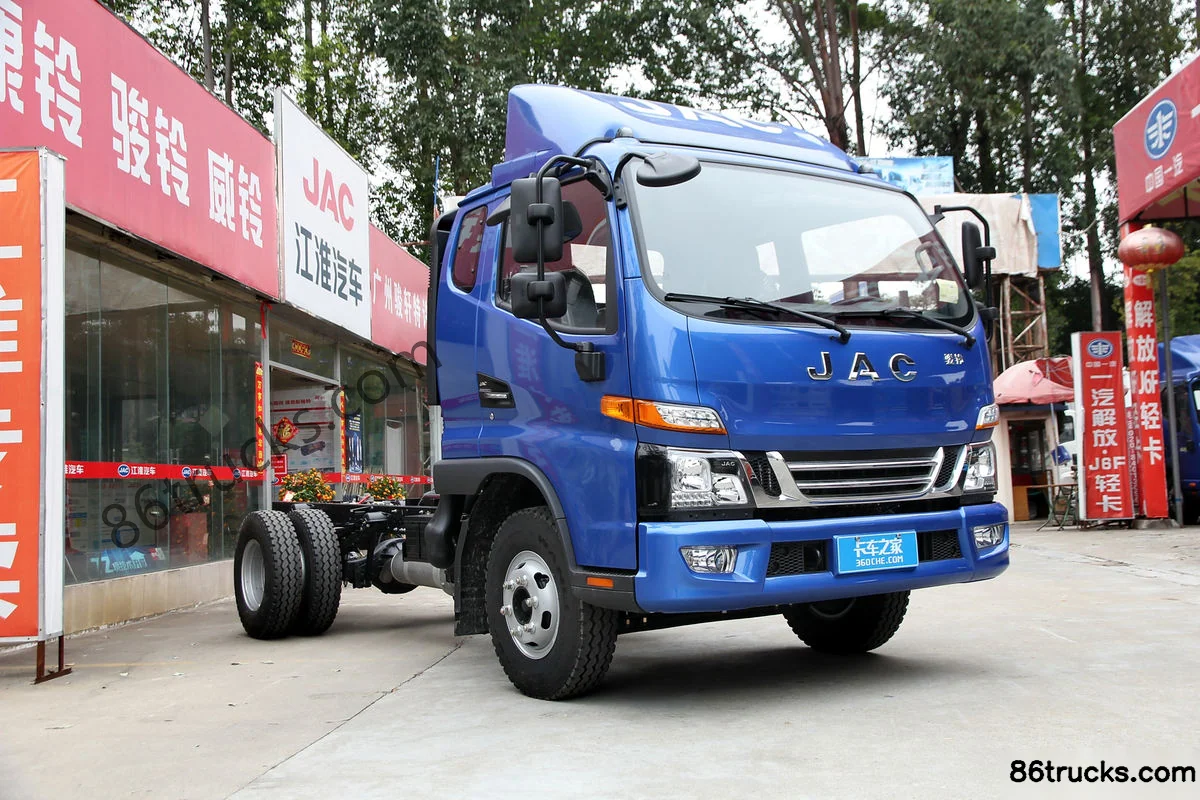

Exterior3

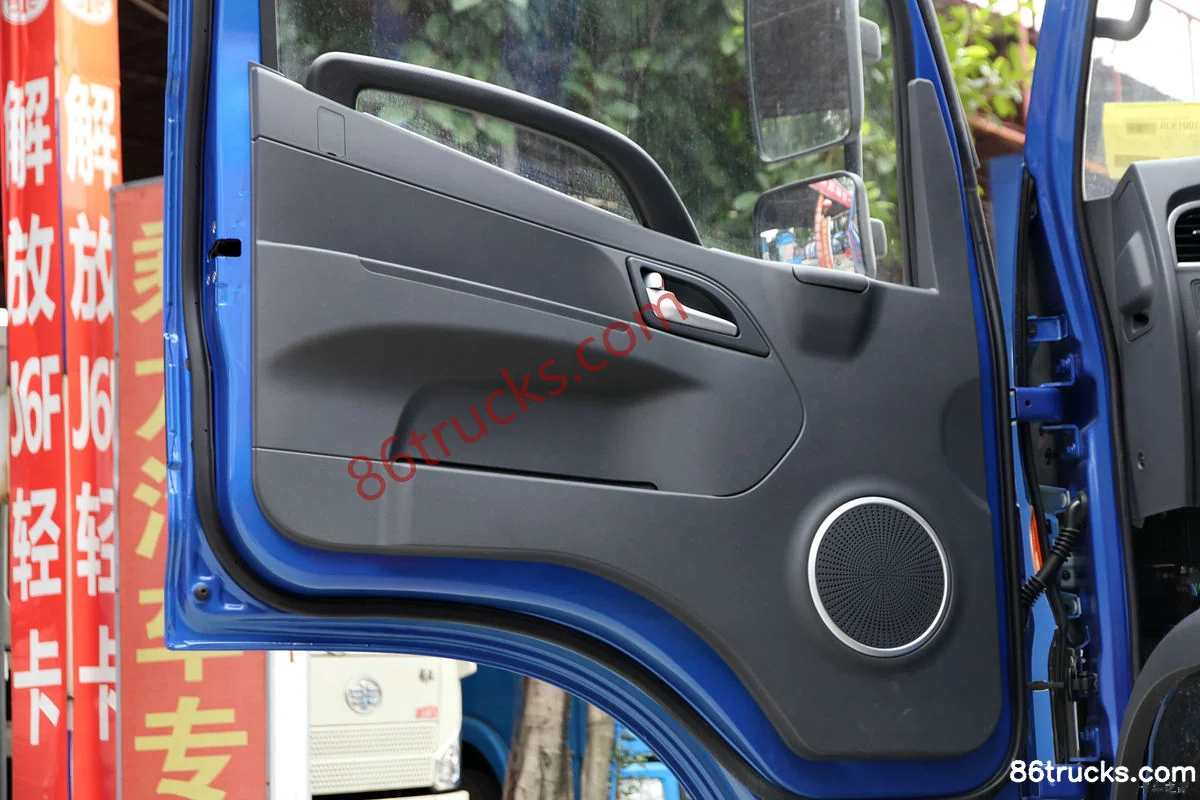

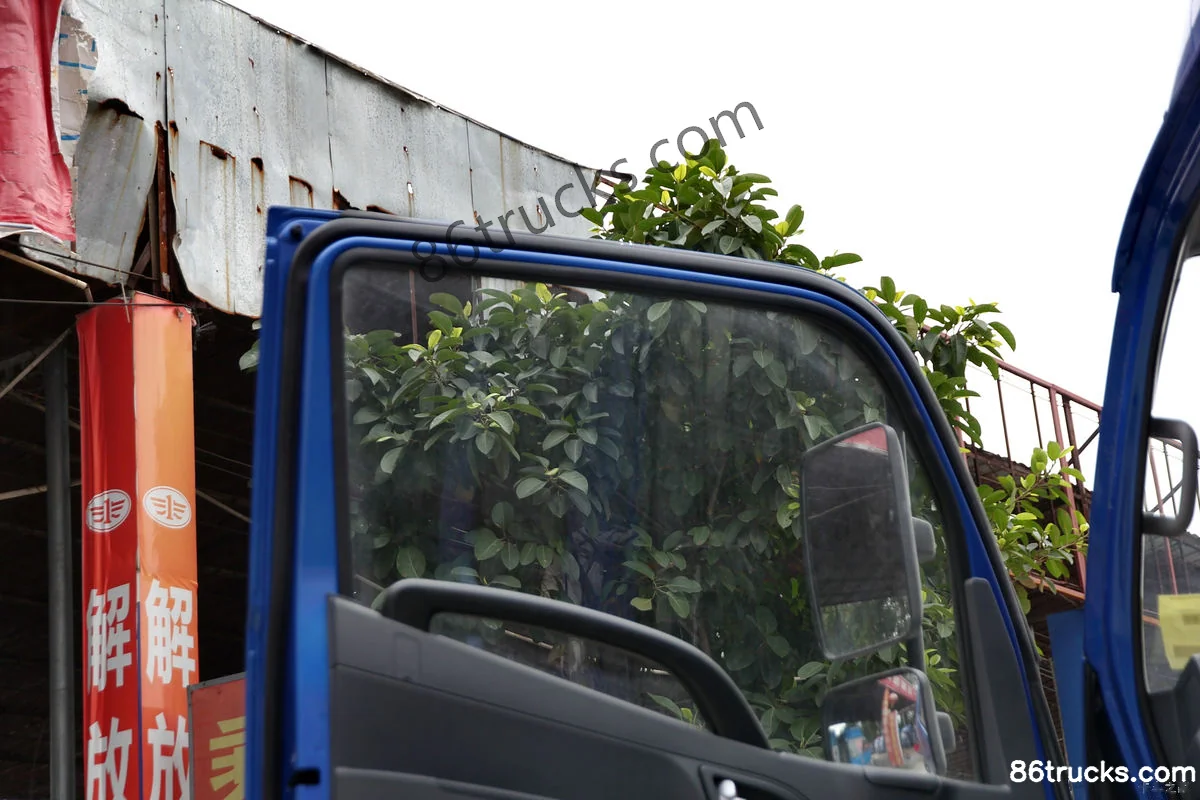

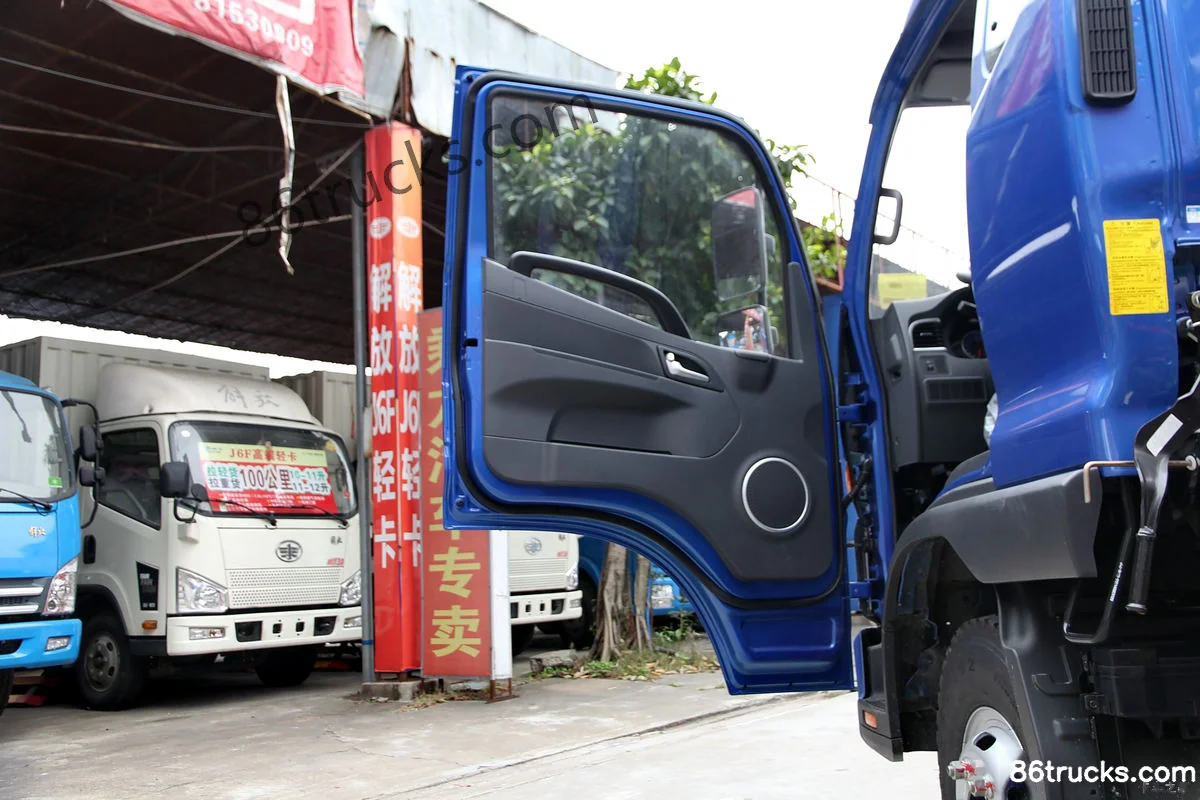

Cab3

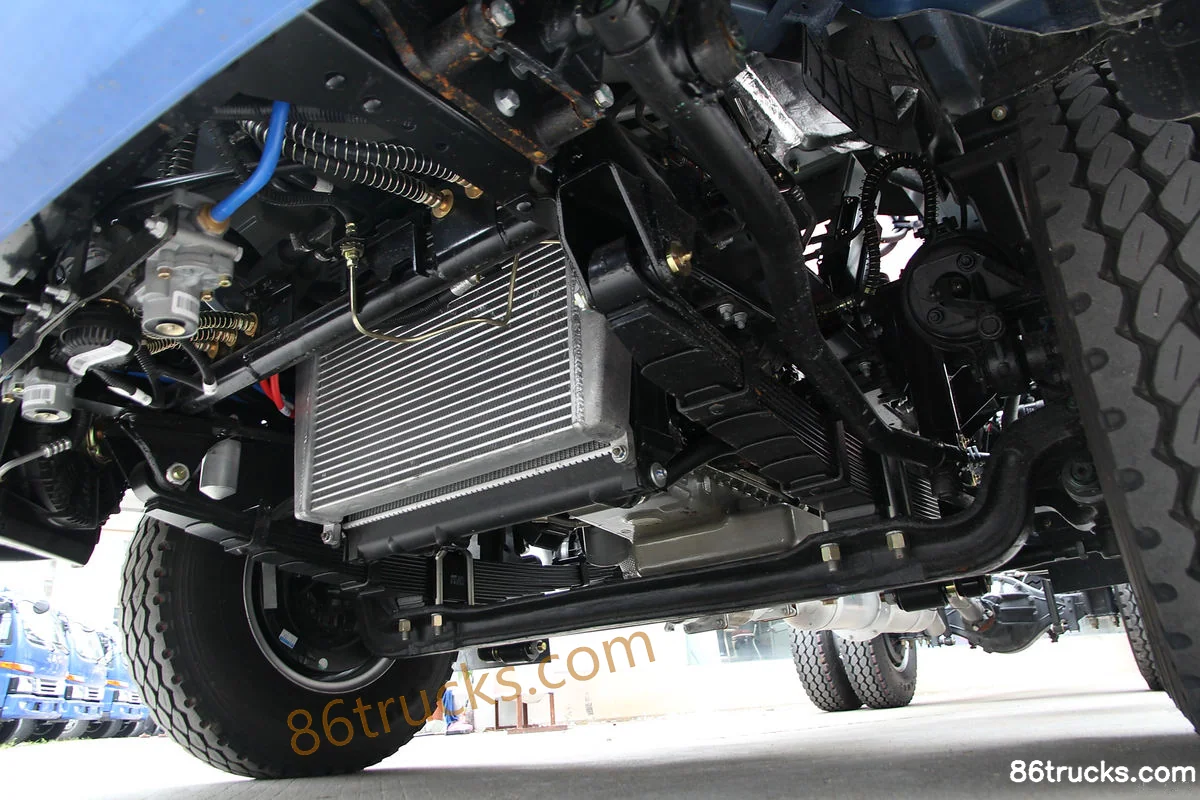

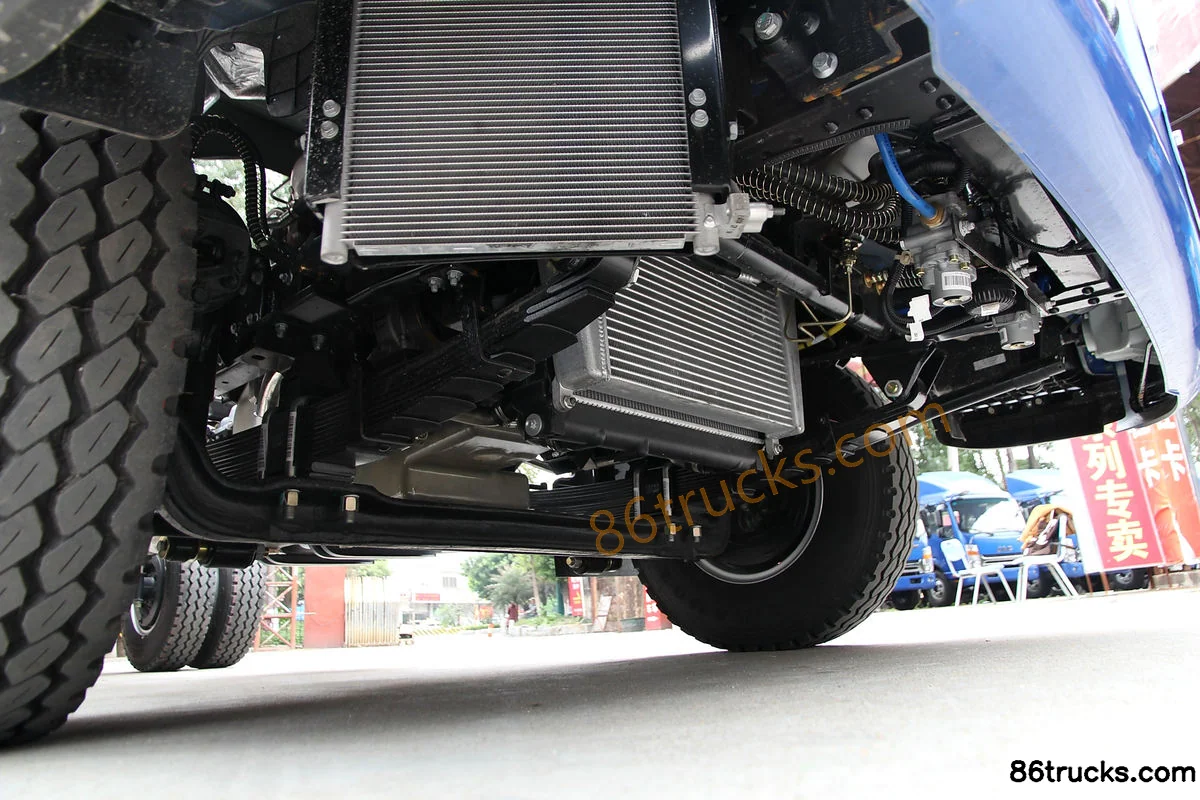

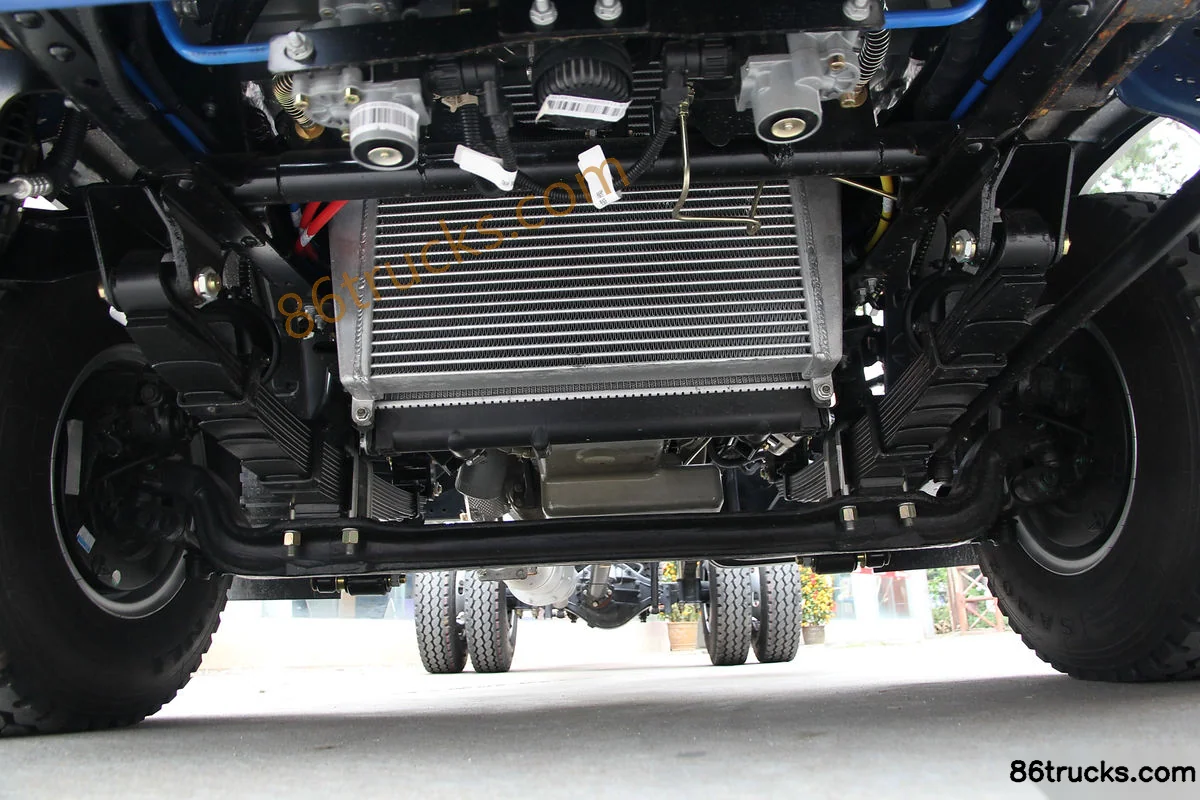

Chassis3

9 photos

FAQ

What is the export price of JAC Junling V6 160 hp 4X2(6 wheels) 3308mm Wheelbase Sleeper Cab Light Truck Chassis, and what does it include?

JAC Junling V6 160 hp 4X2(6 wheels) 3308mm Wheelbase Sleeper Cab Light Truck Chassis export reference is about From $16,528; MSRP is ¥11.9M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling V6 160 hp 4X2(6 wheels) 3308mm Wheelbase Sleeper Cab Light Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling V6 160 hp 4X2(6 wheels) 3308mm Wheelbase Sleeper Cab Light Truck Chassis?

Key specs of JAC Junling V6 160 hp 4X2(6 wheels) 3308mm Wheelbase Sleeper Cab Light Truck Chassis: Drive: 4x2; Horsepower: 160 hp; Emission: China IV; Fuel: Diesel; Engine: MaxxForce 3.2L; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling V6 160 hp 4X2(6 wheels) 3308mm Wheelbase Sleeper Cab Light Truck Chassis suited for?

JAC Junling V6 160 hp 4X2(6 wheels) 3308mm Wheelbase Sleeper Cab Light Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling V6 160 hp 4X2(6 wheels) 3308mm Wheelbase Sleeper Cab Light Truck Chassis differ from other variants in the same series?

JAC Junling V6 160 hp 4X2(6 wheels) 3308mm Wheelbase Sleeper Cab Light Truck Chassis belongs to JAC V6 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling V6 160 hp 4X2(6 wheels) 3308mm Wheelbase Sleeper Cab Light Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling V6 160 hp 4X2(6 wheels) 3308mm Wheelbase Sleeper Cab Light Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
