Dongfeng T1 4.5T 4.13m Single Row Pure Electric Van Light Truck 76.87kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.315ton
Wheelbase:: 3300mm
Cargo box type:: Van body
Model code (announced):: EQ5045XXYTBEV23
Type:: enclosed cargo truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 255km
Motor 1 Model: TZ290XSM413
Curb Weight: 3.05ton

Overview

The Dongfeng T1 4.5T 4.13m Single Row Pure Electric Van Light Truck 76.87kWh 4X2(6 wheels) is a Light Truck featuring 255km battery/range, TZ290XSM413 motor, 4X2 (6 wheels) drive and 1.315t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ5045XXYTBEV23
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.1m
Cab height: 3.08m
CLTC range: 255km
Curb Weight: 3.05ton
Rated payload: 1.315ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Model: TZ290XSM413
Fuel Type: Electric
total rated power: 140kW
Peak power: 140kW
total peak torque: 1000N·m
Battery/Charging
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 76.87kWh
Energy Density: 115.45
Battery Model: Shenzhen OptimumNano
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.13m
Cargo box width: 2.03m
Cargo box height: 2.1m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1800kg
rear axle allowable load: 2695kg
Tire
Tire Size: 6.50R16LT 10PR,6.50R16LT 12PR
Control configuration
ABS:

Photos

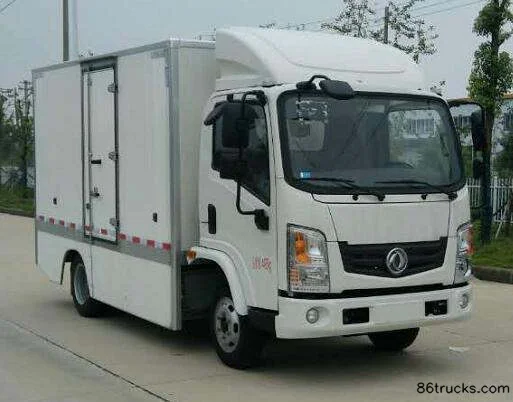

Exterior1

1 photos

FAQ

What are the key specs of Dongfeng T1 4.5T 4.13m Single Row Pure Electric Van Light Truck 76.87kWh 4X2(6 wheels)?

Key specs of Dongfeng T1 4.5T 4.13m Single Row Pure Electric Van Light Truck 76.87kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng T1 4.5T 4.13m Single Row Pure Electric Van Light Truck 76.87kWh 4X2(6 wheels) suited for?

Dongfeng T1 4.5T 4.13m Single Row Pure Electric Van Light Truck 76.87kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng T1 4.5T 4.13m Single Row Pure Electric Van Light Truck 76.87kWh 4X2(6 wheels) differ from other variants in the same series?

Dongfeng T1 4.5T 4.13m Single Row Pure Electric Van Light Truck 76.87kWh 4X2(6 wheels) belongs to Dongfeng T15 light truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng T1 4.5T 4.13m Single Row Pure Electric Van Light Truck 76.87kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng T1 4.5T 4.13m Single Row Pure Electric Van Light Truck 76.87kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
