Zhidian Auto F101 3.495m pure electric closed van 17kWh

Export reference
MSRP N/A
Cab length:: 3.495m
Max. speed:: 71km/h
Energy Type:: Electric
total rated power:: 10kW
Peak power:: 20kW
total peak torque:: 130N·m
Zhidian Auto F101 3.495m pure electric closed van 17kWh exterior
View more photos (6)
CLTC range: 150km
Motor Type: Permanent magnet synchronous motor
Rated payload: 0.3ton
Wheelbase: 2290mm

Overview

The Zhidian Auto F101 3.495m pure electric closed van 17kWh is a Electric Panel Van featuring 150km battery/range, Permanent magnet synchronous motor motor and 0.3t payload.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Wheelbase: 2290mm
Cab length: 3.495m
Cab width: 1.495m
Cab height: 1.995m
CLTC range: 150km
Rated payload: 0.3ton
Max. speed: 71km/h
Energy Type: Electric
electric motor
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 10kW
Peak power: 20kW
total peak torque: 130N·m
total rated torque: 50N·m
Battery/Charging
Charging method: slow charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 17kWh
Battery rated voltage: 144V
Chassis Specs
steering assist type: none
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Aluminum wheels:
Body Parameters
Cab structure: Load-bearing
Seat count: 2Seats
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 165/70 R13
Rear Wheel Specification: 165/70 R13
Cab parameters
Seat rows:
Safety features
Tire Pressure Monitoring:
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Steering Wheel Material: leather
Power Windows:
Seat material: Fabric
Reverse Camera:
Multimedia features
GPS/Beidou driving recorder:
lighting configuration
Headlight height adjustment:

Photos

Exterior3

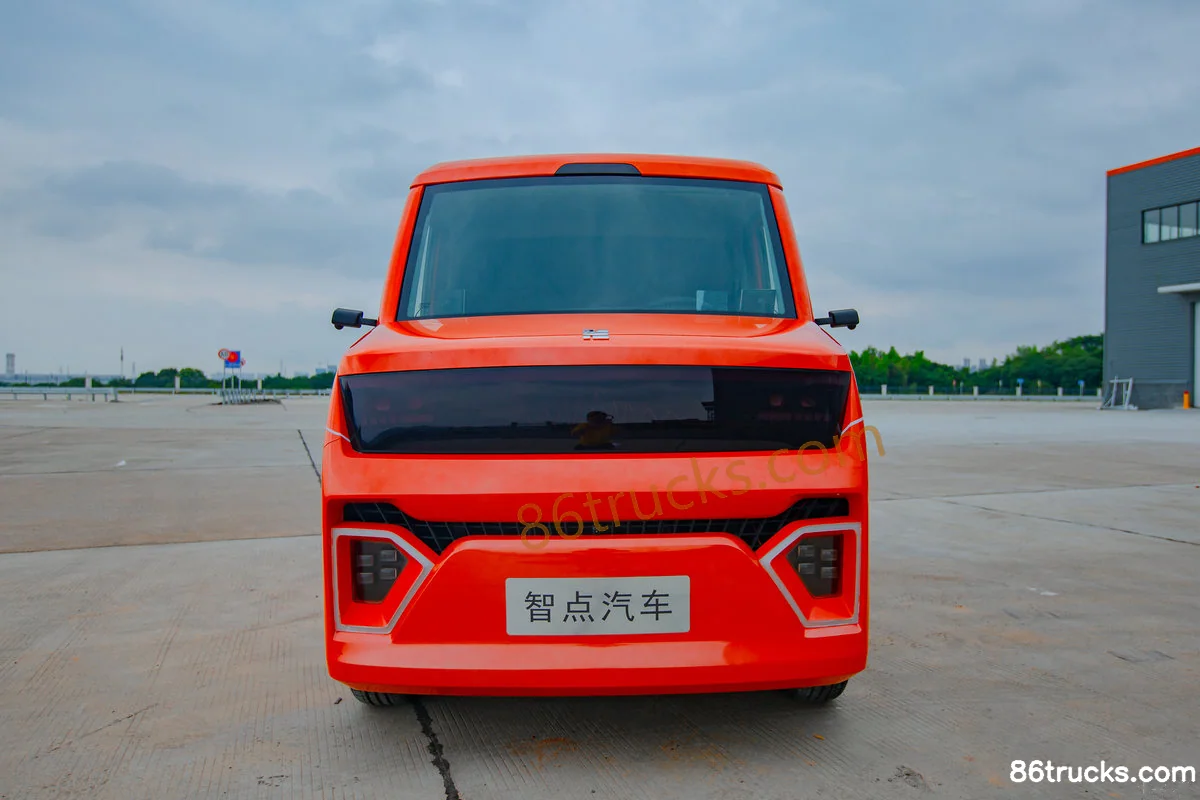

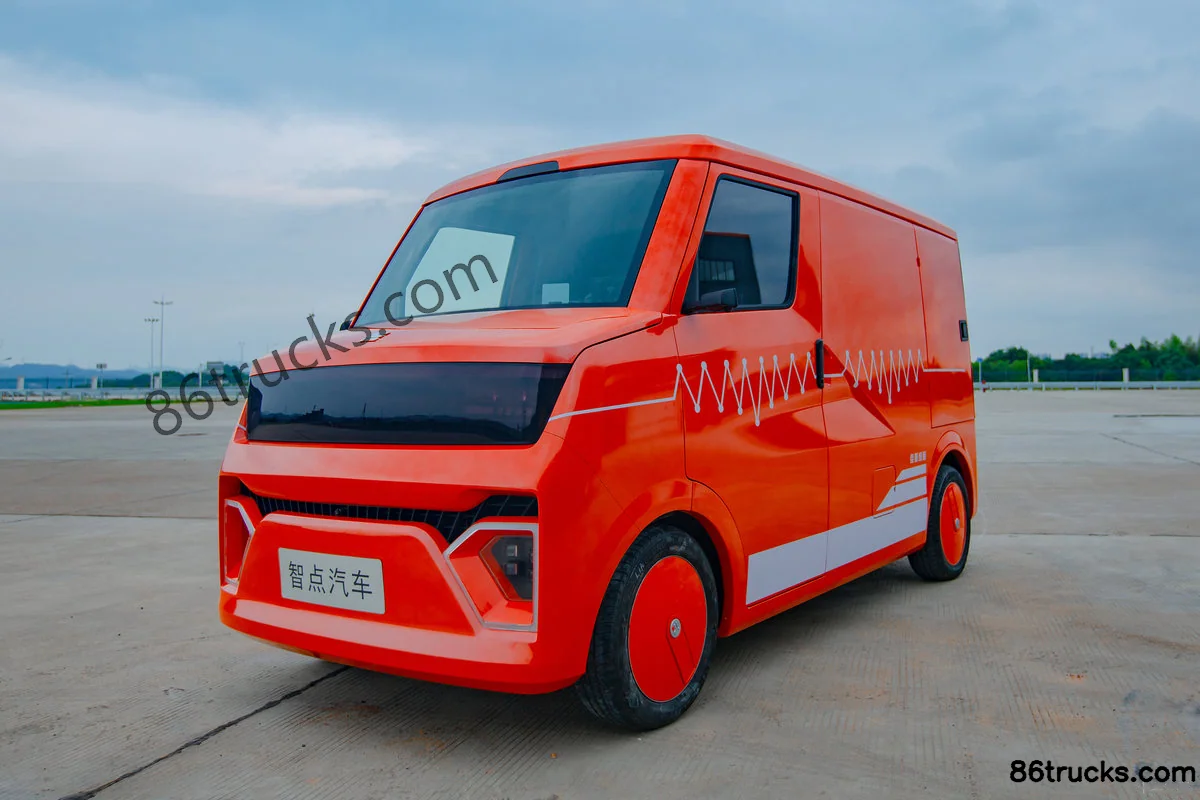

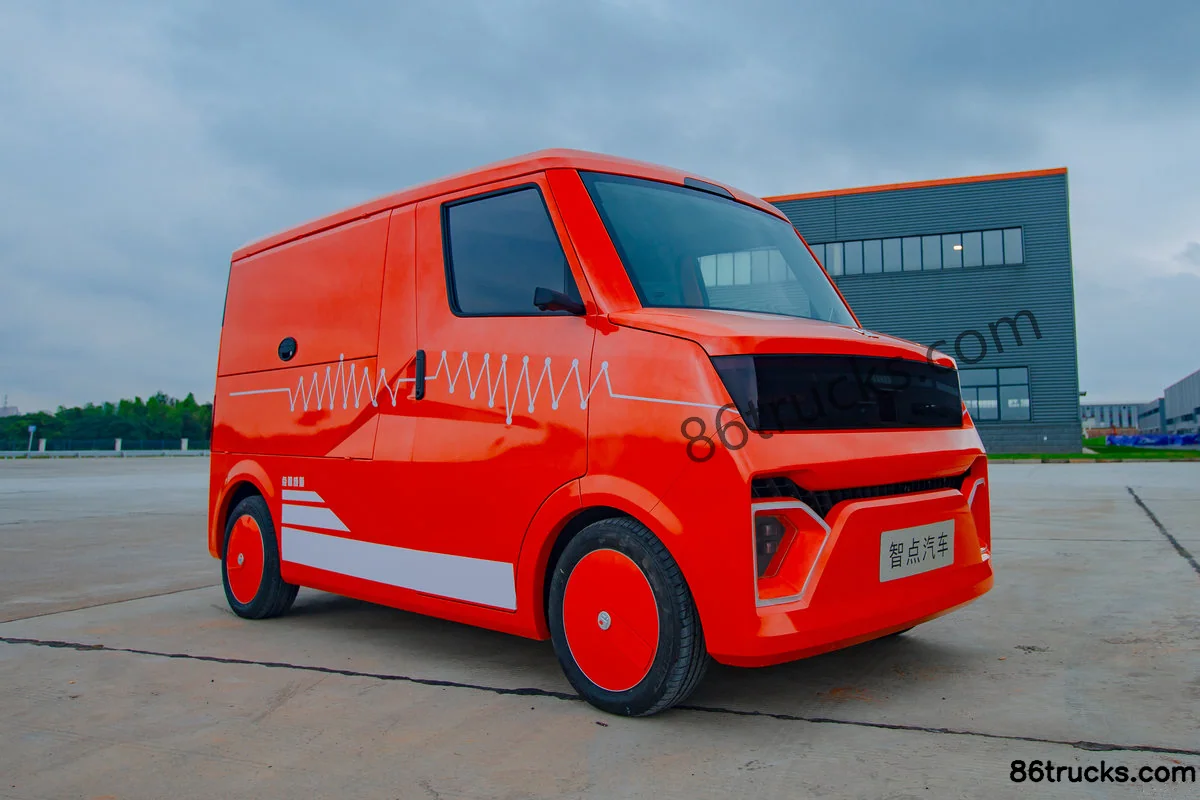

Zhidian Auto F101 3.495m pure electric closed van 17kWh Exterior (1) | 86Trucks Zhidian Auto F101 3.495m pure electric closed van 17kWh Exterior (2) | 86Trucks Zhidian Auto F101 3.495m pure electric closed van 17kWh Exterior (3) | 86Trucks

Cab3

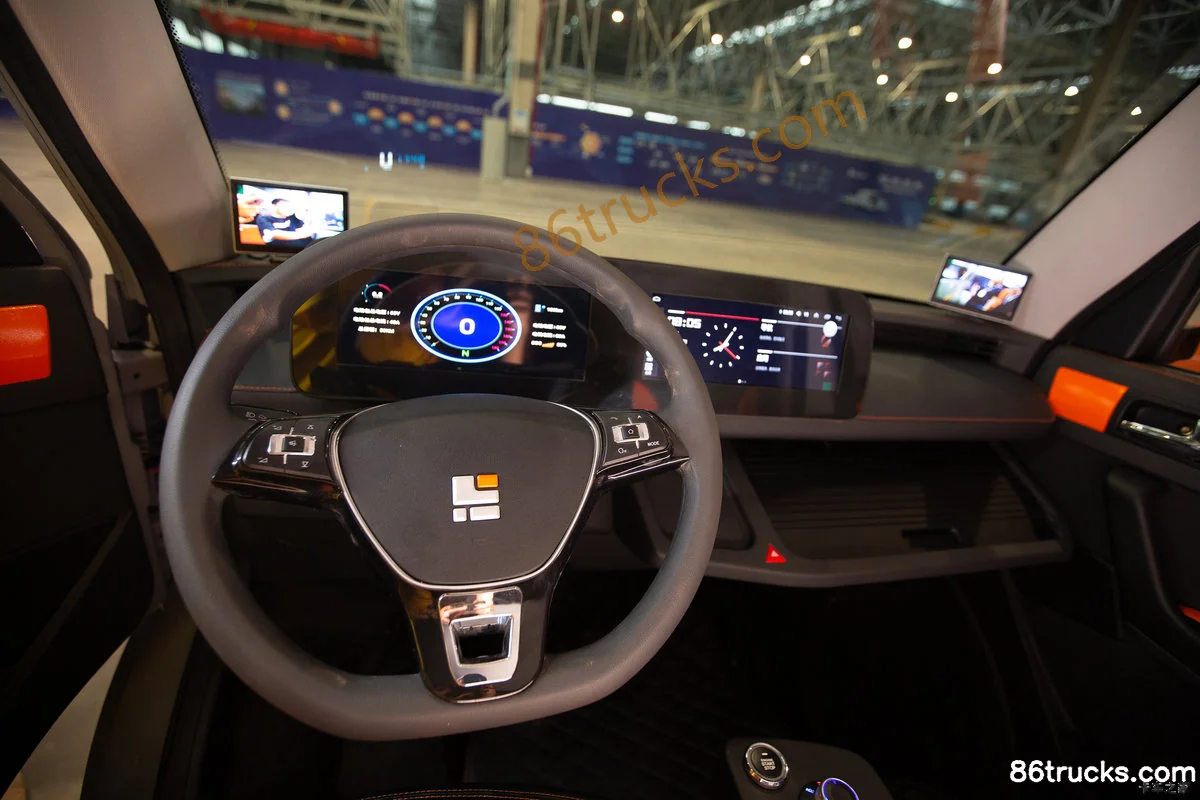

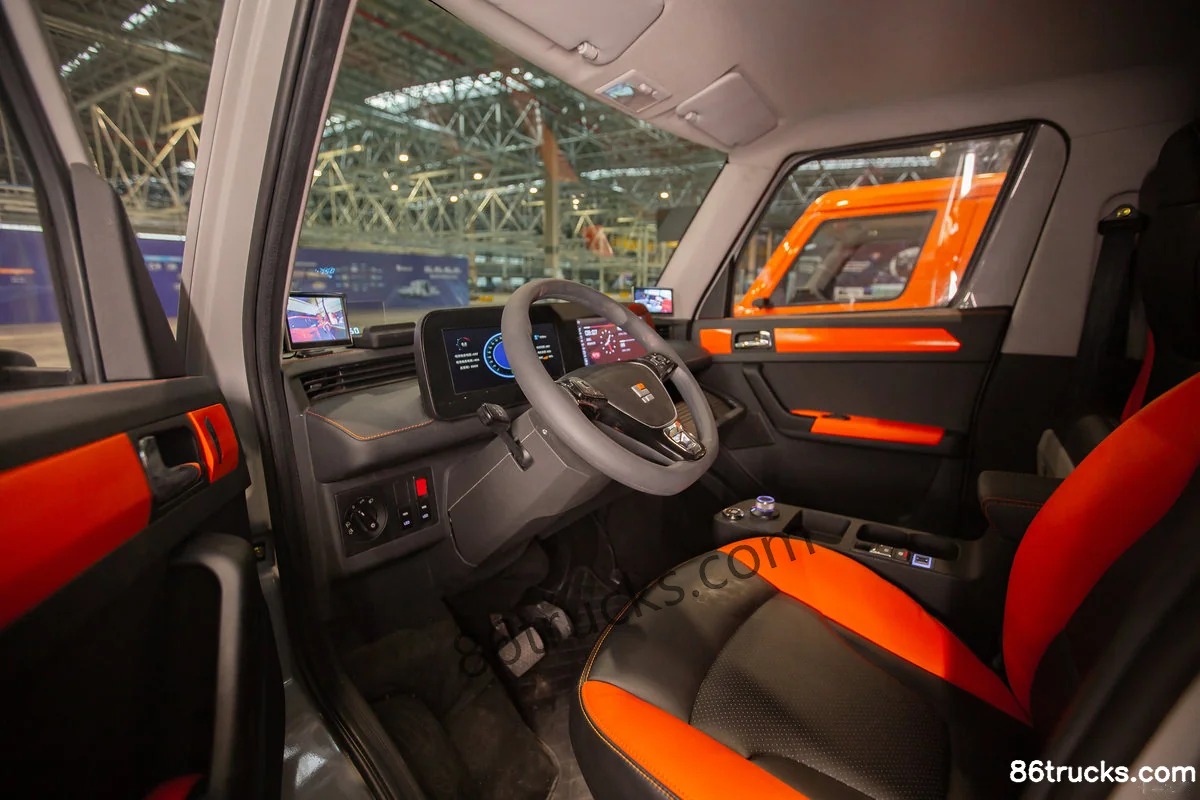

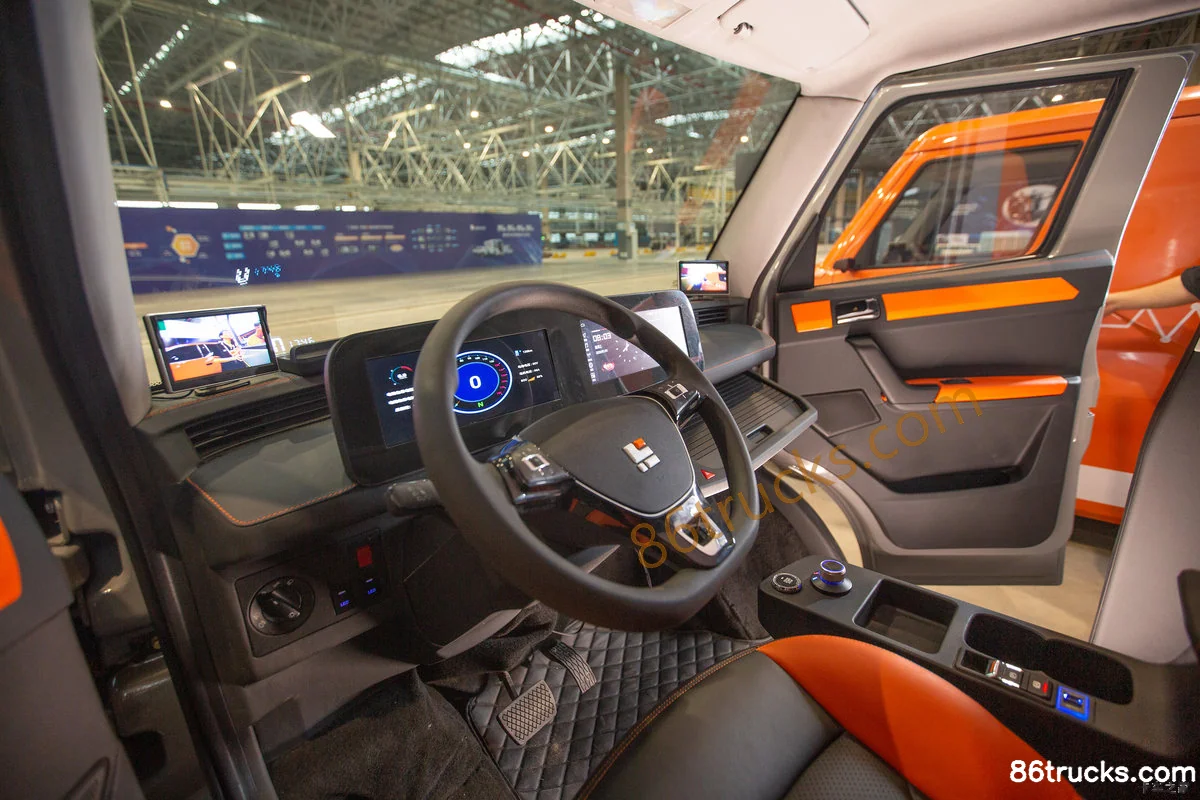

Zhidian Auto F101 3.495m pure electric closed van 17kWh Cab (1) | 86Trucks Zhidian Auto F101 3.495m pure electric closed van 17kWh Cab (2) | 86Trucks Zhidian Auto F101 3.495m pure electric closed van 17kWh Cab (3) | 86Trucks

6 photos

FAQ

What transport jobs is Zhidian Auto F101 3.495m pure electric closed van 17kWh suited for?

Zhidian Auto F101 3.495m pure electric closed van 17kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Zhidian Auto F101 3.495m pure electric closed van 17kWh differ from other variants in the same series?

Zhidian Auto F101 3.495m pure electric closed van 17kWh belongs to Zhidian Auto F101 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Zhidian Auto F101 3.495m pure electric closed van 17kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Zhidian Auto F101 3.495m pure electric closed van 17kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
