JAC Gallop K6L Medium Truck 190 hp 4X2(6 wheels) 7.8m Cab-over Chassis with Box Body

Export reference
MSRP N/A
Horsepower: 190
Emission: China IV
Fuel: Diesel
Engine: MaxxForce 4-cylinder
Transmission: Fast Gear
Curb Weight:: 7.3ton
seating capacity: 3Personnel
Rated payload: 8.505ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Gallop K6L Medium Truck 190 hp 4X2(6 wheels) 7.8m Cab-over Chassis with Box Body is a Medium-duty truck featuring 7.8m cargo length, Van body cargo body, 3Personnel volume and 8.505t payload. Its segment focus covers Express delivery, agricultural by-product transport and cold chain transport, matching those duty cycles. On the powertrain side, it comes with a MaxxForce 4-cylinder engine, 190 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 190 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5161XXYPZ5K1E3F
Type: Chassis
Drive type: 4X2
Wheelbase: 5700mm
Box length class: 7.8m
engine: MaxxForce JND412D190-42
transmission: Fast Gear 8-speed
Rear Axle Ratio: 4.33
Cab length: 10m
Cab width: 2.55m
Cab height: 3.8m
Front track width: 1830mm
rear track: 1800mm
Curb Weight: 7.3ton
Rated payload: 8.505ton
GVWR: 16ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle:
market segment: Express delivery, agricultural by-product transport, cold chain transport, LTL transport
Front/rear suspension: 1.4/3.3m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: MaxxForce JND412D190-42
Engine info: MaxxForce 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.748L
Emission standard: China IV
Max output power: 140kW
Max hp: 190Horsepower
Max torque: 720N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Inline, water-cooled, 4-cylinder, air-to-air intercooled
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.8m
Cargo box width: 2.4m
Cargo box height: 2.5m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Semi-high roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 200L
Chassis Specs
Front axle description: JAC3.5T
Front axle allowable load: 6000kg
rear axle description: Boying 9T
rear axle allowable load: 10000kg
Axle ratio: 4.33
Leaf spring count: 3/9+7
Suspension (front/rear): Leaf spring

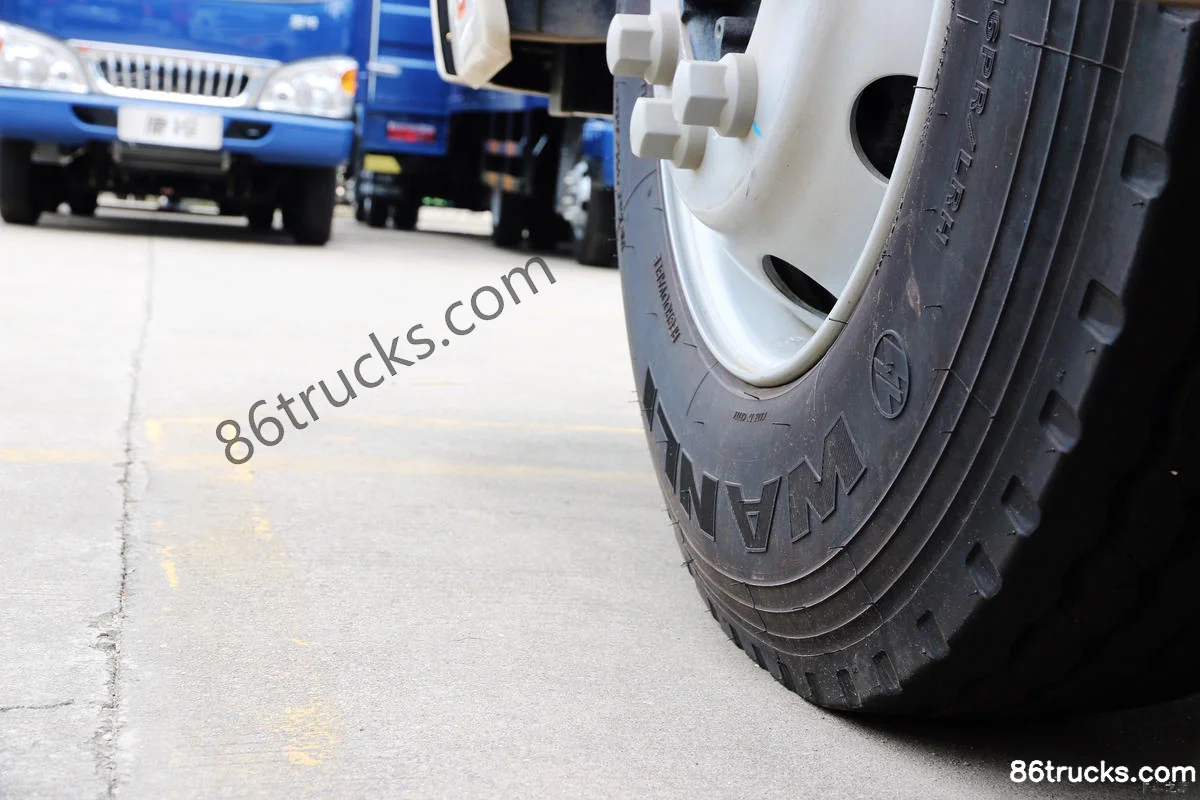

Tire
Tire Size: 10R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

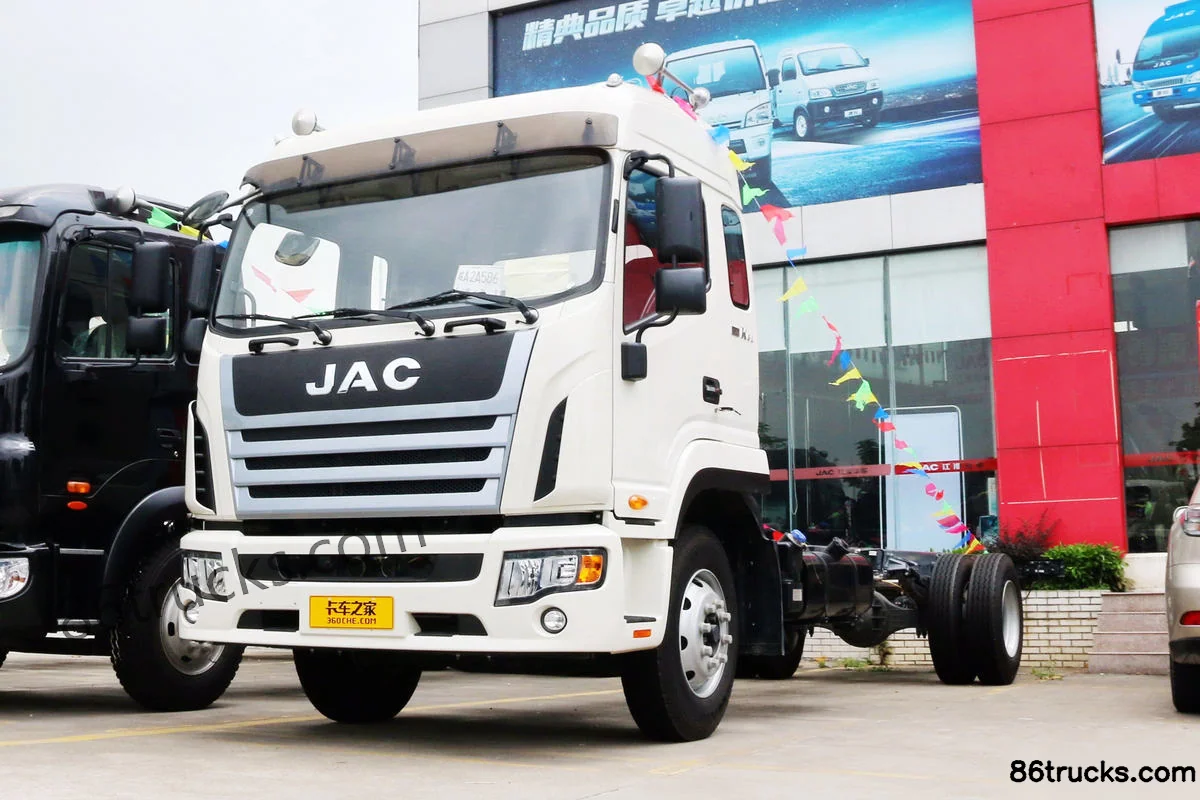

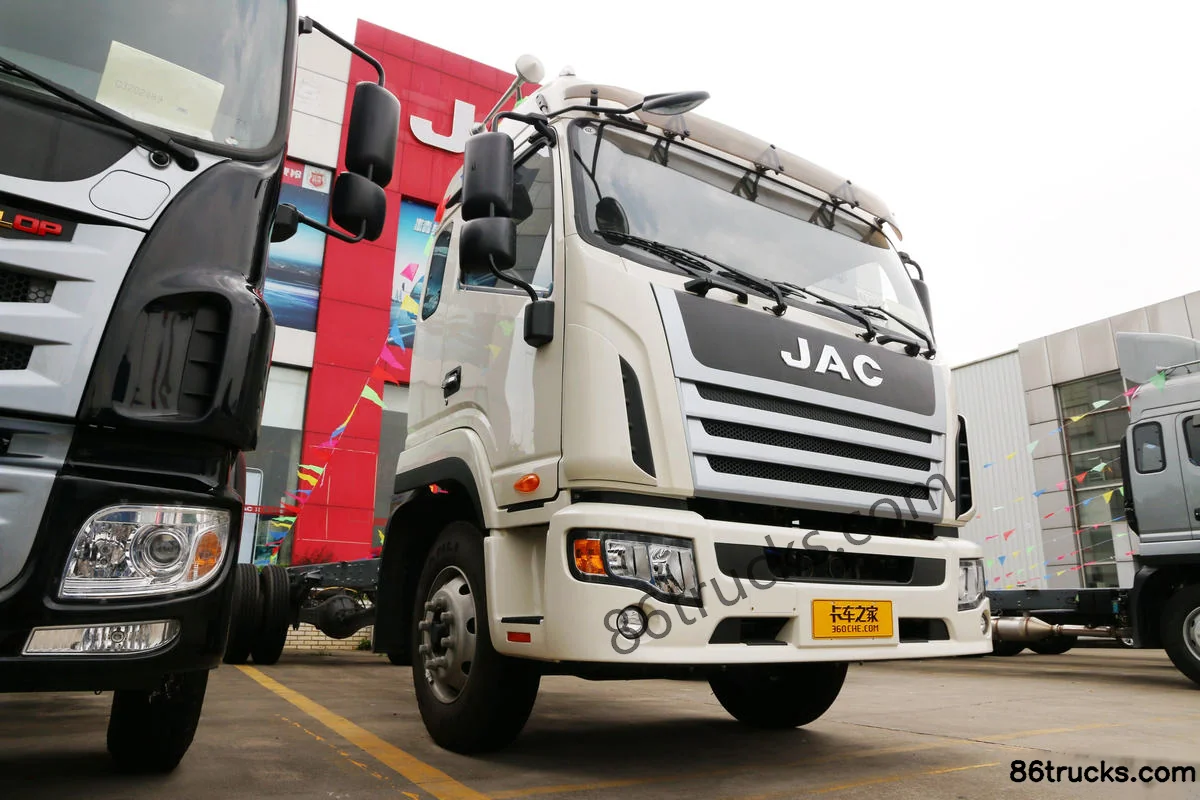

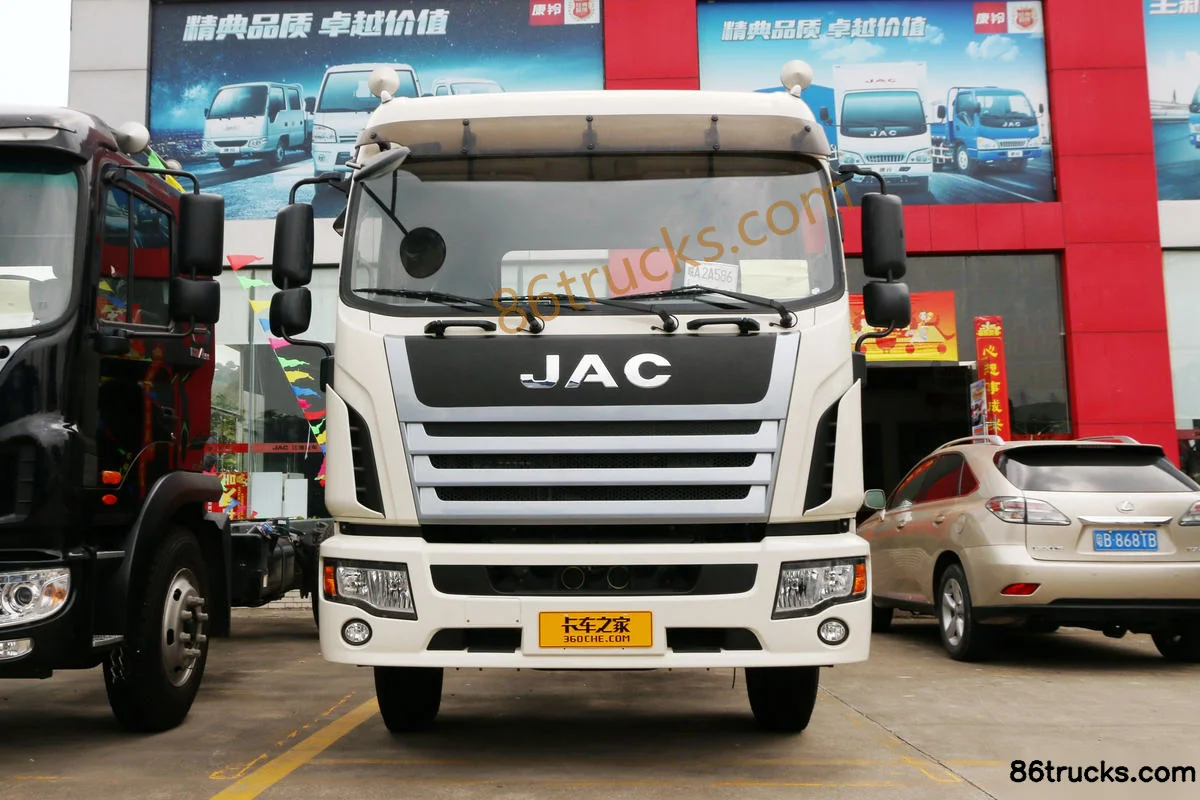

Exterior3

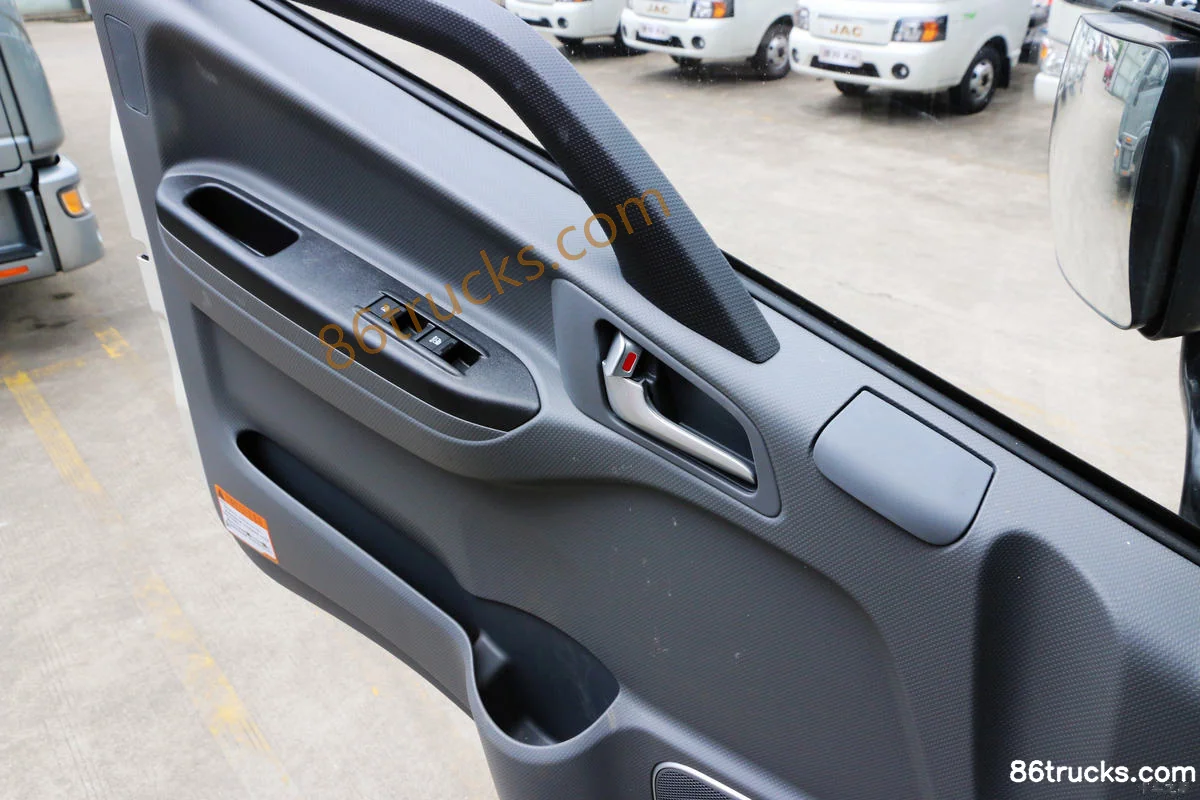

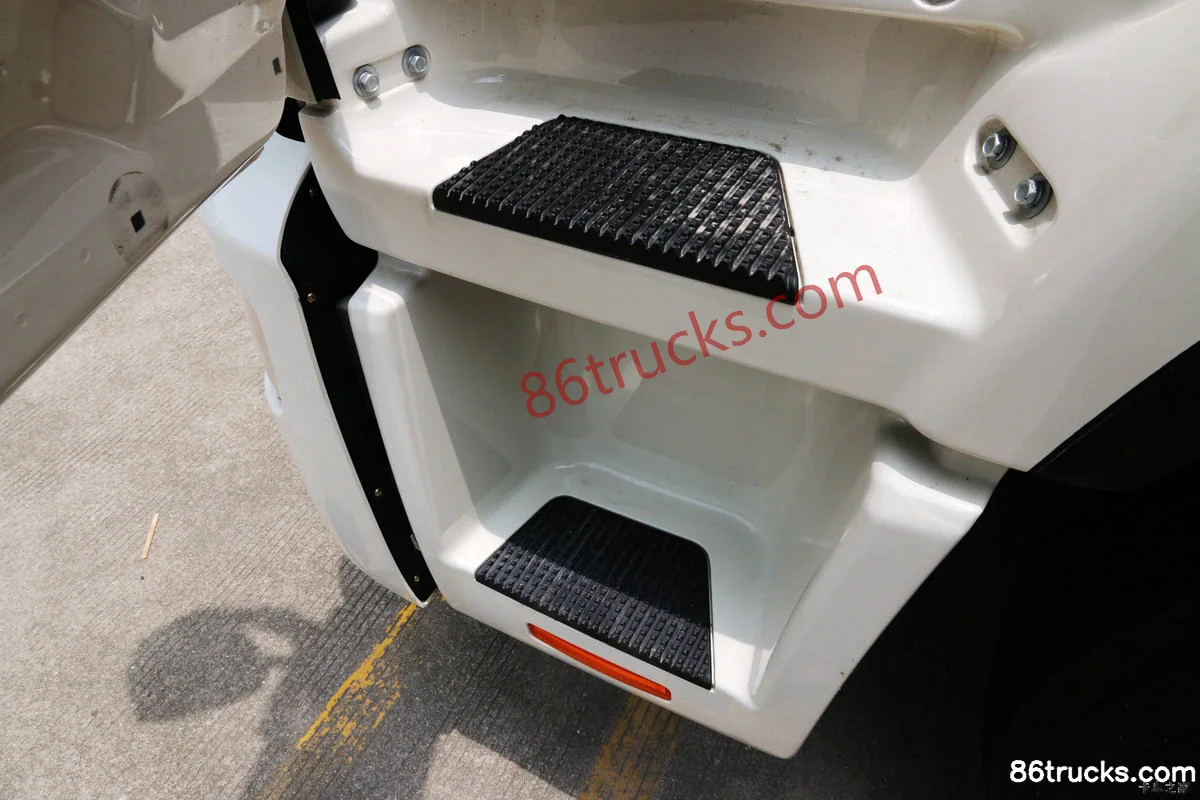

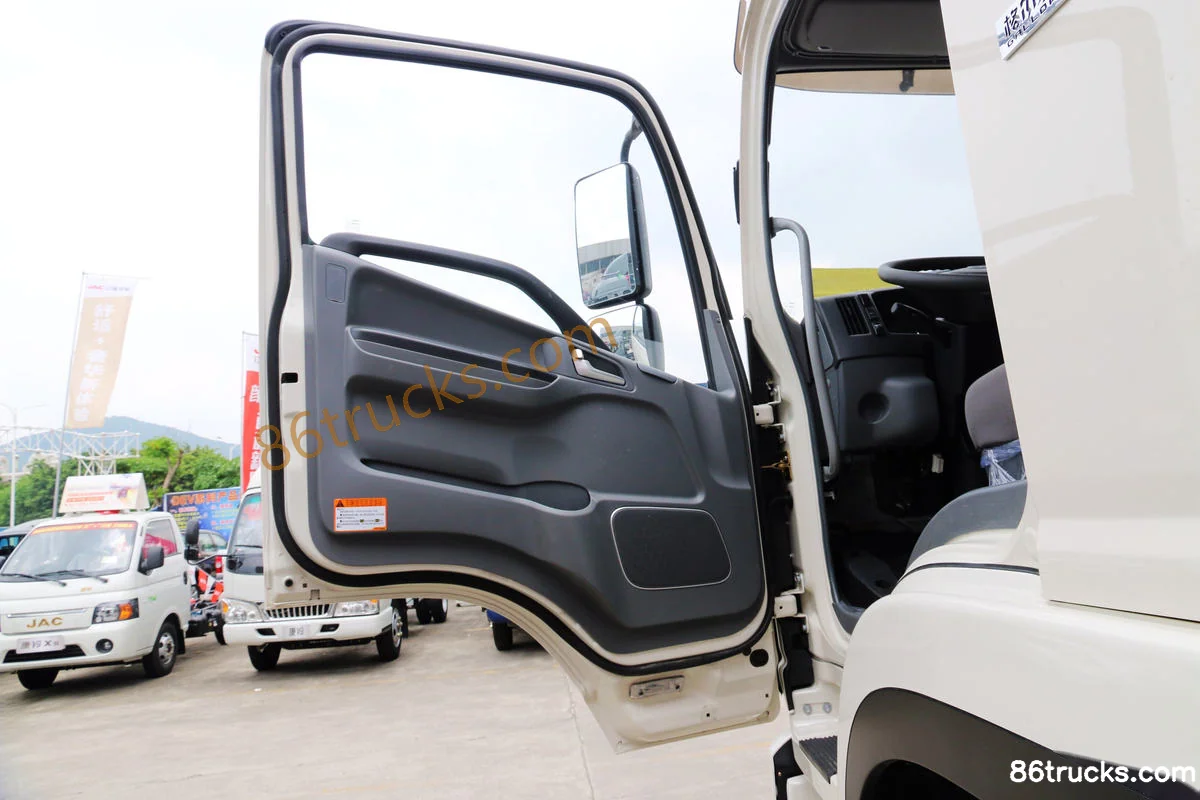

Cab3

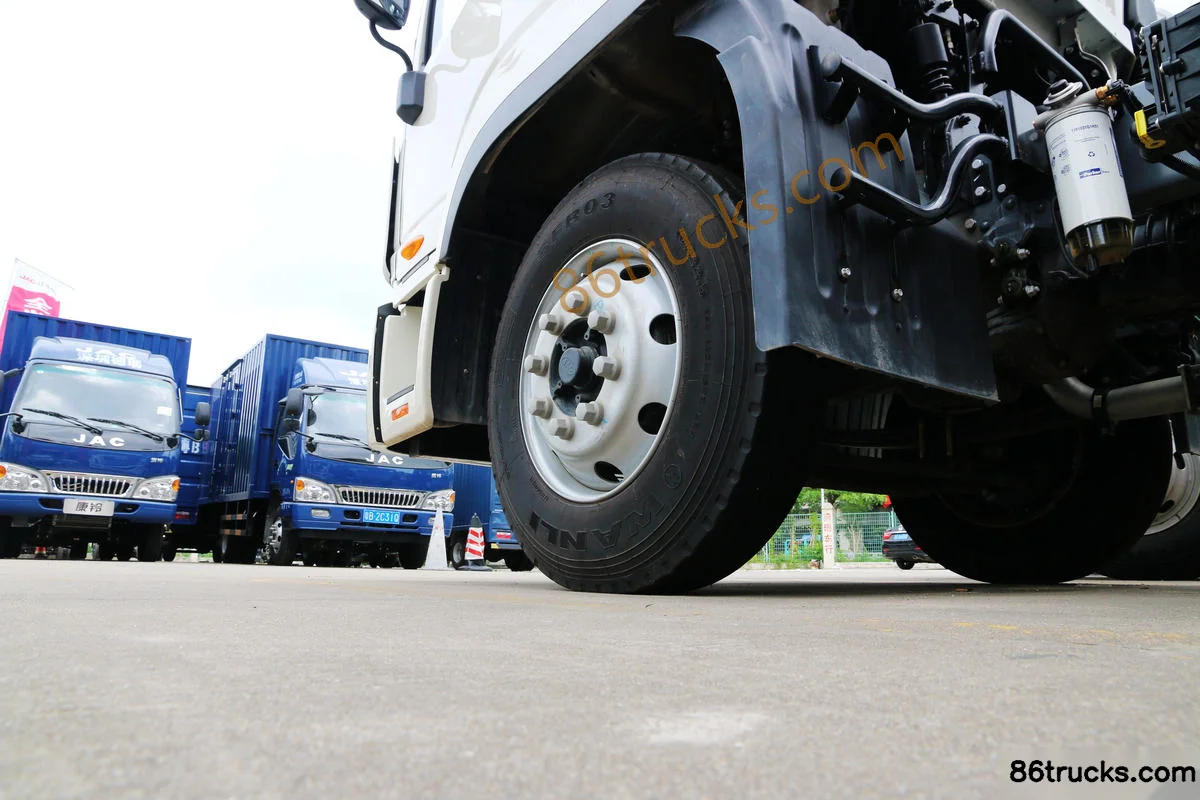

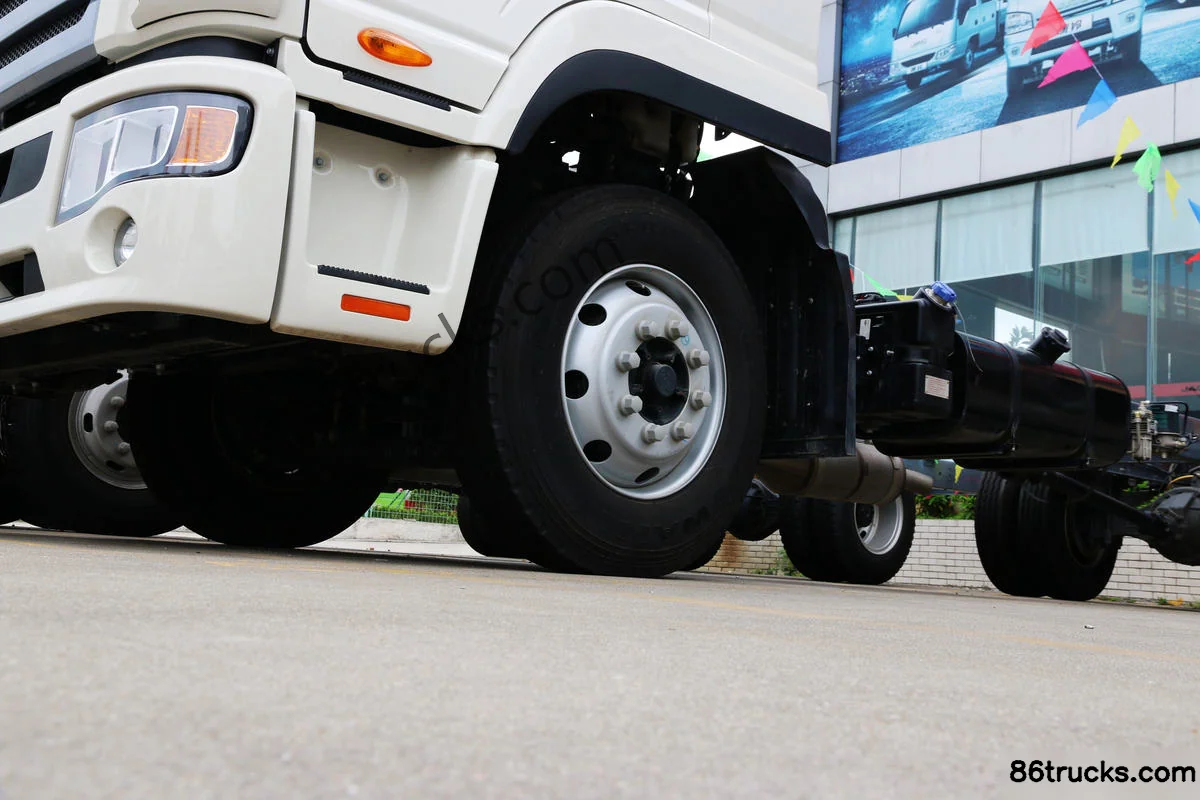

Chassis3

9 photos

FAQ

What emission standard does JAC Gallop K6L Medium Truck 190 hp 4X2(6 wheels) 7.8m Cab-over Chassis with Box Body use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K6L Medium Truck 190 hp 4X2(6 wheels) 7.8m Cab-over Chassis with Box Body?

Key specs of JAC Gallop K6L Medium Truck 190 hp 4X2(6 wheels) 7.8m Cab-over Chassis with Box Body: Drive: 4x2; Horsepower: 190 hp; Emission: China IV; Fuel: Diesel; Engine: MaxxForce 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K6L Medium Truck 190 hp 4X2(6 wheels) 7.8m Cab-over Chassis with Box Body suited for?

JAC Gallop K6L Medium Truck 190 hp 4X2(6 wheels) 7.8m Cab-over Chassis with Box Body is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K6L Medium Truck 190 hp 4X2(6 wheels) 7.8m Cab-over Chassis with Box Body differ from other variants in the same series?

JAC Gallop K6L Medium Truck 190 hp 4X2(6 wheels) 7.8m Cab-over Chassis with Box Body belongs to JAC Gallop K6 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K6L Medium Truck 190 hp 4X2(6 wheels) 7.8m Cab-over Chassis with Box Body?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K6L Medium Truck 190 hp 4X2(6 wheels) 7.8m Cab-over Chassis with Box Body?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
