Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck

Export reference
From $22,514
MSRP ¥16.21M CNY
Horsepower: 168
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: Fast Gear
Curb Weight:: 6.06ton
seating capacity: 3Personnel
Rated payload: 7.99ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck is a Medium-duty truck featuring 6.7m cargo length, Stake type cargo body, 3Personnel volume and 7.99t payload. Its segment focus covers Daily industrial goods transport, agricultural and sideline products transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 168 hp, 4X2 (6 wheels) drive and China V emissions.

China V 168 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5146CCY-1
Type: stake truck
Drive type: 4X2
Wheelbase: 5250mm
Box length class: 6.7m
engine: FotonISF3.8s5168
transmission: Fast Gear8JS85C
Rear Axle Ratio: 5.286
Cab length: 8.998m
Cab width: 2.495m
Cab height: 3.735m
Front track width: 1907mm
rear track: 1810mm
Curb Weight: 6.06ton
Rated payload: 7.99ton
GVWR: 14.245ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 11°
market segment: Daily industrial goods transport, agricultural and sideline products transport, green channel
Remarks: Transmission option: Fast Gear 8JS75TB
Front/rear suspension: 1.35/2.398m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5168
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 125kW
Max hp: 168Horsepower
Max torque: 592N·m
Max torque speed: 1300-1700rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.7m
Cargo box width: 2.4m
Cargo box height: 0.55m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Semi-floating flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 5995kg
rear axle description: 1098Z-X
rear axle allowable load: 8250kg
Axle ratio: 5.286
Leaf spring count: 8/10+8
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Independent Heater:
Power Windows:

Photos

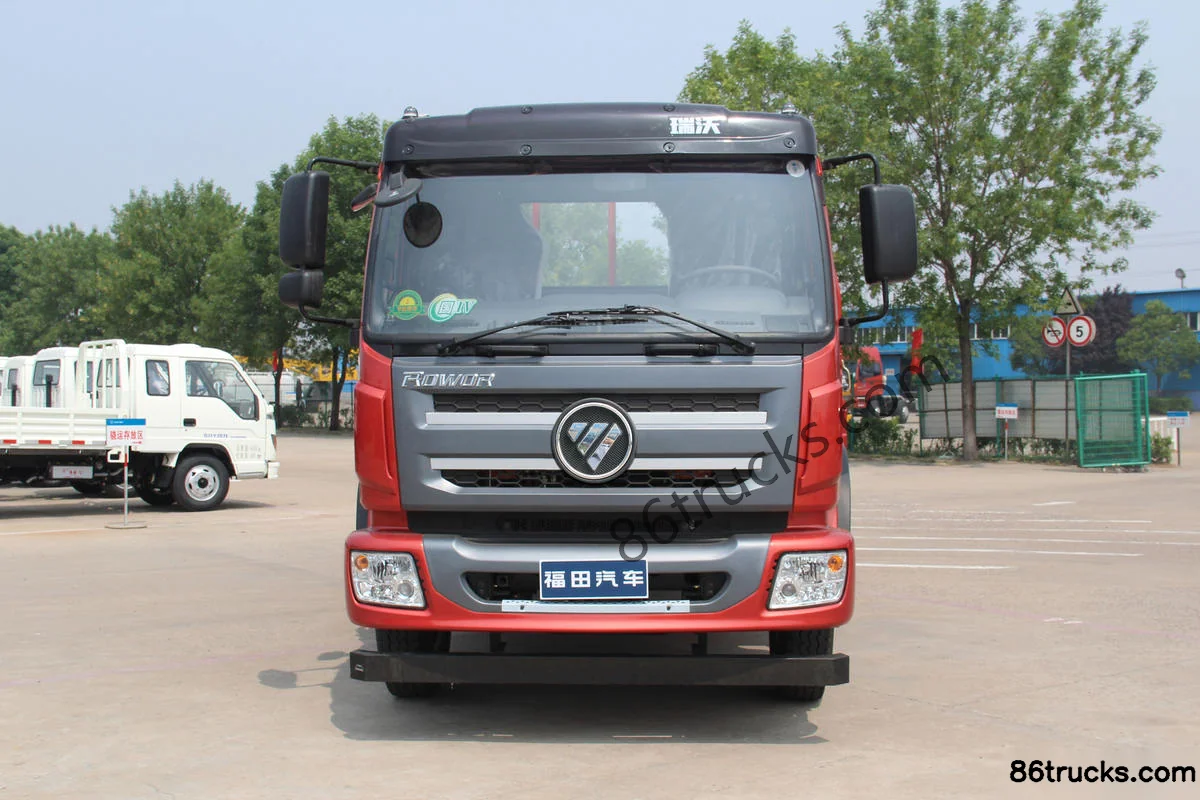

Exterior1

1 photos

FAQ

What is the export price of Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck, and what does it include?

Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck export reference is about From $22,514; MSRP is ¥16.21M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck?

Key specs of Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck: Drive: 4x2; Horsepower: 168 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck suited for?

Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck differ from other variants in the same series?

Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck belongs to FotonQ5 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruivo Medium Truck 168hp 4X2(6 wheels) 6.7m Grating Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
