Feidi X1 Series 110 hp 4X2(6 wheels) 3.66m Dump Truck

Export reference
From $12,083
MSRP ¥8.7M CNY
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 2860mm
Tire Size:: 6.50R16LT 10PR,7.00R16LT 8PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 110
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.

Overview

The Feidi X1 Series 110 hp 4X2(6 wheels) 3.66m Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP2.3Q110E50 engine, 110 hp, China V emissions and WLY transmission.

China V 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD3044W16K5-1
Drive type: 4X2
Wheelbase: 2860mm
engine: WeichaiWP2.3Q110E50
transmission: WLYWLY10H35
Rear Axle Ratio: 5.375
Cab length: 5.545m
Cab width: 1.98m
Cab height: 2.32m
Front track width: 1487mm
rear track: 1485mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Rizhao, Shandong
tonnage class: Light Truck
Approach angle: 22°
departure angle: 17°
Remarks: Steering wheel material: magnesium-aluminum alloy/steel.
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3Q110E50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.29L
Emission standard: China V
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3200rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: WLYWLY10H35
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 100、110
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.66m
Cargo box width: 1.81m
Cargo box height: 0.4m
Cargo box material: Q235A, CR780/980MS, etc.
Cab parameters
Cab: Single Row
Cab width: 1700mm
fuel tank
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1870kg
rear axle description: 1043
rear axle allowable load: 2625kg
Axle ratio: 5.375
Leaf spring count: 7/7+6
Aluminum wheels:
Tire
Tire Size: 6.50R16LT 10PR,7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
ASR traction control:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power interface:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Service brake
Engine brake: Yes
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
smart configuration
Telematics System:

Photos

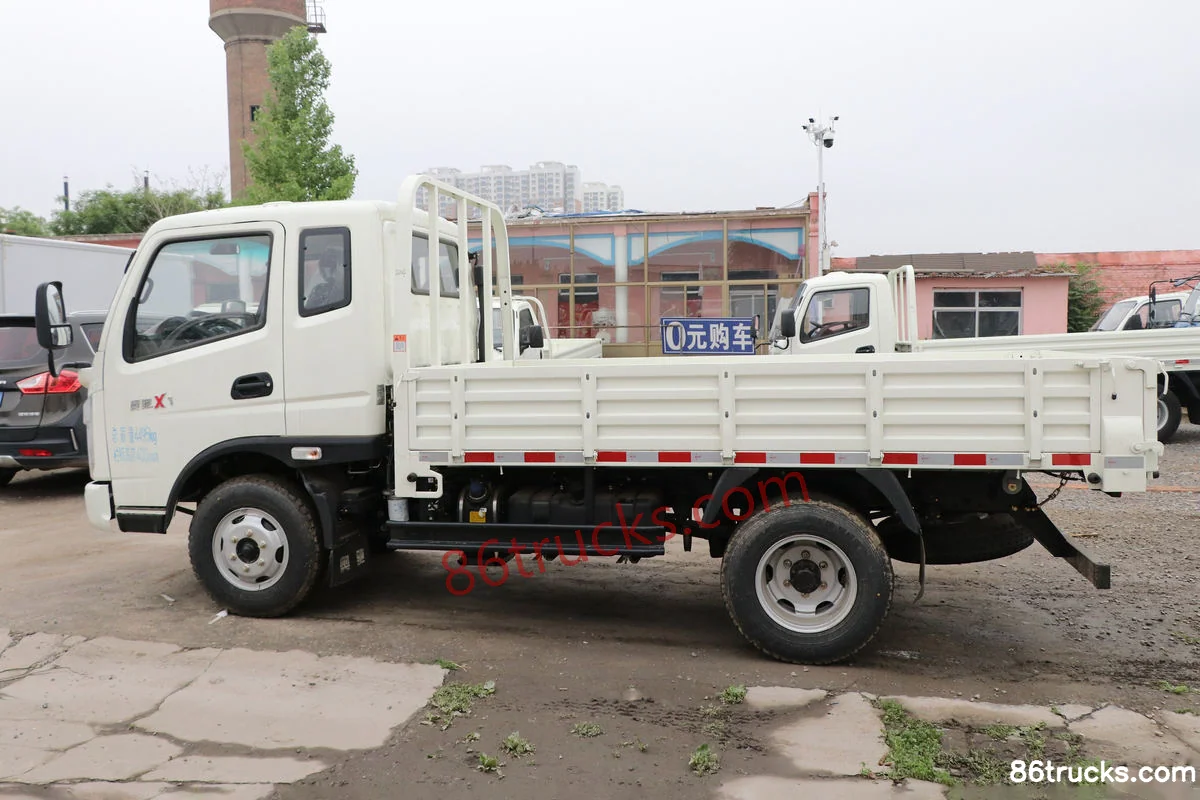

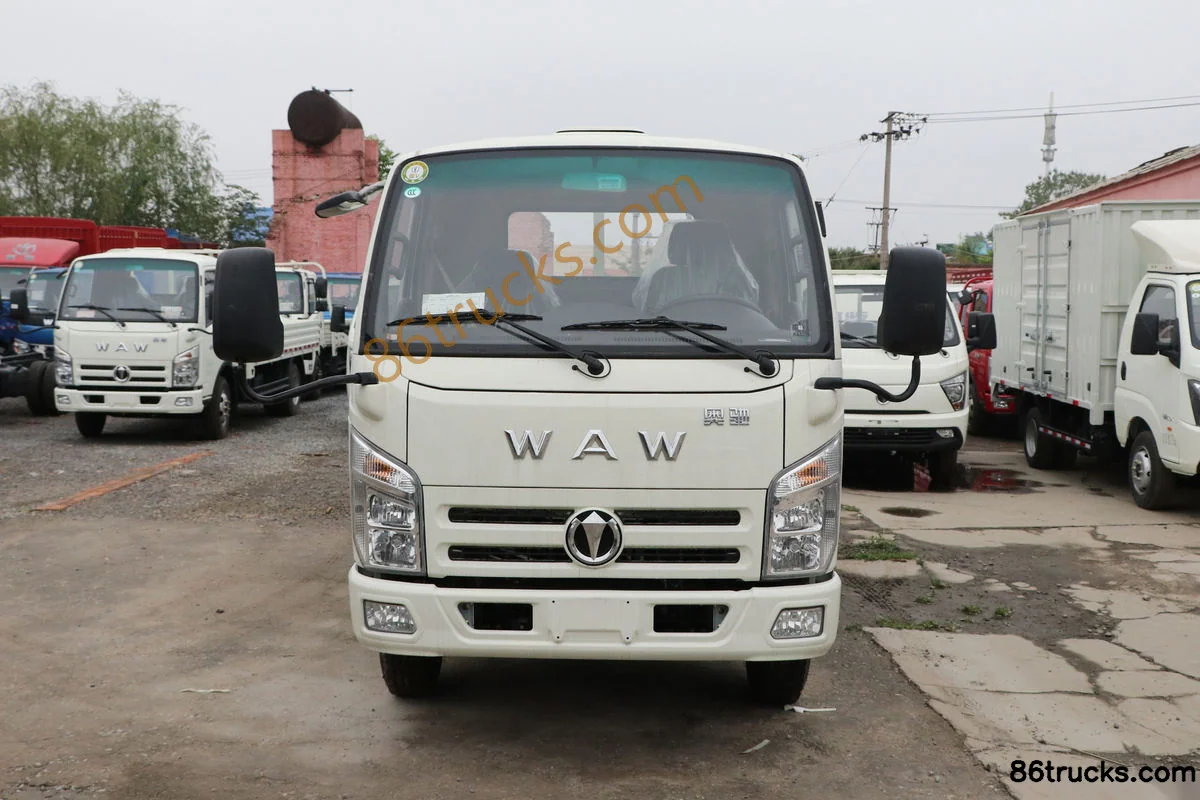

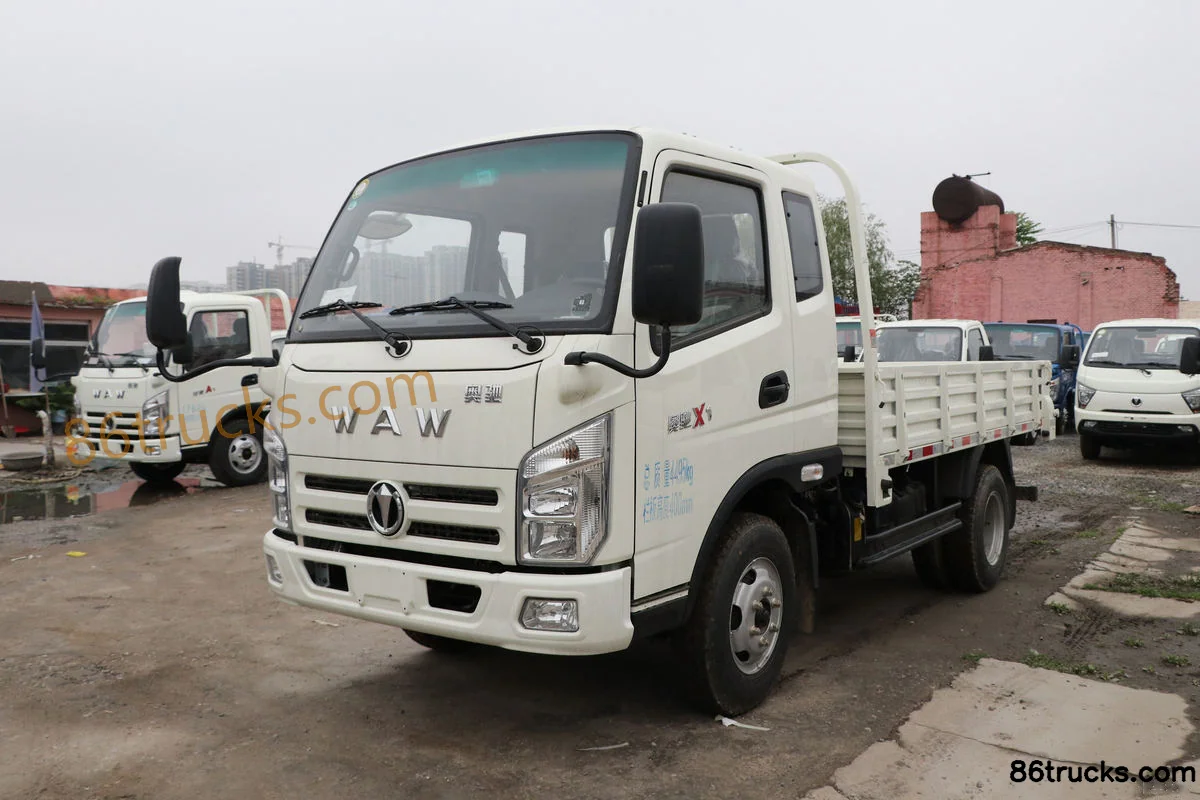

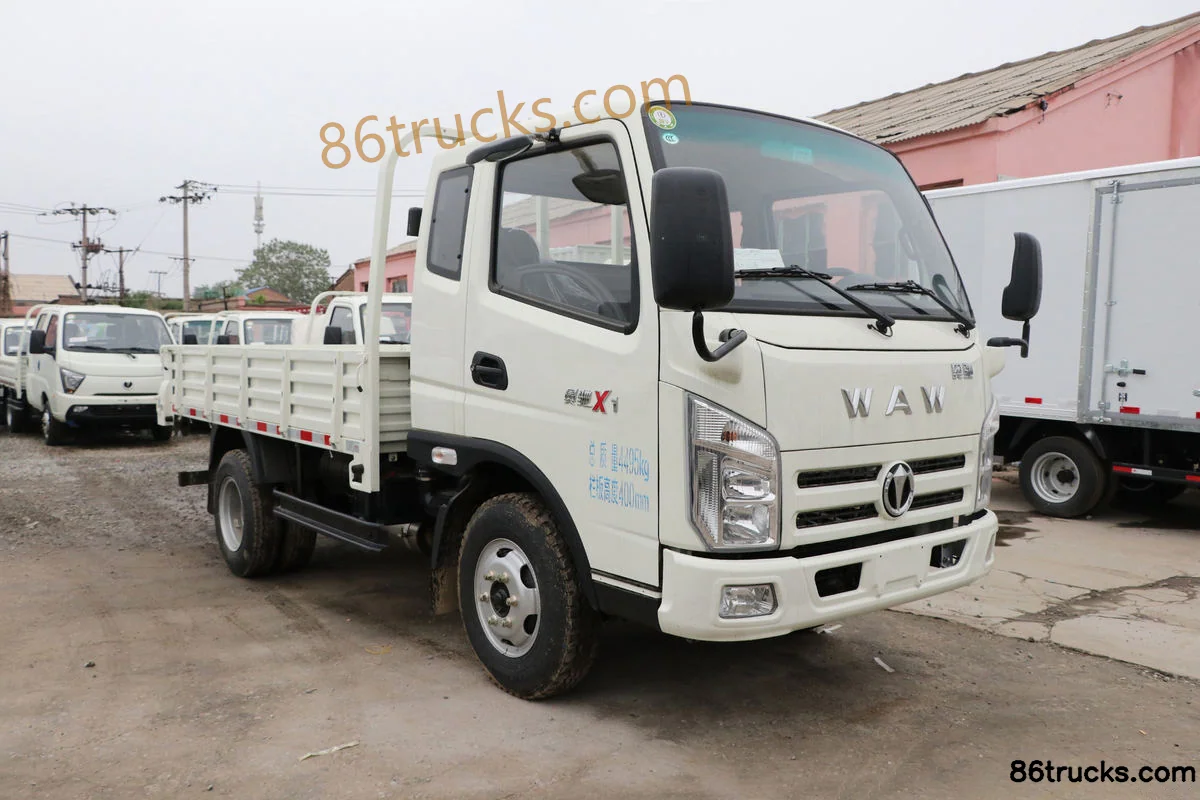

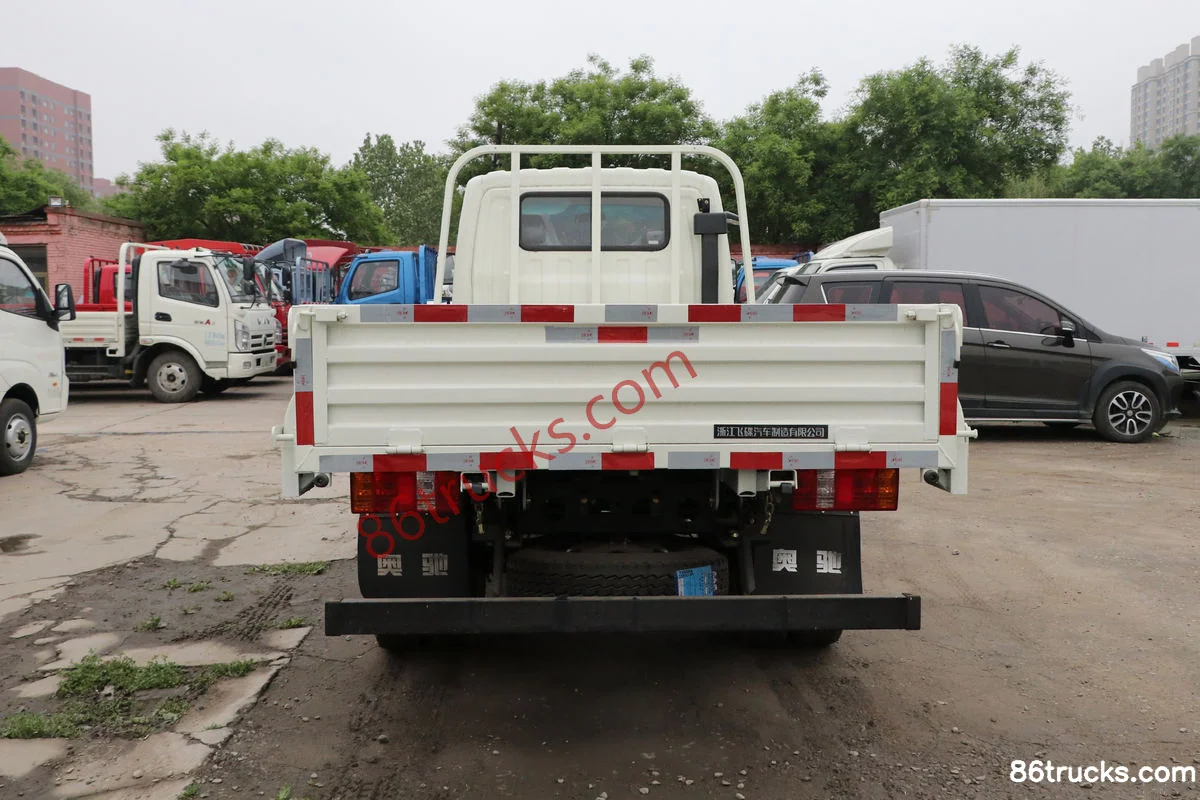

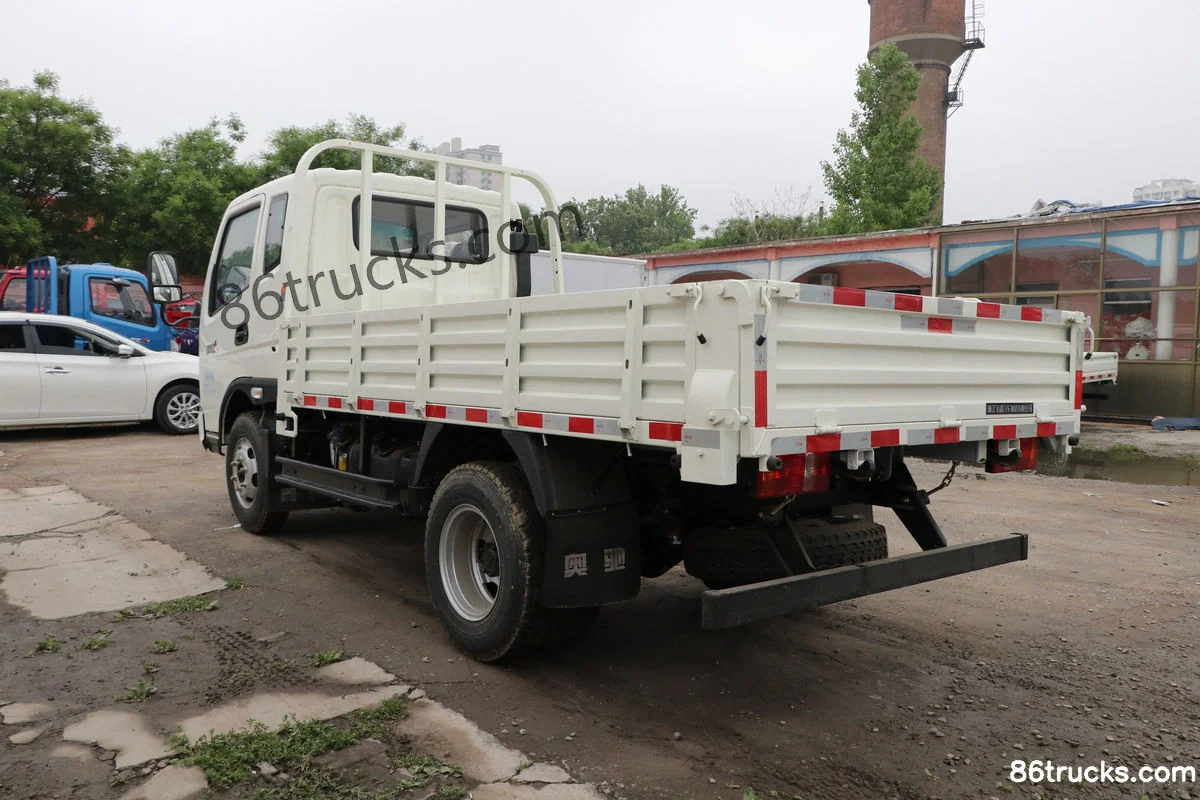

Exterior3

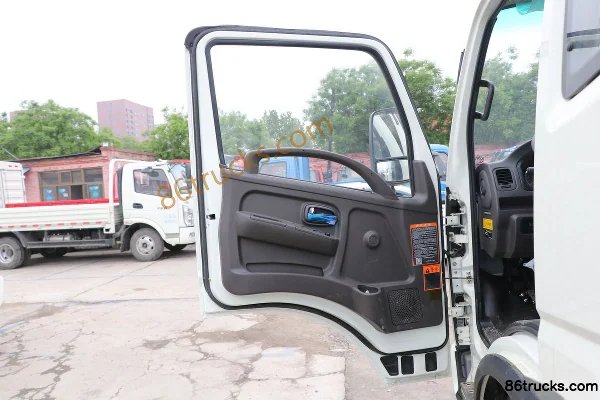

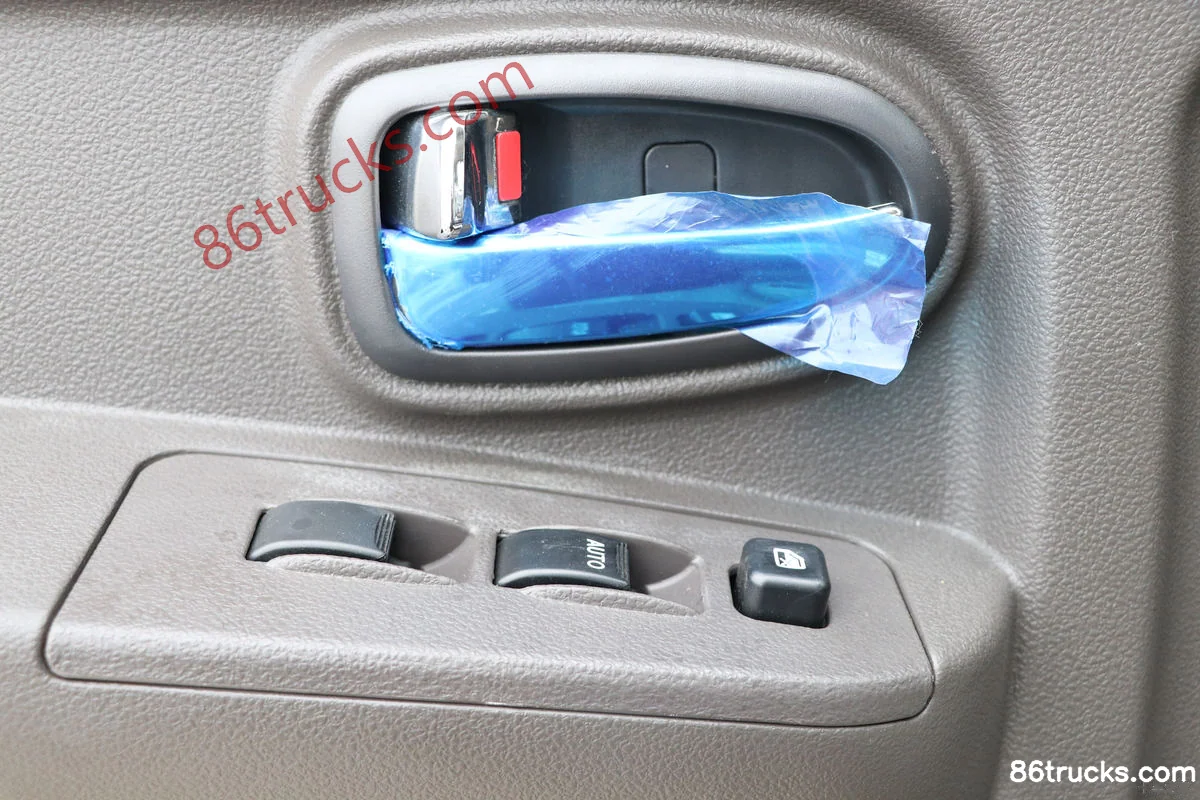

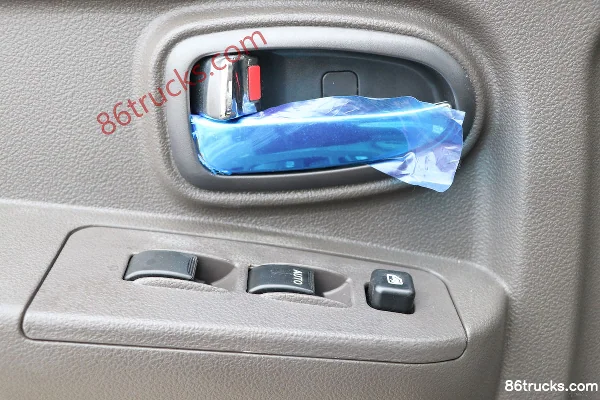

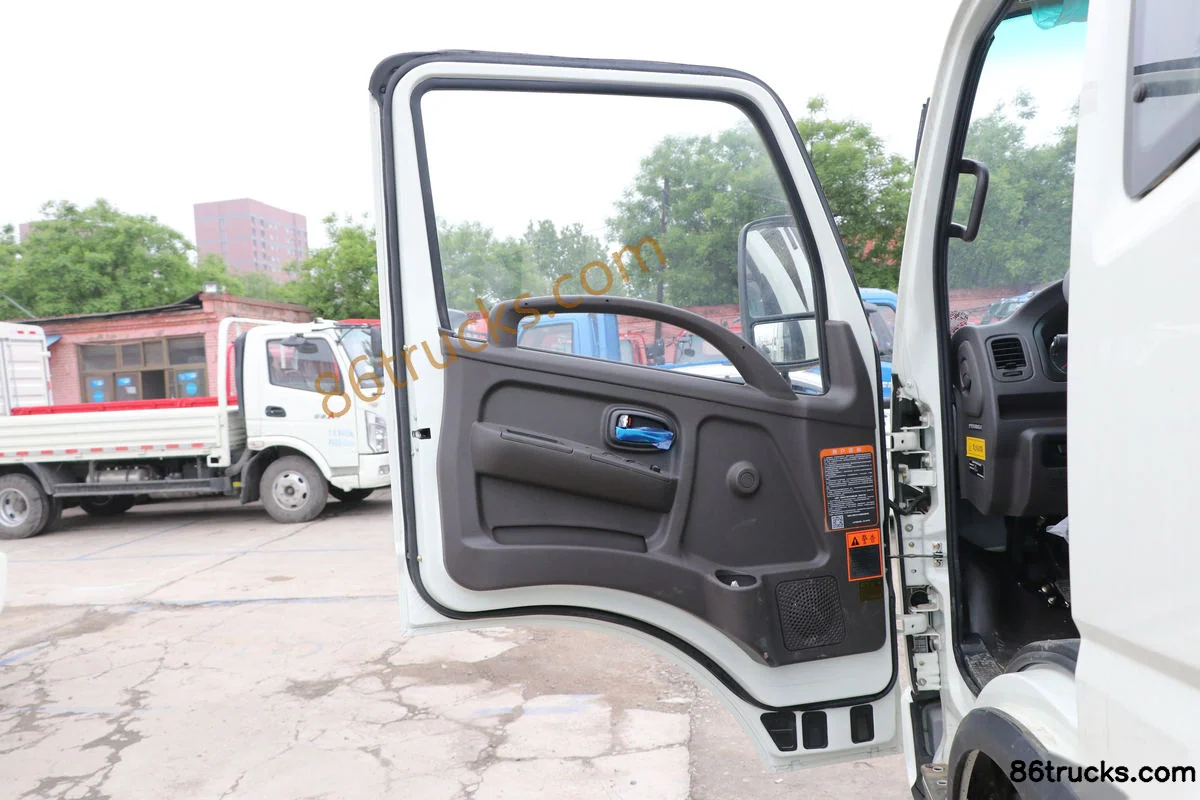

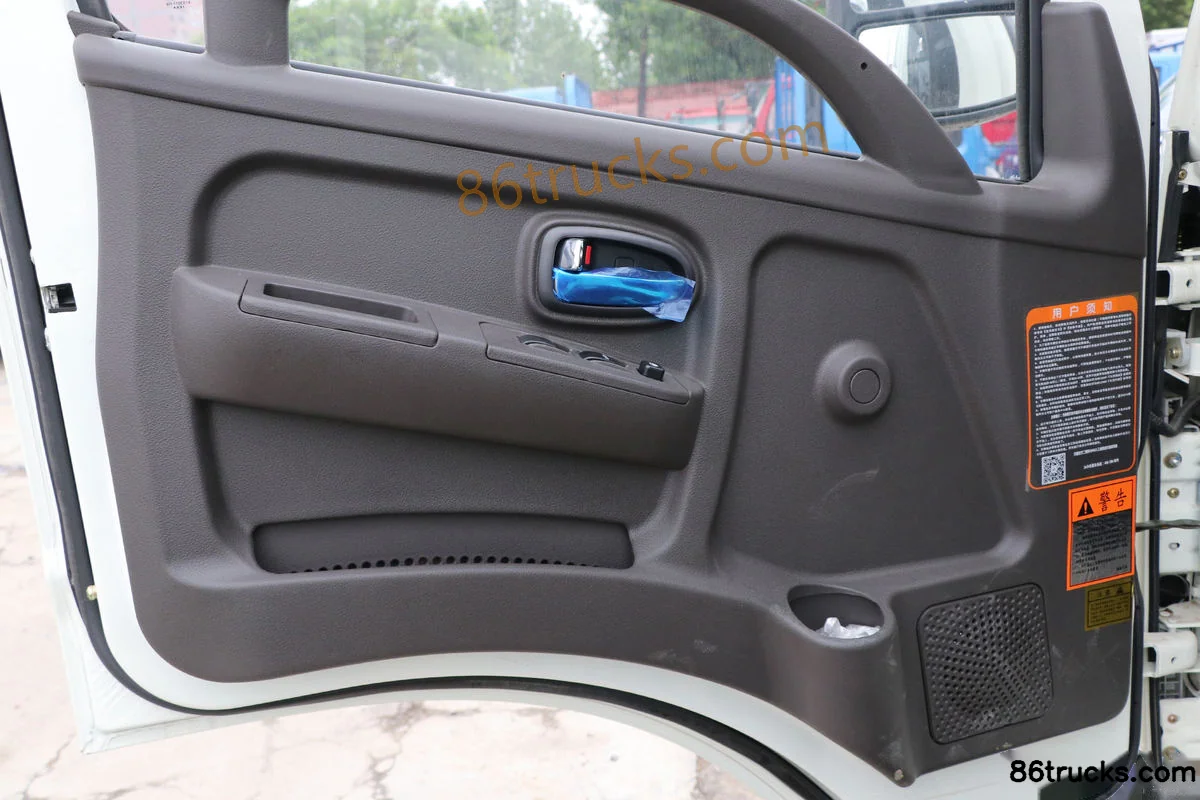

Cab3

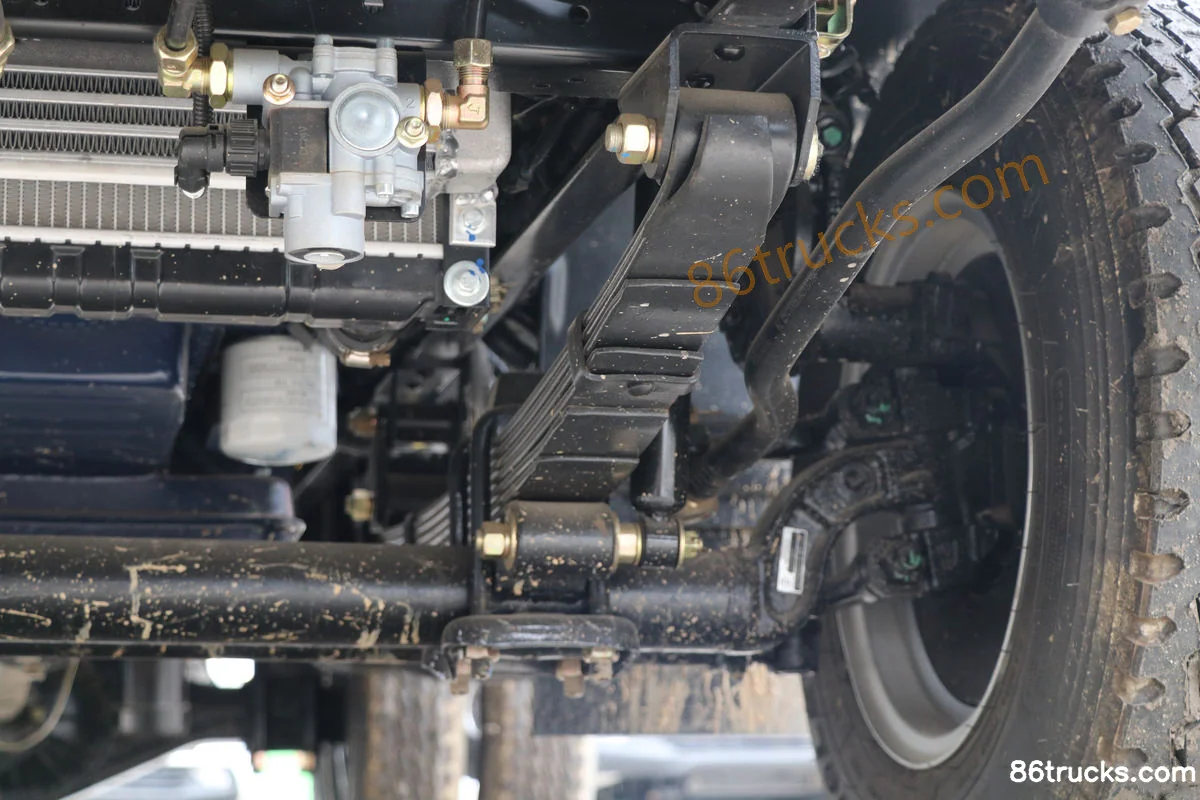

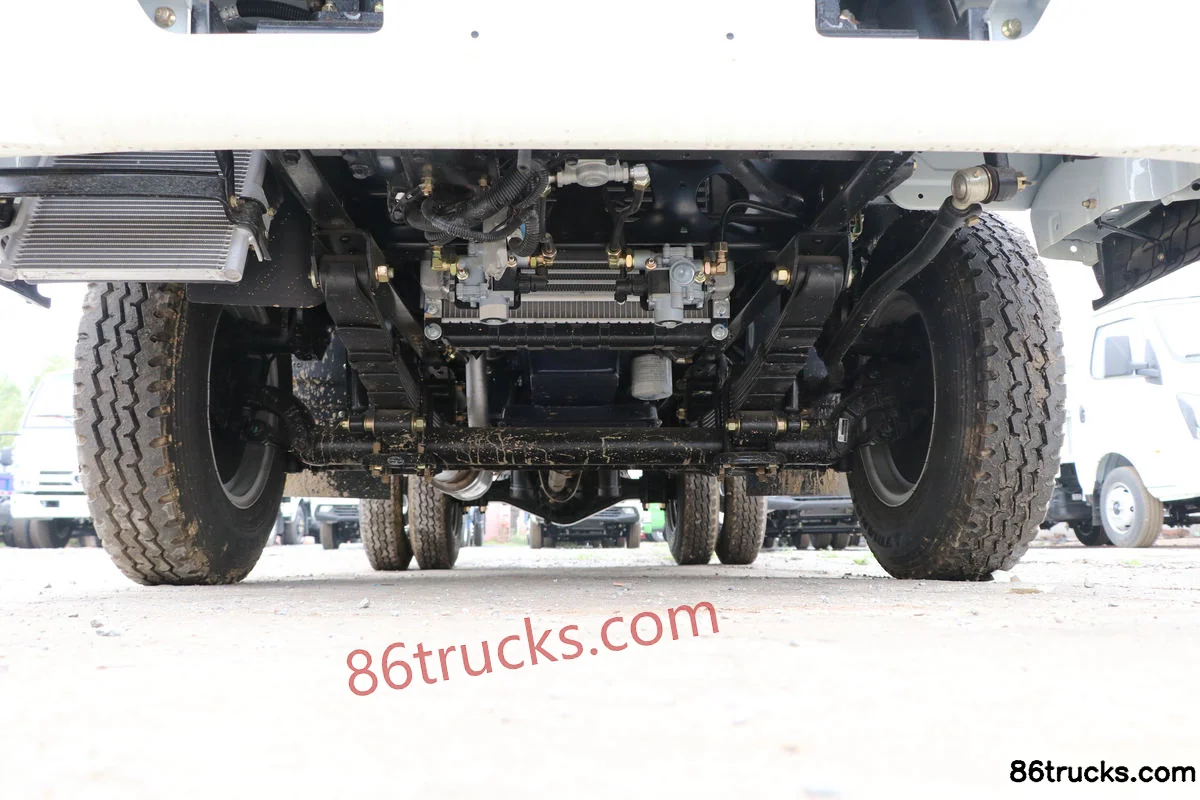

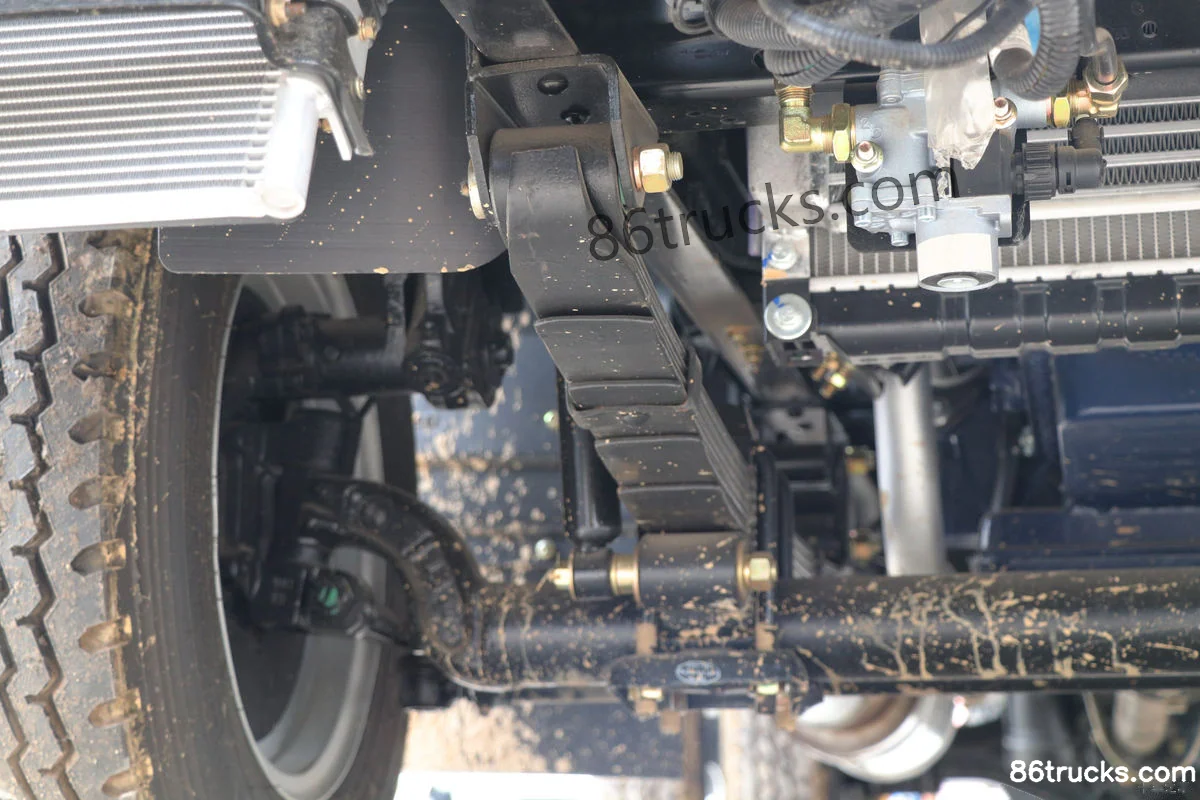

Chassis3

Body3

12 photos

FAQ

What is the export price of Feidi X1 Series 110 hp 4X2(6 wheels) 3.66m Dump Truck, and what does it include?

Feidi X1 Series 110 hp 4X2(6 wheels) 3.66m Dump Truck export reference is about From $12,083; MSRP is ¥8.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi X1 Series 110 hp 4X2(6 wheels) 3.66m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi X1 Series 110 hp 4X2(6 wheels) 3.66m Dump Truck?

Key specs of Feidi X1 Series 110 hp 4X2(6 wheels) 3.66m Dump Truck: Drive: 4x2; Horsepower: 110 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi X1 Series 110 hp 4X2(6 wheels) 3.66m Dump Truck suited for?

Feidi X1 Series 110 hp 4X2(6 wheels) 3.66m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Feidi X1 Series 110 hp 4X2(6 wheels) 3.66m Dump Truck differ from other variants in the same series?

Feidi X1 Series 110 hp 4X2(6 wheels) 3.66m Dump Truck belongs to Aochi X Series Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi X1 Series 110 hp 4X2(6 wheels) 3.66m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi X1 Series 110 hp 4X2(6 wheels) 3.66m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
