Dongfeng Commercial Vehicle Tianlong Heavy Truck 220hp 6X2(8 wheels) 9.6m Semi-Sleeper Stake Truck (Flat Roof)

Export reference
MSRP N/A
Horsepower: 220
Emission: China IV
Fuel: Diesel
Engine: Dongkang 6-cyl
Transmission: Fast Gear
Curb Weight:: 10.2ton
seating capacity: 3Personnel
Rated payload: 14.605ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The Dongfeng Commercial Vehicle Tianlong Heavy Truck 220hp 6X2(8 wheels) 9.6m Semi-Sleeper Stake Truck (Flat Roof) is a Heavy-duty cargo trucks featuring 9.6m cargo length, Stake type cargo body, 3Personnel volume and 14.605t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Dongkang 6-cyl engine, 220 hp, 6X2 (8 wheels) drive and China IV emissions.

China IV 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFL5253CCYAX1B
Type: stake truck
Drive type: 6X2
Wheelbase: 1850+5450mm
Box length class: 9.6m
engine: DongfengISB220 40
transmission: Fast Gear8JS85F
Rear Axle Ratio: 4.875
Cab length: 11.99m
Cab width: 2.5m
Cab height: 3.9m
Front track width: 1980/1980mm
rear track: 1860mm
Curb Weight: 10.2ton
Rated payload: 14.605ton
GVWR: 25ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Heavy-duty cargo trucks
Approach angle: 30°
departure angle: 18°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.46/3.23m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISB220 40
Engine info: Dongkang 6-cyl
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.9L
Emission standard: China IV
Max output power: 162kW
Max hp: 220Horsepower
Rated speed: 2500rpm
Engine Type: Inline 6-cylinder, turbocharged intercooled, electronically controlled common rail
Transmission Parameters
Transmission Model: Fast Gear8JS85F
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.4m
Cargo box height: 0.8m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 5T
Front axle allowable load: 7000/7000kg
Frame Dimensions: 280x90x(8+4)mm
rear axle description: 10T
rear axle allowable load: 11000kg
Axle ratio: 4.875
Leaf spring count: 3/3/9+3
clutch: Φ395
Tire
Tire Size: 11.00R20
Number of tires: 8pcs
interior configuration
AC control type: Manual

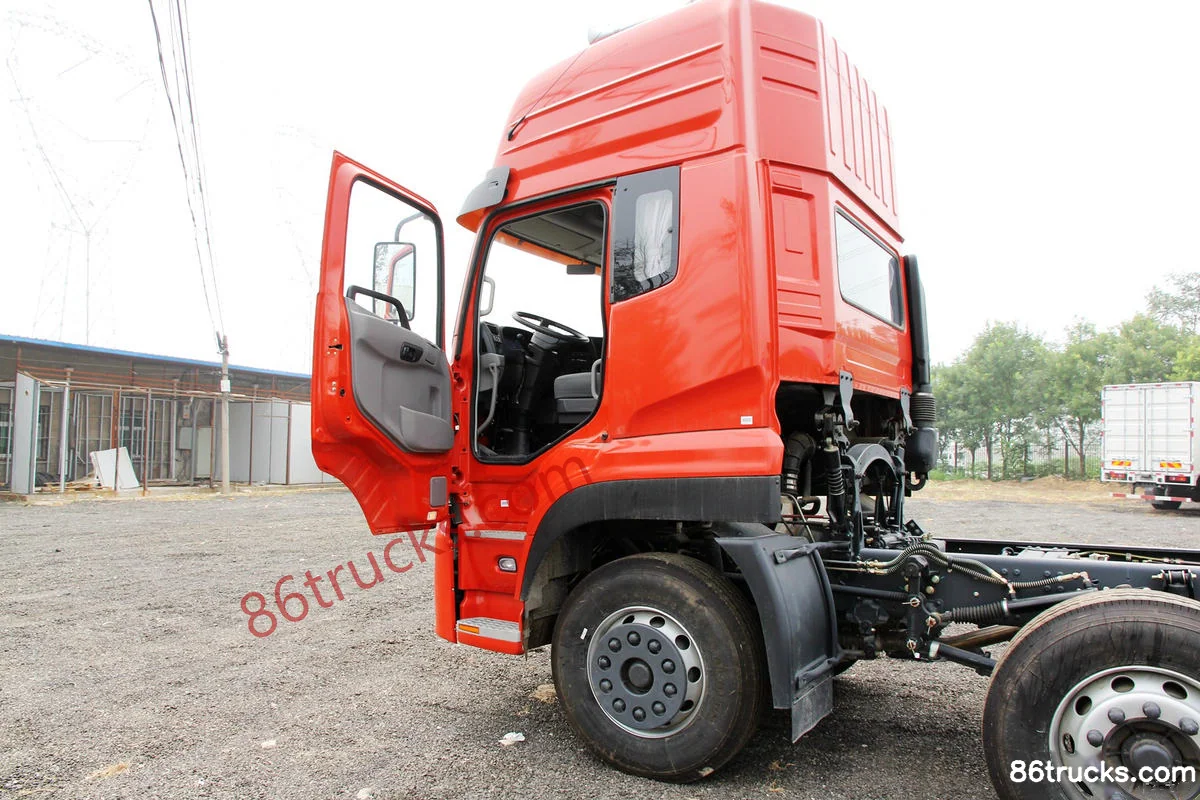

Photos

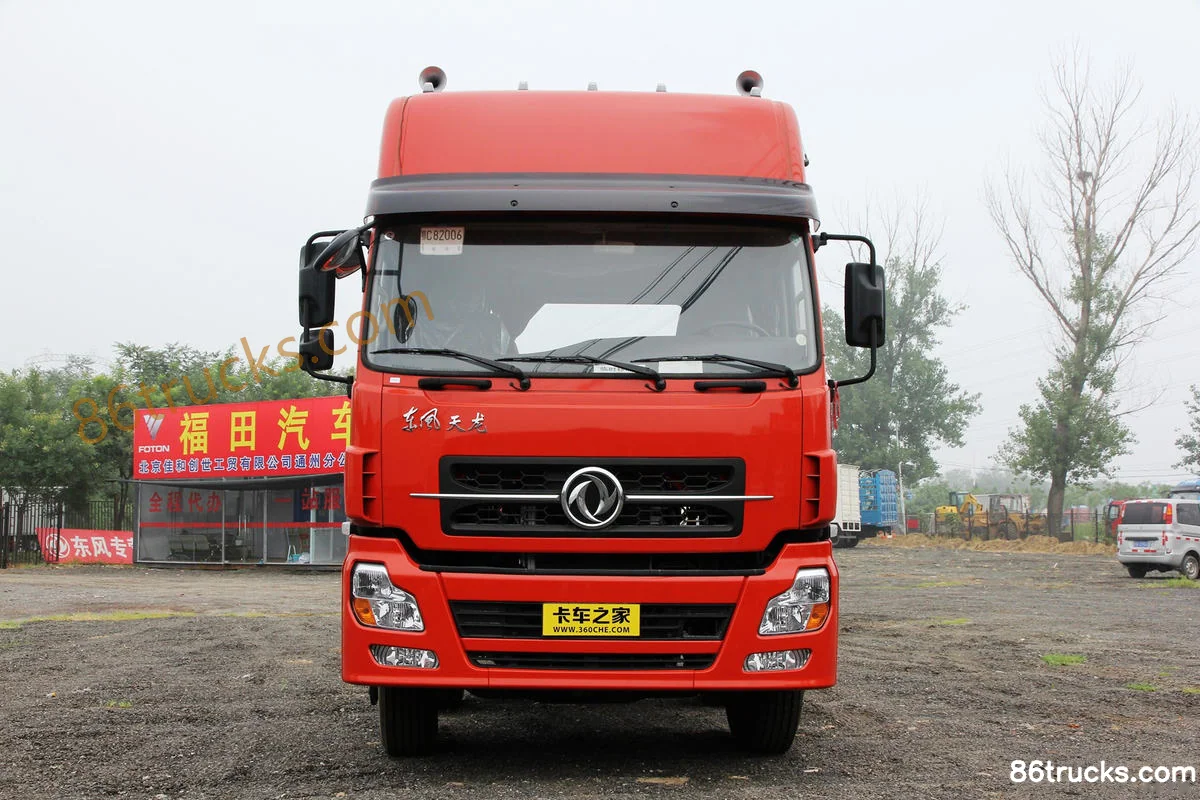

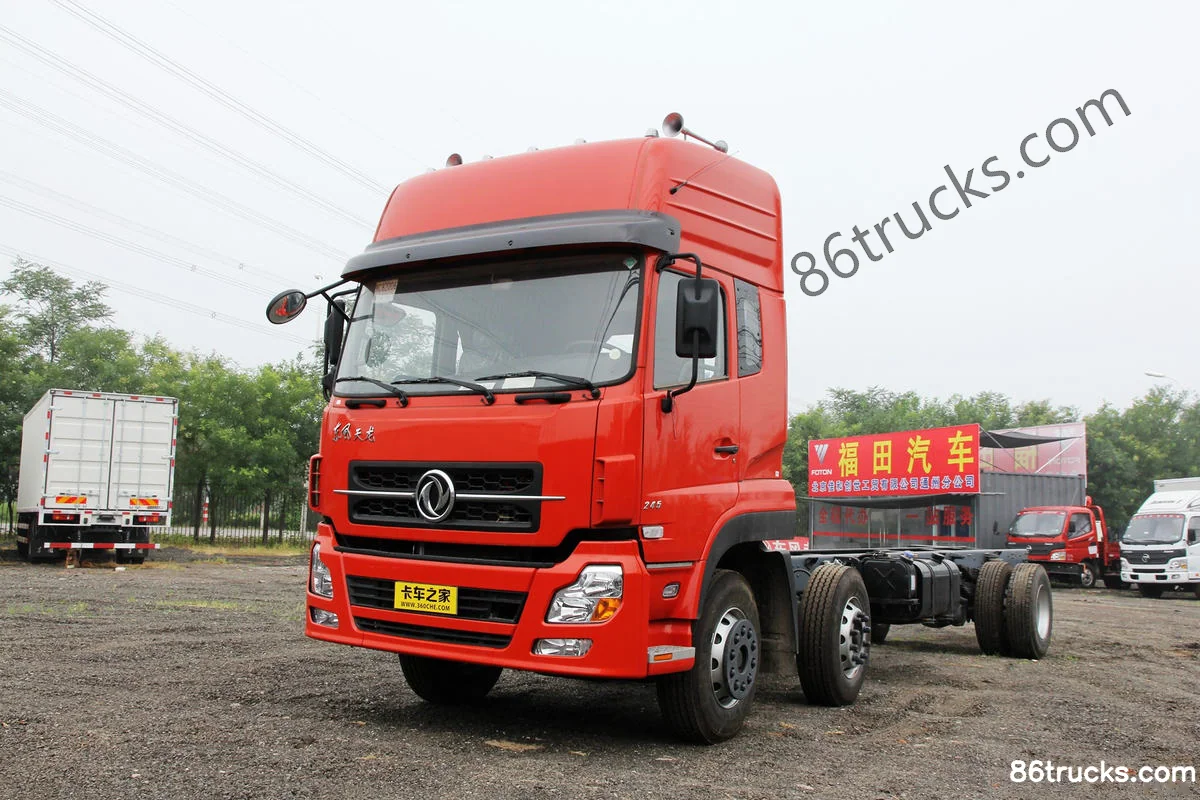

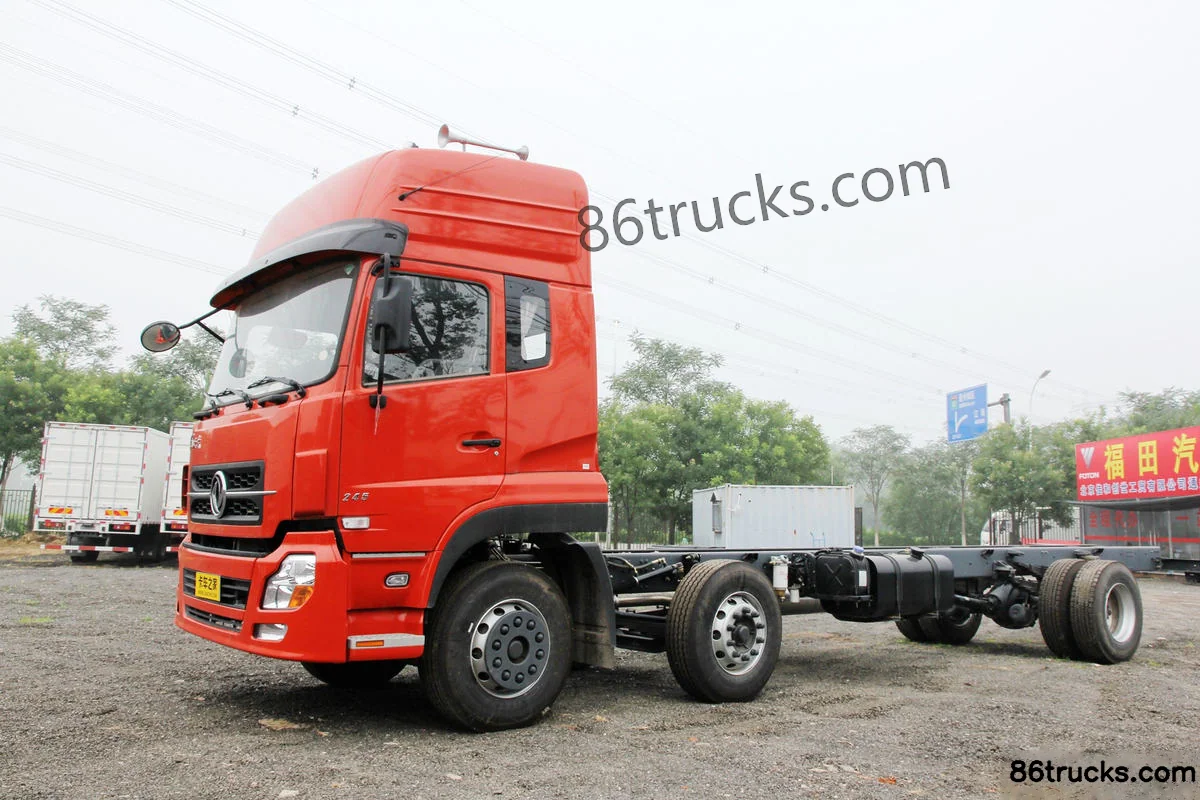

Exterior3

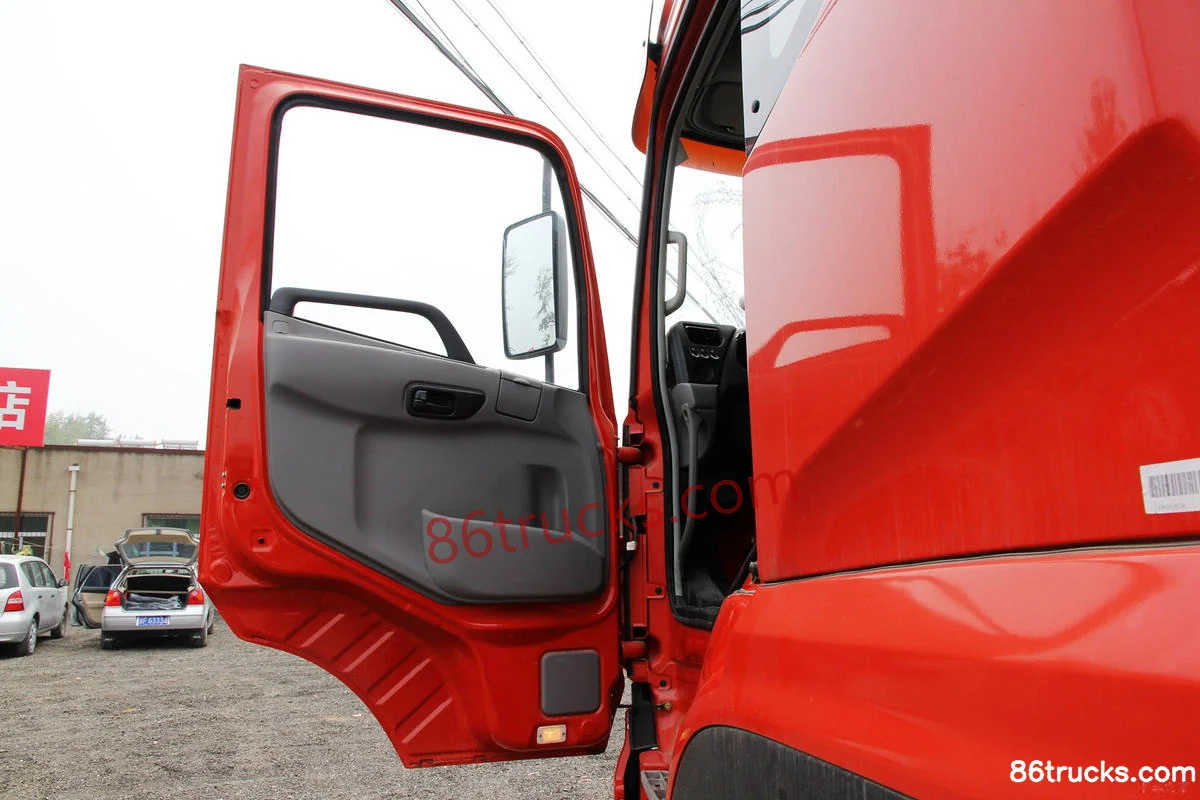

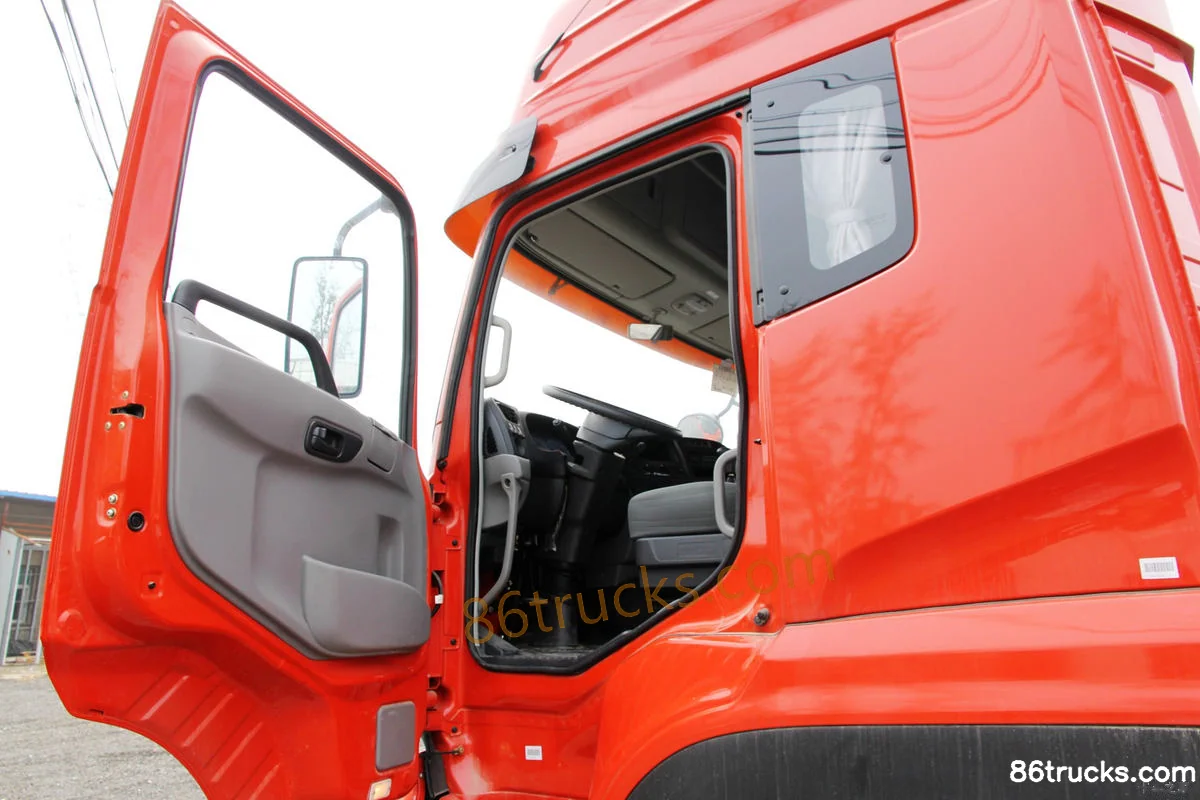

Cab3

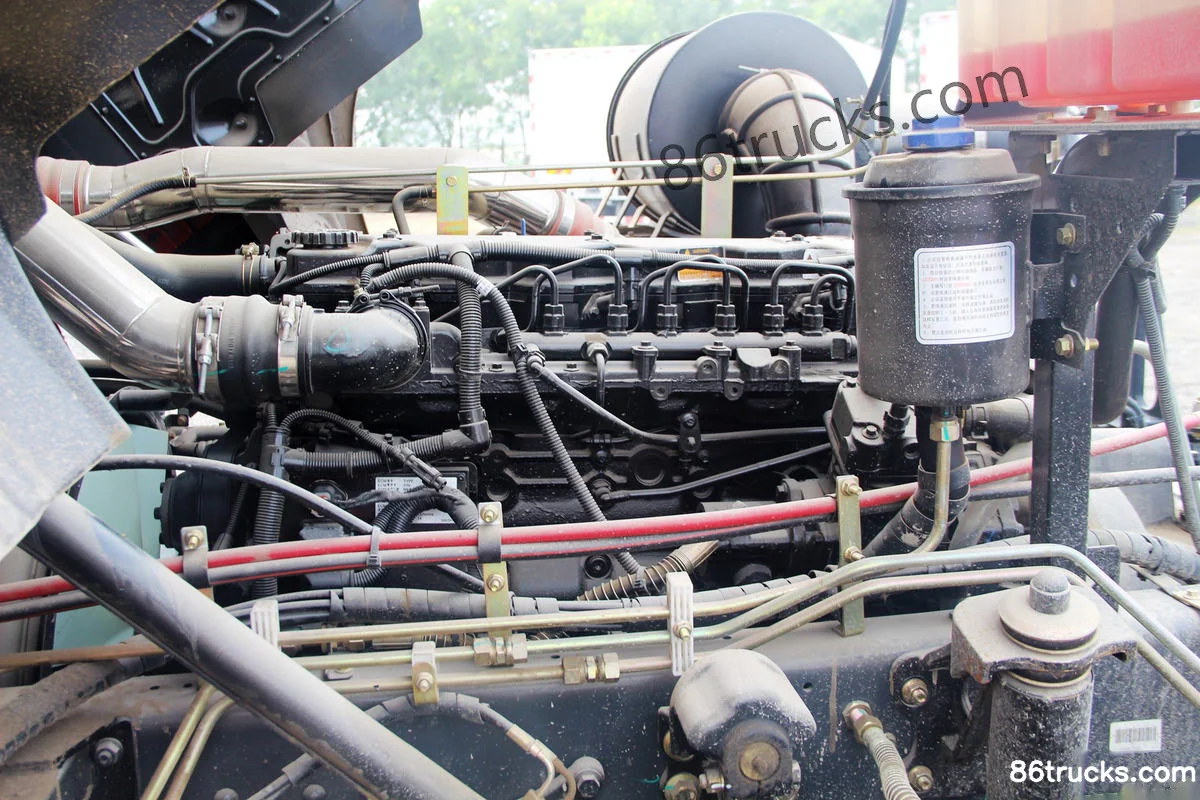

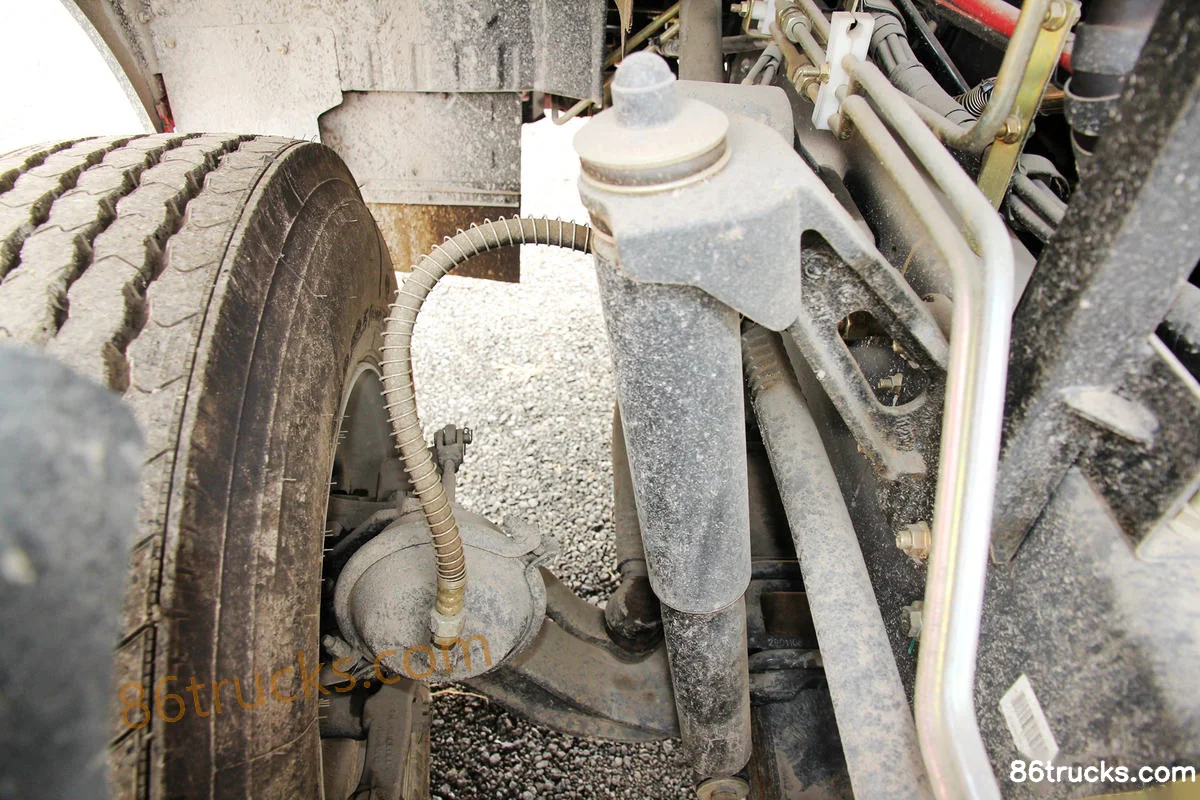

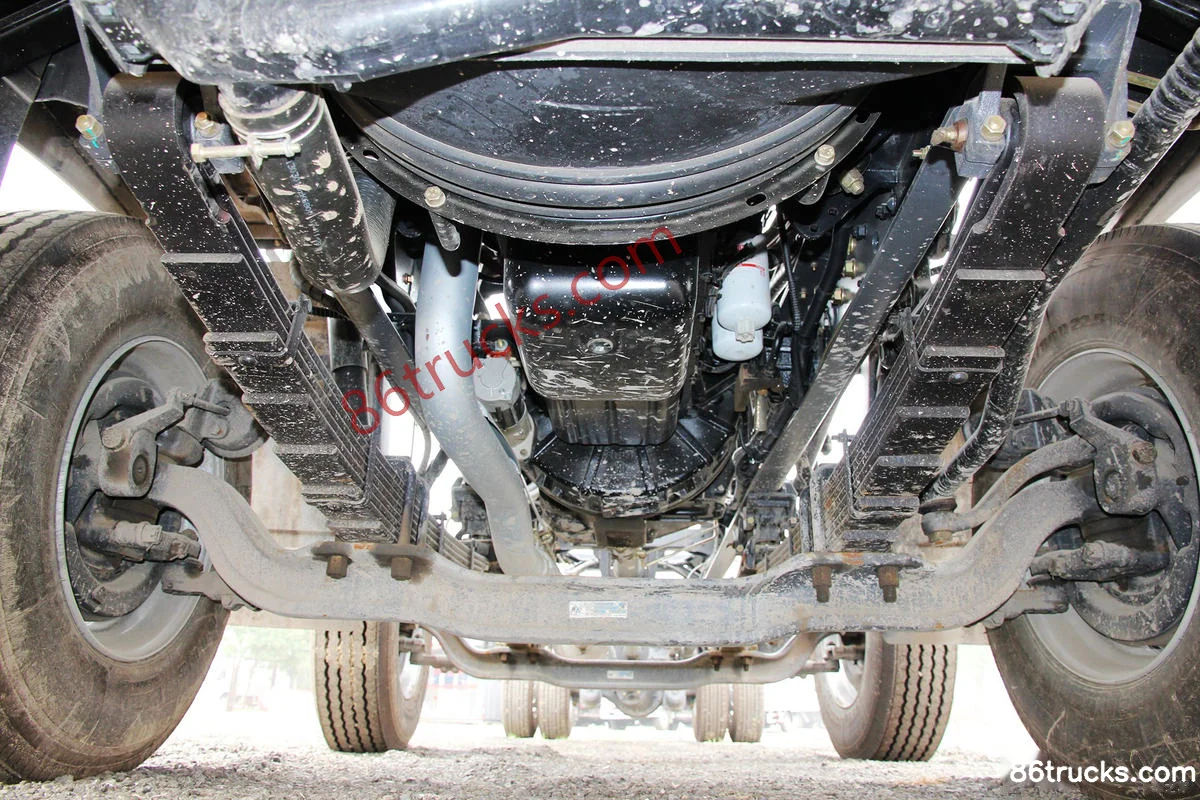

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Commercial Vehicle Tianlong Heavy Truck 220hp 6X2(8 wheels) 9.6m Semi-Sleeper Stake Truck (Flat Roof) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianlong Heavy Truck 220hp 6X2(8 wheels) 9.6m Semi-Sleeper Stake Truck (Flat Roof)?

Key specs of Dongfeng Commercial Vehicle Tianlong Heavy Truck 220hp 6X2(8 wheels) 9.6m Semi-Sleeper Stake Truck (Flat Roof): Drive: 6x2; Horsepower: 220 hp; Emission: China IV; Fuel: Diesel; Engine: Dongkang 6-cyl; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianlong Heavy Truck 220hp 6X2(8 wheels) 9.6m Semi-Sleeper Stake Truck (Flat Roof) suited for?

Dongfeng Commercial Vehicle Tianlong Heavy Truck 220hp 6X2(8 wheels) 9.6m Semi-Sleeper Stake Truck (Flat Roof) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Commercial Vehicle Tianlong Heavy Truck 220hp 6X2(8 wheels) 9.6m Semi-Sleeper Stake Truck (Flat Roof) differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianlong Heavy Truck 220hp 6X2(8 wheels) 9.6m Semi-Sleeper Stake Truck (Flat Roof) belongs to Dongfeng Tianlong (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianlong Heavy Truck 220hp 6X2(8 wheels) 9.6m Semi-Sleeper Stake Truck (Flat Roof)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianlong Heavy Truck 220hp 6X2(8 wheels) 9.6m Semi-Sleeper Stake Truck (Flat Roof)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
