SHACMAN Commercial Vehicle Xuande X3 Heavy Truck Composite Version 290hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck

Export reference
MSRP N/A
Horsepower: 290
Emission: China IV
Fuel: Diesel
Engine: Yuchai8.4L
Transmission: Fast Gear
Curb Weight:: 12.1ton
seating capacity: 2Personnel
Rated payload: 18.77ton
Drive 8X4 (12 wheels)
Cargo box type: stake body

Overview

The SHACMAN Commercial Vehicle Xuande X3 Heavy Truck Composite Version 290hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, stake body cargo body, 2Personnel volume and 18.77t payload. On the powertrain side, it comes with a Yuchai8.4L engine, 290 hp, 8X4 (12 wheels) drive and China IV emissions.

China IV 290 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX1310MP4
Type: Cargo Trucks
Drive type: 8X4
Wheelbase: 1800+4700+1350mm
Box length class: 9.5m
engine: YuchaiYC6L290-42
transmission: Fast Gear9JS135TB
Rear Axle Ratio: 4.11
Cab length: 11.95m
Cab width: 2.5m
Cab height: 3.56m
Front track width: 1970/1970,2023/2023mm
rear track: 1860/1860mm
Curb Weight: 12.1ton
Rated payload: 18.77ton
GVWR: 31ton
Max. speed: 90km/h
Origin: Baoji, Shaanxi
tonnage class: Heavy-duty cargo trucks
Approach angle: 23°
departure angle: 12°
Remarks: Application: LTL, grain, industrial raw materials and products logistics. Road surface: highway, provincial road, national road. Speed: 70-95km/104km. Optional equipment: 1. Optional 10JSD120TB, 10JSD140TB transmission; 2. Optional 300/8+6 double frame; 3. Optional 457/4.44/4.875
Front/rear suspension: 1.54/2.61m
Series: 3-series
Version: composite version
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6L290-42
Engine info: Yuchai8.4L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.424L
Emission standard: China IV
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1150N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled, electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear9JS135TB
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.5m
Cargo box width: 2.39m
Cargo box height: 0.8m
*Cargo box interior width: 2.3900001049042
Cab parameters
Cab: High-roof double bunk JG161
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 153B
Front axle allowable load: 6500/6500kg
Frame Dimensions: Double 300/8+4mm
rear axle description: 457+457
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 4.11
Leaf spring count: 9/9/10,10/10/10,10/10/12,3/3/5
Suspension (front/rear): 4-leaf spring bolt
clutch: Φ430
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:

Photos

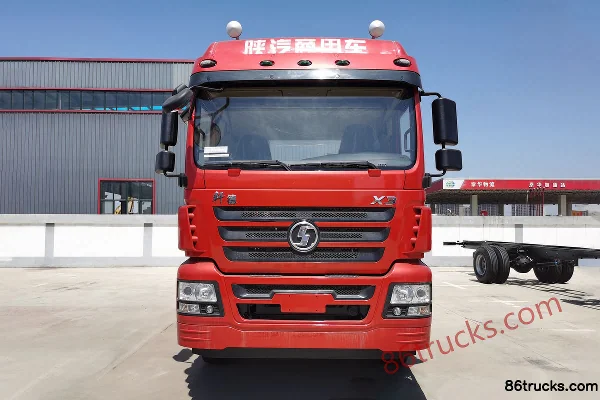

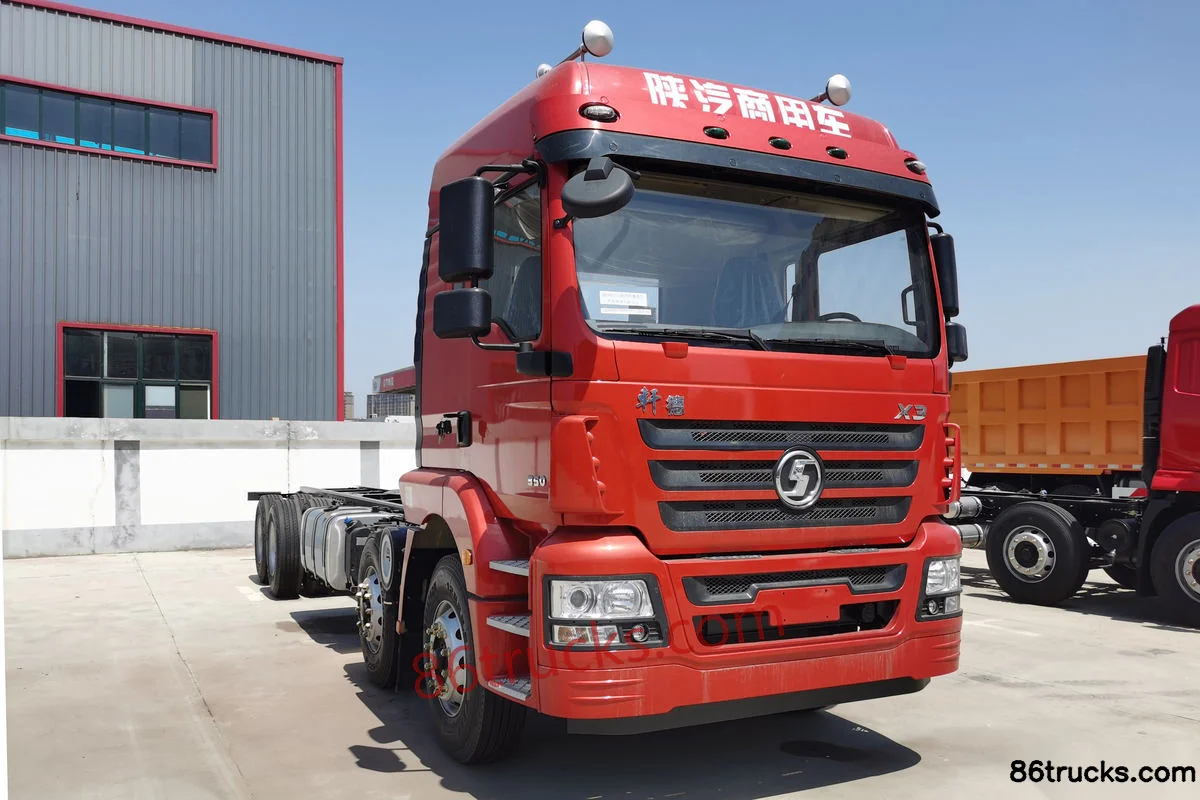

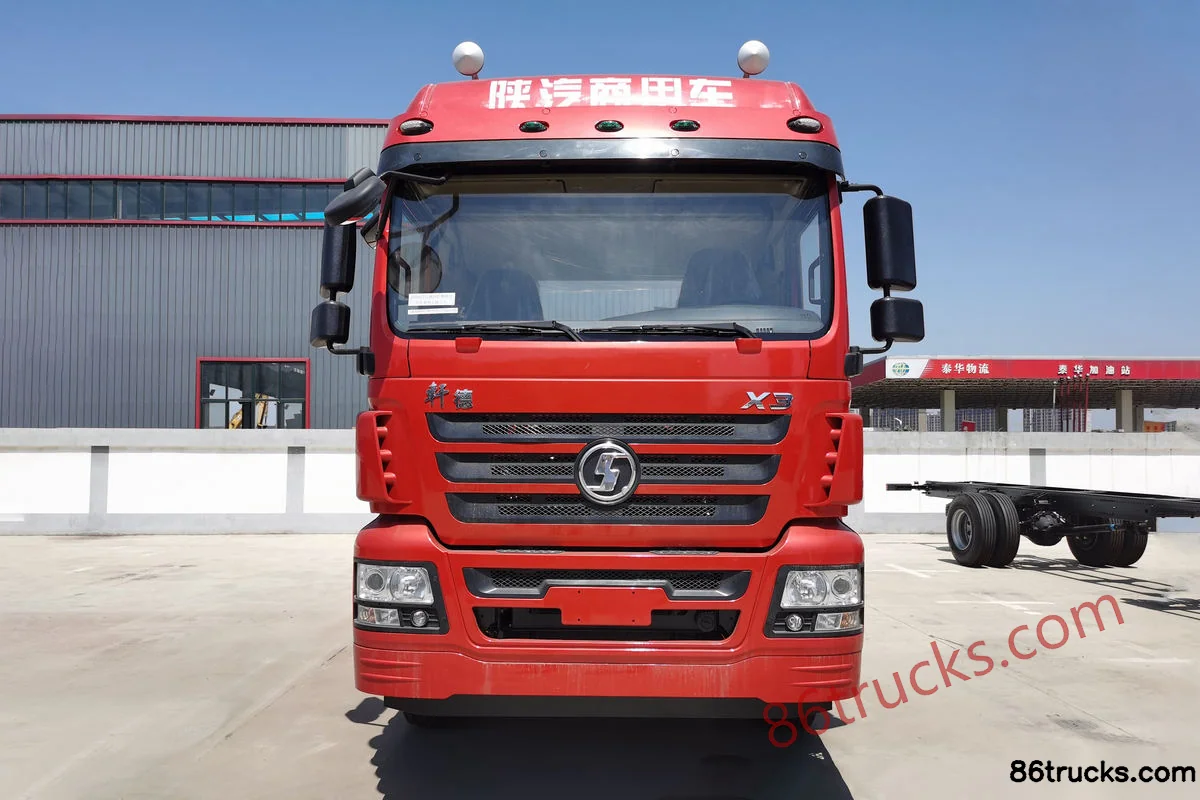

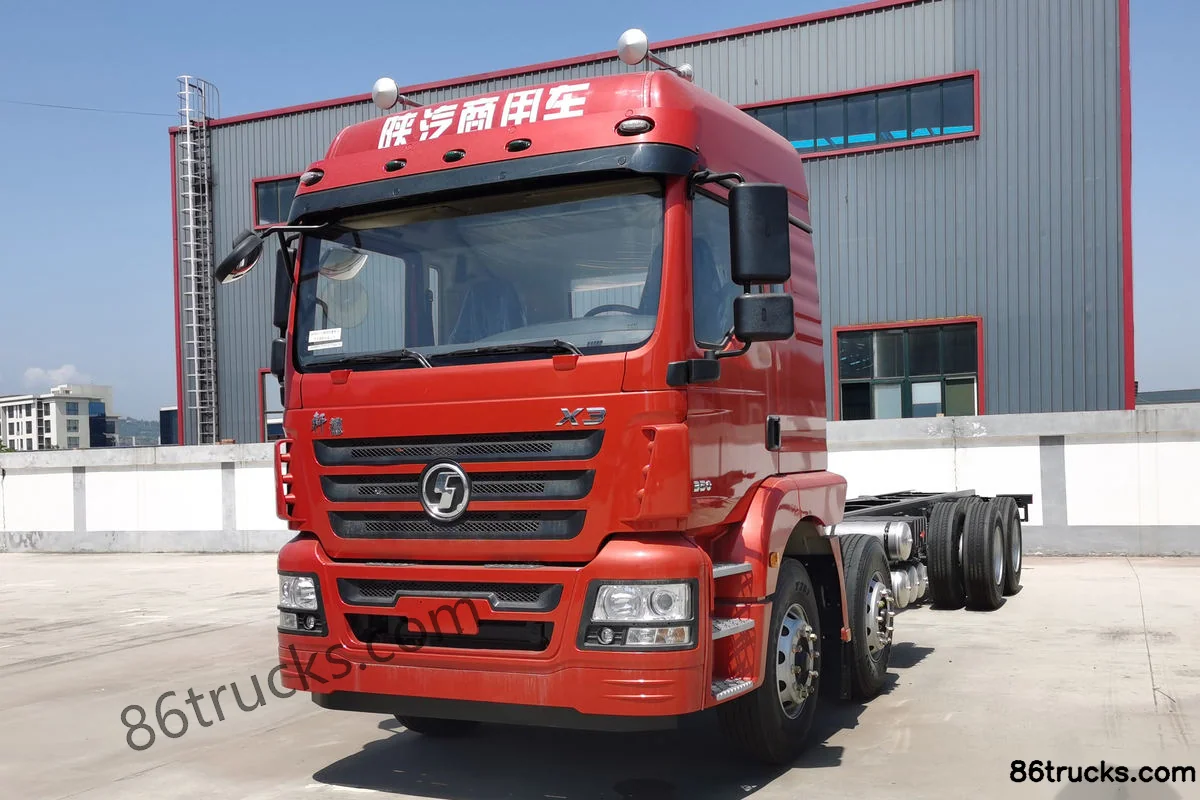

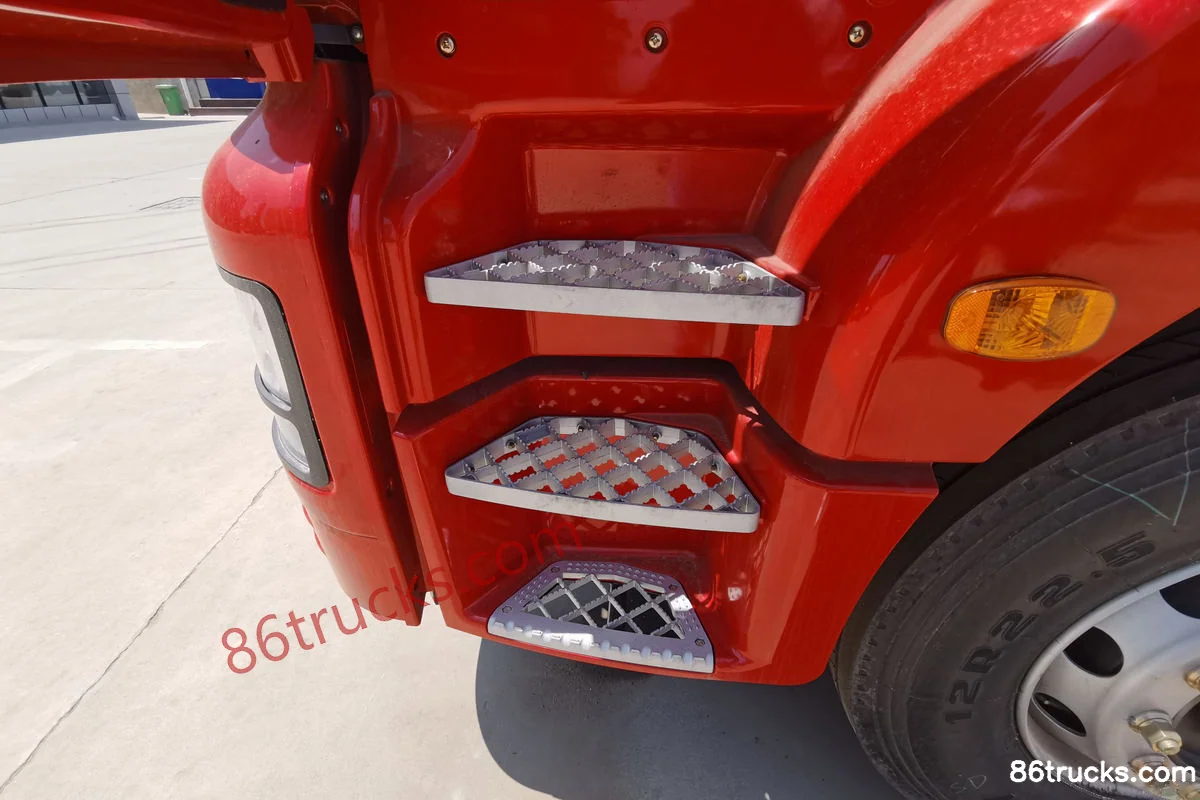

Exterior3

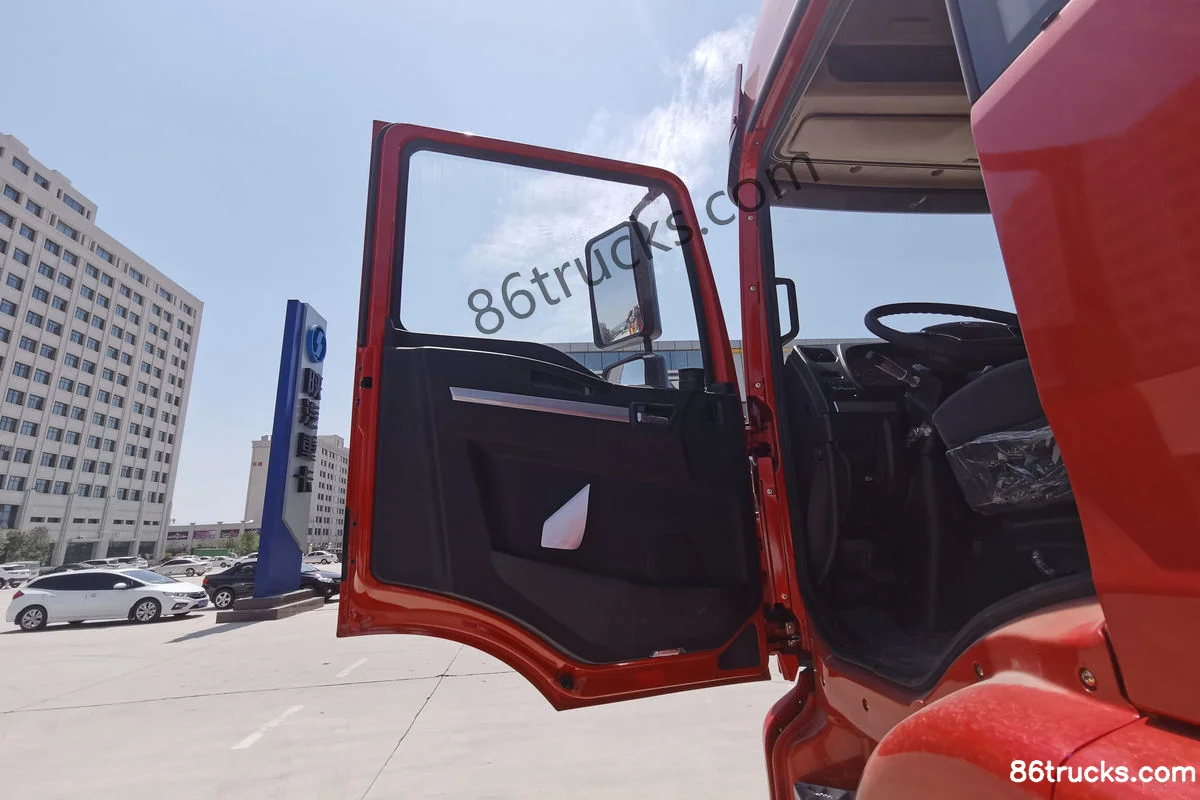

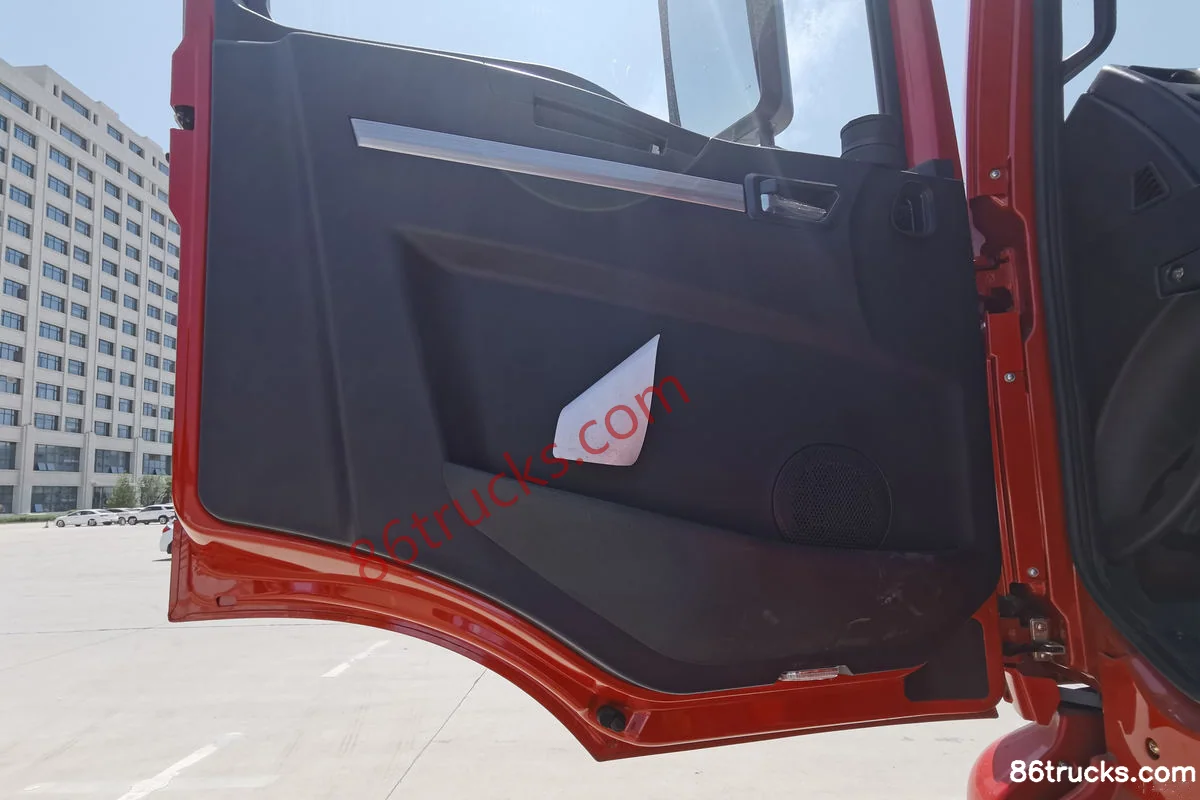

Cab3

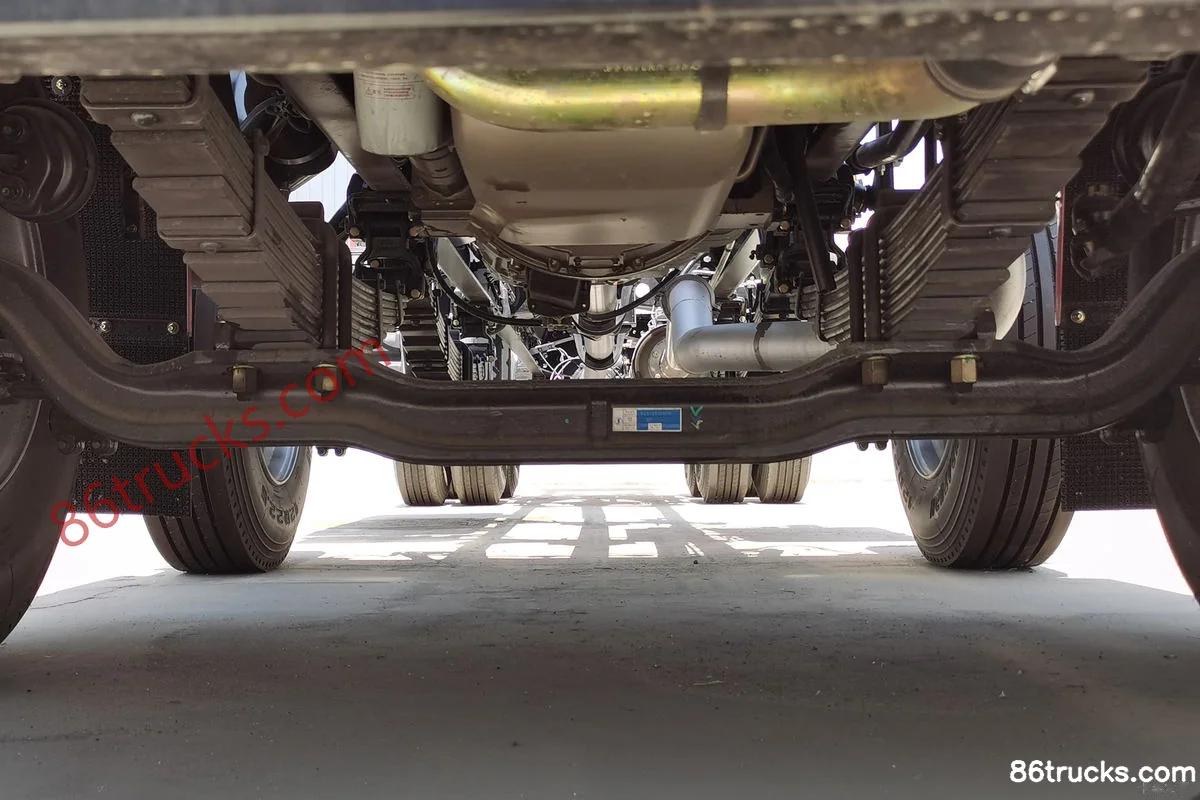

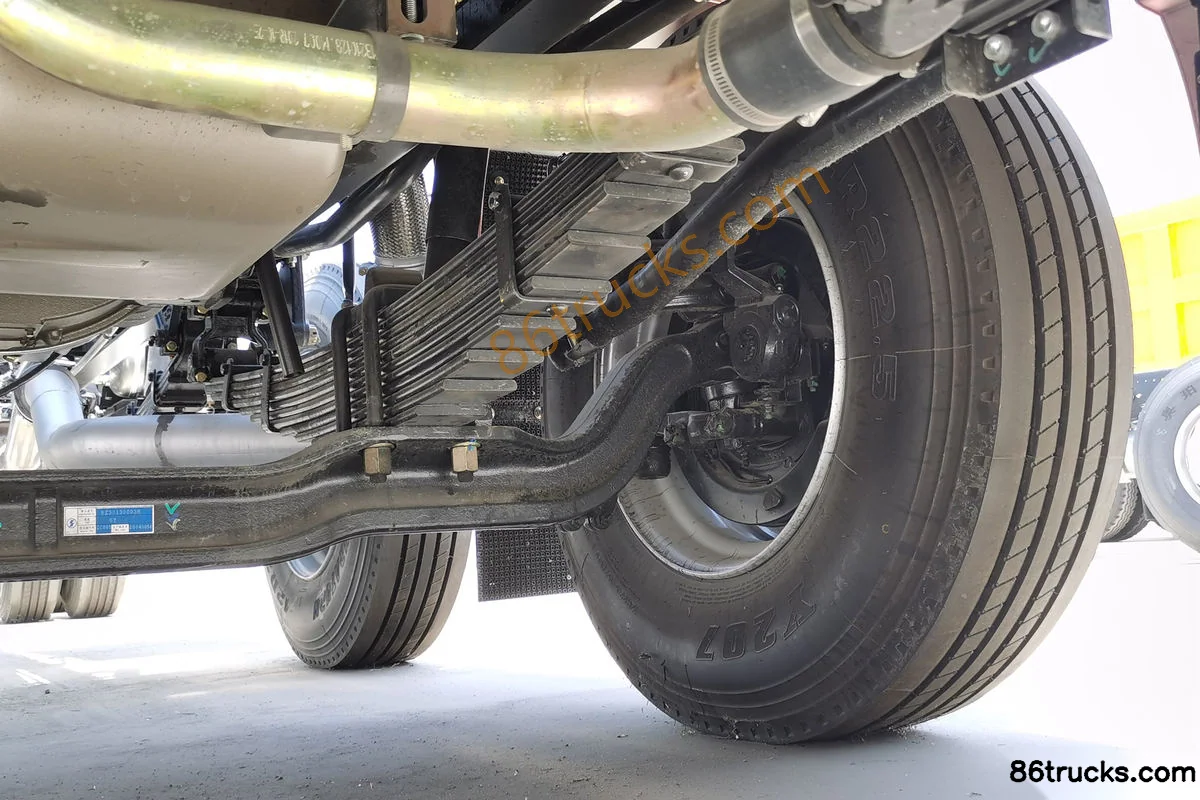

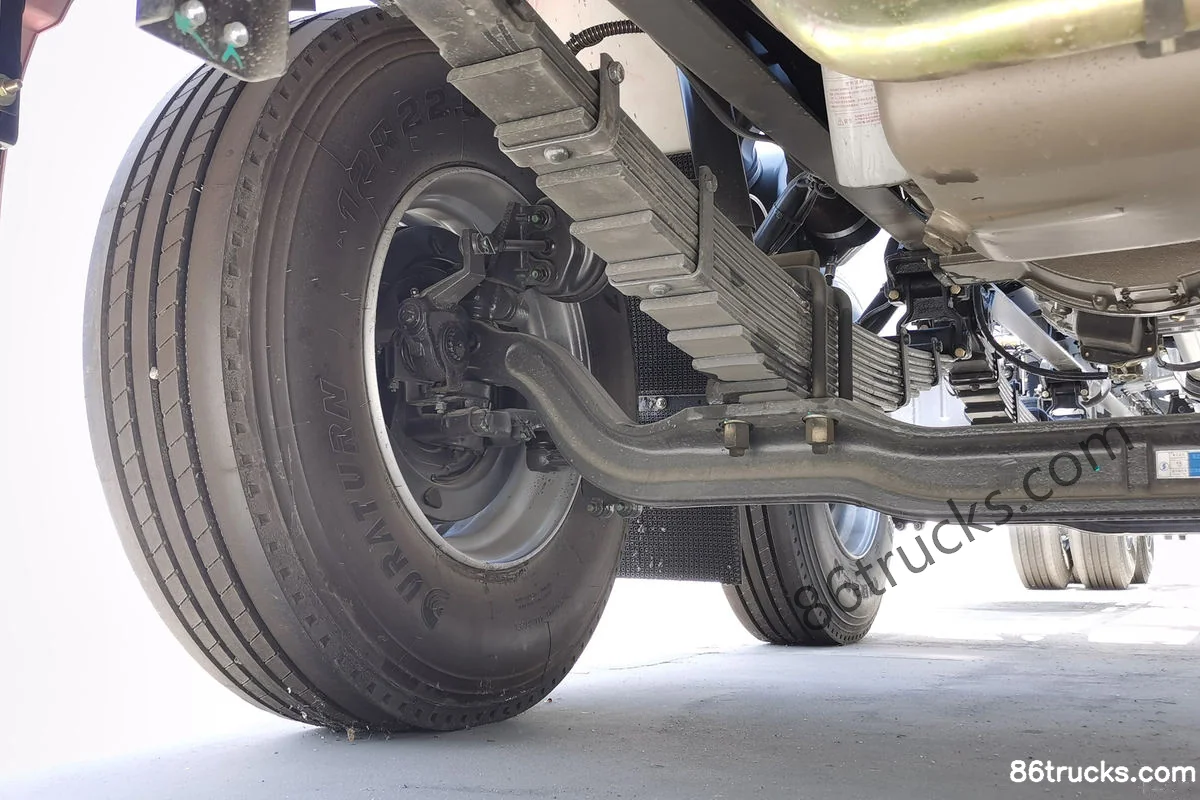

Chassis3

9 photos

FAQ

What emission standard does SHACMAN Commercial Vehicle Xuande X3 Heavy Truck Composite Version 290hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande X3 Heavy Truck Composite Version 290hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck?

Key specs of SHACMAN Commercial Vehicle Xuande X3 Heavy Truck Composite Version 290hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck: Drive: 8x4; Horsepower: 290 hp; Emission: China IV; Fuel: Diesel; Engine: Yuchai8.4L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande X3 Heavy Truck Composite Version 290hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck suited for?

SHACMAN Commercial Vehicle Xuande X3 Heavy Truck Composite Version 290hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Commercial Vehicle Xuande X3 Heavy Truck Composite Version 290hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande X3 Heavy Truck Composite Version 290hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck belongs to SHACMAN Xuande X3 Quasi-Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande X3 Heavy Truck Composite Version 290hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande X3 Heavy Truck Composite Version 290hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
