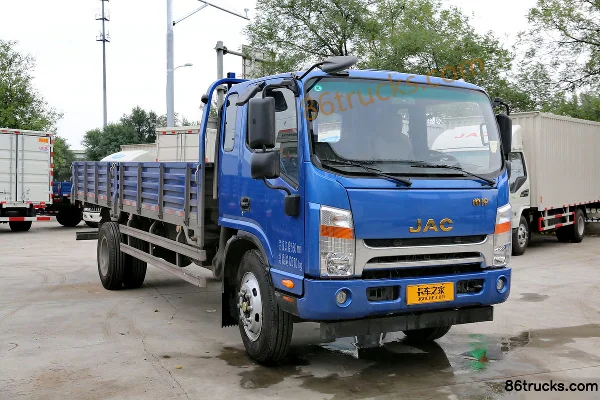

JAC Shuailing H330 141hp 4X2(6 wheels) 3.8m Flatbed Light Truck with Half Cab

Export reference
MSRP N/A
Horsepower: 141
Emission: China IV
Fuel: Diesel
Engine: Fukang 3.8
Curb Weight:: 2.9ton
Wheelbase:: 3308mm
seating capacity: 3Personnel
Rated payload: 4.995ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Shuailing H330 141hp 4X2(6 wheels) 3.8m Flatbed Light Truck with Half Cab is a Light Truck featuring 3.85m cargo length, stake body cargo body, 3Personnel volume and 4.995t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 141 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 141 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1080P71K1C2
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.8m
engine: FotonISF3.8s4141
transmission: 5-speed transmission
Cab length: 5.99m
Cab width: 2.17m
Cab height: 2.39m
Front track width: 1660mm
rear track: 1525mm
Curb Weight: 2.9ton
Rated payload: 4.995ton
GVWR: 8.09ton
Max. speed: 98km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22°
departure angle: 15°
market segment: Building materials, agricultural products
Front/rear suspension: 1.11/1.577m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s4141
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China IV
Max output power: 105kW
Max hp: 141Horsepower
Max torque: 450N·m
Max torque speed: 1200-2200rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.85m
Cargo box width: 2.06m
Cargo box height: 0.4m
*Cargo box interior width: 2.0599999427795
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 2915kg
rear axle allowable load: 5175kg
Leaf spring count: 11/8+6,12/8+6,9/9+7
Suspension (front/rear): Leaf spring
Tire
Tire Size: 7.00R16
Number of tires: 6pcs

Photos

0 photos

FAQ

What emission standard does JAC Shuailing H330 141hp 4X2(6 wheels) 3.8m Flatbed Light Truck with Half Cab use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing H330 141hp 4X2(6 wheels) 3.8m Flatbed Light Truck with Half Cab?

Key specs of JAC Shuailing H330 141hp 4X2(6 wheels) 3.8m Flatbed Light Truck with Half Cab: Drive: 4x2; Horsepower: 141 hp; Emission: China IV; Fuel: Diesel; Engine: Fukang 3.8. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing H330 141hp 4X2(6 wheels) 3.8m Flatbed Light Truck with Half Cab suited for?

JAC Shuailing H330 141hp 4X2(6 wheels) 3.8m Flatbed Light Truck with Half Cab is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Shuailing H330 141hp 4X2(6 wheels) 3.8m Flatbed Light Truck with Half Cab differ from other variants in the same series?

JAC Shuailing H330 141hp 4X2(6 wheels) 3.8m Flatbed Light Truck with Half Cab belongs to JAC H light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing H330 141hp 4X2(6 wheels) 3.8m Flatbed Light Truck with Half Cab?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing H330 141hp 4X2(6 wheels) 3.8m Flatbed Light Truck with Half Cab?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
