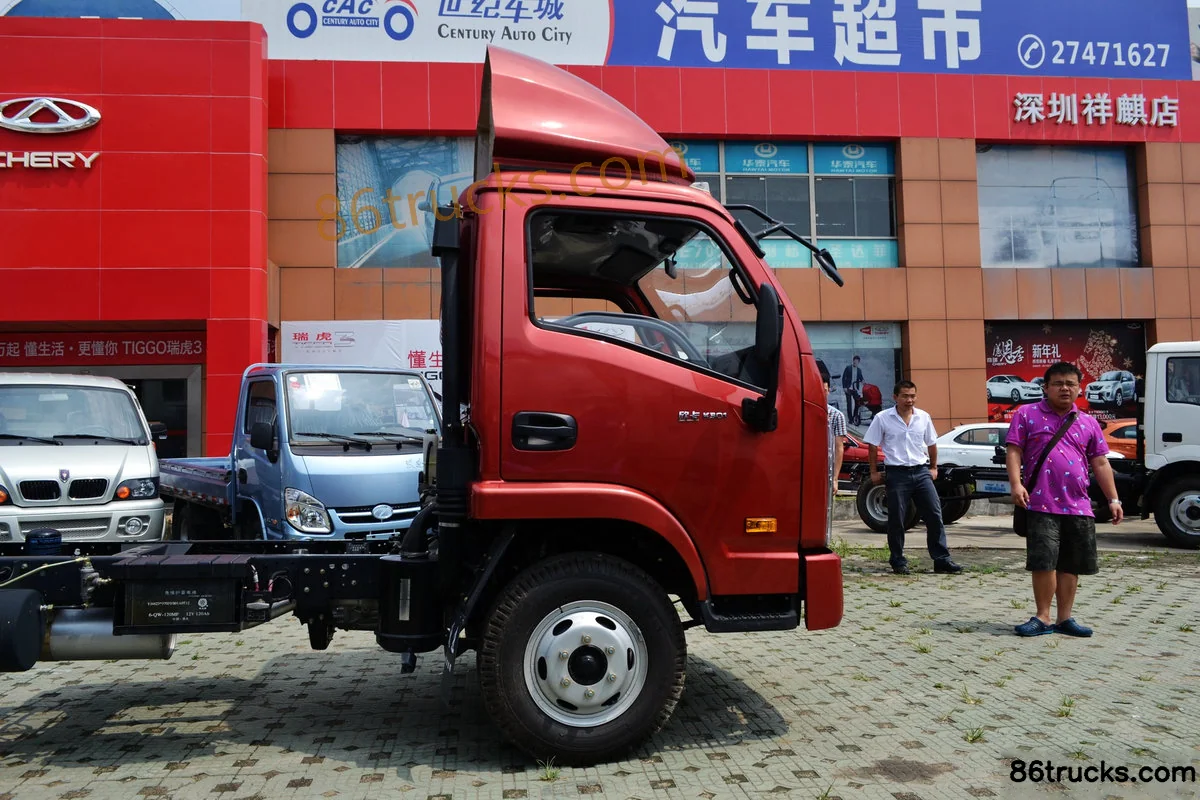

Yuejin Ouka K301-33 112 hp 4X2(6 wheels) 3308 Wheelbase Single Row Light Truck Chassis

Export reference
From $13,194
MSRP ¥9.5M CNY
Horsepower: 112
Emission: China IV
Fuel: Diesel
Engine: SOFIM 2.8L
Curb Weight:: 2.56ton
Wheelbase:: 3308mm
seating capacity: 3Personnel
Rated payload: 1.74ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Yuejin Ouka K301-33 112 hp 4X2(6 wheels) 3308 Wheelbase Single Row Light Truck Chassis is a Light Truck featuring 4.24m cargo length, stake body cargo body, 3Personnel volume and 1.74t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a SOFIM 2.8L engine, 112 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 112 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJ1042DCFT
Type: Chassis
Drive type: 4X2
Wheelbase: 3308mm
engine: SOFIM SFM28112E4
transmission: 5-speed transmission
Cab length: 5.995m
Cab width: 2.03m
Cab height: 2.315m
Front track width: 1610mm
rear track: 1485mm
Curb Weight: 2.56ton
Rated payload: 1.74ton
GVWR: 4.495ton
Max. speed: 98km/h
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 25°
departure angle: 16°
market segment: Building materials, agricultural products
Front/rear suspension: 1.08/1.607m
Energy Type: Diesel
Engine parameters
Engine Brand: SOFIM
Engine Model: SOFIM SFM28112E4
Engine info: SOFIM 2.8L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.798L
Emission standard: China IV
Max output power: 82kW
Max hp: 112Horsepower
Max torque: 285N·m
Max torque speed: 1600rpm
Rated speed: 3000rpm
Engine Type: 4-stroke, inline, direct injection, water-cooled, turbocharged with intercooling, high-pressure common rail electronic injection
Transmission Parameters
Transmission Model: 5-speed transmission
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.24m
Cargo box width: 1.925m
Cargo box height: 0.415m
*Cargo box interior width: 1.9249999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1840kg
rear axle allowable load: 2655kg
Leaf spring count: 9/8+7
Tire
Tire Size: 7.00-16/7.00R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

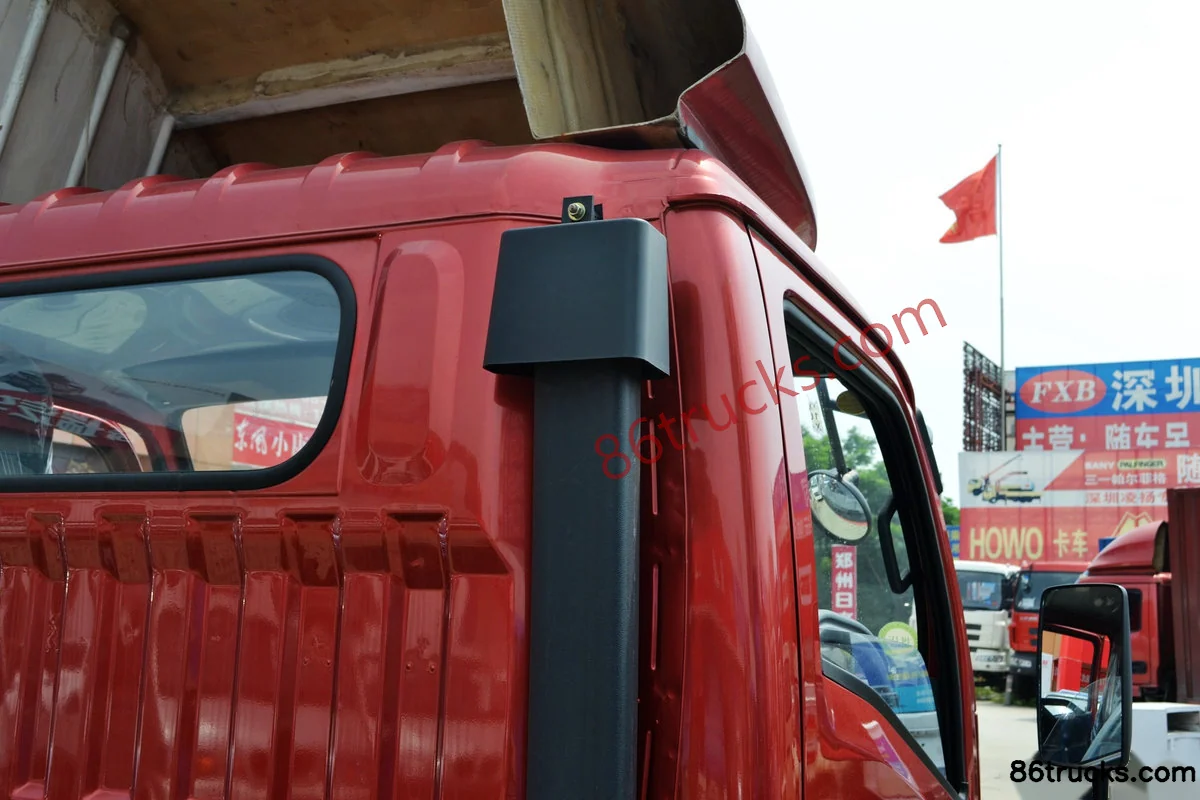

Exterior3

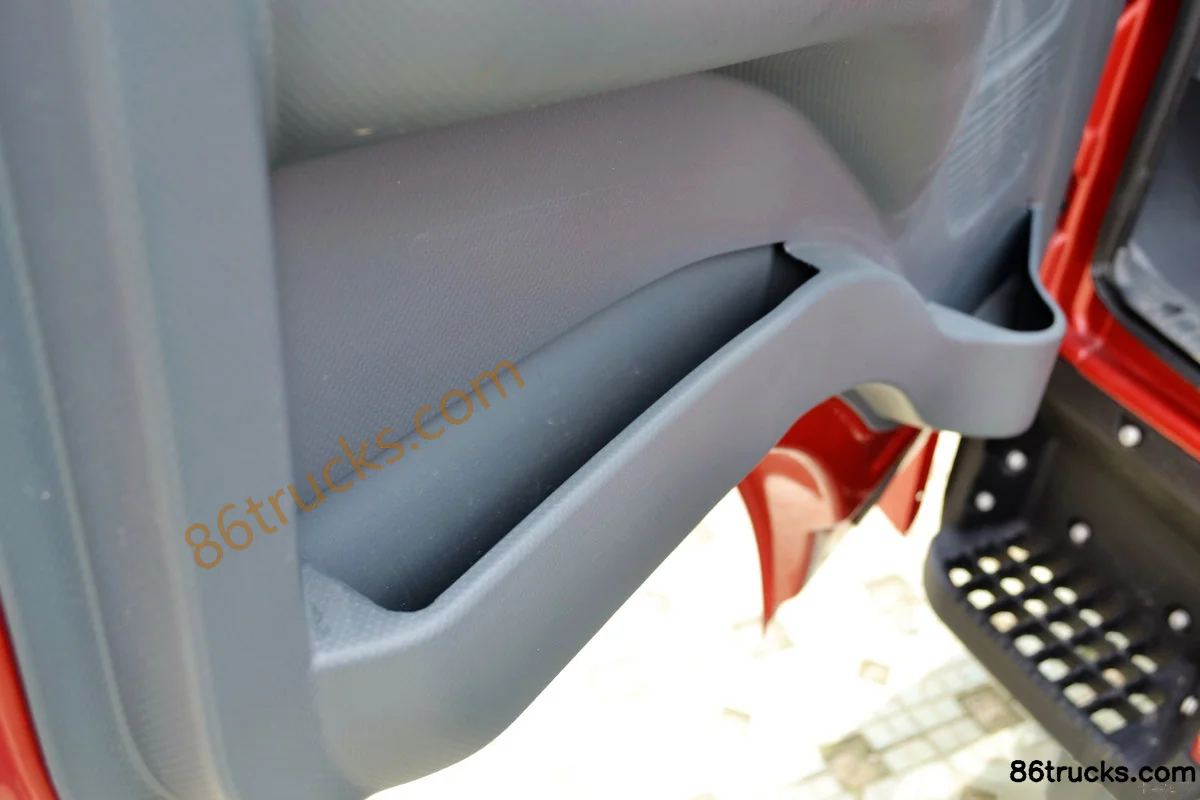

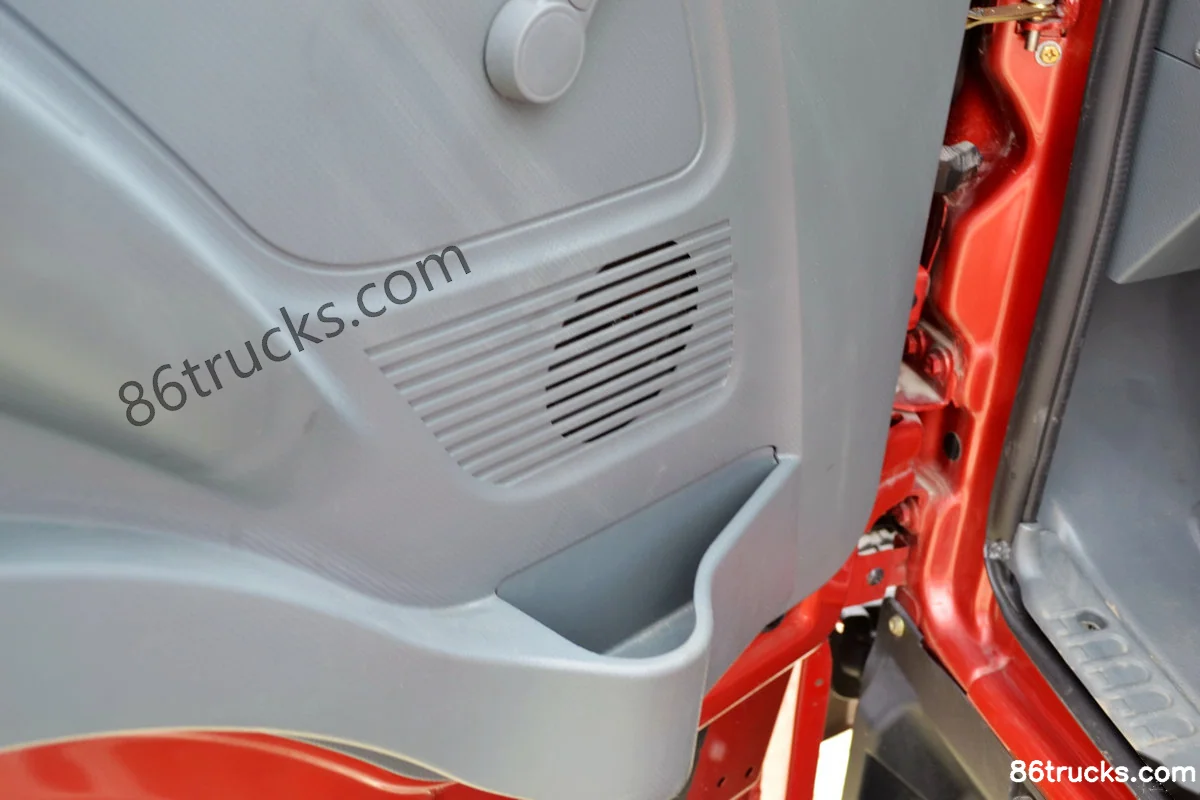

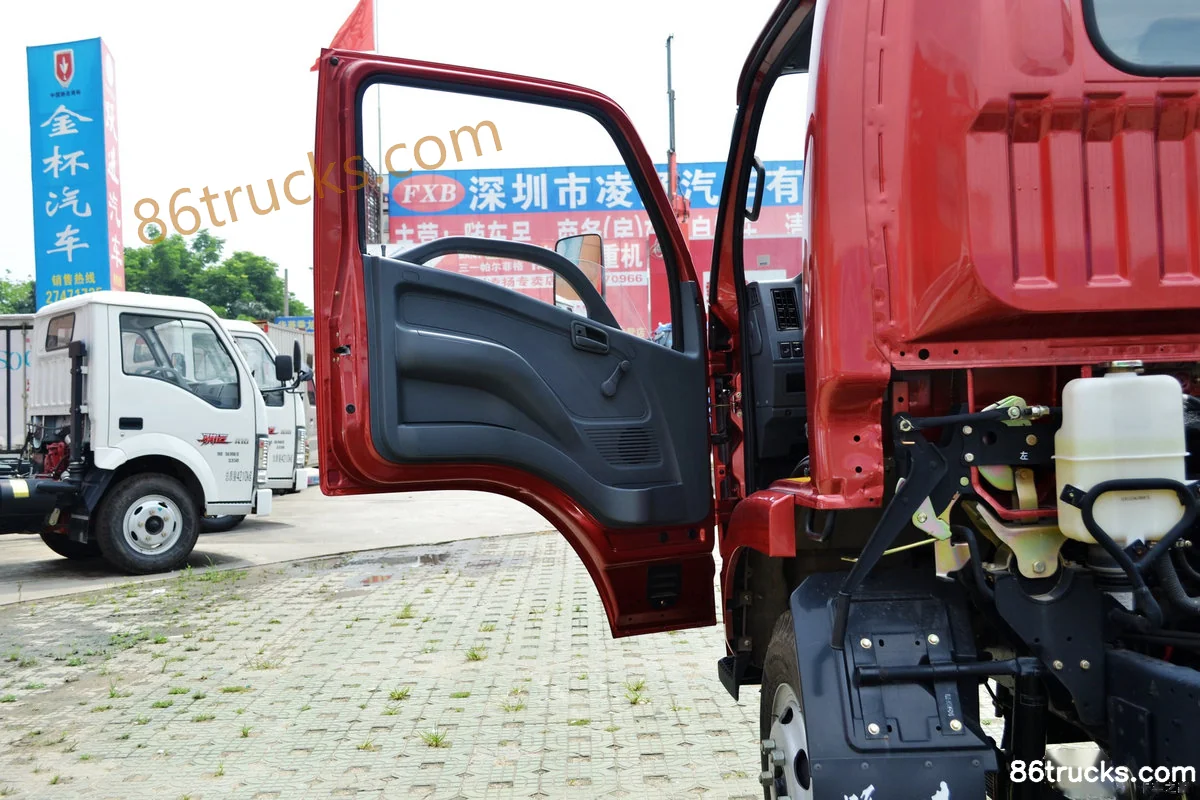

Cab3

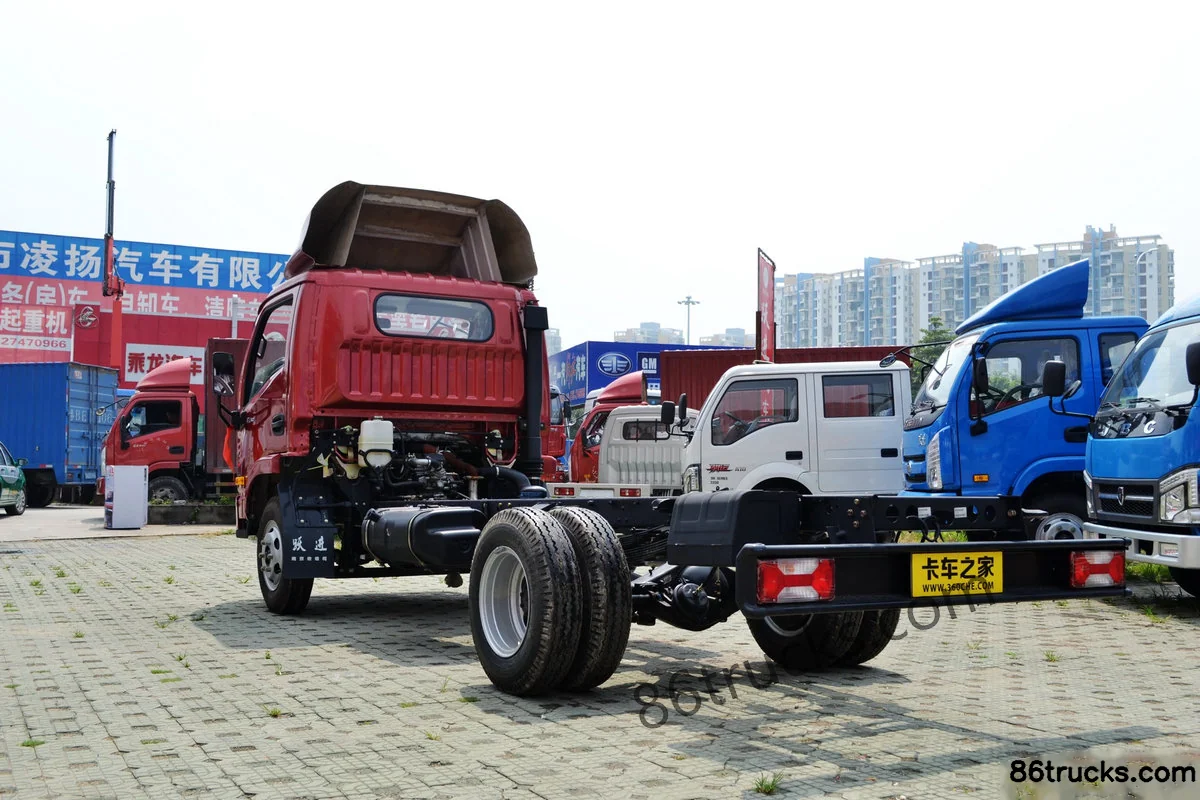

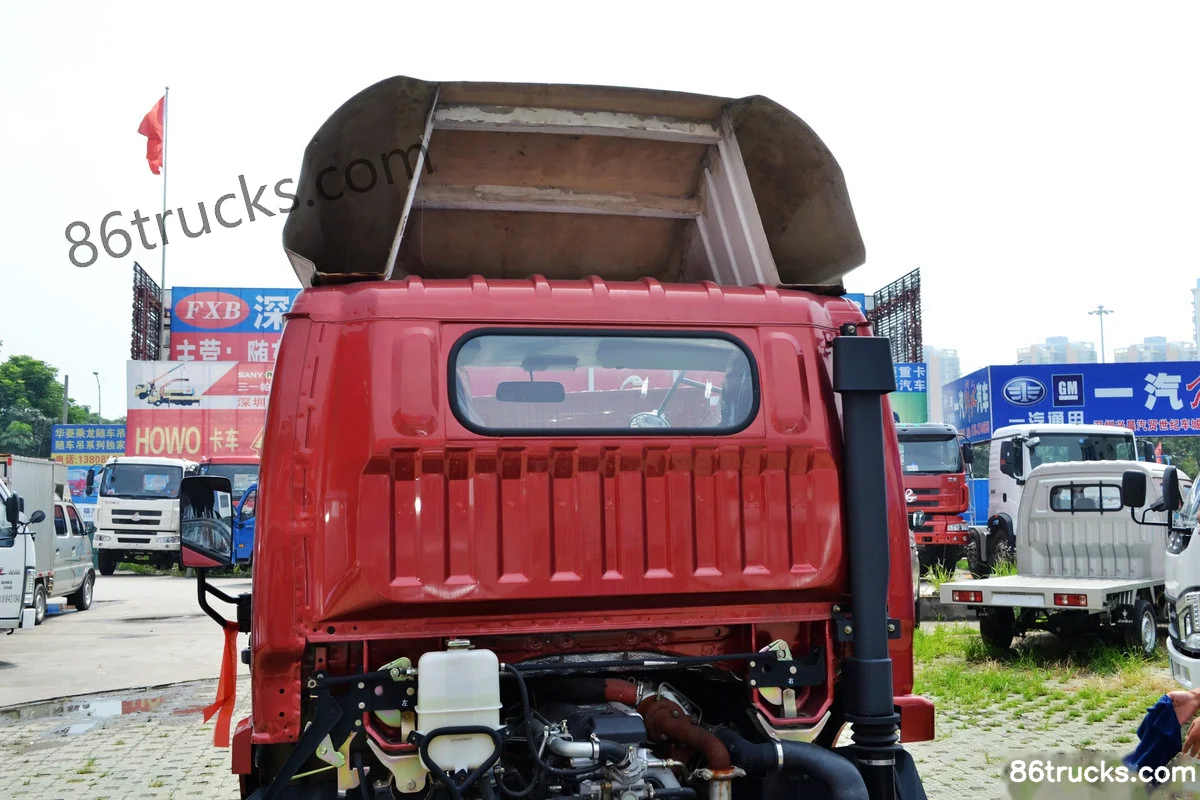

Chassis3

9 photos

FAQ

What is the export price of Yuejin Ouka K301-33 112 hp 4X2(6 wheels) 3308 Wheelbase Single Row Light Truck Chassis, and what does it include?

Yuejin Ouka K301-33 112 hp 4X2(6 wheels) 3308 Wheelbase Single Row Light Truck Chassis export reference is about From $13,194; MSRP is ¥9.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuejin Ouka K301-33 112 hp 4X2(6 wheels) 3308 Wheelbase Single Row Light Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Ouka K301-33 112 hp 4X2(6 wheels) 3308 Wheelbase Single Row Light Truck Chassis?

Key specs of Yuejin Ouka K301-33 112 hp 4X2(6 wheels) 3308 Wheelbase Single Row Light Truck Chassis: Drive: 4x2; Horsepower: 112 hp; Emission: China IV; Fuel: Diesel; Engine: SOFIM 2.8L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Ouka K301-33 112 hp 4X2(6 wheels) 3308 Wheelbase Single Row Light Truck Chassis suited for?

Yuejin Ouka K301-33 112 hp 4X2(6 wheels) 3308 Wheelbase Single Row Light Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuejin Ouka K301-33 112 hp 4X2(6 wheels) 3308 Wheelbase Single Row Light Truck Chassis differ from other variants in the same series?

Yuejin Ouka K301-33 112 hp 4X2(6 wheels) 3308 Wheelbase Single Row Light Truck Chassis belongs to Yuejin Shangjun X Series Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Ouka K301-33 112 hp 4X2(6 wheels) 3308 Wheelbase Single Row Light Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Ouka K301-33 112 hp 4X2(6 wheels) 3308 Wheelbase Single Row Light Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
