Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand)

Export reference
From $41,667
MSRP ¥30M CNY
Fuel: Diesel
Wheelbase:: 1800+4575+1400mm
Cab dimensions:: 11.995×2.55×3.96m
Type:: Flammable liquid van truck
Front/rear track width:: Front track: 1998/1998mm; Rear track: 1880/1880mm
Front track width:: 1998/1998mm

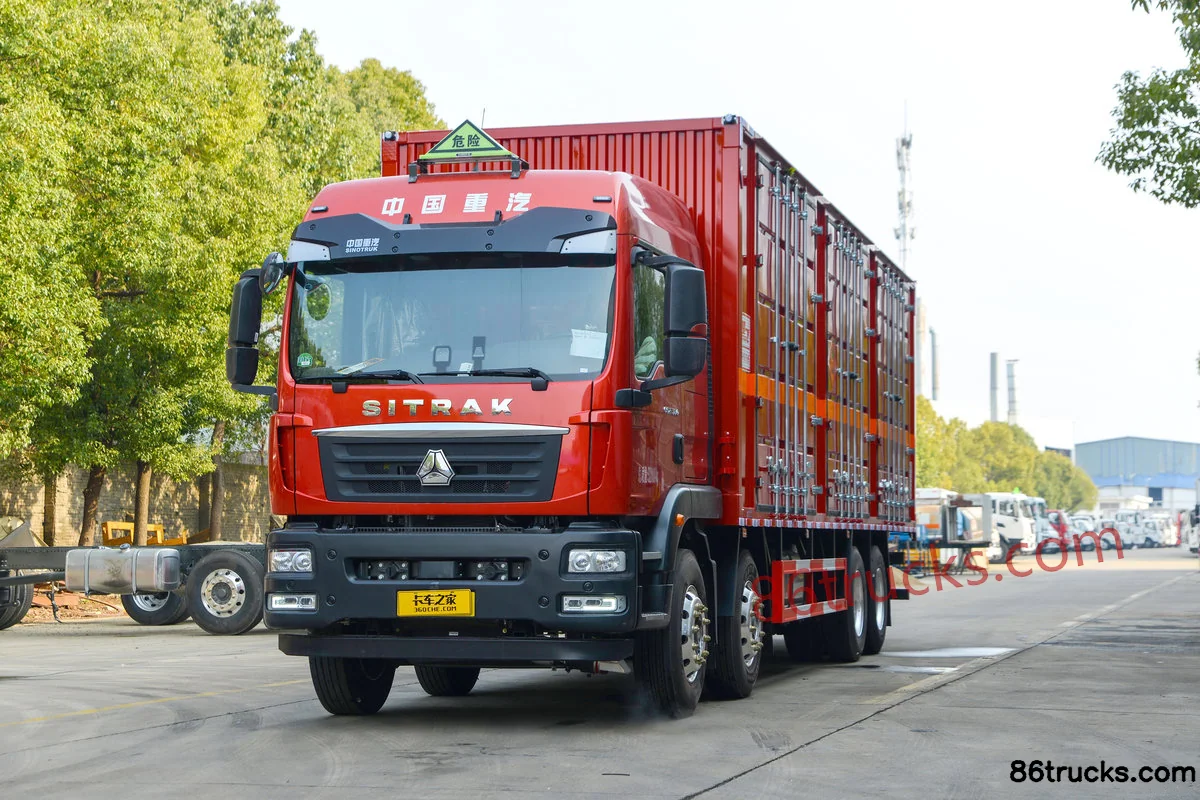

Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) exterior
View more photos (12)
Drive 8X4 (12 wheels)
Horsepower 350
Rated mass: 20.07ton
Emission China VI

Overview

The Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) is a Explosives Transport Truck featuring 32t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with 350 hp, China VI emissions and Diesel fuel.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 11.995×2.55×3.96m
Type: Flammable liquid van truck
Drive type: 8X4
Front/rear track width: Front track: 1998/1998mm; Rear track: 1880/1880mm
Wheelbase: 1800+4575+1400mm
Rated mass: 20.07ton
Curb weight: 11.8ton
Front track width: 1998/1998mm
rear track: 1880/1880mm
GVWR: 32ton
Max. speed: 80km/h
Front/rear suspension: 1.45/2.77m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: MC07H.35-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.36L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1400N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Cargo box parameters
Cargo box dimensions: 9.6×2.45×2.6m
Cargo box type: Van body
Cargo box length: 9.6m
Cargo box width: 2.45m
Cargo box height: 2.6m
Body Parameters
Vehicle certification code: CLQ5320XRY6ZZ
Body Brand: Chufei Brand
Chassis Specs
Chassis Brand: Sitrak
Chassis Series: C5H
Chassis Model: ZZ1326N466GF1K
Leaf spring count: 3/3/-/-
Transmission Parameters
Number of gears: 8Gear
shift type: Manual
Transmission Model: 8-speed gearbox
Tire
Tire Size: 295/80R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Forward Collision Warning (FCW):

Photos

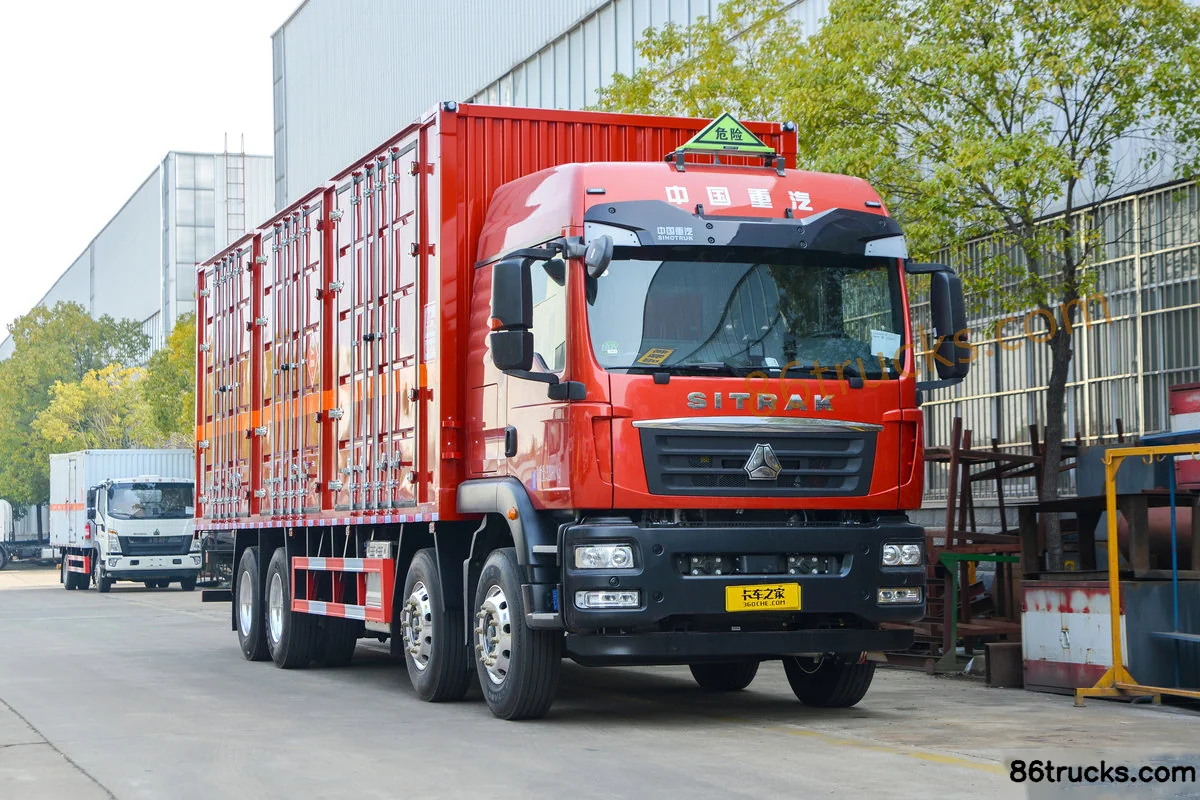

Exterior3

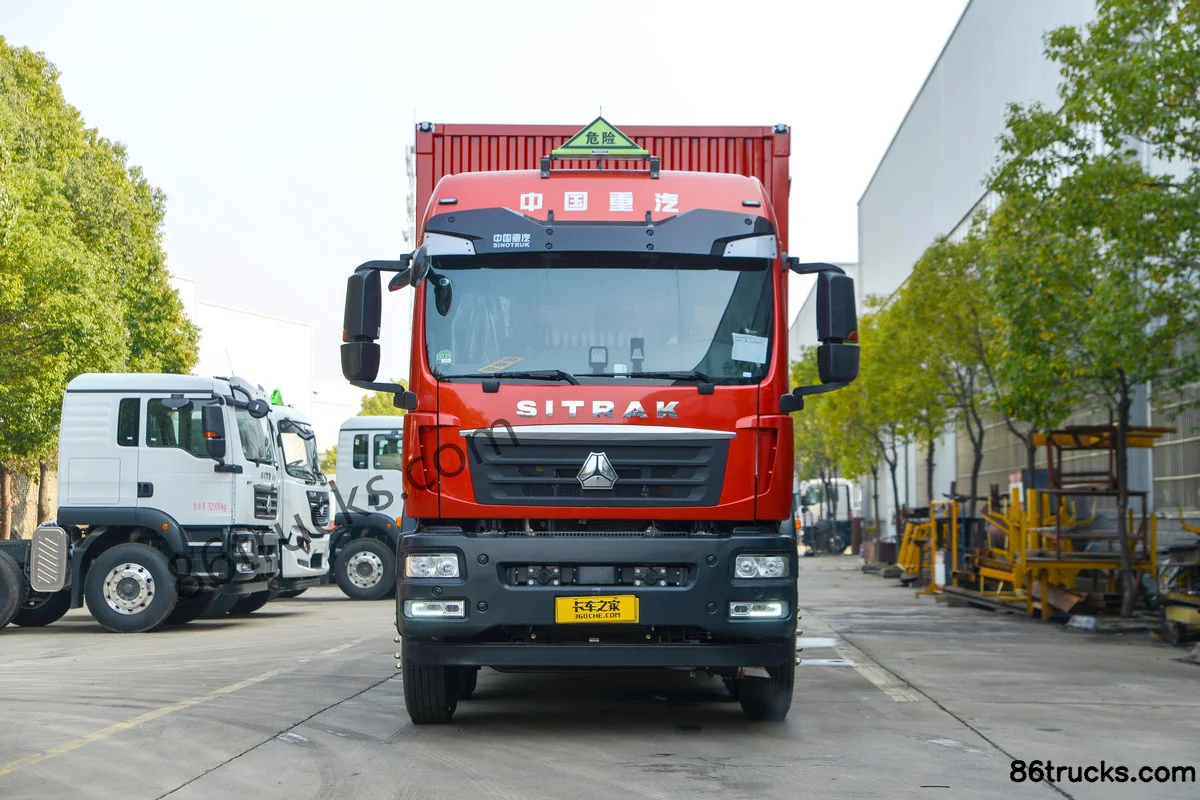

Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) Exterior (1) | 86Trucks Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) Exterior (2) | 86Trucks Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) Exterior (3) | 86Trucks

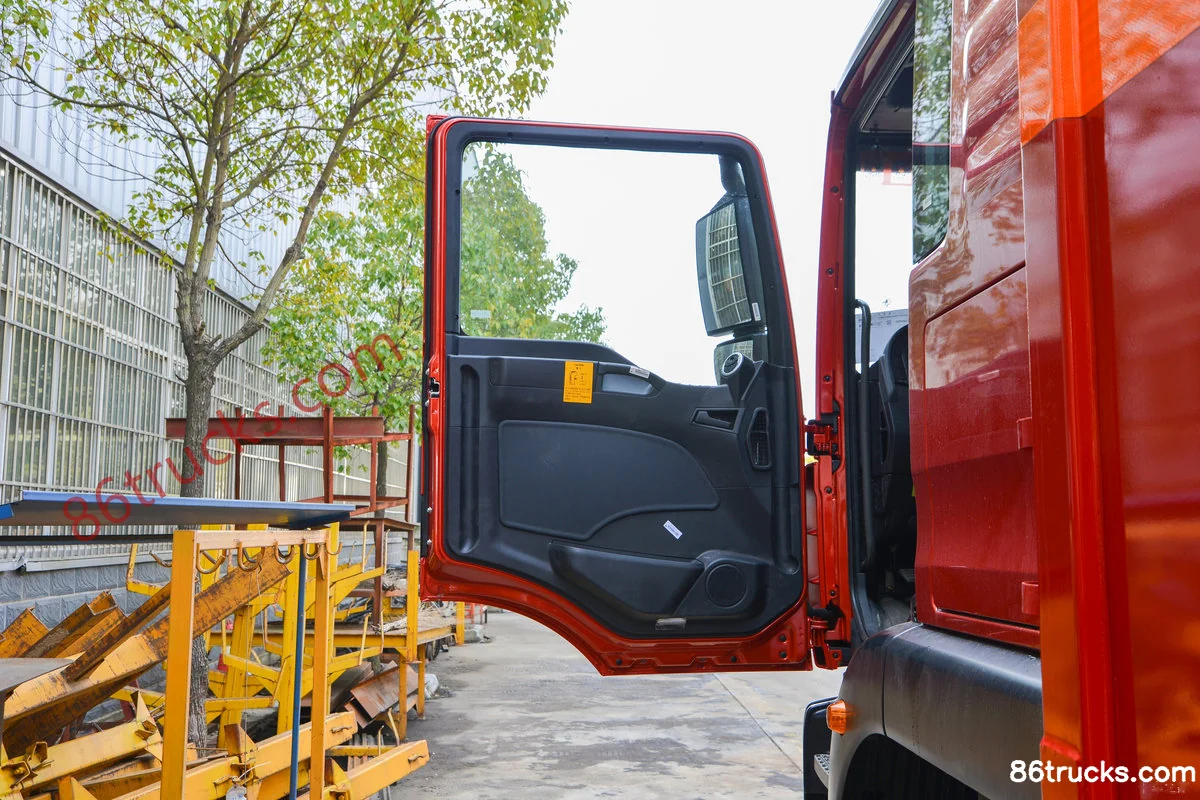

Cab3

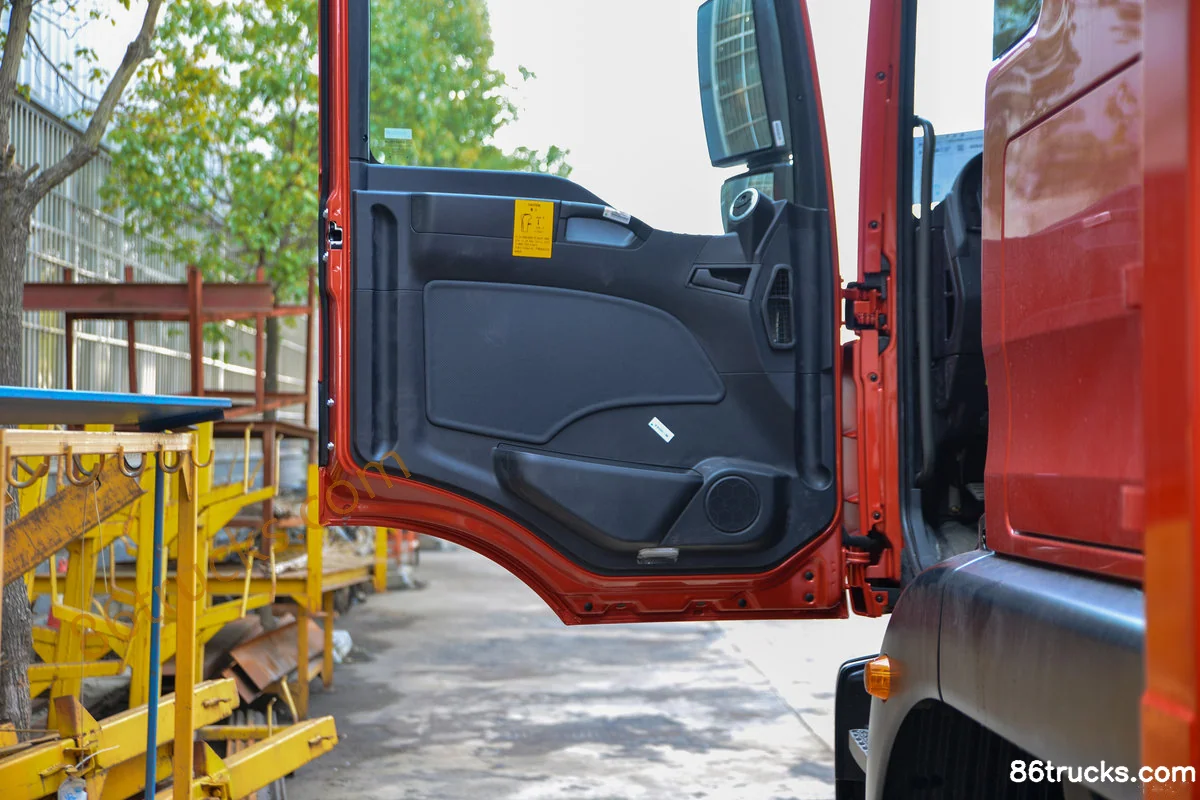

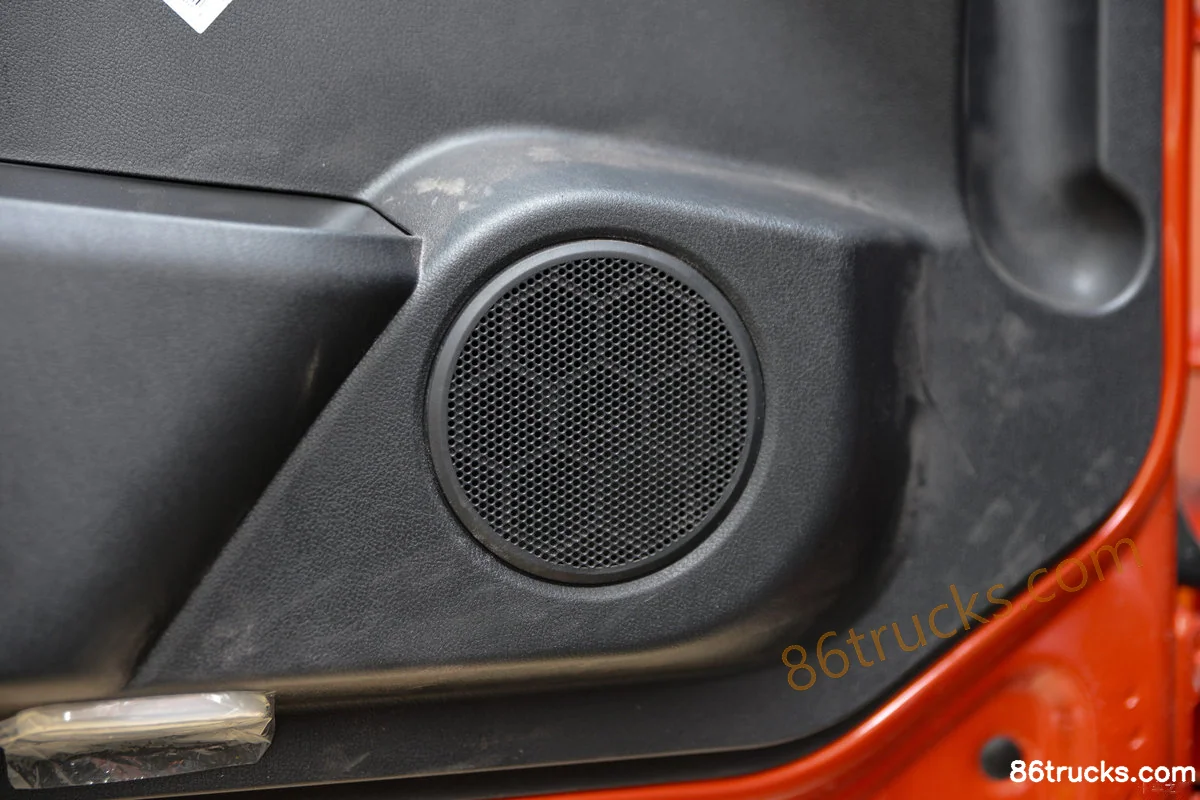

Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) Cab (1) | 86Trucks Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) Cab (2) | 86Trucks Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) Cab (3) | 86Trucks

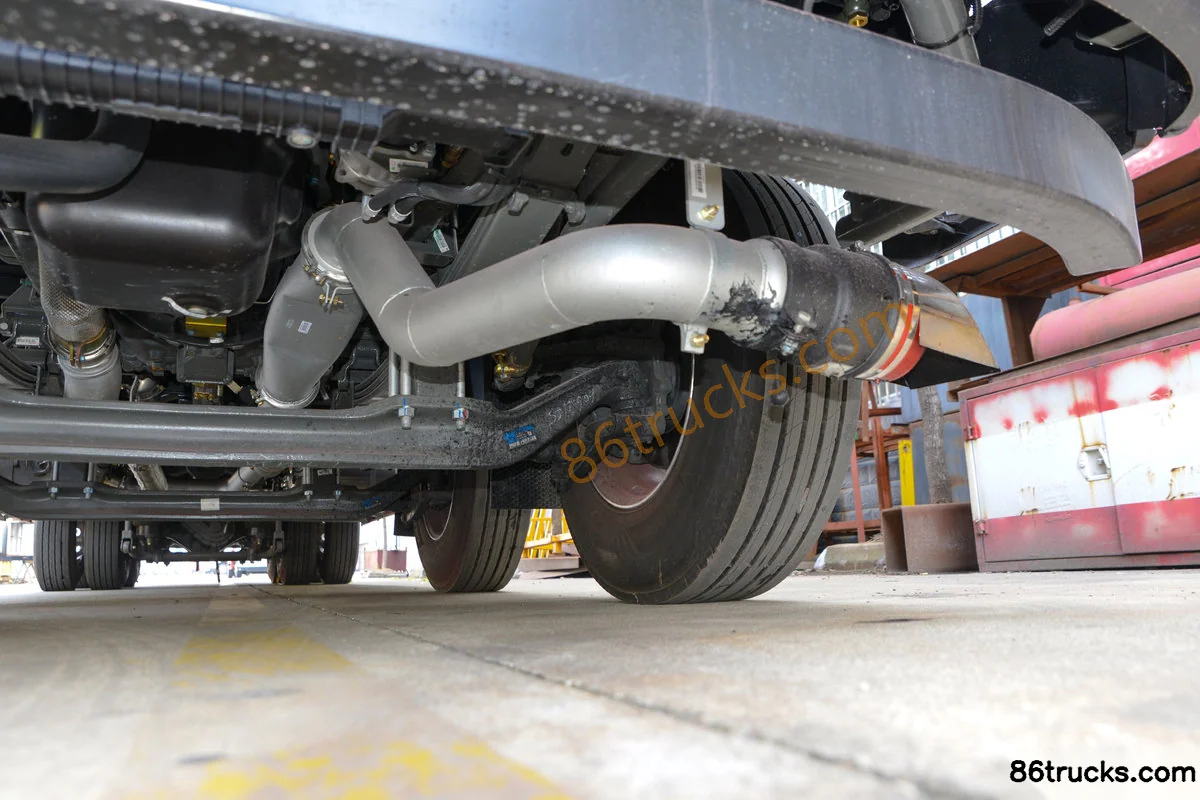

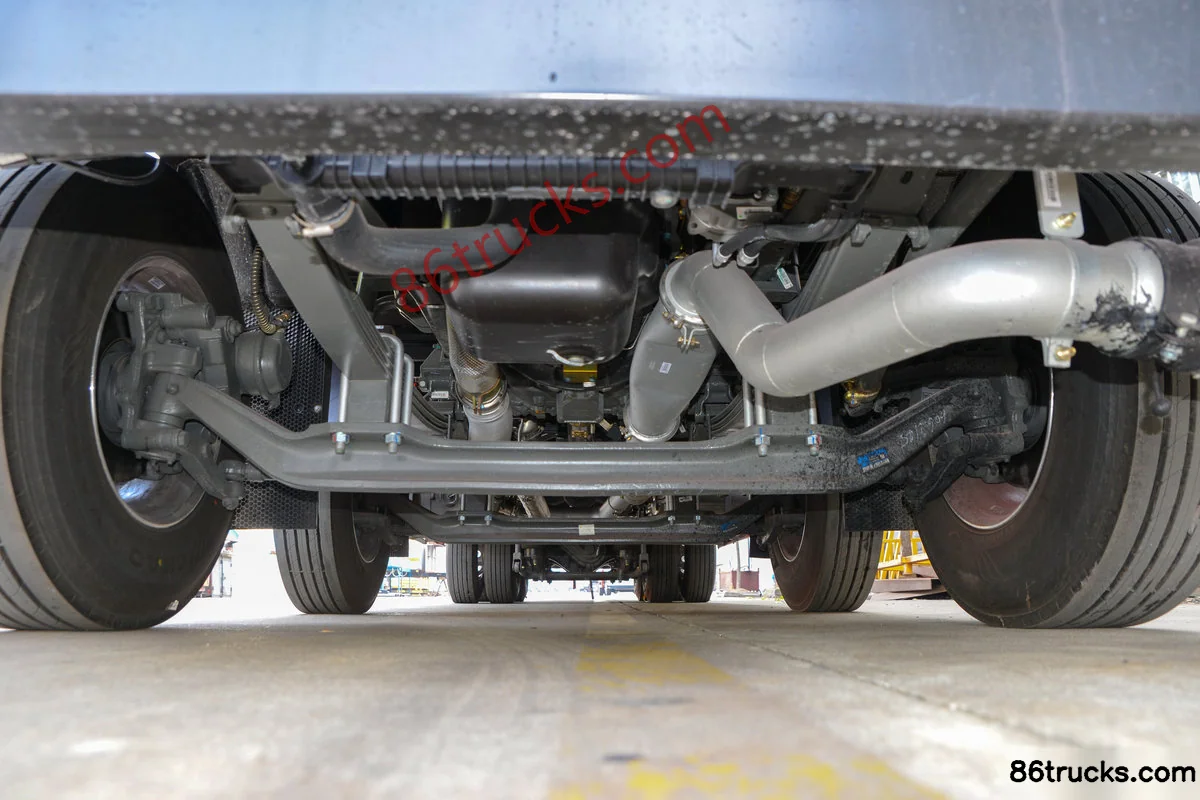

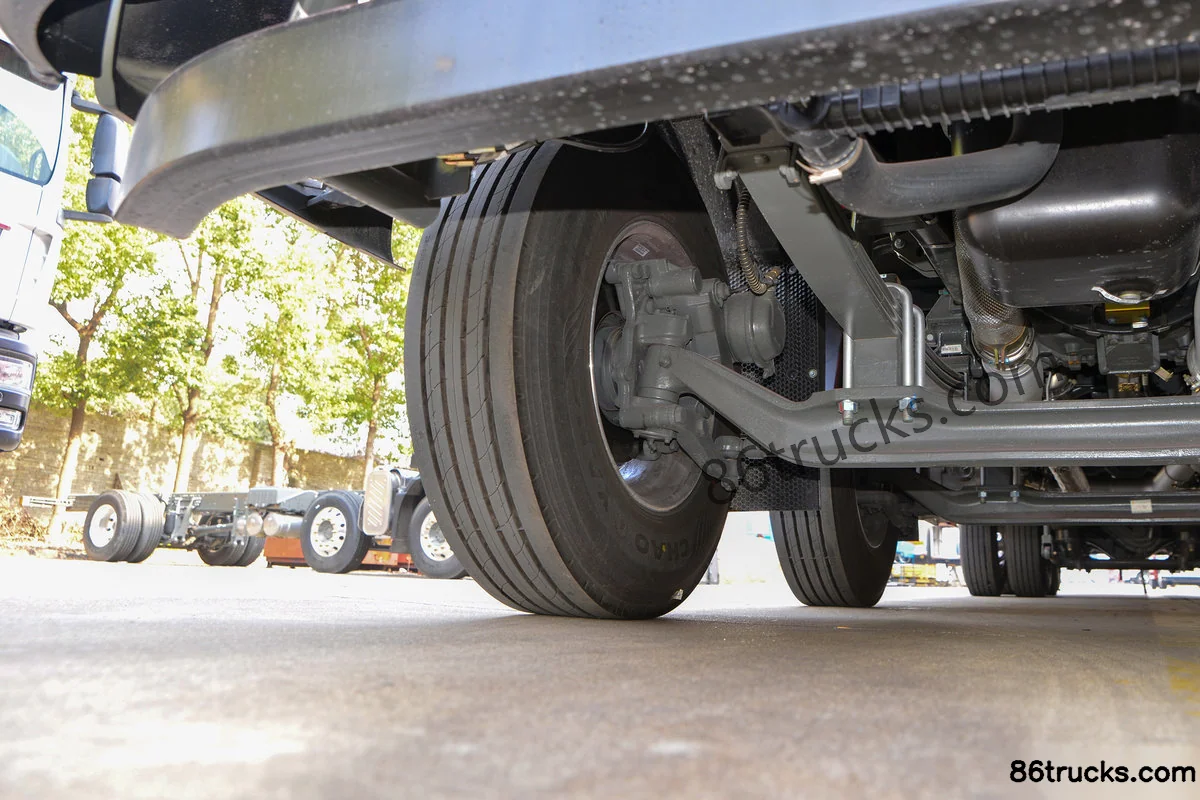

Chassis3

Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) Chassis (1) | 86Trucks Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) Chassis (2) | 86Trucks Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) Chassis (3) | 86Trucks

Body3

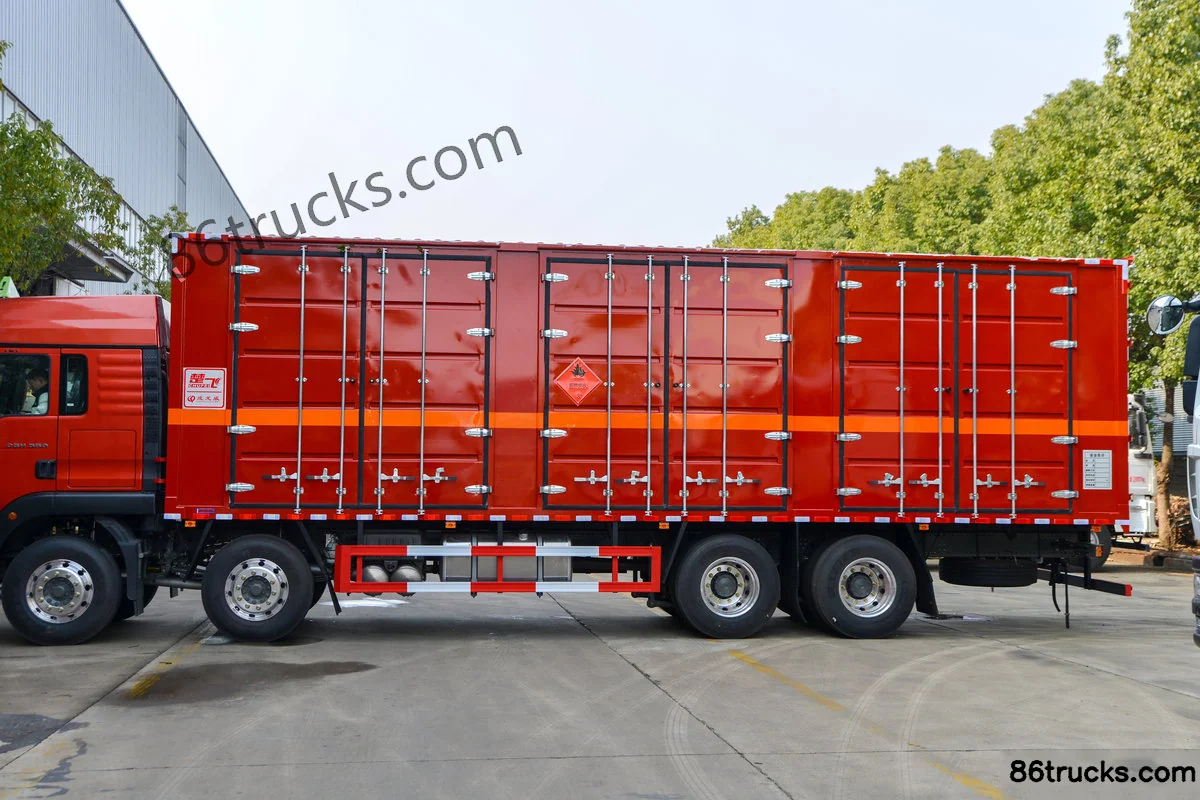

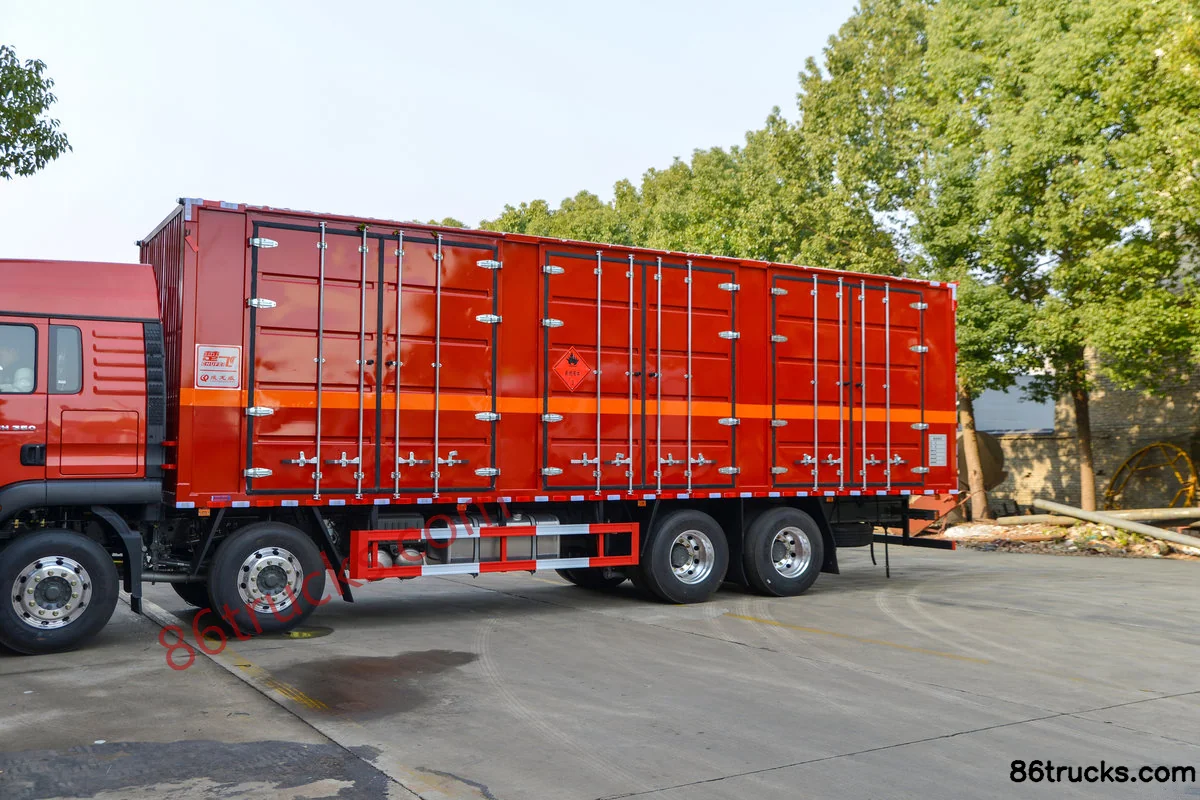

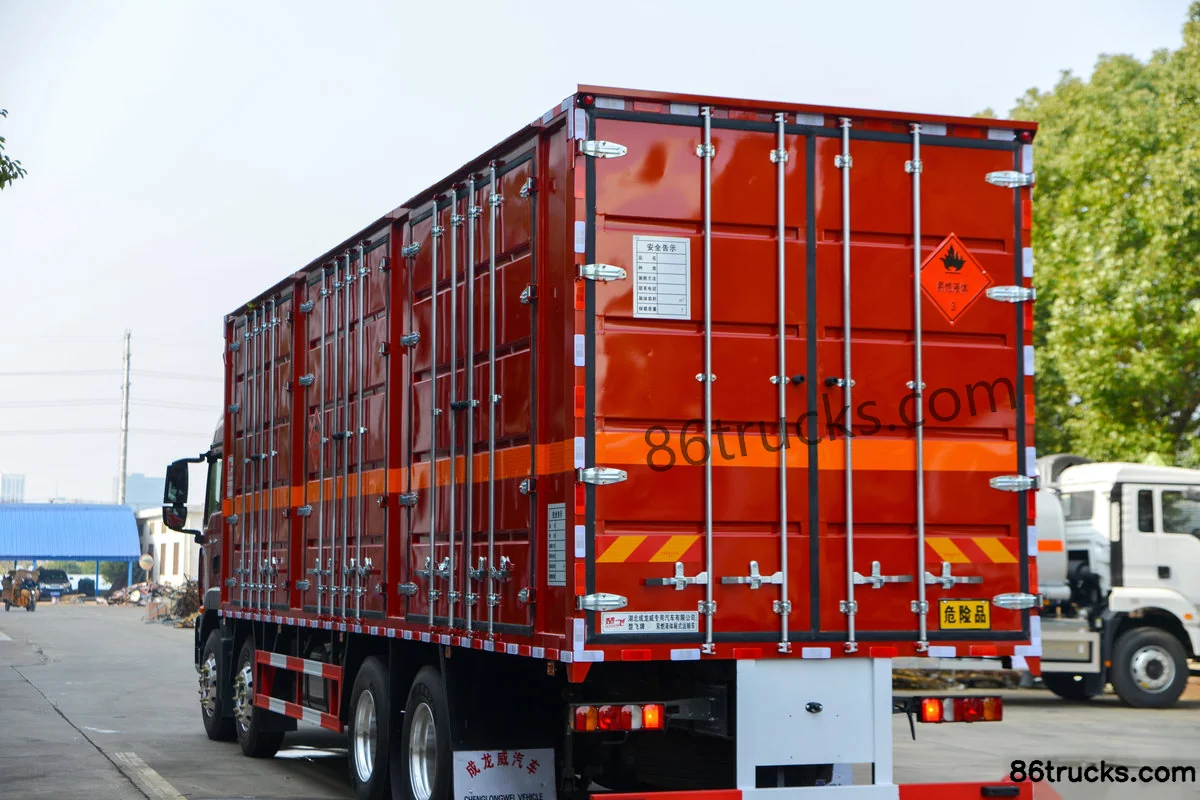

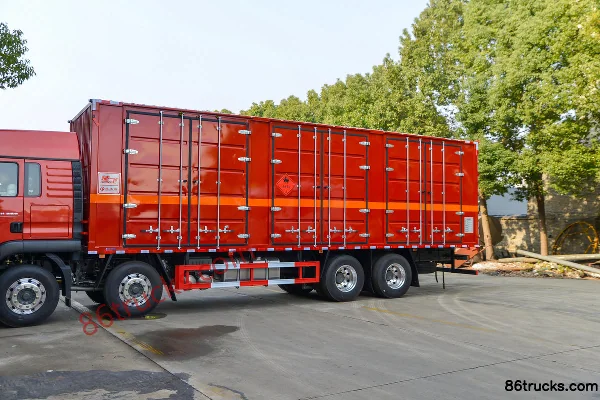

Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) Body (1) | 86Trucks Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) Body (2) | 86Trucks Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) Body (3) | 86Trucks

12 photos

FAQ

What is the export price of Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand), and what does it include?

Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) export reference is about From $41,667; MSRP is ¥30M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand)?

Key specs of Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand): Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) suited for?

Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) is a Explosives Transport Truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) differ from other variants in the same series?

Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand) belongs to Chufei Sitrak chassis (Explosives Transport Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sitrak C5H 350hp 8X4(12 wheels) 9.6m Flammable Liquid Van Transport Truck (Chufei Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
