Yuejin Qilin H3 2.5L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.2m Single Row Dump Truck

Export reference
From $20,806
MSRP ¥14.98M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.72ton
Wheelbase:: 2850mm
Tire Size:: 7.00R16LT 14PR/7.00R16LT 14PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 180
Cargo box length: 3.2m

Overview

The Yuejin Qilin H3 2.5L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.2m Single Row Dump Truck is a Medium-duty truck featuring 1.645t payload, 4.495t GVW, 3.2m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCY25180-66 engine, 180 hp, China VI emissions and Fast Gear transmission.

China VI 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH3043VEDCMZD1
Drive type: 4X2
Wheelbase: 2850mm
engine: YuchaiYCY25180-66
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 5.286
Cab length: 4.995m
Cab width: 2.02m
Cab height: 2.2m
Front track width: 1680mm
rear track: 1620mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Nanjing, Jiangsu
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 16°
Remarks: Select 6.33 ratio.
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCY25180-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.499L
Emission standard: China VI
Max output power: 130kW
Max hp: 180Horsepower
Transmission Parameters
Transmission Model: 10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 3.2m
Cargo box width: 1.8m
Cargo box height: 0.6m
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 1865kg
Frame Dimensions: 230 double-layermm
rear axle description: 1092 rear axle
rear axle allowable load: 2630kg
Axle ratio: 5.286
Leaf spring count: 3/10+6,8/10+6,9/13+8
Tire
Tire Size: 7.00R16LT 14PR/7.00R16LT 14PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Power Mirrors:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

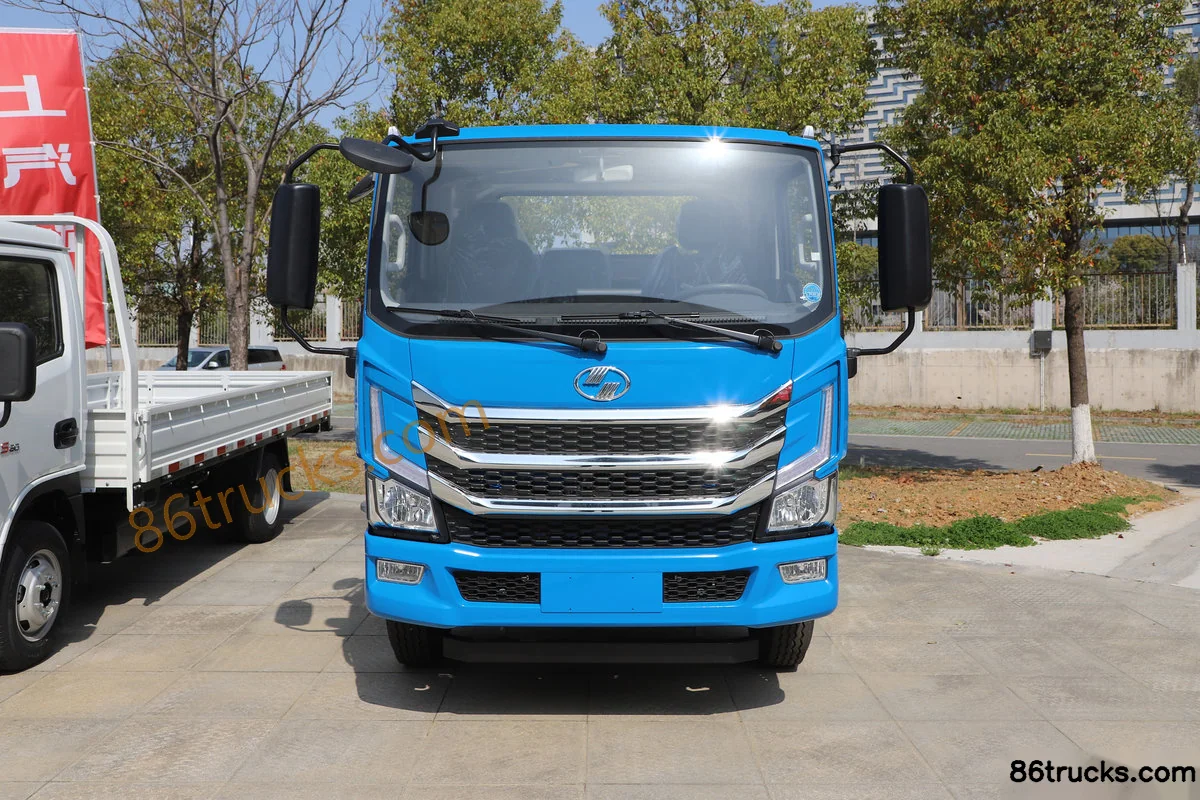

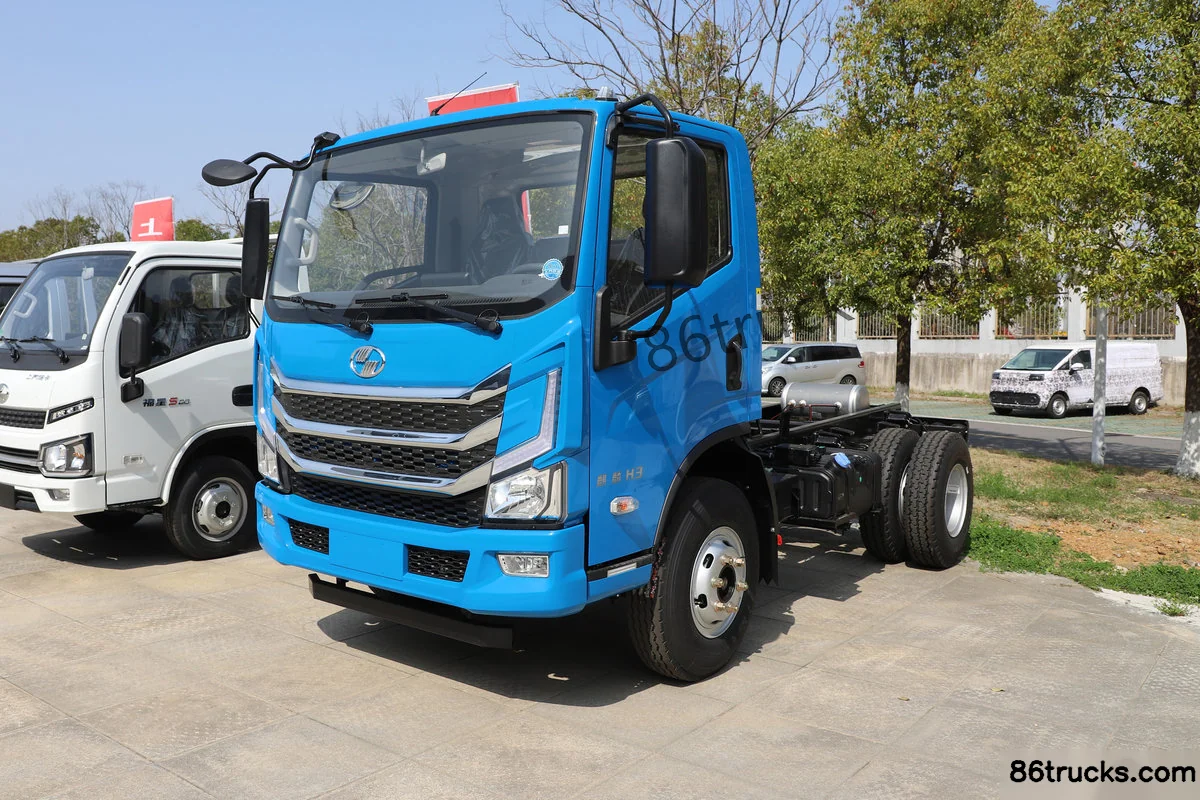

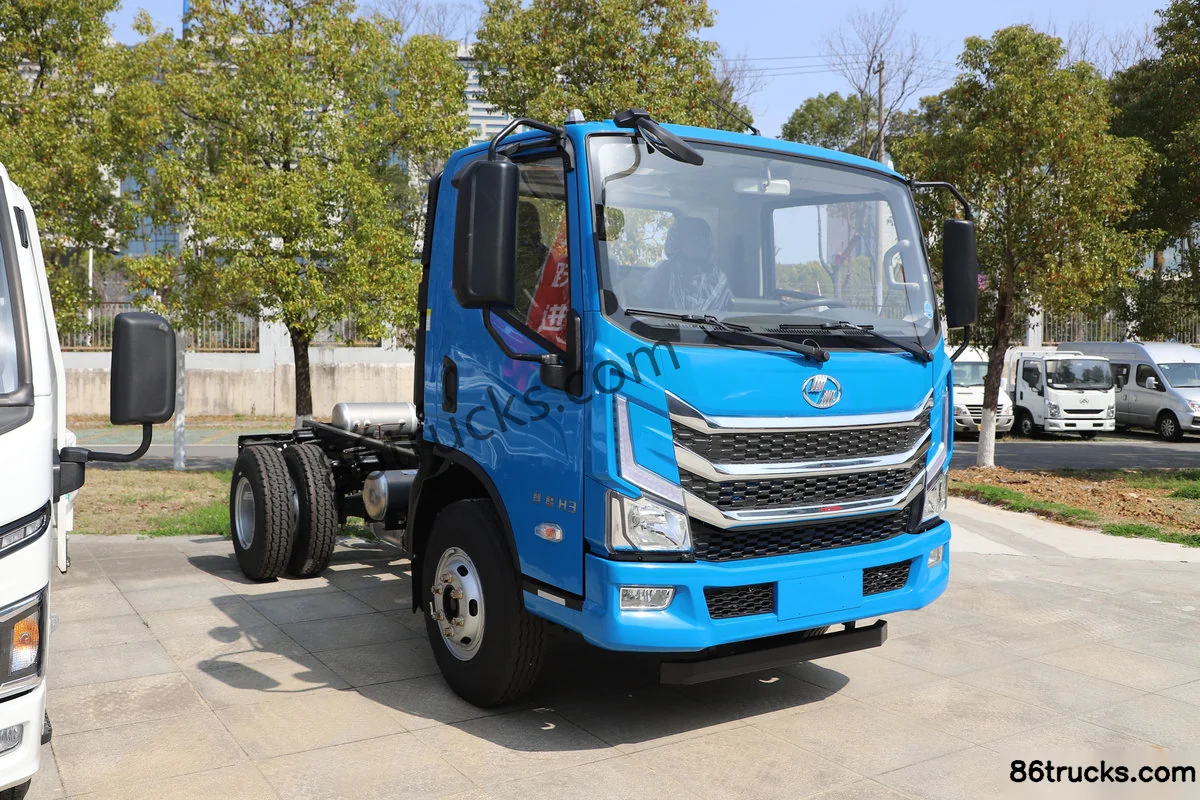

Exterior3

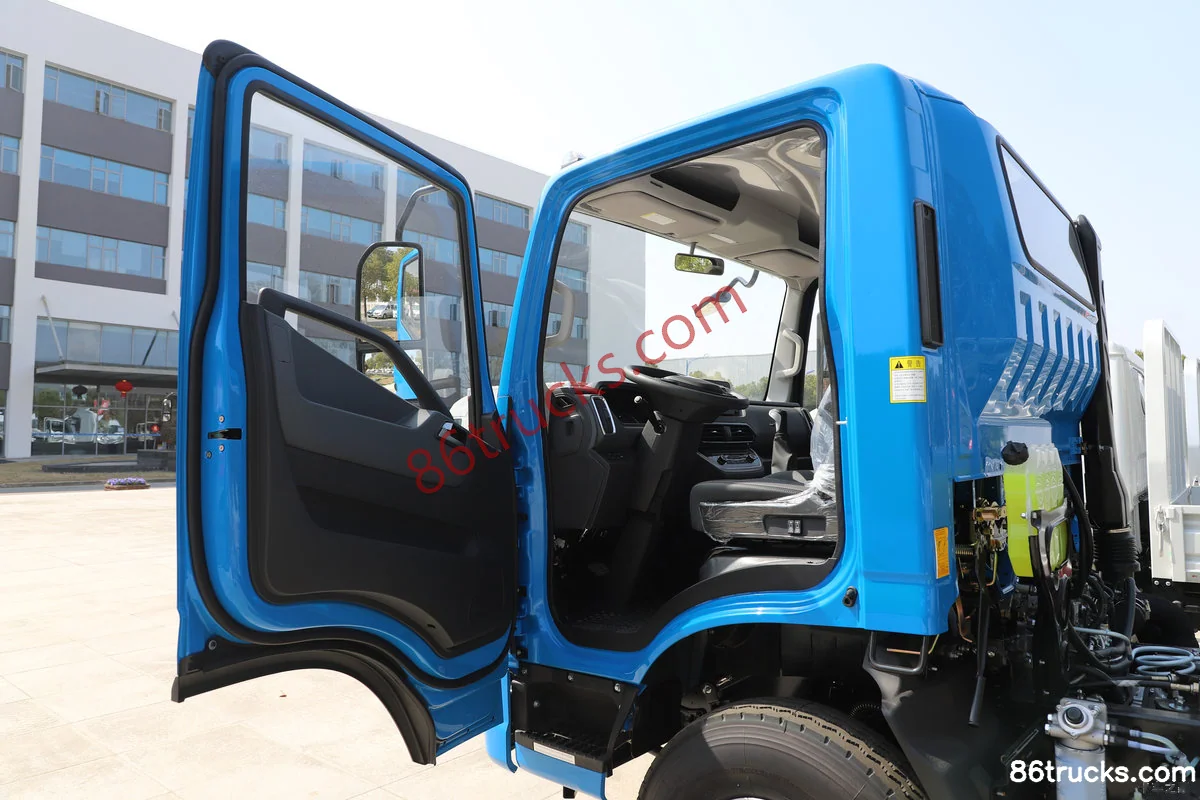

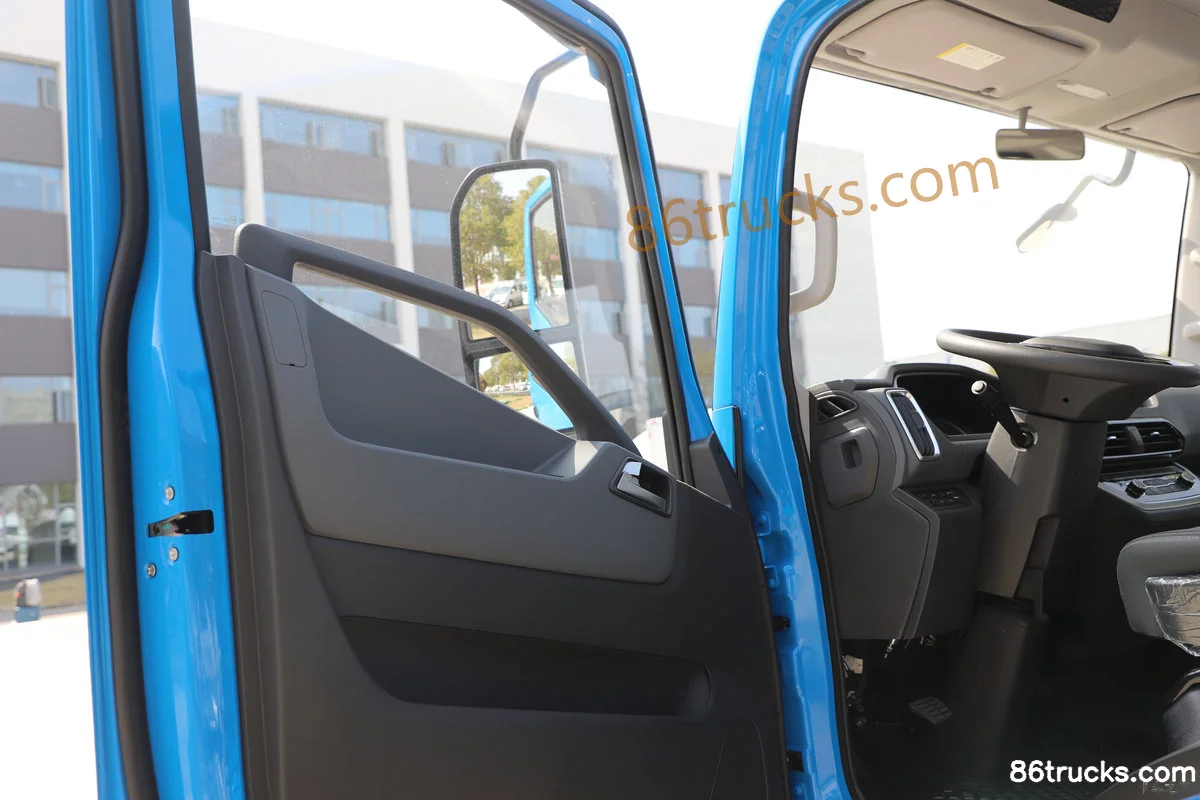

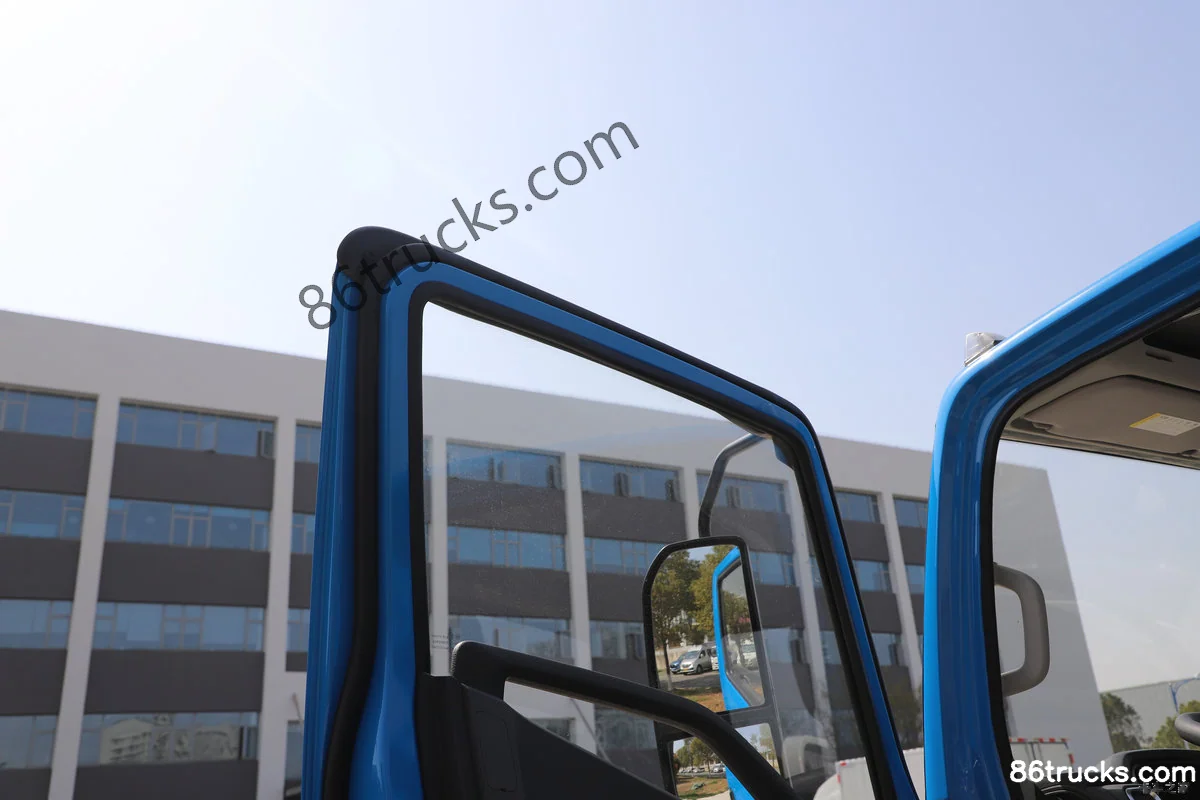

Cab3

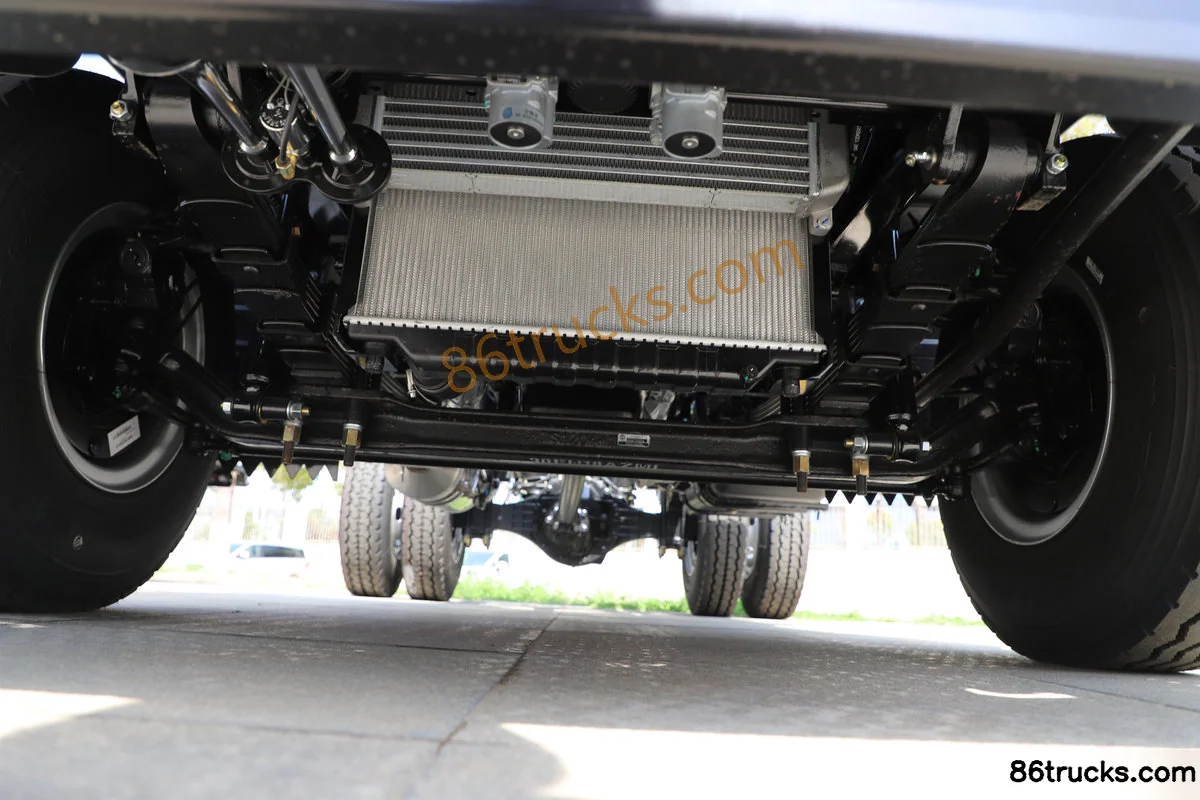

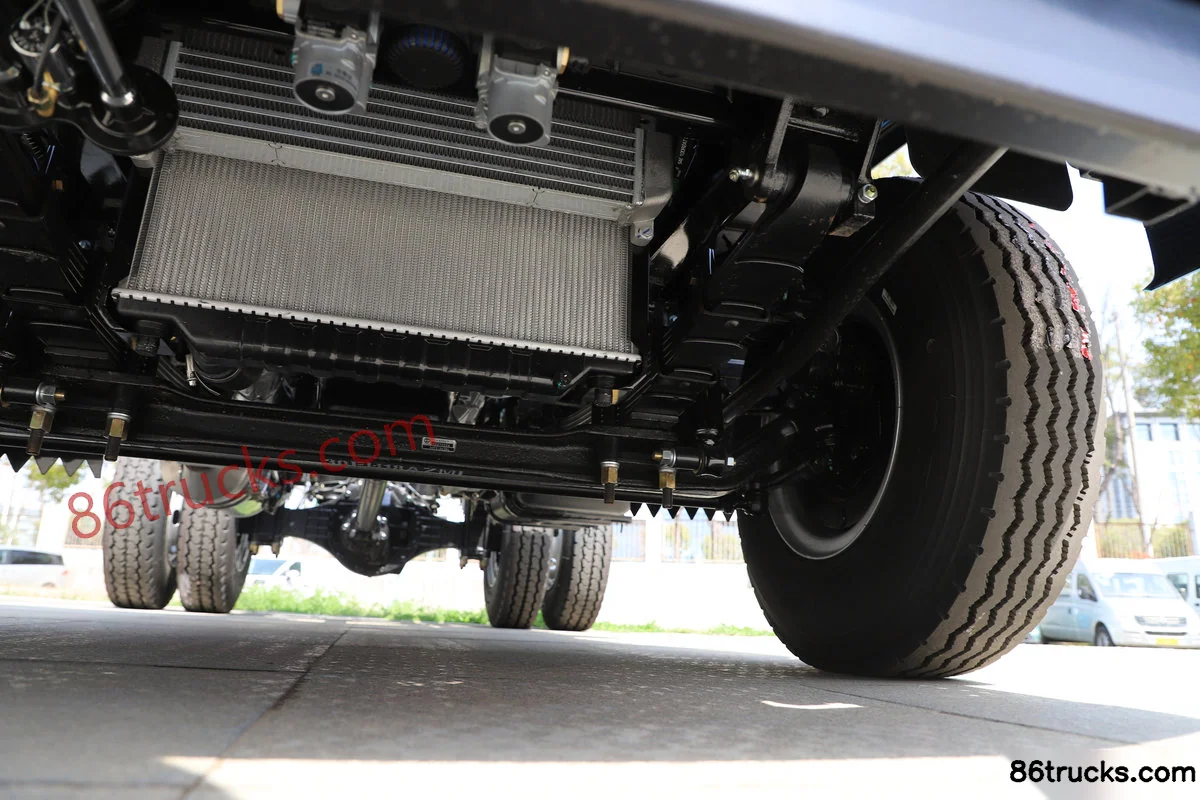

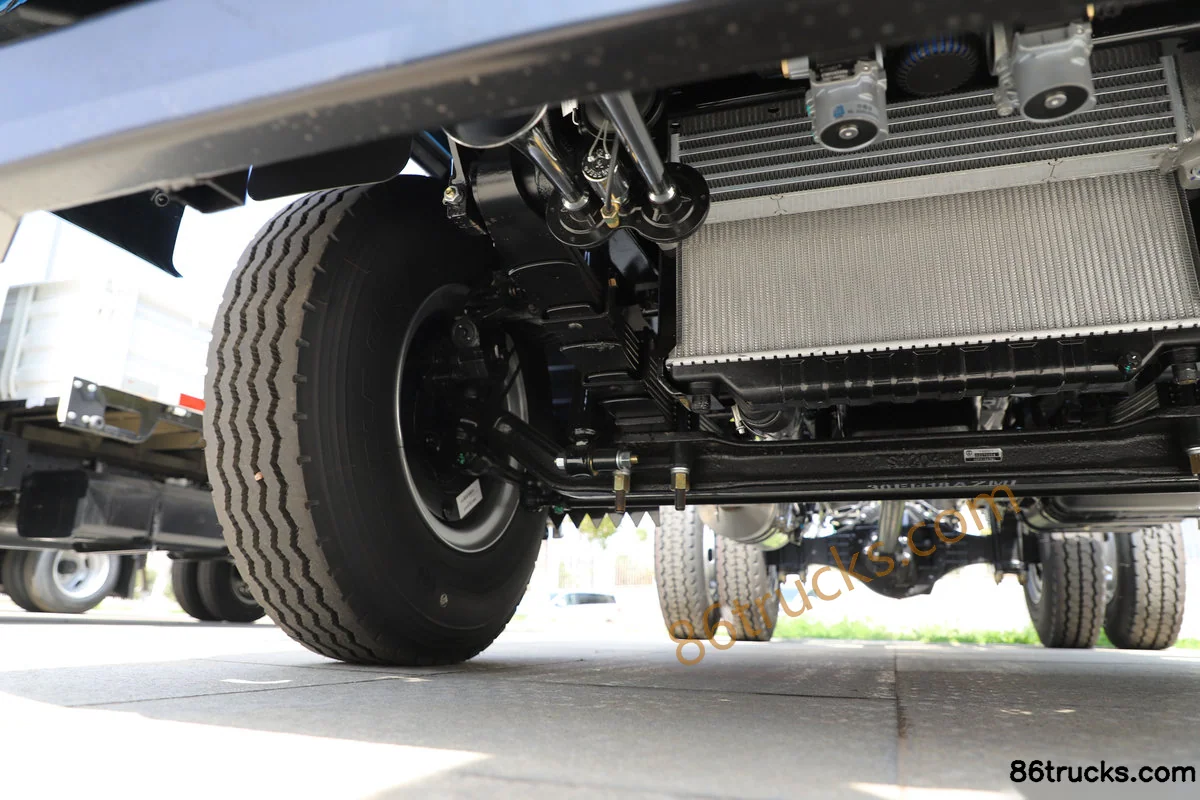

Chassis3

9 photos

FAQ

What is the export price of Yuejin Qilin H3 2.5L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.2m Single Row Dump Truck, and what does it include?

Yuejin Qilin H3 2.5L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.2m Single Row Dump Truck export reference is about From $20,806; MSRP is ¥14.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuejin Qilin H3 2.5L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.2m Single Row Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Qilin H3 2.5L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.2m Single Row Dump Truck?

Key specs of Yuejin Qilin H3 2.5L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.2m Single Row Dump Truck: Drive: 4x2; Horsepower: 180 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Qilin H3 2.5L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.2m Single Row Dump Truck suited for?

Yuejin Qilin H3 2.5L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.2m Single Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Yuejin Qilin H3 2.5L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.2m Single Row Dump Truck differ from other variants in the same series?

Yuejin Qilin H3 2.5L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.2m Single Row Dump Truck belongs to Yuejin Big Kirin (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Qilin H3 2.5L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.2m Single Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Qilin H3 2.5L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.2m Single Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
