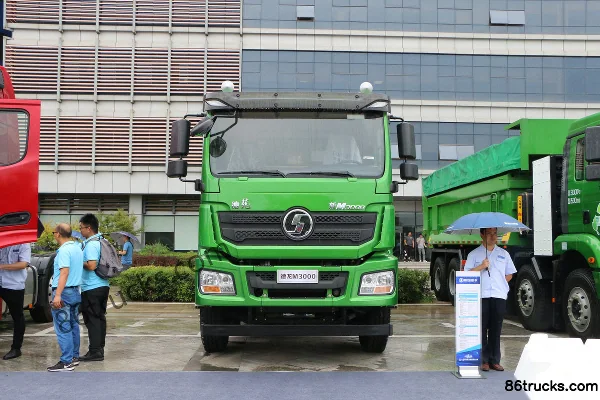

SHACMAN Delong New M3000 Lightweight Edition 336hp 8X4(12 wheels) 7.2m LNG Dump Truck

Export reference
From $49,917
MSRP ¥35.94M CNY
Emission: China V
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 15.5ton
Wheelbase:: 1800+3575+1400mm
Tire Size:: 11.00R20
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 336
Cargo box type: Dump type

Overview

The SHACMAN Delong New M3000 Lightweight Edition 336hp 8X4(12 wheels) 7.2m LNG Dump Truck is a Heavy truck featuring 15.37t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP10NG336E51 engine, 336 hp, China V emissions and Fast Gear transmission.

China V 336 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3318HR366TL
Drive type: 8X4
Wheelbase: 1800+3575+1400mm
engine: WeichaiWP10NG336E51
transmission: Fast Gear12JSD160T
Rear Axle Ratio: 5.286
Cab length: 10.25m
Cab width: 2.55m
Cab height: 3.45m
Front track width: 2063/2063mm
rear track: 1860/1860mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Approach angle: 27°
departure angle: 18°
Remarks: Metal bumper, three-step step, air suspension driver seat, hydraulic cab mount, electric A/C, power windows, Tianxingjian Zhiya BD onboard terminal, domestic steering gear, standard air cleaner, domestic clutch, domestic 4-channel ABS, transmission with QH50 PTO, radiator grille guard, telescopic shift rod, 165Ah maintenance-free battery
Version: Lightweight version
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10NG336E51
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 9.726L
Emission standard: China V
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1450N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, 4-stroke, single-point injection, oxidation catalyst
Transmission Parameters
Transmission Model: Fast Gear12JSD160T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 7.2m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Extended Mid-High Roof
Cab suspension: Four-point air suspension
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 450L
Chassis Specs
Front axle description: MAN5.5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 850×270 (8+5)mm
rear axle description: 11.5T single reduction
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.286
Leaf spring count: 10/10/10, left 14 right 13/left 14 right 13/1214/14/12
Suspension (front/rear): Front and rear multi-leaf springs, two main leaves + two spring clamps
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Power Mirrors:

Photos

0 photos

FAQ

What is the export price of SHACMAN Delong New M3000 Lightweight Edition 336hp 8X4(12 wheels) 7.2m LNG Dump Truck, and what does it include?

SHACMAN Delong New M3000 Lightweight Edition 336hp 8X4(12 wheels) 7.2m LNG Dump Truck export reference is about From $49,917; MSRP is ¥35.94M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong New M3000 Lightweight Edition 336hp 8X4(12 wheels) 7.2m LNG Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong New M3000 Lightweight Edition 336hp 8X4(12 wheels) 7.2m LNG Dump Truck?

Key specs of SHACMAN Delong New M3000 Lightweight Edition 336hp 8X4(12 wheels) 7.2m LNG Dump Truck: Drive: 8x4; Horsepower: 336 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong New M3000 Lightweight Edition 336hp 8X4(12 wheels) 7.2m LNG Dump Truck suited for?

SHACMAN Delong New M3000 Lightweight Edition 336hp 8X4(12 wheels) 7.2m LNG Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong New M3000 Lightweight Edition 336hp 8X4(12 wheels) 7.2m LNG Dump Truck differ from other variants in the same series?

SHACMAN Delong New M3000 Lightweight Edition 336hp 8X4(12 wheels) 7.2m LNG Dump Truck belongs to SHACMAN Delong New M3000 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong New M3000 Lightweight Edition 336hp 8X4(12 wheels) 7.2m LNG Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong New M3000 Lightweight Edition 336hp 8X4(12 wheels) 7.2m LNG Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
