FAW Jiefang Tiger VR 2.3L Diesel 142 hp 4X2(6 wheels) WLY 5-speed 4.2m single-row cab flatbed light truck

Export reference
From $11,542
MSRP ¥8.31M CNY
Horsepower: 142
Emission: China VI
Fuel: Diesel
Engine: Quanchai2.3L
Transmission: WLY
Curb Weight:: 2.56ton
seating capacity: 2Personnel
Rated payload: 1.805ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang Tiger VR 2.3L Diesel 142 hp 4X2(6 wheels) WLY 5-speed 4.2m single-row cab flatbed light truck is a Light Truck featuring 4.2m cargo length, stake body cargo body, 2Personnel volume and 1.805t payload. On the powertrain side, it comes with a Quanchai2.3L engine, 142 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 142 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1041P40K56L1E6A84
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: QuanchaiQ23A-142E60
transmission: WLYWLY5G32C
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.012m
Cab height: 2.28m
Front track width: 1500mm
rear track: 1475mm
Curb Weight: 2.56ton
Rated payload: 1.805ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 15°
departure angle: 19°
Front/rear suspension: 1.155/1.545m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Q23A-142E60
Engine info: Quanchai2.3L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 103kW
Max hp: 142Horsepower
Max torque: 330N·m
Max torque speed: 1400-2400rpm
Rated speed: 3000rpm
Transmission Parameters
Transmission Model: WLY5G32C
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.2m
Cargo box width: 1.91m
Cargo box height: 0.41m
Cab parameters
Cab width: 1735mm
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 70L
Chassis Specs
Front axle description: DR061
Front axle allowable load: 1800kg
Frame Dimensions: 760*150*60*4mm
rear axle description: 130H welded stamped axle
rear axle allowable load: 2695kg
Axle ratio: 4.875
Leaf spring count: 3/4+3
Tire

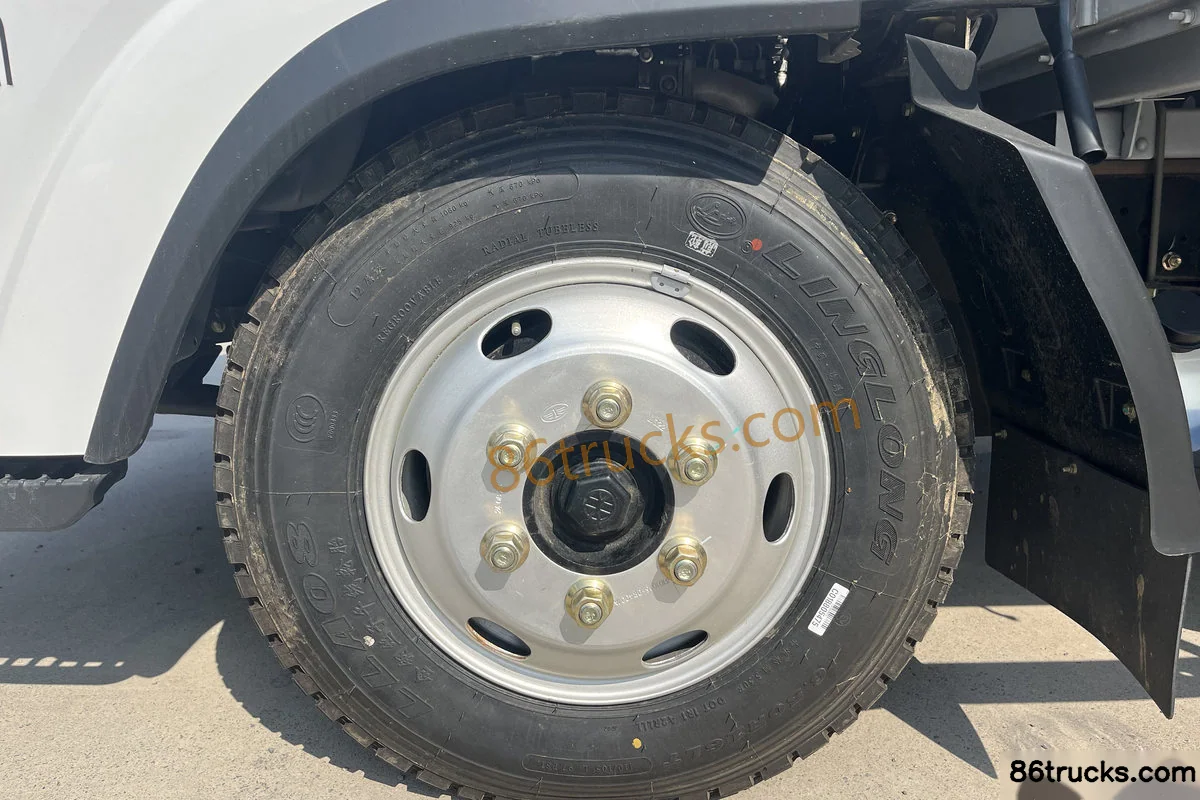

Tire Size: 6.50R16LT 12PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

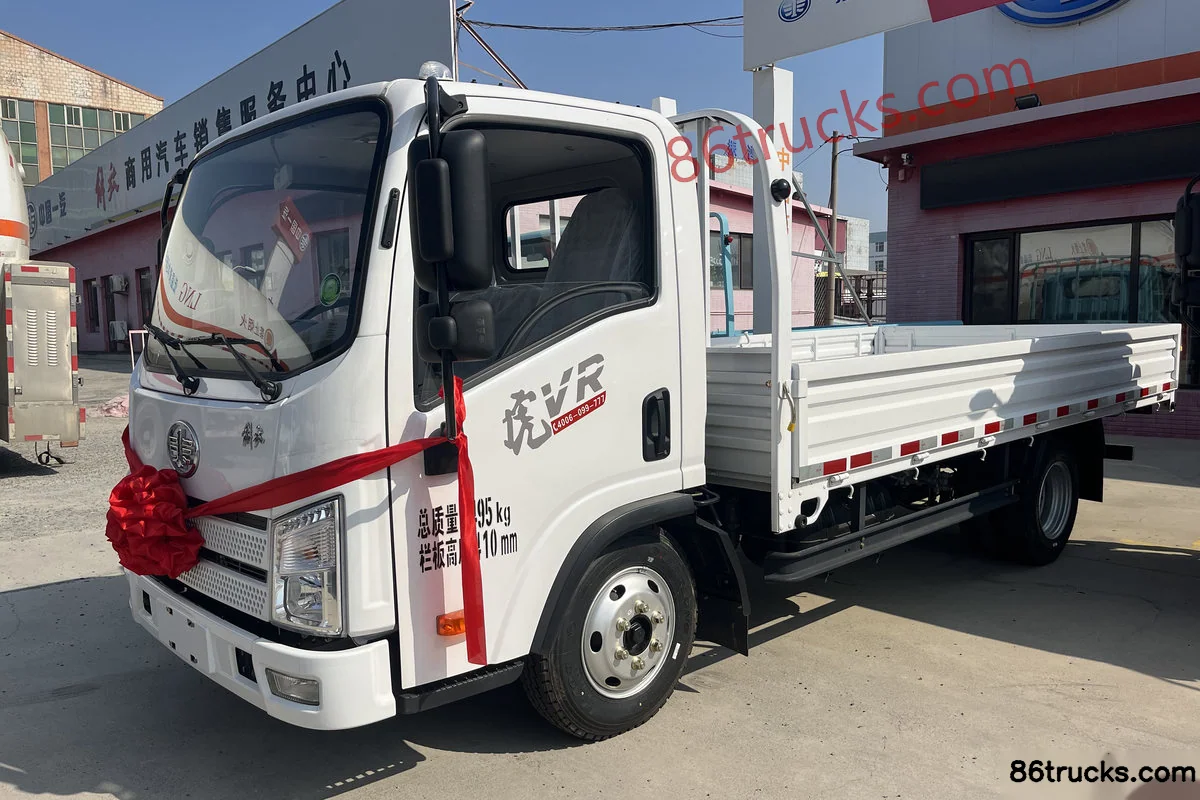

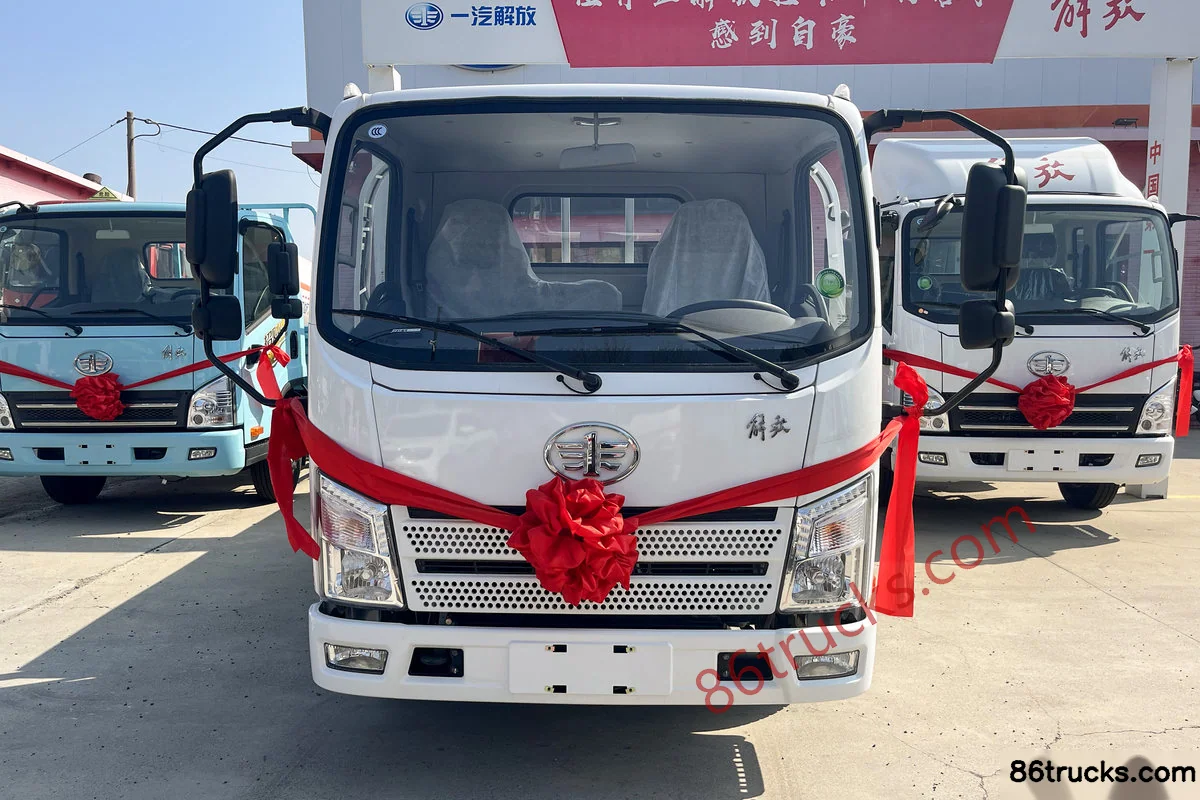

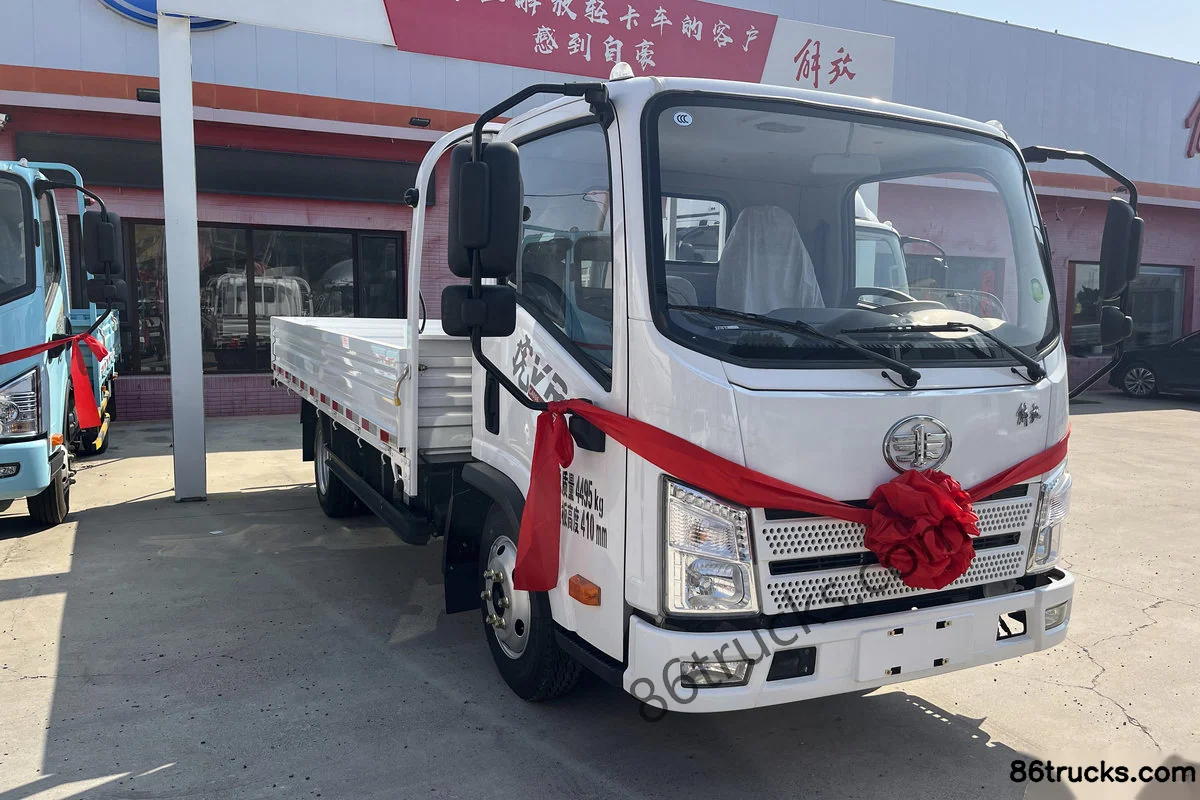

Exterior3

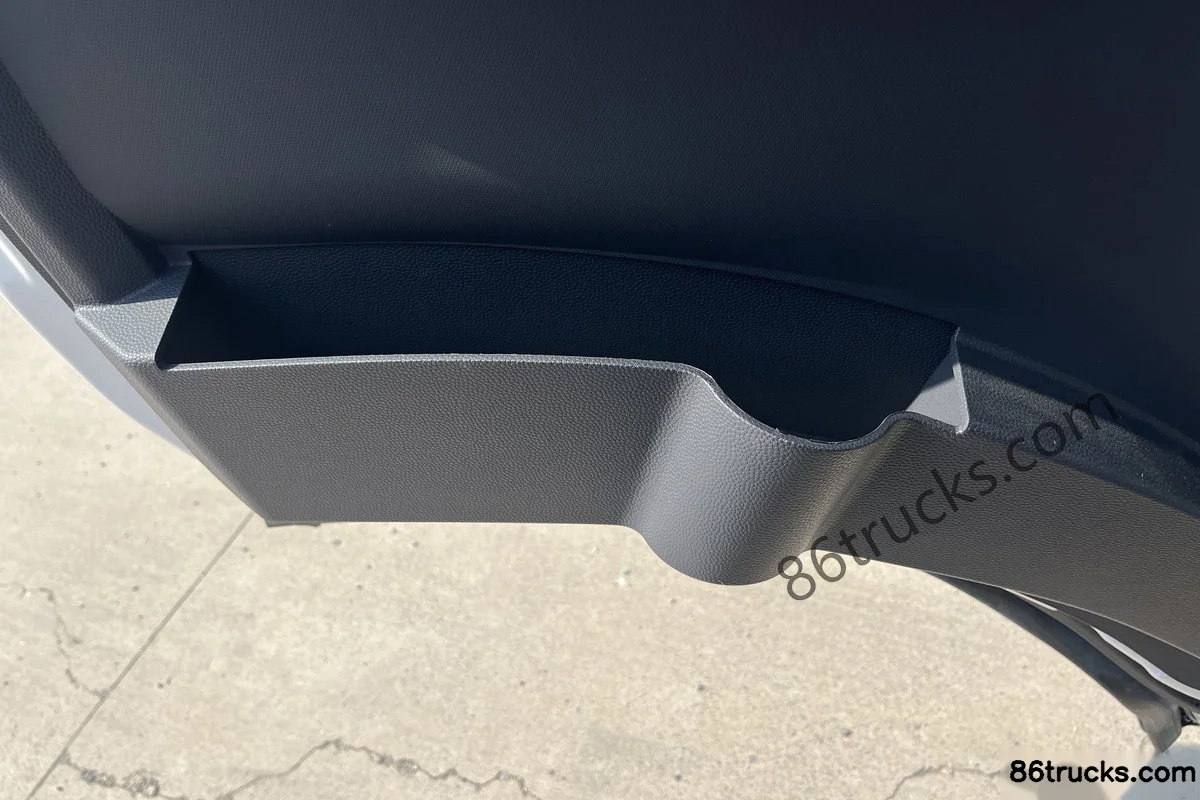

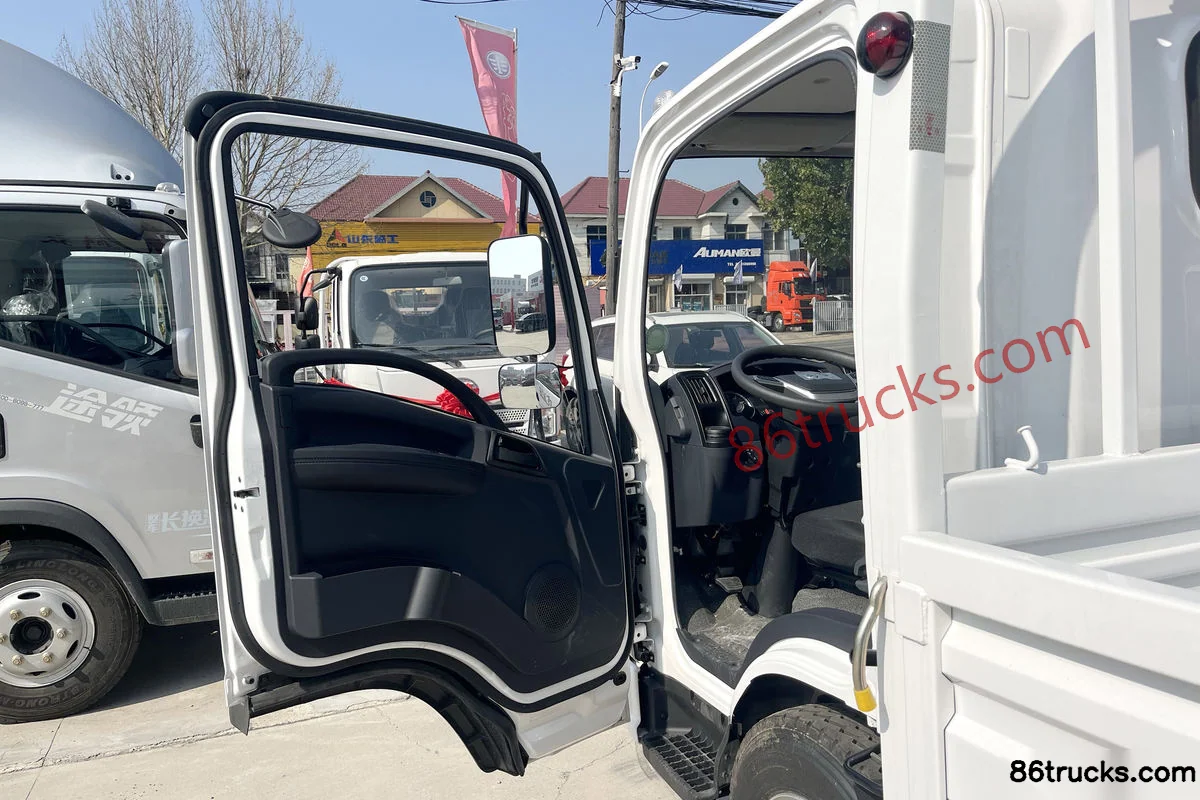

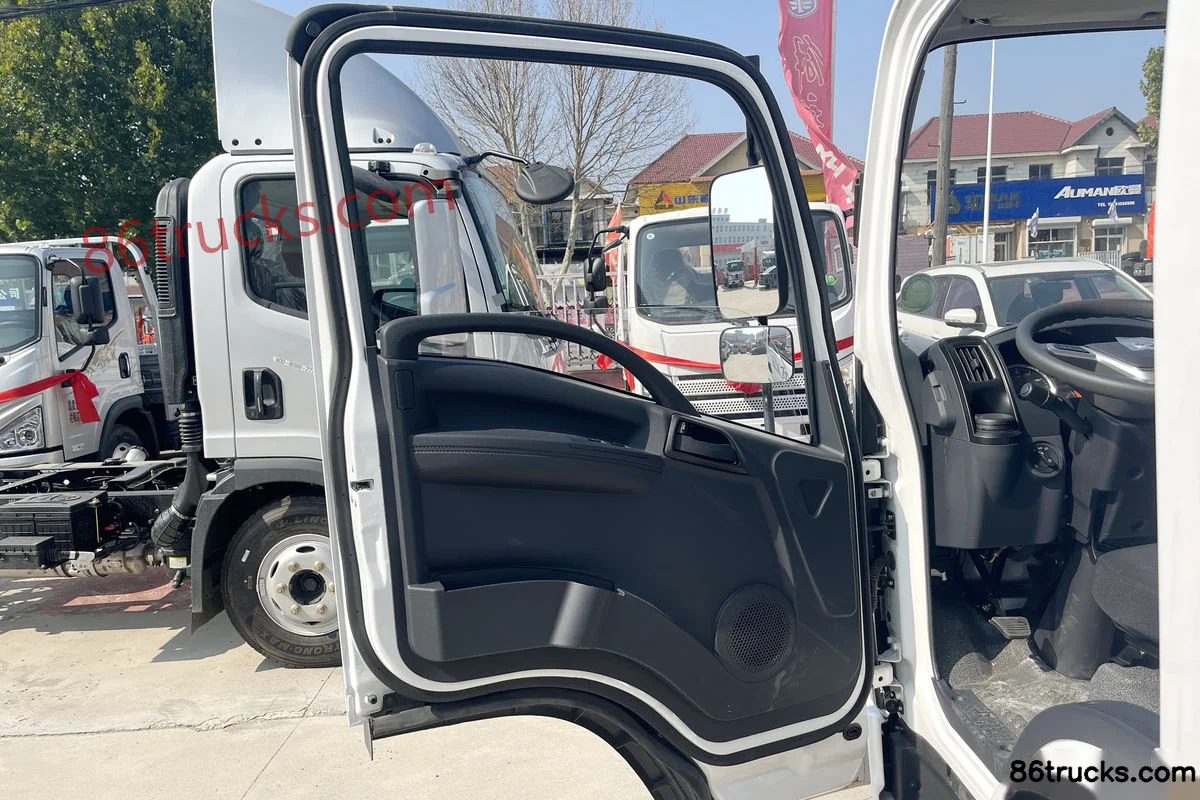

Cab3

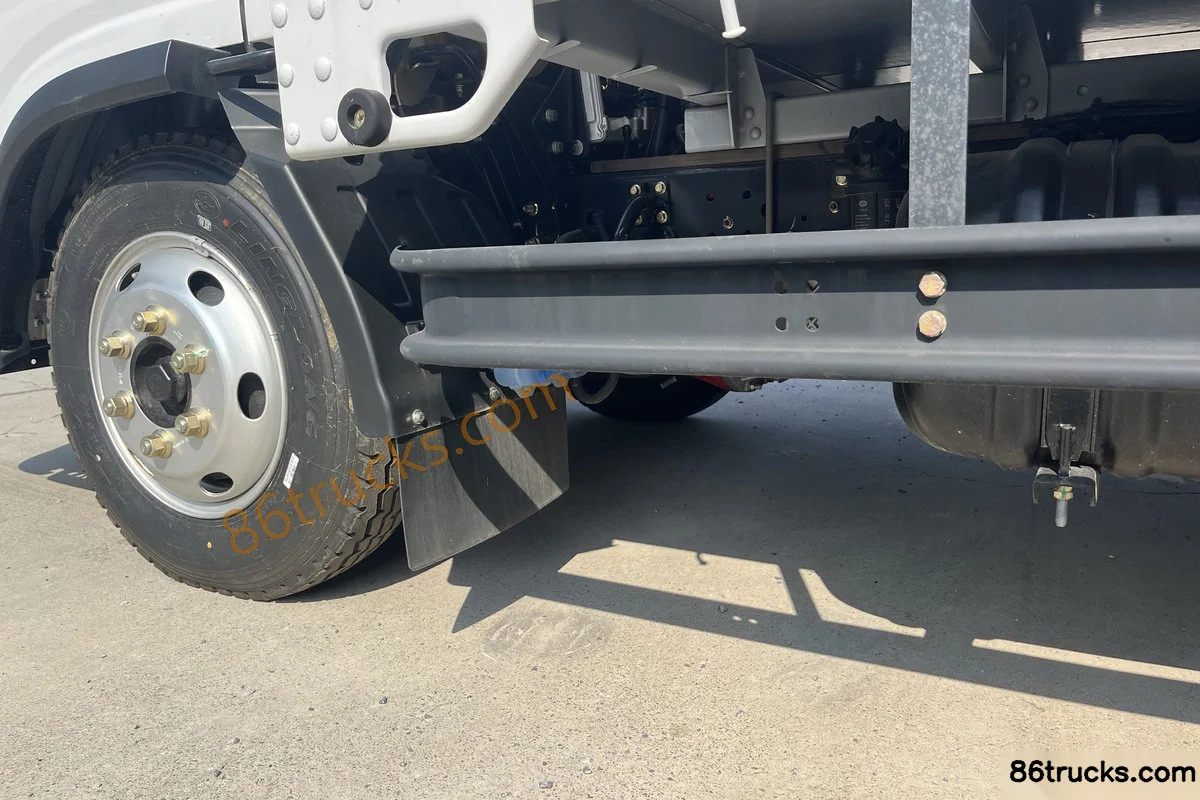

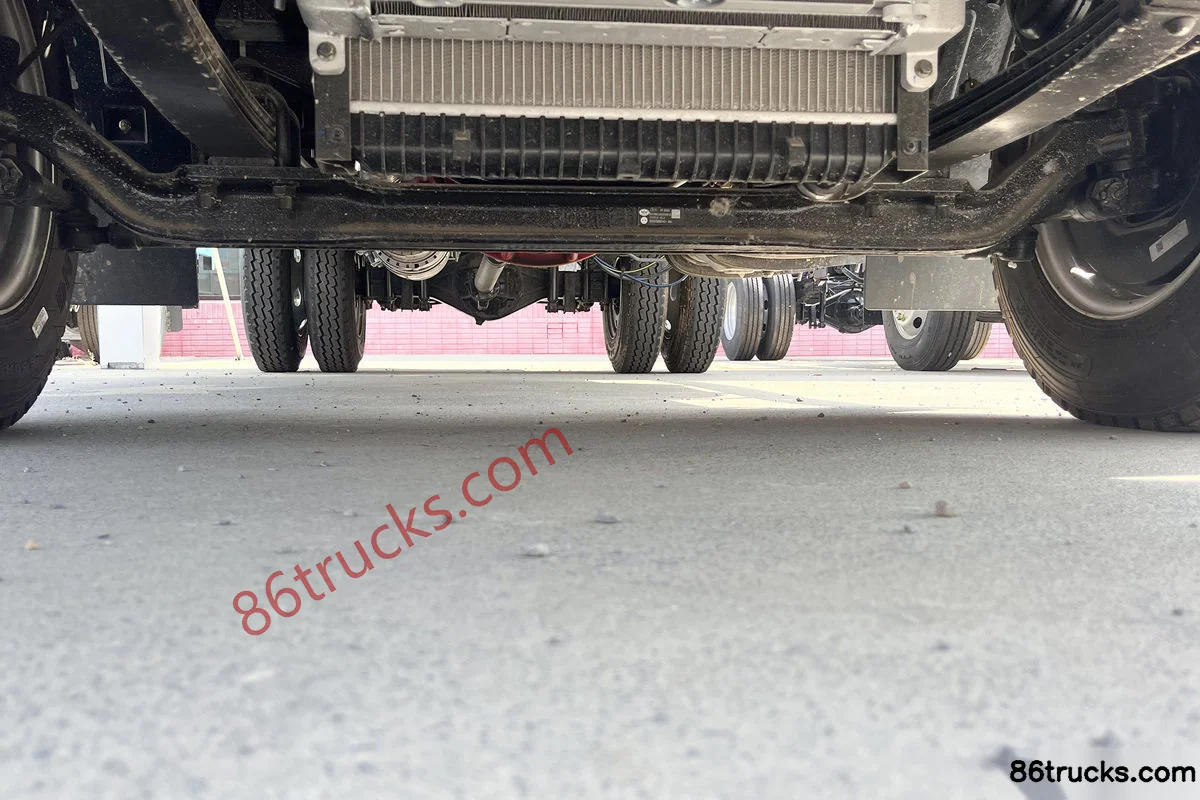

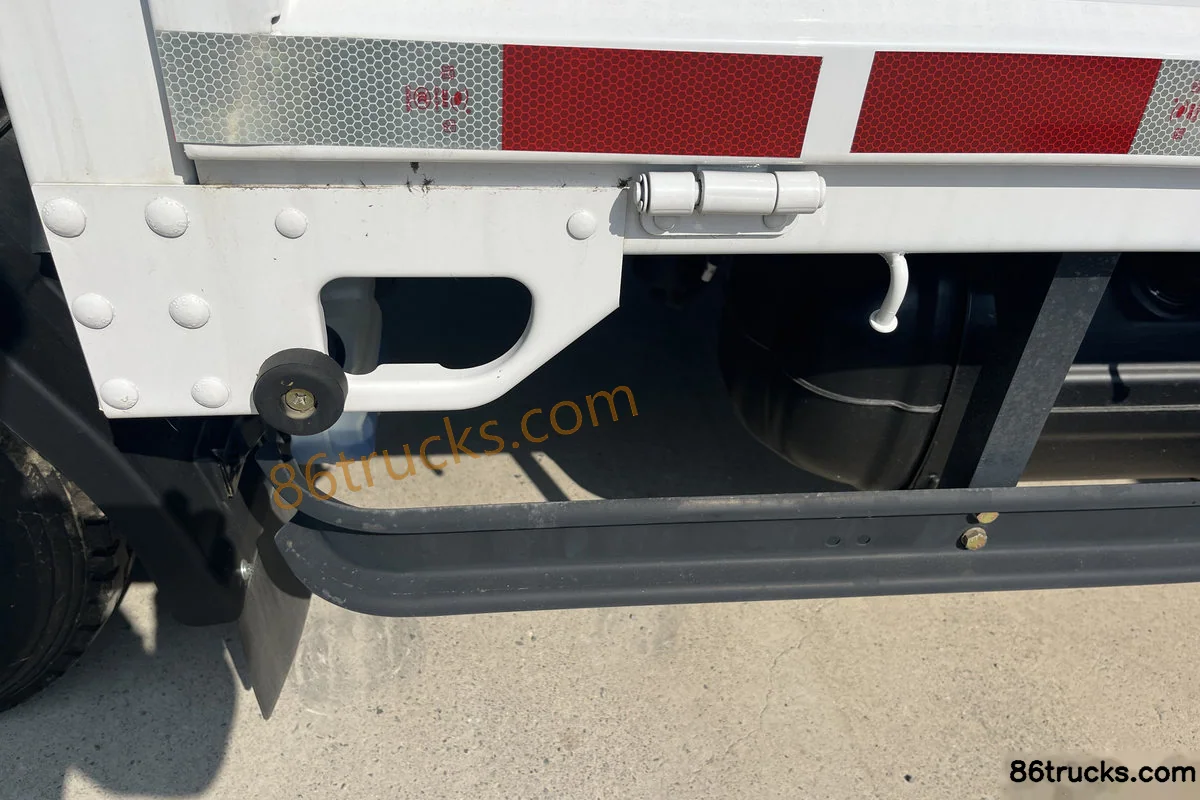

Chassis3

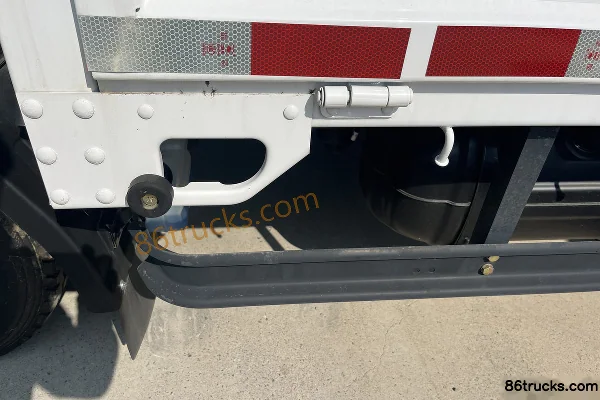

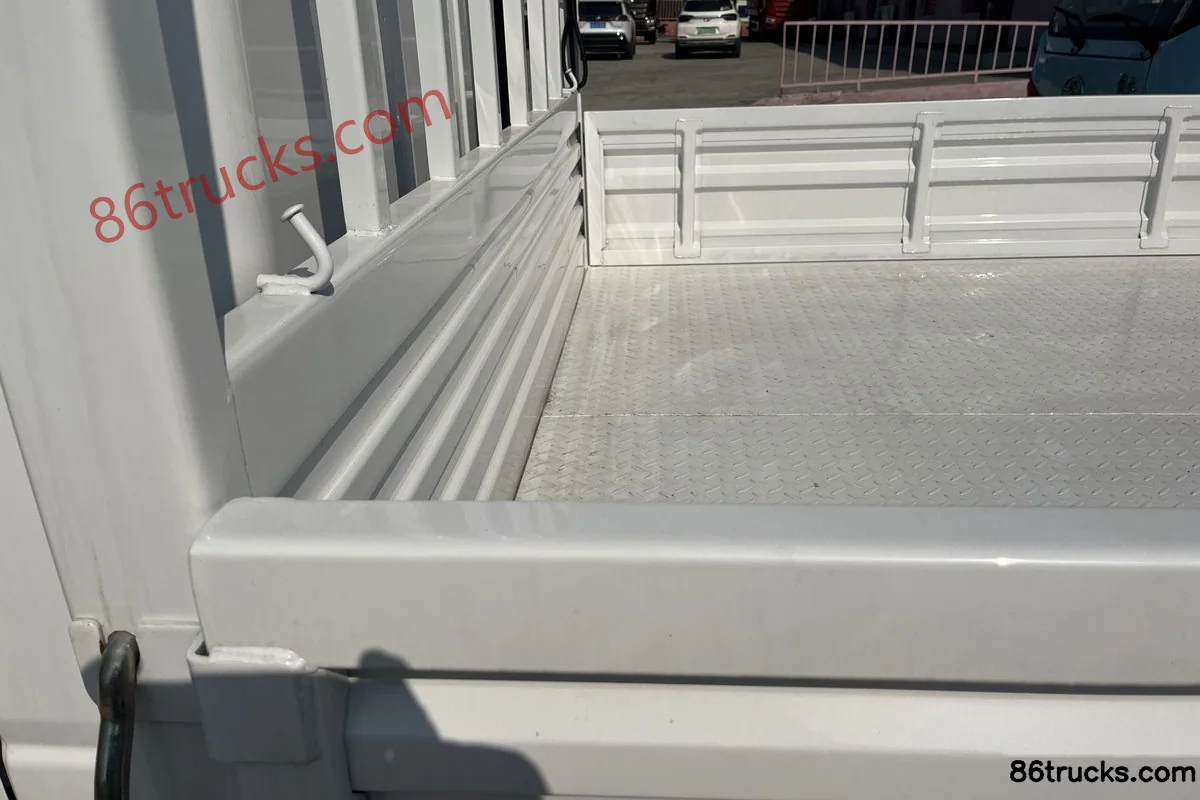

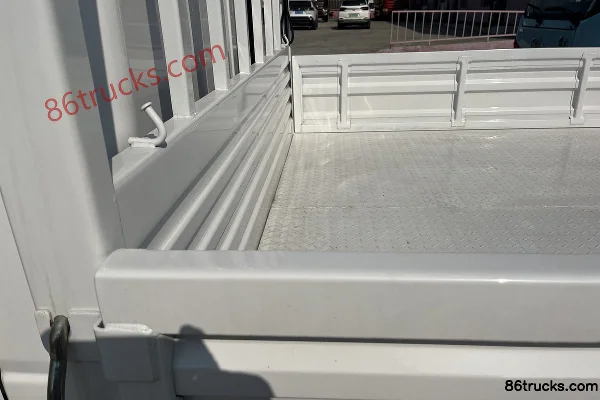

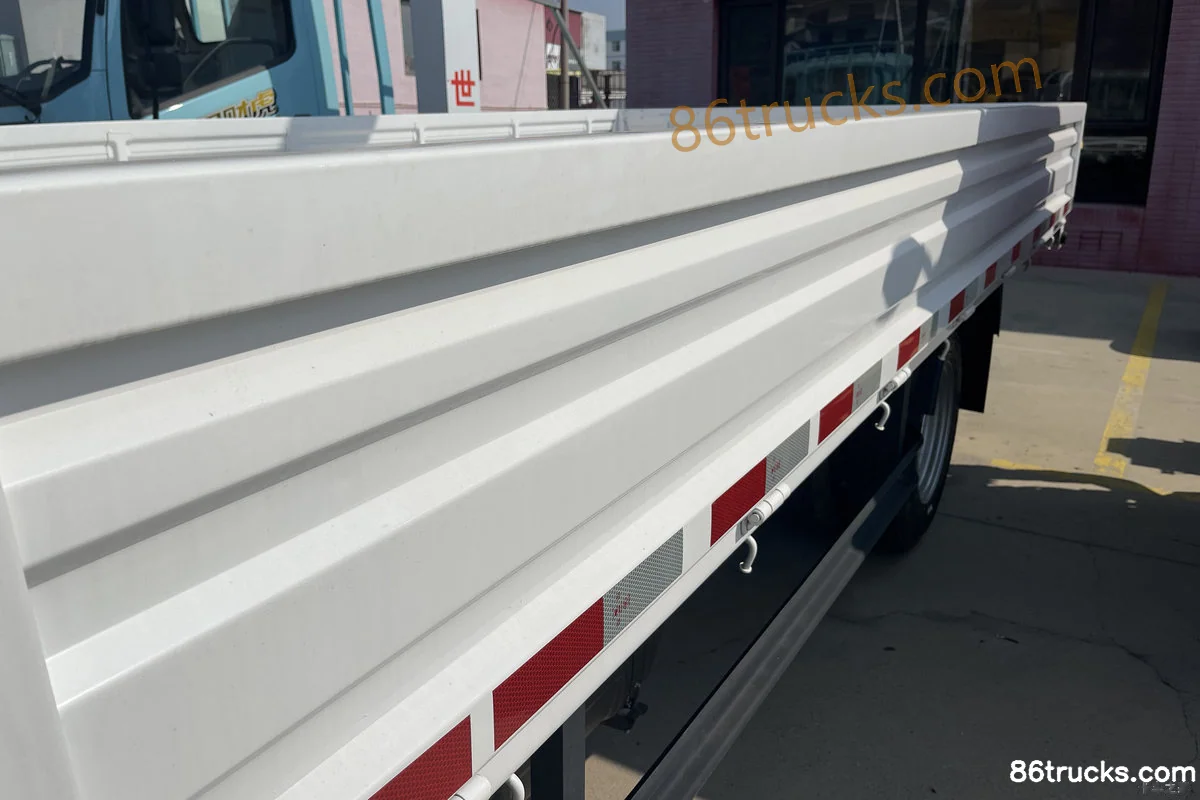

Body3

12 photos

FAQ

What is the export price of FAW Jiefang Tiger VR 2.3L Diesel 142 hp 4X2(6 wheels) WLY 5-speed 4.2m single-row cab flatbed light truck, and what does it include?

FAW Jiefang Tiger VR 2.3L Diesel 142 hp 4X2(6 wheels) WLY 5-speed 4.2m single-row cab flatbed light truck export reference is about From $11,542; MSRP is ¥8.31M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Tiger VR 2.3L Diesel 142 hp 4X2(6 wheels) WLY 5-speed 4.2m single-row cab flatbed light truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Tiger VR 2.3L Diesel 142 hp 4X2(6 wheels) WLY 5-speed 4.2m single-row cab flatbed light truck?

Key specs of FAW Jiefang Tiger VR 2.3L Diesel 142 hp 4X2(6 wheels) WLY 5-speed 4.2m single-row cab flatbed light truck: Drive: 4x2; Horsepower: 142 hp; Emission: China VI; Fuel: Diesel; Engine: Quanchai2.3L; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Tiger VR 2.3L Diesel 142 hp 4X2(6 wheels) WLY 5-speed 4.2m single-row cab flatbed light truck suited for?

FAW Jiefang Tiger VR 2.3L Diesel 142 hp 4X2(6 wheels) WLY 5-speed 4.2m single-row cab flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Tiger VR 2.3L Diesel 142 hp 4X2(6 wheels) WLY 5-speed 4.2m single-row cab flatbed light truck differ from other variants in the same series?

FAW Jiefang Tiger VR 2.3L Diesel 142 hp 4X2(6 wheels) WLY 5-speed 4.2m single-row cab flatbed light truck belongs to FAW Jiefang Hu VR Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Tiger VR 2.3L Diesel 142 hp 4X2(6 wheels) WLY 5-speed 4.2m single-row cab flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Tiger VR 2.3L Diesel 142 hp 4X2(6 wheels) WLY 5-speed 4.2m single-row cab flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
