Sinotruk HW13710 (14.104 gear) 10-speed manual transmission

Export reference
MSRP N/A
Matching Range:: For construction vehicles with 260-300 hp
Max input torque:: 1390N·m
1st gear ratio:: 14.104

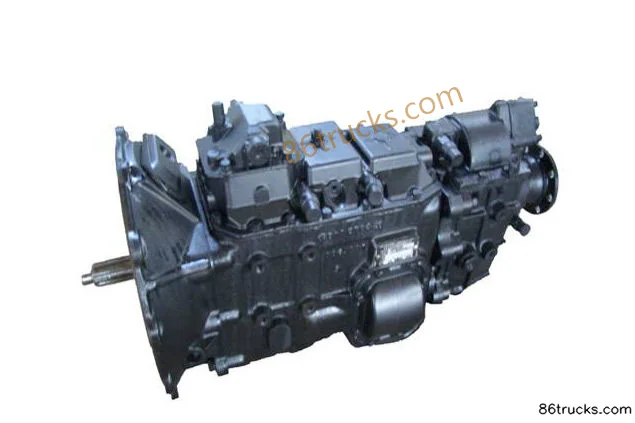

Sinotruk HW13710 (14.104 gear) 10-speed manual transmission exterior
View more photos (1)
Transmission Model: HW13710
Transmission Brand: Sinotruk
Features: 1. Both main and auxiliary boxes have twin countershafts. 2. Can be equipped with rear-mounted PTO.

Overview

The Sinotruk HW13710 (14.104 gear) 10-speed manual transmission is a parts product with spec HW13710.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Sinotruk
Transmission series: HW10-speed series
Features: 1. Both main and auxiliary boxes have twin countershafts. 2. Can be equipped with rear-mounted PTO.
Matching Range: For construction vehicles with 260-300 hp
Max input torque: 1390N·m
1st gear ratio: 14.104
synchronizer: No
Main box center distance: 148mm
2nd gear ratio: 10.648
3rd gear ratio: 7.809
4th gear ratio: 5.822
5th gear ratio: 4.315
6th gear ratio: 3.268
7th gear ratio: 2.468
8th gear ratio: 1.81
Reverse Gear 1 Ratio: 12.33
Transmission weight: 348kg
9th gear ratio: 1.349
Transmission oil capacity: 13L
10-speed gear ratio:
Reverse Gear 2 Ratio: 2.857
Control type: dual-lever dual-H control
Number of gears: 10Gear
shift type: Manual
Transmission Model: HW13710
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs

Photos

Exterior1

Sinotruk HW13710 (14.104 gear) 10-speed manual transmission Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is Sinotruk HW13710 (14.104 gear) 10-speed manual transmission suited for?

Match Sinotruk HW13710 (14.104 gear) 10-speed manual transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Sinotruk HW13710 (14.104 gear) 10-speed manual transmission differ from other variants in the same series?

Sinotruk HW13710 (14.104 gear) 10-speed manual transmission belongs to Sinotruk HW10 gear series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HW13710 (14.104 gear) 10-speed manual transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HW13710 (14.104 gear) 10-speed manual transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
