Sinotruk HW90510C2 10-Speed Manual Transmission
EXW
Export quote
Sinotruk HW10 gear series transmission
Main model photos
17 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HW90510C2 10-Speed Manual Transmission | — | ||
| Sinotruk HW19710L 10-speed manual transmission | — | ||
| Sinotruk HW90510 10-Speed Manual Transmission | — | ||
| Sinotruk HW12710C 10-Speed Manual Transmission | — | ||
| Sinotruk HW23710C 10-speed manual transmission | — |

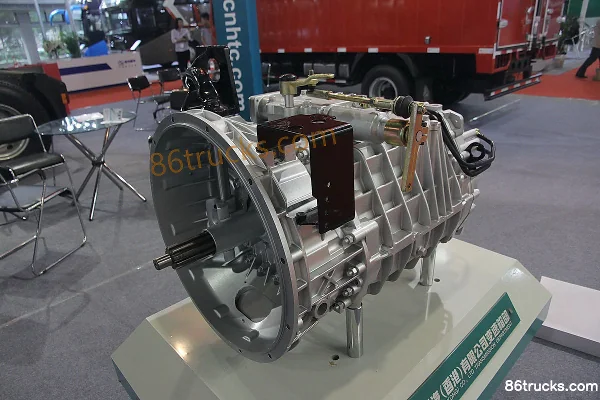

Sinotruk HW19710L 10-speed manual transmission
EXW
Export quote
Sinotruk HW90510 10-Speed Manual Transmission
EXW
Export quote
Sinotruk HW12710C 10-Speed Manual Transmission
EXW
Export quote
Sinotruk HW23710C 10-speed manual transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: Sinotruk
Transmission series: HW10-speed series
Features: Main box dual countershaft, auxiliary box dual countershaft, main box with collar, auxiliary box with synchronizer. / Main box spur gear dual countershaft, auxiliary box planetary mechanism / With pull-type clutch housing length increased by 6.7mm (originally Datong design) / 1. Main box uses single countershaft, auxiliary box uses planetary mechanism 2. Full synchronizer 3. Cylindrical housing 4. Helical gears, heavy shot peening 5. Forced lubrication 6. Can be equipped with rear PTO / 1. Both main and auxiliary boxes use twin countershafts 2. Cylindrical housing 3. Can be equipped with left-bottom and right-side PTO / 1. Both main and auxiliary boxes use twin countershafts. 2. Cylindrical housing 3. Can be equipped with left-bottom and right-side PTO / Main box dual countershaft, auxiliary box planetary mechanism. / 1. Main box uses single countershaft, auxiliary box uses planetary mechanism. 2. Full synchronizer 3. Cylindrical housing 4. Helical gears, heavy shot peening 5. Forced lubrication 6. Can be equipped with rear PTO. / 1. Both main and auxiliary boxes have twin countershafts. 2. Can be equipped with rear-mounted PTO. / 1. Main box uses twin countershafts, auxiliary box uses planetary mechanism 2. Cylindrical housing 3. Forced lubrication 4. Can be equipped with rear PTO
Matching Range: Suitable for on-road use and construction vehicles / Highway and construction use / For vehicles with 336-420 hp / Suitable for engineering vehicles with 140-200S hp / 140-200 hp construction trucks / For construction vehicles with 260-300 hp / For trucks with 336-420 hp engines
Max input torque: 700 / 1900 / 620 / 1400 / 2500 / 2300 / 1500 / 1350 / 900 / 1200 / 1800 / 1390 / 1650 / 2100N·m
1st gear ratio: 11.99 / 14.28 / 13.23 / 9.98 / 10.73 / 10.44 / 14.1 / 9.06 / 13.29 / 14.356 / 14.36 / 9.318 / 11.63 / 10 / 10.788 / 10.444 / 14.104 / 14.284 / 10.52 / 14.08
synchronizer: Yes / No / none
Main box center distance: 105 / 125 / 155 / 148mm
2nd gear ratio: 8.97 / 10.62 / 9.9 / 7.47 / 7.98 / 7.89 / 10.65 / 6.78 / 9.95 / 10.647 / 10.66 / 6.975 / 6.782 / 8.706 / 7.467 / 9.903 / 8.014 / 7.892 / 10.648 / 10.623 / 7.83 / 10.47
3rd gear ratio: 6.75 / 7.87 / 7.45 / 5.62 / 5.91 / 5.79 / 7.81 / 5.1 / 7.48 / 7.8755 / 7.88 / 5.242 / 5.101 / 6.548 / 5.616 / 7.448 / 5.918 / 5.788 / 7.809 / 7.871 / 5.85 / 7.82
4th gear ratio: 4.64 / 5.88 / 5.61 / 4.2 / 4.38 / 4.32 / 5.82 / 3.91 / 5.595 / 5.8224 / 3.912 / 5.021 / 5.612 / 4.375 / 4.315 / 5.822 / 5.876 / 4.35
5th gear ratio: 3.81 / 4.375 / 4.2 / 3.15 / 3.29 / 4.38 / 3.2 / 4.32 / 3.05 / 4.3753 / 3.129 / 3.047 / 3.912 / 3.167 / 3.288 / 3.198 / 4.315 / 3.25 / 4.35
6th gear ratio: 2.58 / 3.27 / 3.15 / 2.38 / 2.45 / 2.42 / 2.32 / 3.16 / 3.2812 / 3.28 / 2.382 / 2.316 / 2.973 / 2.375 / 2.466 / 3.268 / 3.265 / 3.24
7th gear ratio: 1.93 / 2.43 / 2.36 / 1.78 / 1.82 / 1.83 / 2.47 / 1.73 / 2.37 / 2.4381 / 2.44 / 1.783 / 1.734 / 2.226 / 1.778 / 2.358 / 1.832 / 1.829 / 2.468 / 2.428 / 1.8 / 2.41
8th gear ratio: 1.45 / 1.8 / 1.77 / 1.34 / 1.35 / 1.81 / 1.3 / 1.78 / 1.304 / 1.674 / 1.377 / 1.773 / 1.353 / 1.341 / 1.799
Reverse Gear 1 Ratio: 9.9 / 13.91 / 11.03 / 8.31 / 10.49 / 9.14 / 12.33 / 7.55 / 11.07 / 12.67 / 14.01 / 7.776 / 9.692 / 8.313 / 11.02 / 10.531 / 9.138 / 13.913 / 9.47
Transmission weight: 177 / 273 / 260 / 359 / 348 / 267 / 237 / 430 / 342 / 355kg
9th gear ratio: 1 / 1.34 / 1.35 / 1.33 / 1.331 / 1.284 / 1.336 / 1.349 / 1.343
Transmission oil capacity: 6 / 12 / 5.5 / 9 / 16 / 15 / 18 / 13 / 12.5L
10-speed gear ratio: 0.82 / 1 / 0.75 / 0.74 / 0.78 / 0.8 / 0.779 / 0.754 / 0.752 / 0.741
Reverse Gear 2 Ratio: 2.13 / 3.18 / 2.63 / 1.98 / 2.39 / 2.12 / 2.86 / 3.91 / 2.64 / 2.91 / 3.2 / 3.912 / 1.979 / 2.625 / 2.407 / 2.118 / 2.857 / 2.18
Control type: Single H control / dual-lever, single-lever and other control methods / dual-lever dual-H control
Number of gears: 10Gear
shift type: Manual
Transmission Model: HW90510C2 / HW19710L / HW90510 / HW12710C / HW23710C / HW23710 / HW13710DC / HW13710D / HW15710L / HW90510C / HW12710 / HW13710L / HW14710 / HW18710T / HW90710-E / HW90710 / HW90710-B / HW19710TC / HW19710T / HW13710 / HW15710C / HW15710 / HW19710C / HW19710 / HW18710C / HW18710
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
FAQ
What kind of truck is Sinotruk Sinotruk HW10 gear series transmission?
Sinotruk Sinotruk HW10 gear series is an export-oriented transmission lineup with about 29 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Sinotruk HW10 gear series transmission include?
Sinotruk HW10 gear series transmission currently lists about 29 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk HW10 gear series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
