Sinotruk HW90510C 10-speed manual transmission

Export reference
MSRP N/A
Max input torque:: 900N·m
1st gear ratio:: 9.06
Main box center distance:: 105mm
Sinotruk HW90510C 10-speed manual transmission exterior
View more photos (3)
Transmission Model: HW90510C
Transmission Brand: Sinotruk
Features: Main box dual countershaft, auxiliary box dual countershaft, main box with collar, auxiliary box with synchronizer.

Overview

The Sinotruk HW90510C 10-speed manual transmission is a parts product with spec HW90510C.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Sinotruk
Transmission series: HW10-speed series
Features: Main box dual countershaft, auxiliary box dual countershaft, main box with collar, auxiliary box with synchronizer.
Max input torque: 900N·m
1st gear ratio: 9.06
Main box center distance: 105mm
2nd gear ratio: 6.78
3rd gear ratio: 5.1
4th gear ratio: 3.91
5th gear ratio: 3.05
6th gear ratio: 2.32
7th gear ratio: 1.73
8th gear ratio: 1.3
Reverse Gear 1 Ratio: 7.55
Transmission weight: 177kg
Transmission oil capacity: 6L
9th gear ratio:
10-speed gear ratio: 0.78
Reverse Gear 2 Ratio: 3.91
Number of gears: 10Gear
Transmission Model: HW90510C
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs

Photos

Exterior3

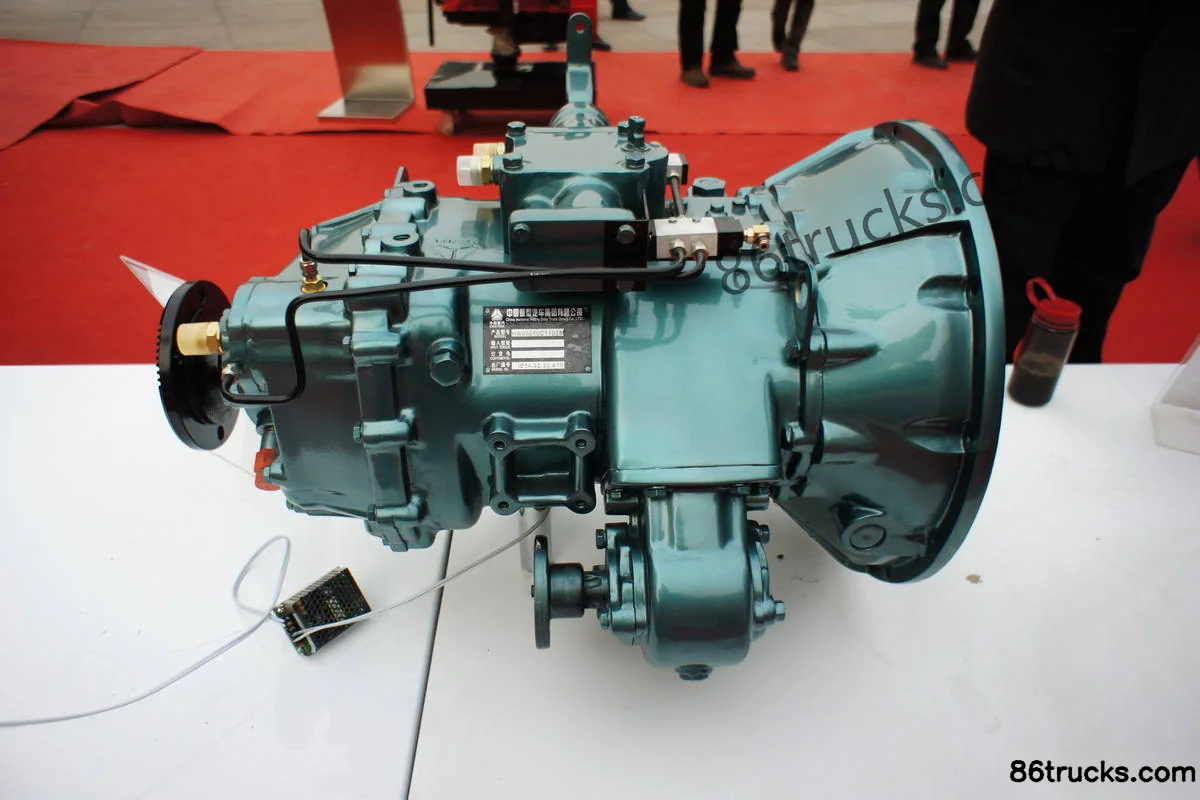

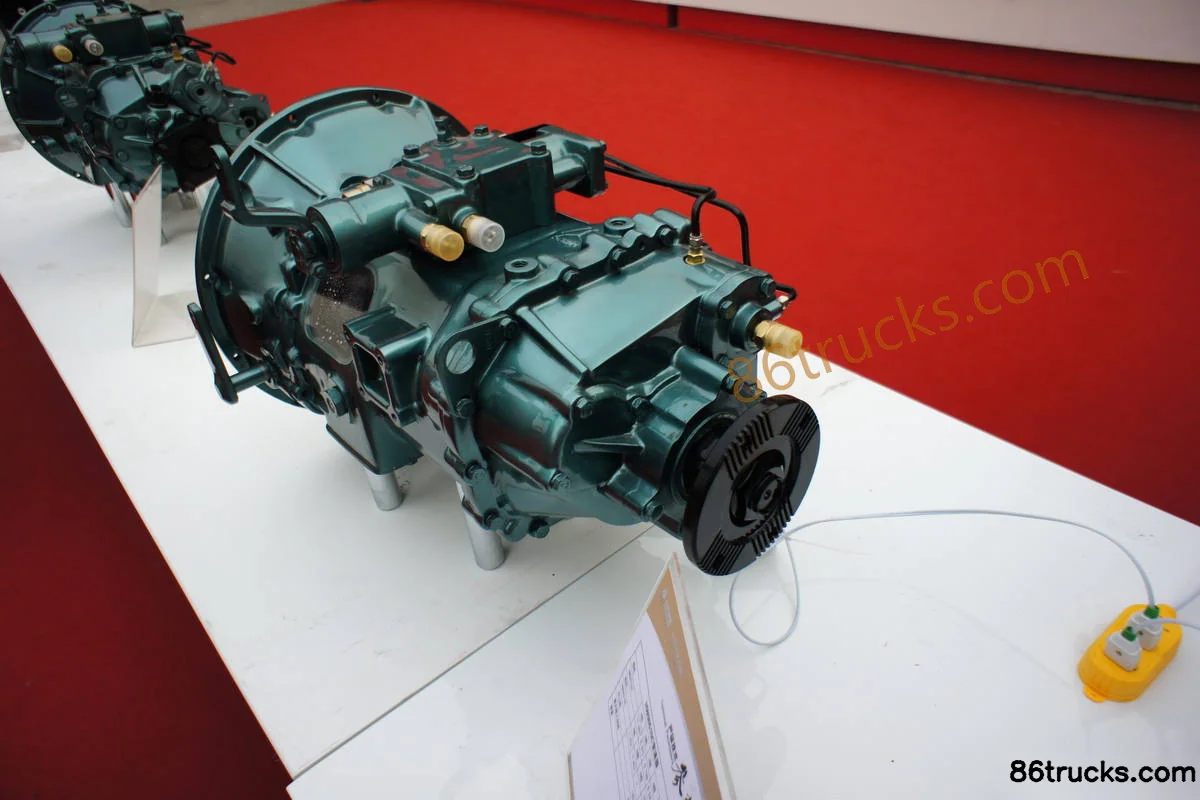

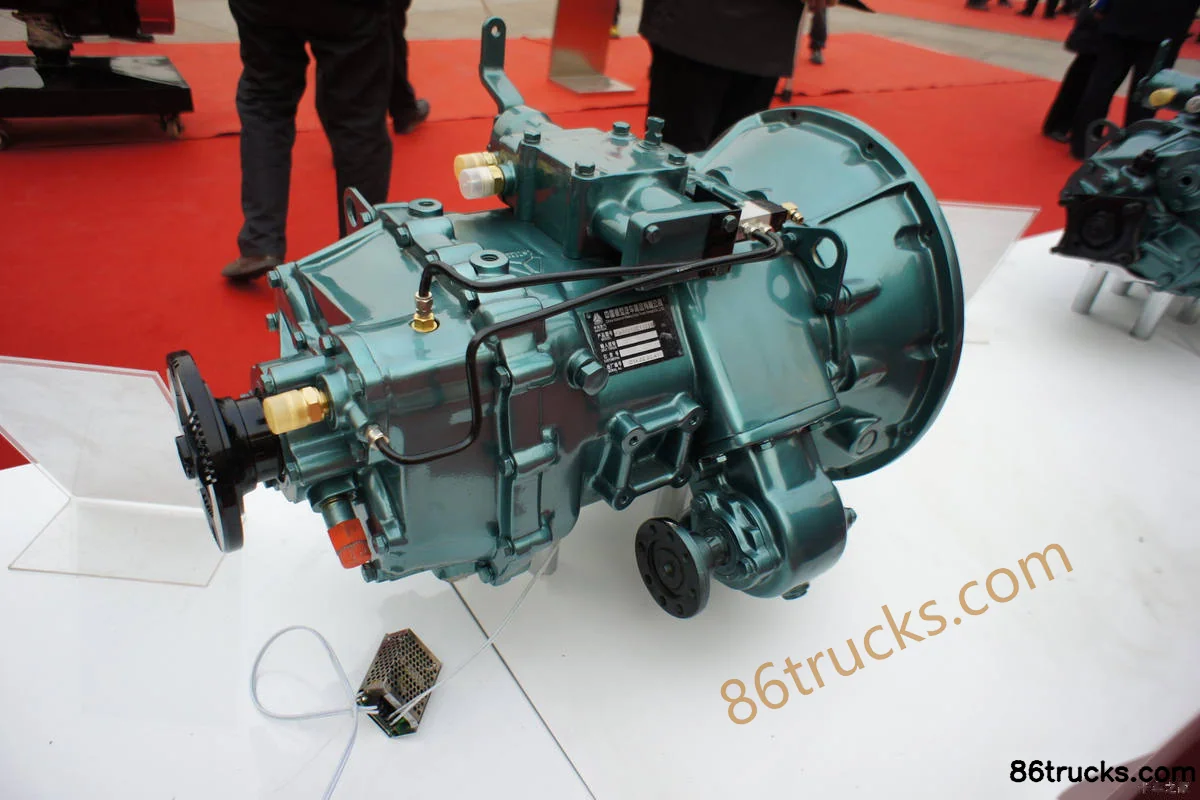

Sinotruk HW90510C 10-speed manual transmission Exterior (1) | 86Trucks Sinotruk HW90510C 10-speed manual transmission Exterior (2) | 86Trucks Sinotruk HW90510C 10-speed manual transmission Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Sinotruk HW90510C 10-speed manual transmission suited for?

Match Sinotruk HW90510C 10-speed manual transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Sinotruk HW90510C 10-speed manual transmission differ from other variants in the same series?

Sinotruk HW90510C 10-speed manual transmission belongs to Sinotruk HW10 gear series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HW90510C 10-speed manual transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HW90510C 10-speed manual transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
