Sinotruk HW23710C 10-speed manual transmission

Export reference
MSRP N/A
Features:: Main box spur gear dual countershaft, auxiliary box planetary mechanism
Max input torque:: 2500N·m
1st gear ratio:: 10.73

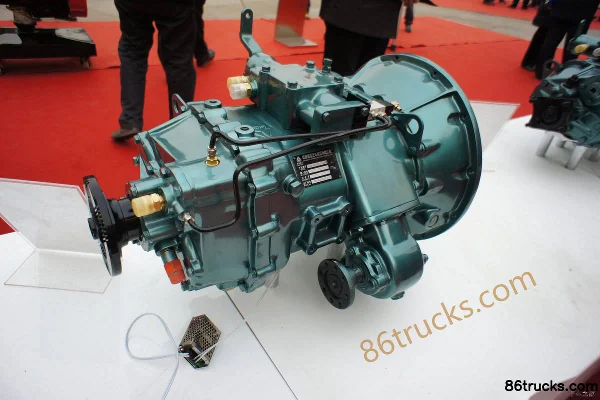

Sinotruk HW23710C 10-speed manual transmission exterior
Transmission Model: HW23710C
Transmission Brand: Sinotruk
Matching Range: Suitable for on-road use and construction vehicles

Overview

The Sinotruk HW23710C 10-speed manual transmission is a parts product with spec HW23710C.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Sinotruk
Transmission series: HW10-speed series
Matching Range: Suitable for on-road use and construction vehicles
Features: Main box spur gear dual countershaft, auxiliary box planetary mechanism
Max input torque: 2500N·m
1st gear ratio: 10.73
Main box center distance: 155mm
2nd gear ratio: 7.98
3rd gear ratio: 5.91
4th gear ratio: 4.38
5th gear ratio: 3.29
6th gear ratio: 2.45
7th gear ratio: 1.82
8th gear ratio: 1.35
Reverse Gear 1 Ratio: 10.49
Transmission weight: 359kg
9th gear ratio:
Transmission oil capacity: 12L
10-speed gear ratio: 0.75
Reverse Gear 2 Ratio: 2.39
Number of gears: 10Gear
shift type: Manual
Transmission Model: HW23710C
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs

Photos

0 photos

FAQ

What transport jobs is Sinotruk HW23710C 10-speed manual transmission suited for?

Match Sinotruk HW23710C 10-speed manual transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Sinotruk HW23710C 10-speed manual transmission differ from other variants in the same series?

Sinotruk HW23710C 10-speed manual transmission belongs to Sinotruk HW10 gear series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HW23710C 10-speed manual transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HW23710C 10-speed manual transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
