Sinotruk HW90510C2 10-Speed Manual Transmission

Export reference
MSRP N/A
Max input torque:: 700N·m
1st gear ratio:: 11.99
2nd gear ratio:: 8.97

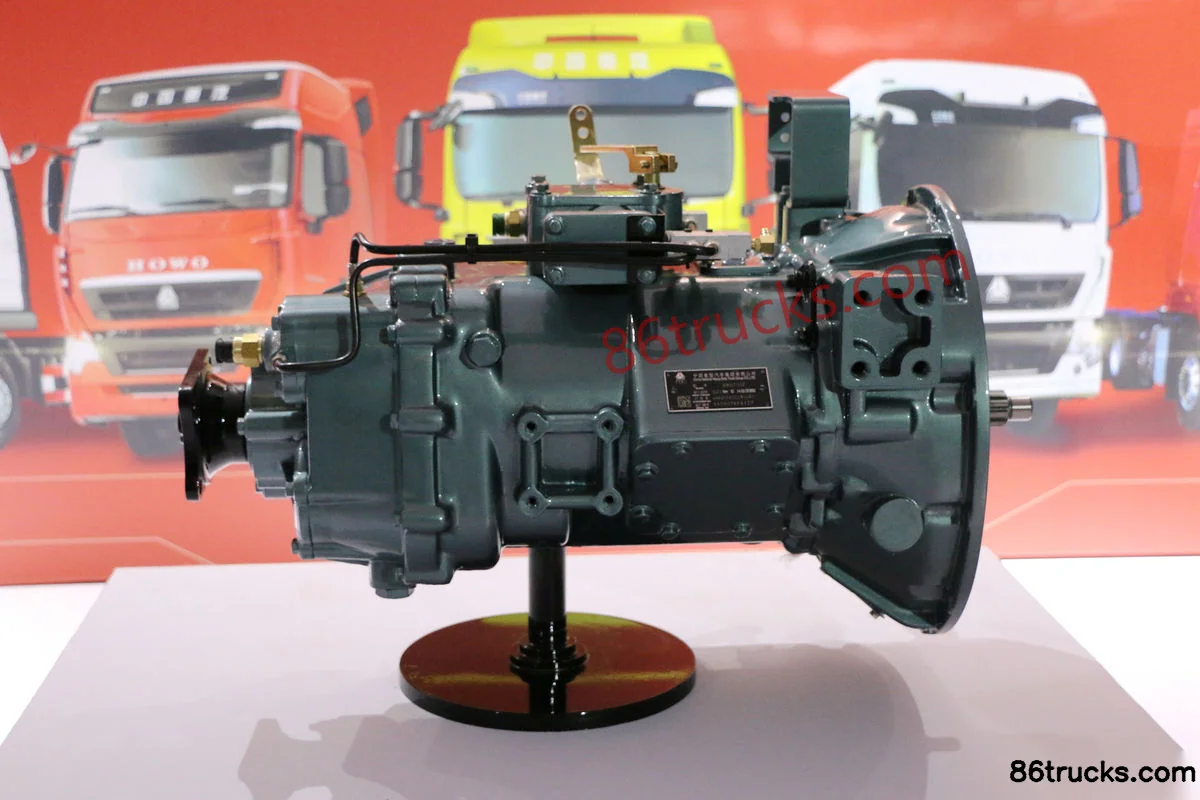

Sinotruk HW90510C2 10-Speed Manual Transmission exterior
View more photos (3)
Transmission Model: HW90510C2
Transmission Brand: Sinotruk
Features: Main box dual countershaft, auxiliary box dual countershaft, main box with collar, auxiliary box with synchronizer.

Overview

The Sinotruk HW90510C2 10-Speed Manual Transmission is a parts product with spec HW90510C2.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Sinotruk
Transmission series: HW10-speed series
Features: Main box dual countershaft, auxiliary box dual countershaft, main box with collar, auxiliary box with synchronizer.
Max input torque: 700N·m
1st gear ratio: 11.99
2nd gear ratio: 8.97
3rd gear ratio: 6.75
4th gear ratio: 4.64
5th gear ratio: 3.81
6th gear ratio: 2.58
7th gear ratio: 1.93
8th gear ratio: 1.45
Reverse Gear 1 Ratio: 9.9
Transmission weight: 177kg
9th gear ratio:
Transmission oil capacity: 6L
10-speed gear ratio: 0.82
Reverse Gear 2 Ratio: 2.13
Number of gears: 10Gear
Transmission Model: HW90510C2
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs

Photos

Exterior3

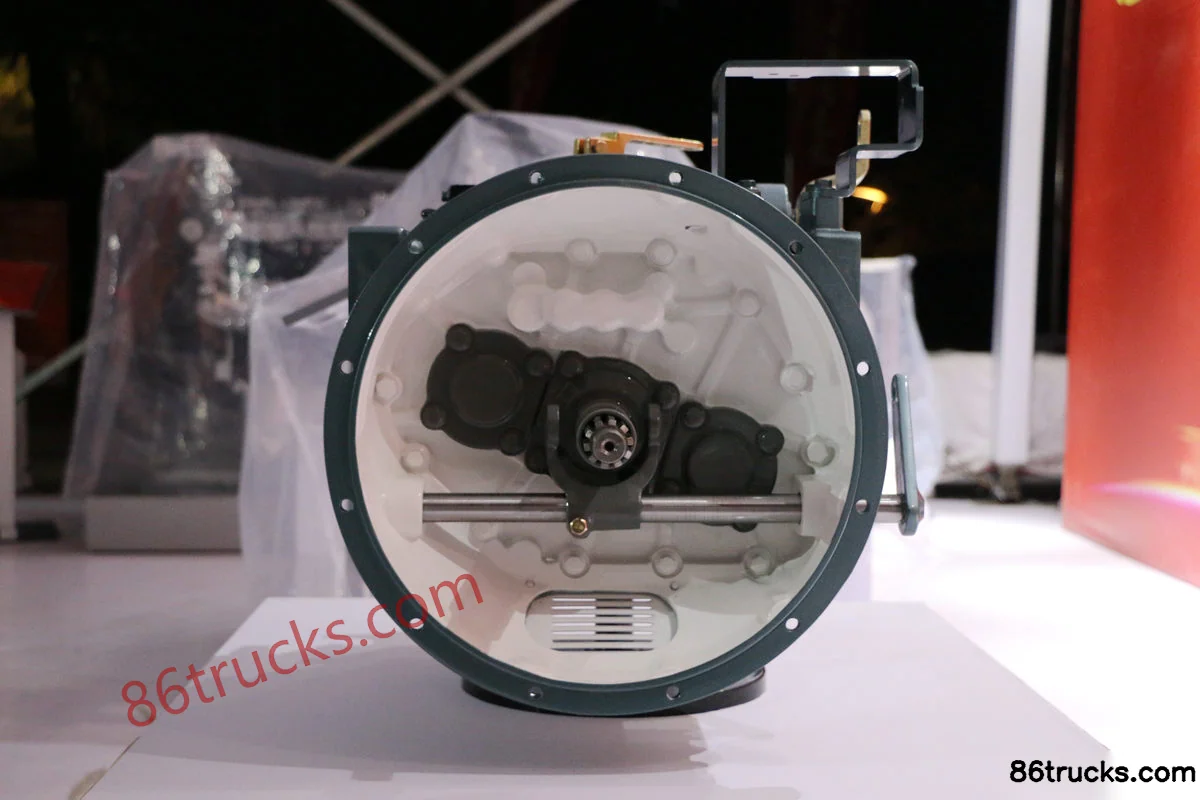

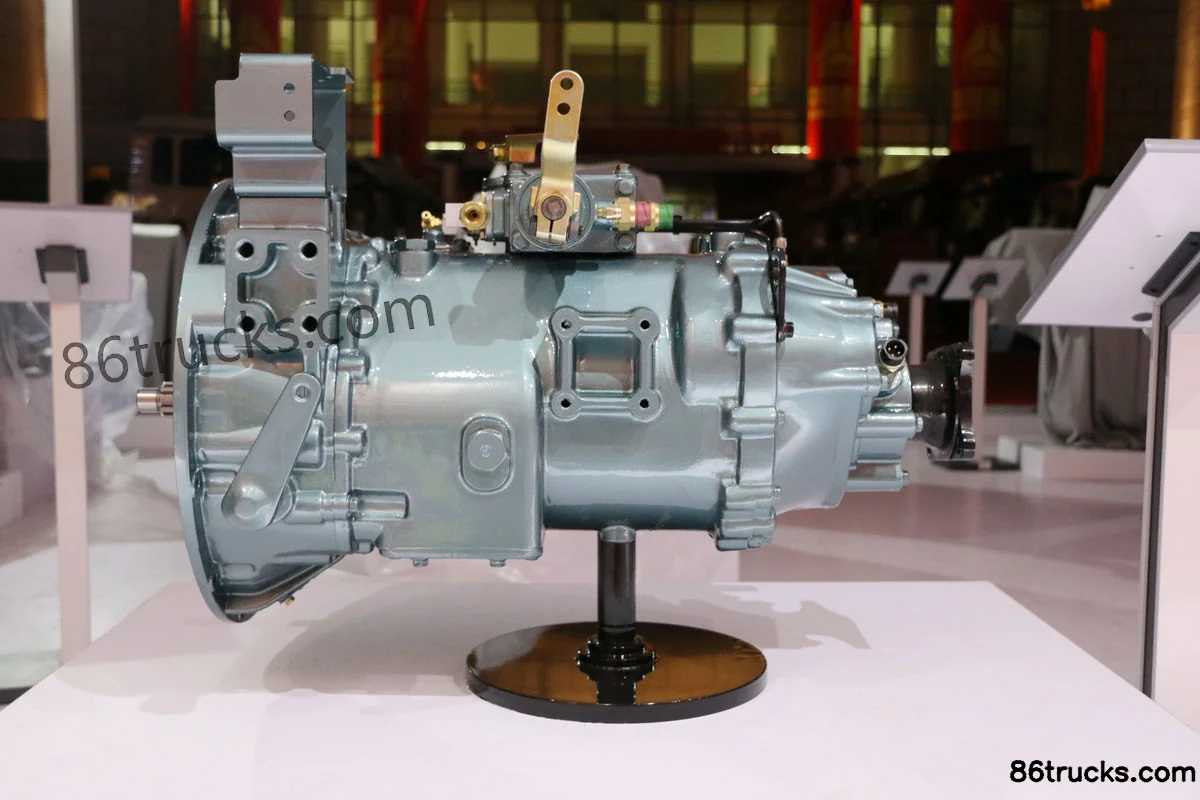

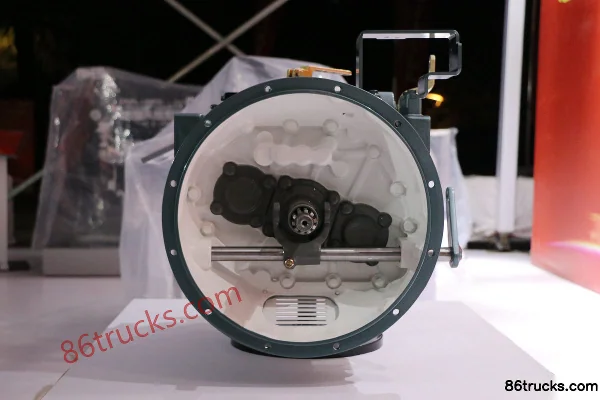

Sinotruk HW90510C2 10-Speed Manual Transmission Exterior (1) | 86Trucks Sinotruk HW90510C2 10-Speed Manual Transmission Exterior (2) | 86Trucks Sinotruk HW90510C2 10-Speed Manual Transmission Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Sinotruk HW90510C2 10-Speed Manual Transmission suited for?

Match Sinotruk HW90510C2 10-Speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Sinotruk HW90510C2 10-Speed Manual Transmission differ from other variants in the same series?

Sinotruk HW90510C2 10-Speed Manual Transmission belongs to Sinotruk HW10 gear series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HW90510C2 10-Speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HW90510C2 10-Speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
