Sinotruk HW19710L 10-speed manual transmission

Export reference
MSRP N/A
1st gear ratio:: 14.28
synchronizer:: Yes
2nd gear ratio:: 10.62
Transmission Model: HW19710L
Transmission Brand: Sinotruk
Max input torque: 1900N·m

Overview

The Sinotruk HW19710L 10-speed manual transmission is a parts product with spec HW19710L.

Model Specs

Legend: ● Standard ○ Optional - N/A

Transmission Parameters
Transmission Brand: Sinotruk
Transmission series: HW10-speed series
Max input torque: 1900N·m
1st gear ratio: 14.28
synchronizer: Yes
2nd gear ratio: 10.62
3rd gear ratio: 7.87
4th gear ratio: 5.88
5th gear ratio: 4.375
6th gear ratio: 3.27
7th gear ratio: 2.43
8th gear ratio: 1.8
Reverse Gear 1 Ratio: 13.91
Transmission weight: 273kg
Transmission oil capacity: 12L
9th gear ratio: 1.34
10-speed gear ratio:
Reverse Gear 2 Ratio: 3.18
Number of gears: 10Gear
Transmission Model: HW19710L
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs

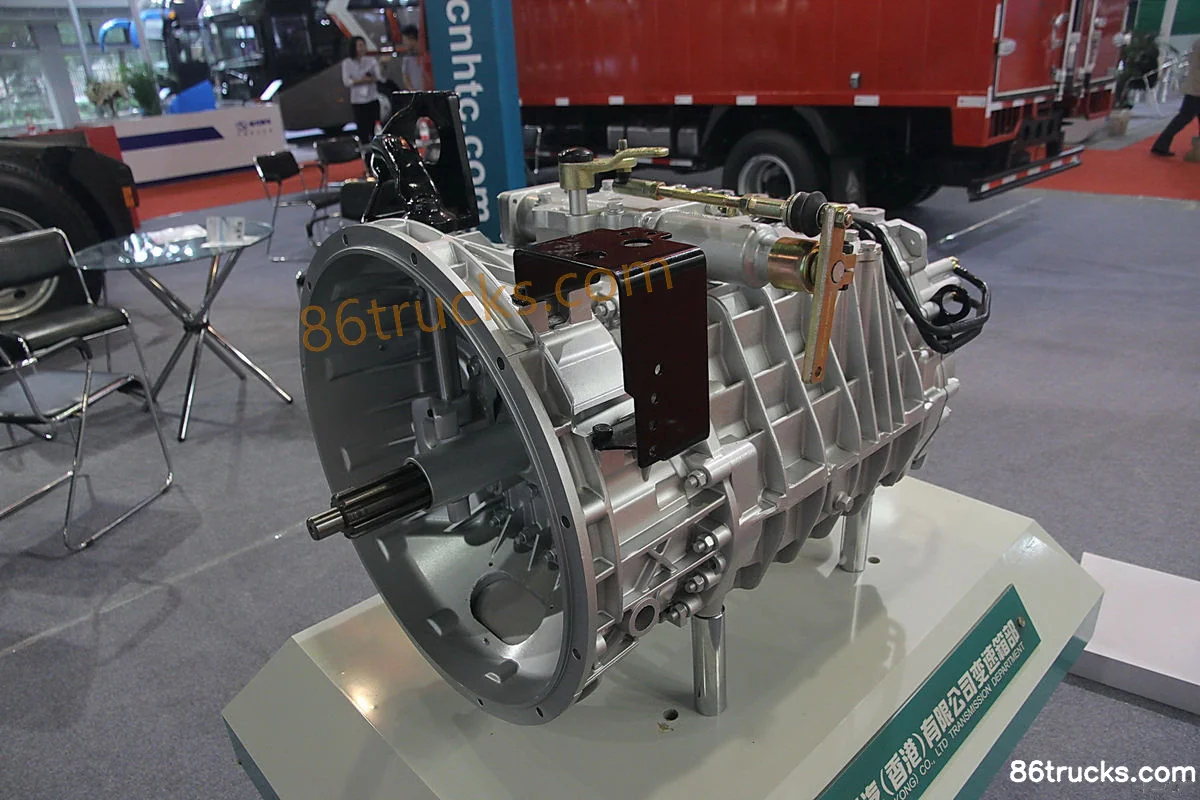

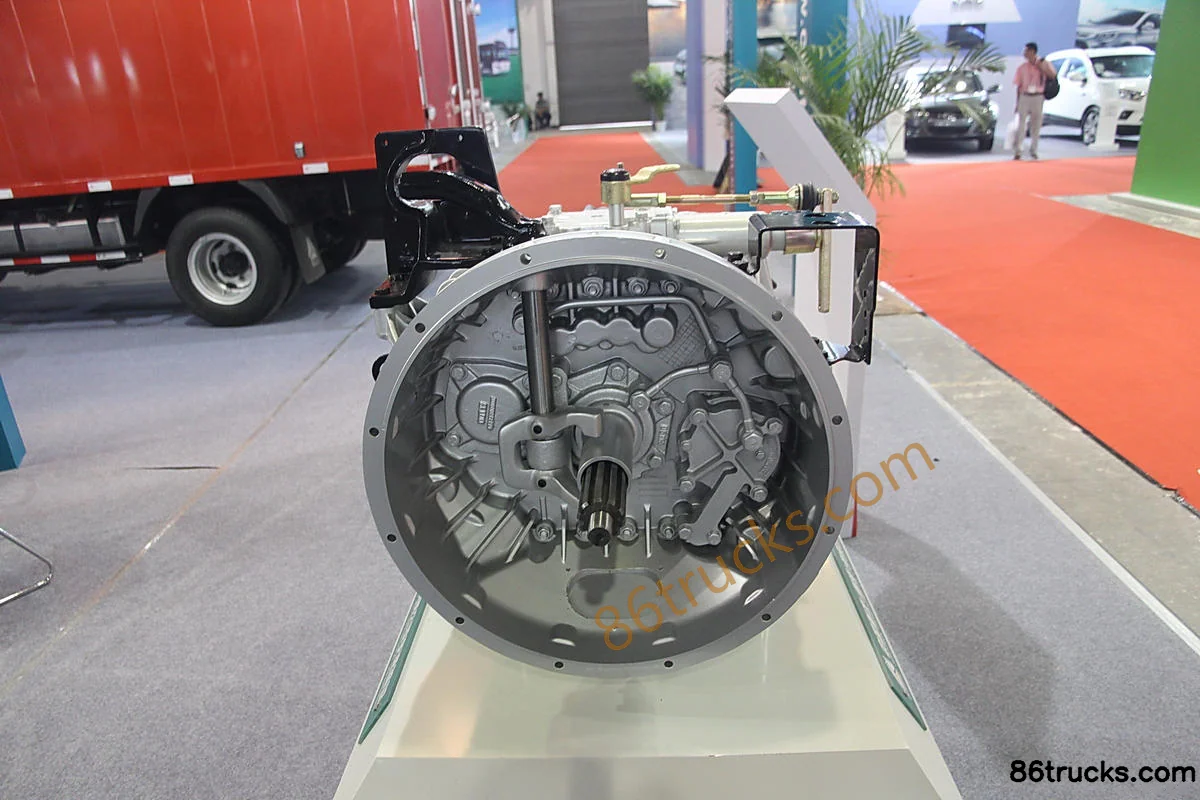

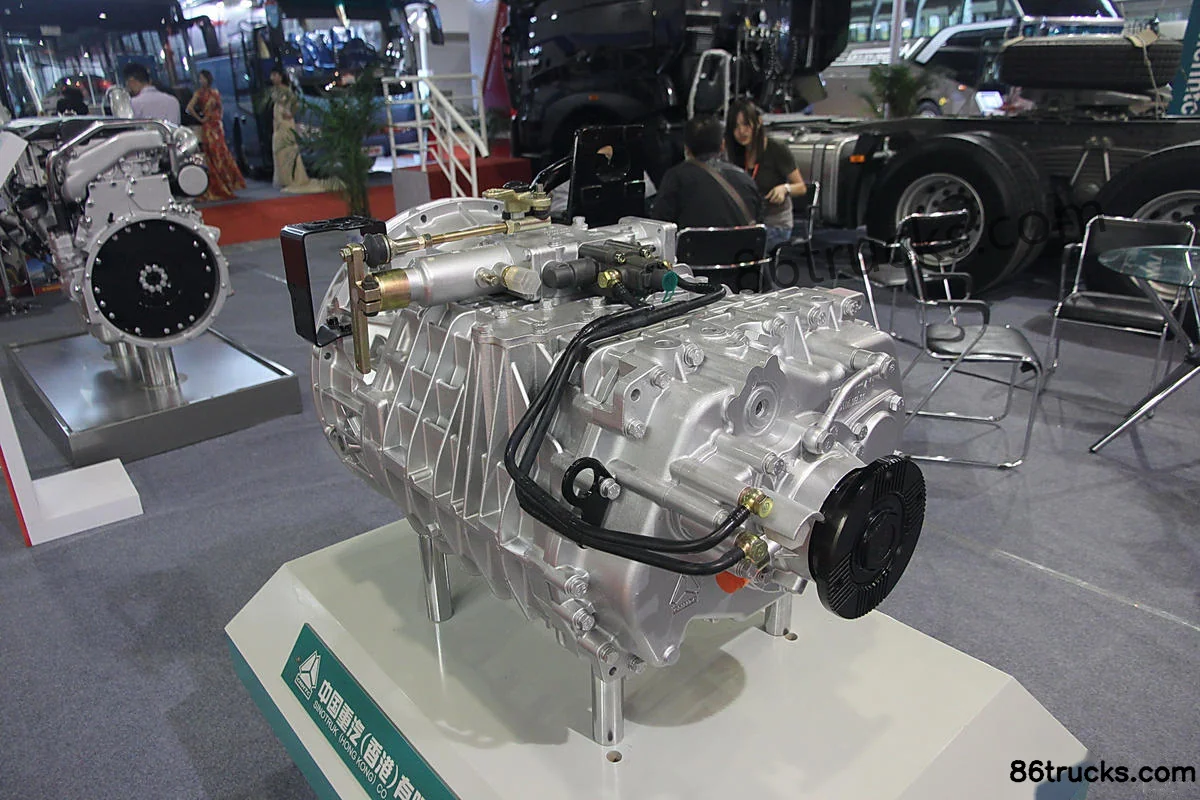

Photos

Exterior3

3 photos

FAQ

What transport jobs is Sinotruk HW19710L 10-speed manual transmission suited for?

Match Sinotruk HW19710L 10-speed manual transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Sinotruk HW19710L 10-speed manual transmission differ from other variants in the same series?

Sinotruk HW19710L 10-speed manual transmission belongs to Sinotruk HW10 gear series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HW19710L 10-speed manual transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HW19710L 10-speed manual transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
