JAC Haowei 24 1.8L 52hp 4X2(6 wheels) diesel single-row flatbed mini truck

Export reference
MSRP N/A
Horsepower: 52
Emission: China III / Euro III
Fuel: Diesel
Curb Weight:: 1.5ton
Wheelbase:: 2400mm
Tire Size:: 6.00-14
seating capacity: 2Personnel
Rated payload: 0.85ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Haowei 24 1.8L 52hp 4X2(6 wheels) diesel single-row flatbed mini truck is a mini truck featuring 2.59m cargo length, stake body cargo body, 2Personnel volume and 0.85t payload. On the powertrain side, it comes with 52 hp, 4X2 (6 wheels) drive, China III / Euro III emissions and Diesel fuel.

China III / Euro III 52 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1022KR1WS
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2400mm
Cab length: 4.62m
Cab width: 1.742m
Cab height: 2.1m
Front track width: 1300mm
rear track: 1240mm
Curb Weight: 1.5ton
Rated payload: 0.85ton
GVWR: 2.48ton
Max. speed: 80km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Approach angle: 17°
departure angle: 18°
Front/rear suspension: 1.04/1.35m
Energy Type: Diesel
Engine parameters
Engine Model: CY4A18
fuel type: Diesel
Displacement: 1.8L
Emission standard: China III / Euro III
Max output power: 38kW
Max hp: 52Horsepower
Transmission Parameters
Transmission Model: W3050
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.59m
Cargo box width: 1.6m
Cargo box height: 0.35m
*Cargo box interior width: 1.6000000238419
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Leaf spring count: 3/5+3
Tire
Tire Size: 6.00-14
Number of tires: 4pcs

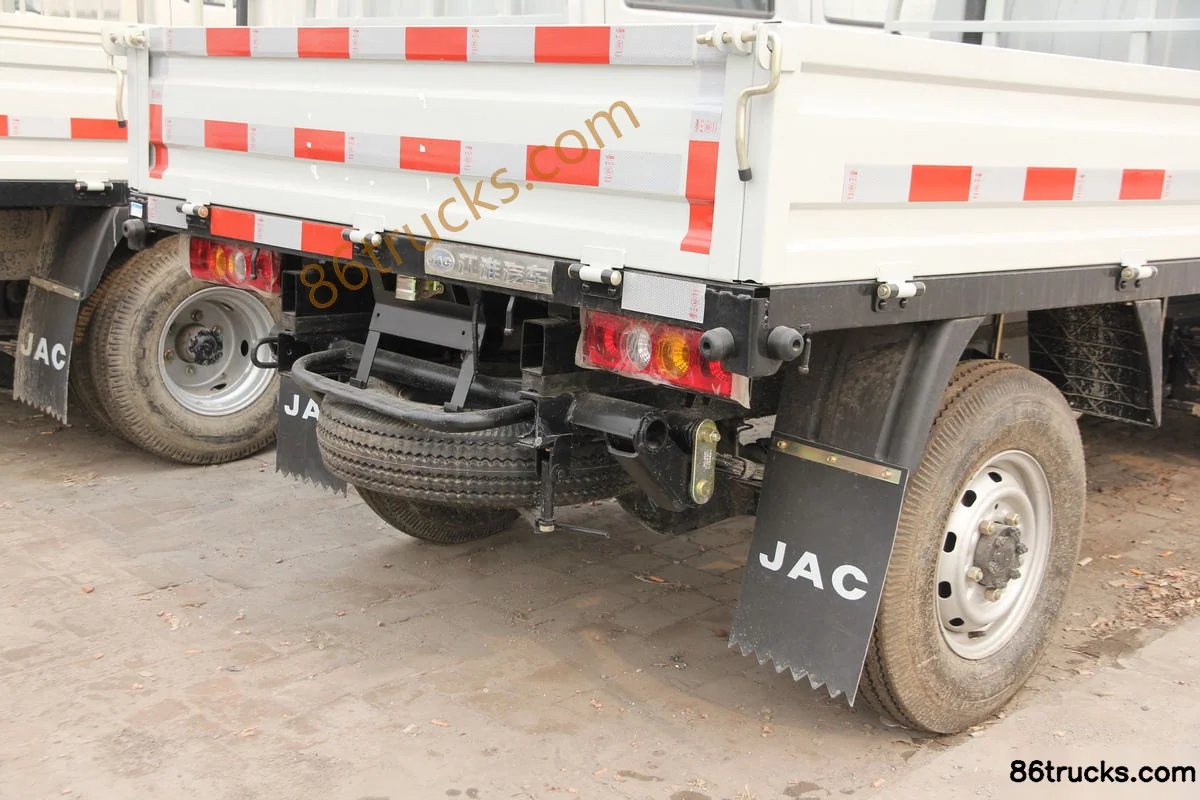

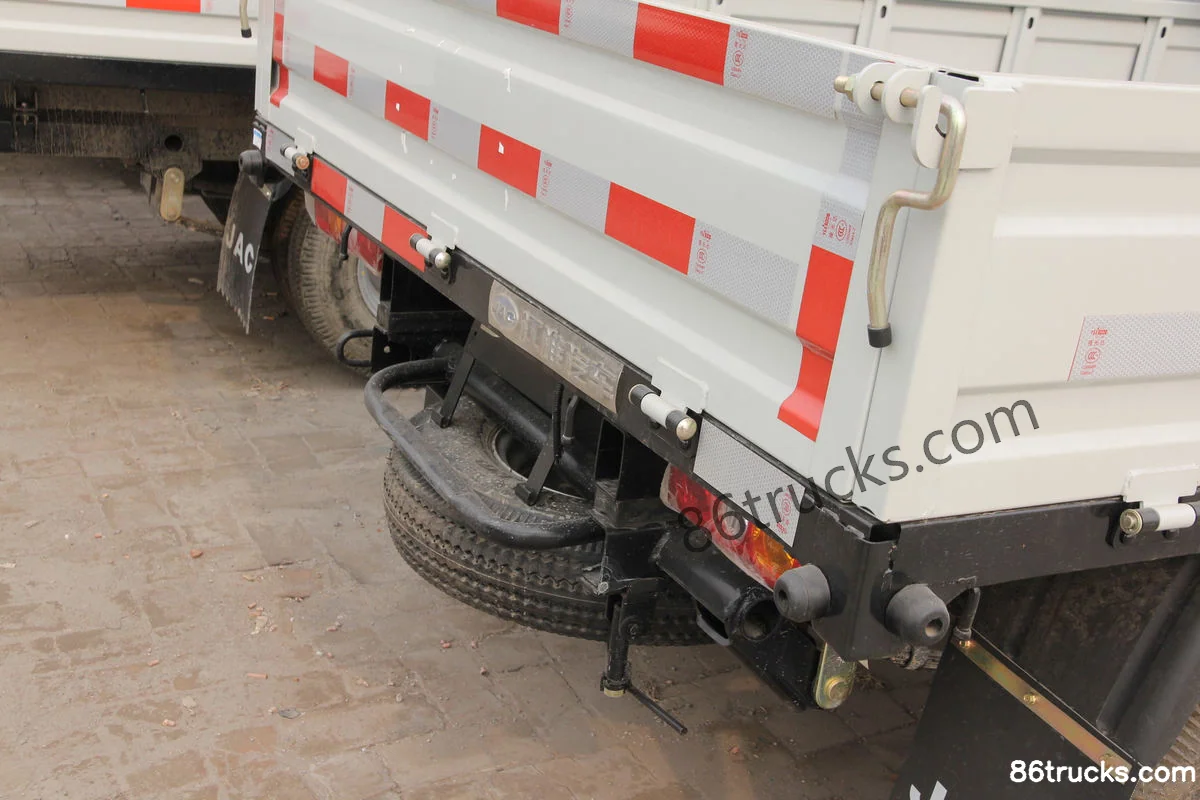

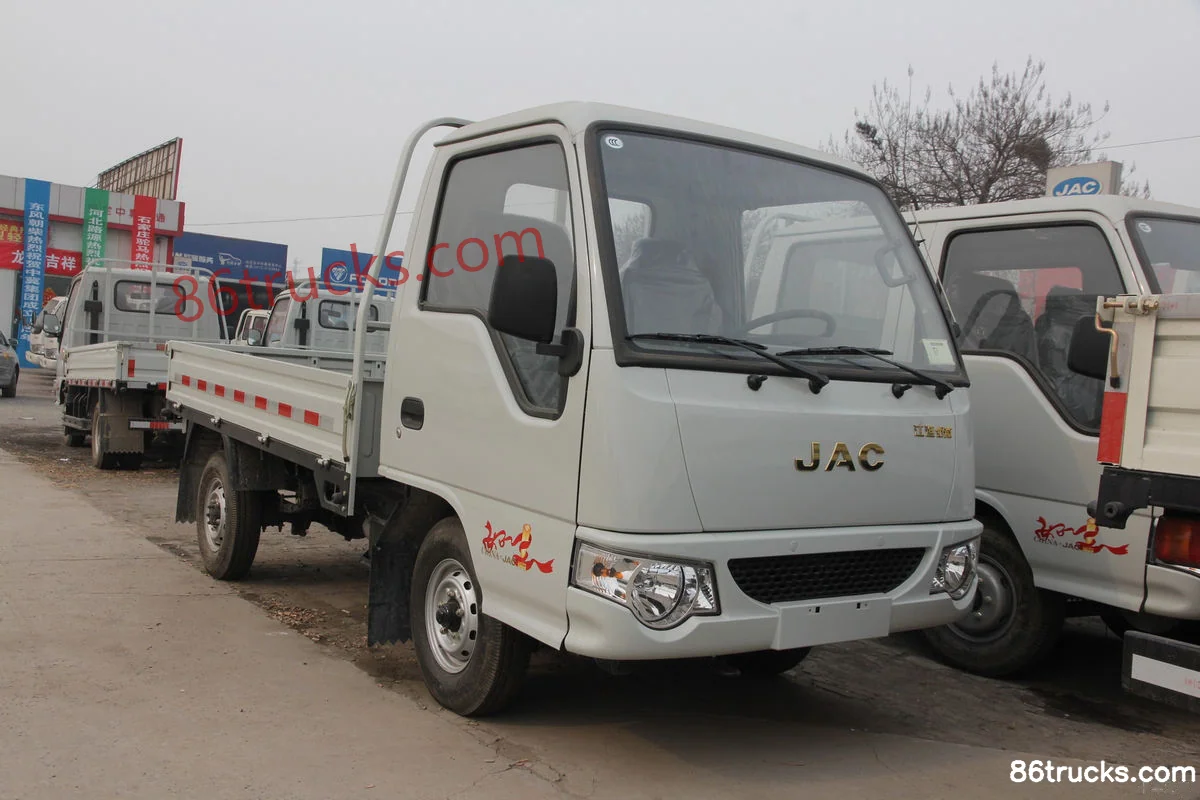

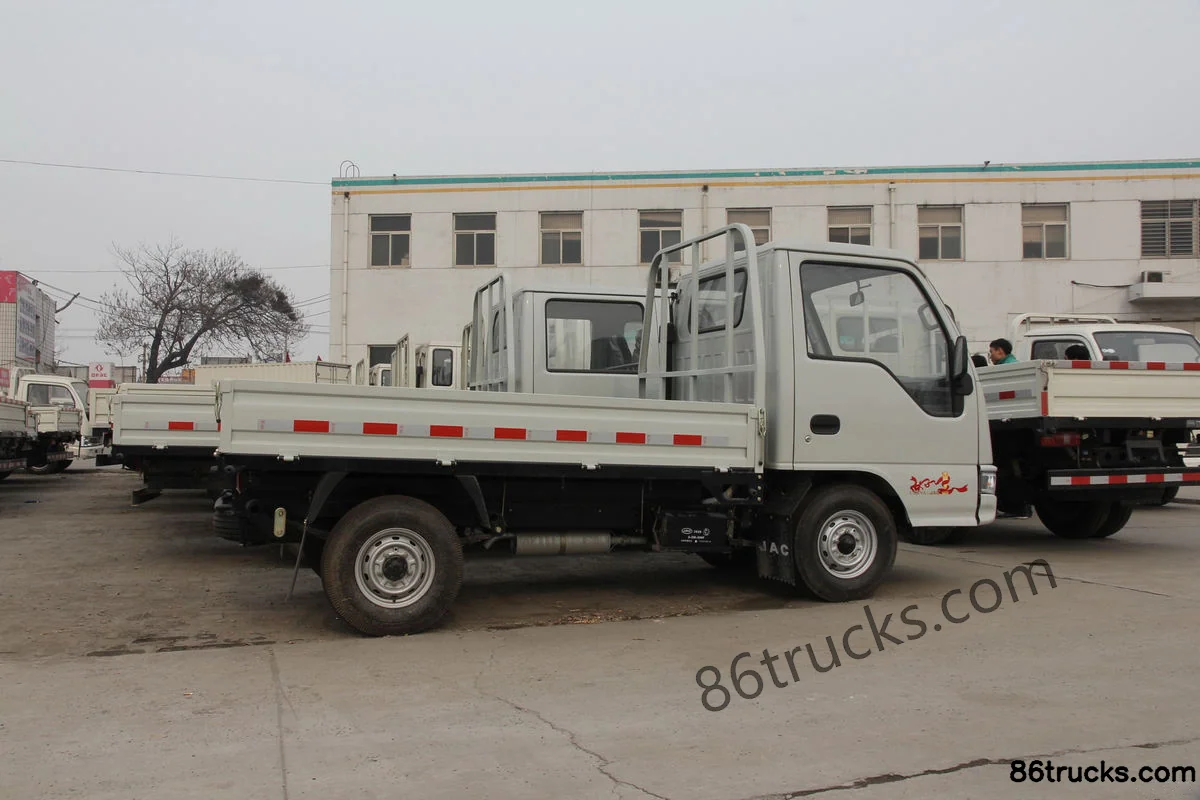

Photos

Exterior3

Cab2

5 photos

FAQ

What emission standard does JAC Haowei 24 1.8L 52hp 4X2(6 wheels) diesel single-row flatbed mini truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Haowei 24 1.8L 52hp 4X2(6 wheels) diesel single-row flatbed mini truck?

Key specs of JAC Haowei 24 1.8L 52hp 4X2(6 wheels) diesel single-row flatbed mini truck: Drive: 4x2; Horsepower: 52 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Haowei 24 1.8L 52hp 4X2(6 wheels) diesel single-row flatbed mini truck suited for?

JAC Haowei 24 1.8L 52hp 4X2(6 wheels) diesel single-row flatbed mini truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Haowei 24 1.8L 52hp 4X2(6 wheels) diesel single-row flatbed mini truck differ from other variants in the same series?

JAC Haowei 24 1.8L 52hp 4X2(6 wheels) diesel single-row flatbed mini truck belongs to JAC Haowei Micro Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Haowei 24 1.8L 52hp 4X2(6 wheels) diesel single-row flatbed mini truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Haowei 24 1.8L 52hp 4X2(6 wheels) diesel single-row flatbed mini truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
