HanmaHL300A 16-ton hub reduction dual rear drive axle

Export reference
MSRP N/A
Front/rear track width:: 1860mm
Transmission Ratio:: 3.867/4.267/4.769/5.263/5.921/6.733
curb weight:: stamped-welded middle axle 920/cast middle axle 1010/stamped-welded rear axle 815/cast rear axle 905kg
Axle Model: Hanma Axle HL300A
Brake size: Φ410X220
Axle Type: Drive axle

Overview

The HanmaHL300A 16-ton hub reduction dual rear drive axle is a parts product with spec Hanma Axle HL300A and Φ410X220 size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Axle Model: Hanma Axle HL300A
Axle Type: Drive axle
Front/rear track width: 1860mm
Rated axle load: 16000ton
Transmission Ratio: 3.867/4.267/4.769/5.263/5.921/6.733
curb weight: stamped-welded middle axle 920/cast middle axle 1010/stamped-welded rear axle 815/cast rear axle 905kg
Brake size: Φ410X220
Max output torque: 100000N·m
Wheel Bolts: 10-M22X1.5mm
Remarks: tandem hub-reduction drive axle

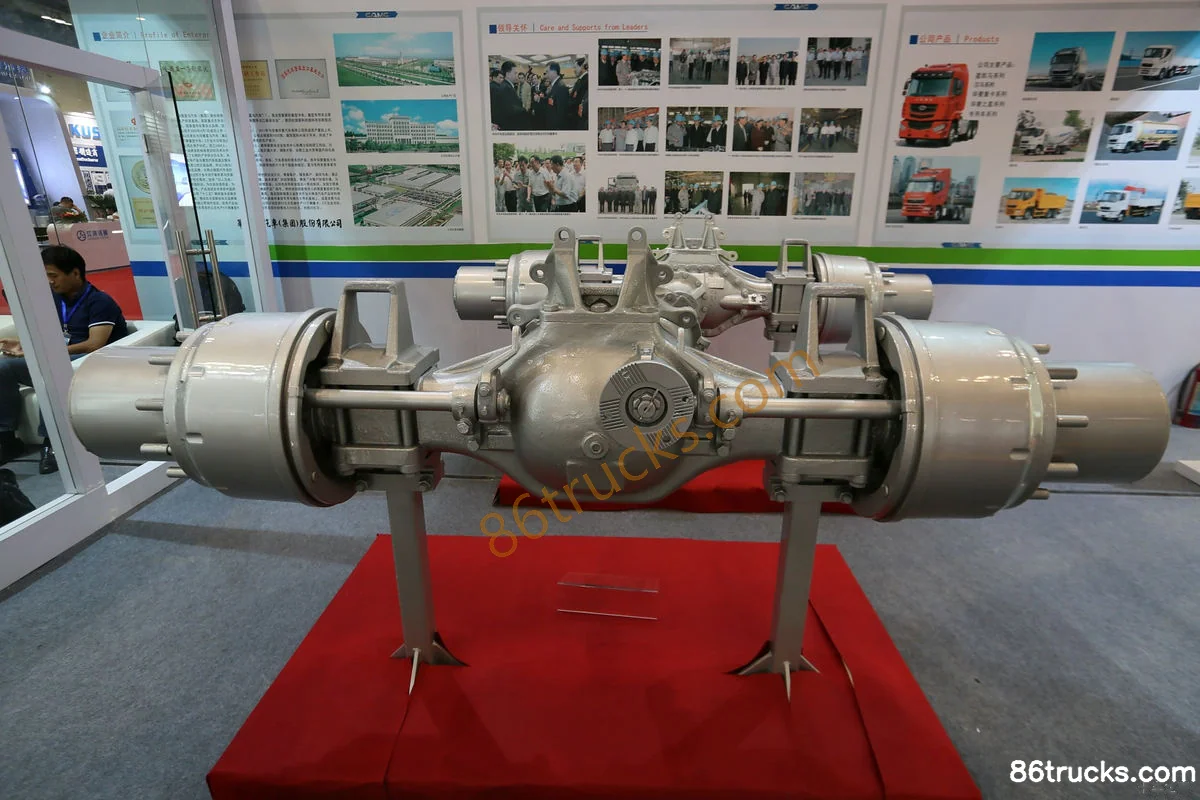

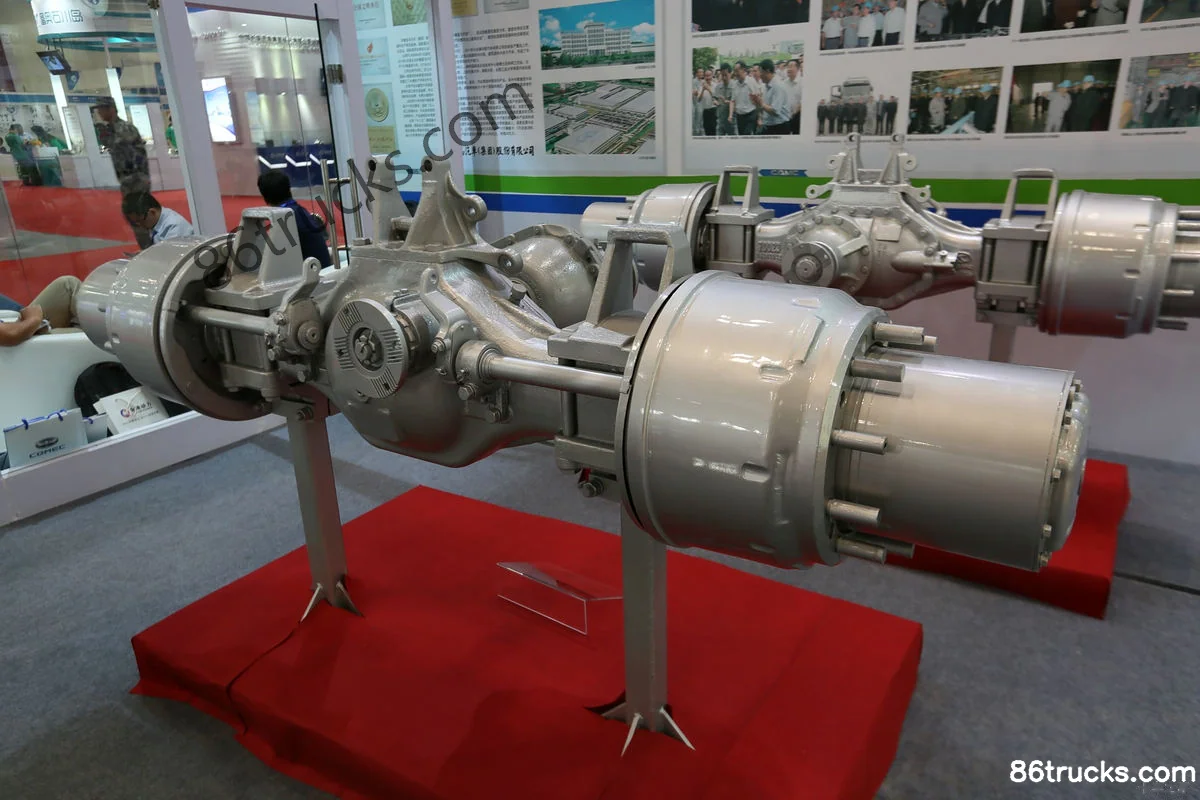

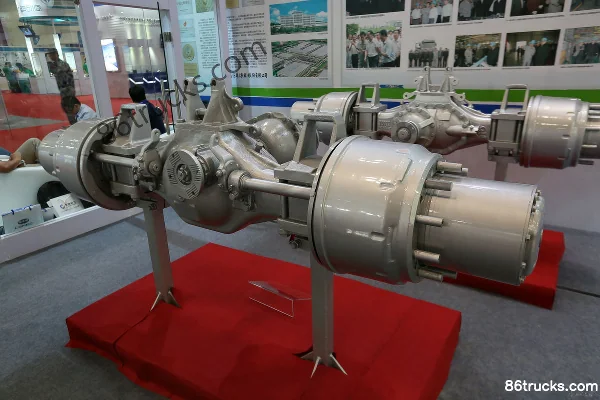

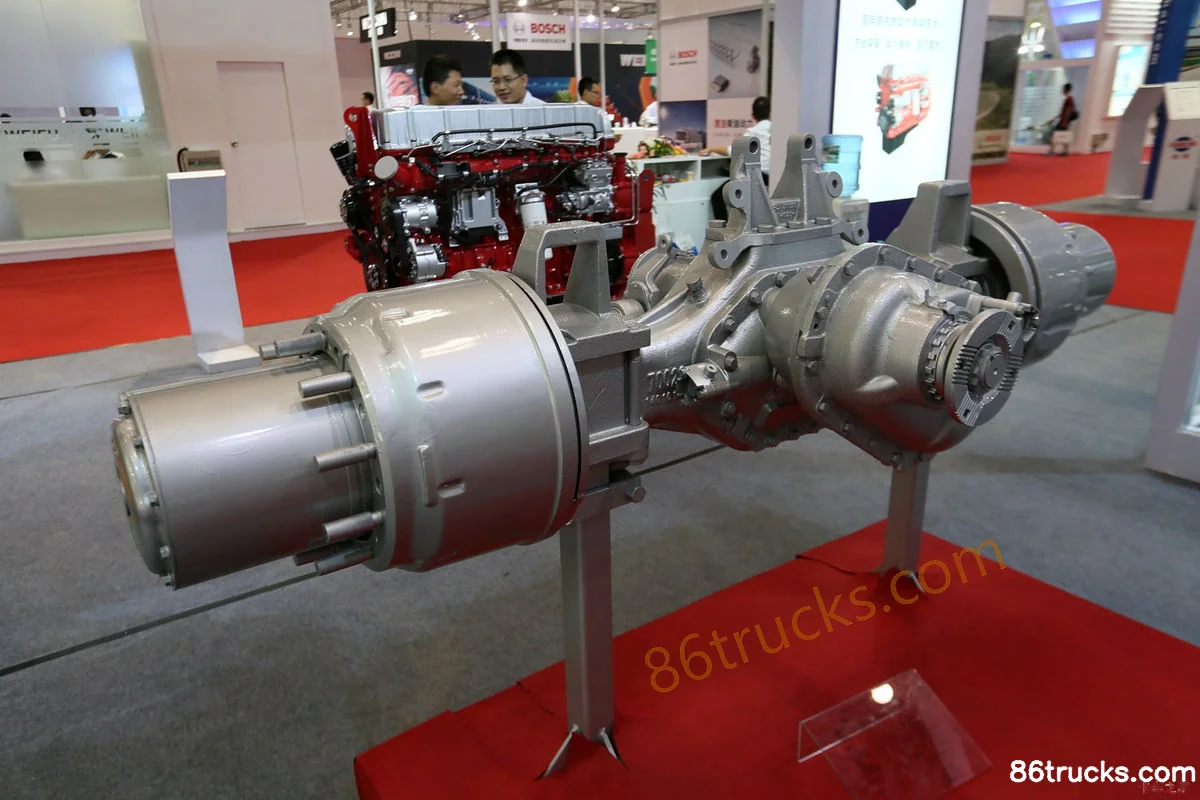

Photos
