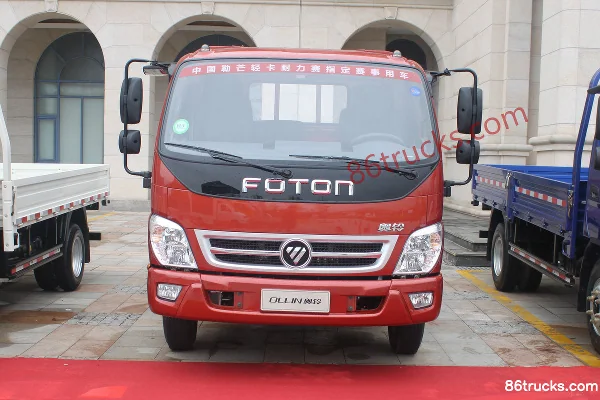

Foton Aoling Jieyun Classic Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck

Export reference
From $15,708
MSRP ¥11.31M CNY
Horsepower: 156
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D30
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Aoling Jieyun Classic Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck is a Light Truck featuring 3.83m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D30 engine, 156 hp, 4X2 (6 wheels) drive and China V emissions.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1048V9JDA-A1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.8m
engine: Yunnei PowerD30TCIE1
transmission: WLYWLY5T92
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.38m
Front track width: 1730mm
rear track: 1615mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
market segment: Building materials, agricultural products
Front/rear suspension: 1.12/1.515m
Version: Classic Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIE1
Engine info: Yunnei Dewei D30
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.977L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 400N·m
Max torque speed: 1500-2700rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: WLYWLY5T92
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.83m
Cargo box width: 2.1m
Cargo box height: 0.4m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab width: 2060mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1665kg
rear axle description: BJ130 integral type
rear axle allowable load: 2830kg
Axle ratio: 4.875
Leaf spring count: 3/7+6
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
steering wheel adjustment: Manual
AC control type: Optional manual.
Power Windows:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
External audio input (AUX/USB/iPod etc.):
standard instrument cluster:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:

Photos

0 photos

FAQ

What is the export price of Foton Aoling Jieyun Classic Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck, and what does it include?

Foton Aoling Jieyun Classic Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck export reference is about From $15,708; MSRP is ¥11.31M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aoling Jieyun Classic Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling Jieyun Classic Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck?

Key specs of Foton Aoling Jieyun Classic Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D30; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling Jieyun Classic Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck suited for?

Foton Aoling Jieyun Classic Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling Jieyun Classic Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck differ from other variants in the same series?

Foton Aoling Jieyun Classic Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck belongs to Foton Jieyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling Jieyun Classic Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling Jieyun Classic Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
