Sinotruk Sitrak G5 heavy truck 330 hp 6X2(8 wheels) 9.52m stake truck

Export reference
From $41,222
MSRP ¥29.68M CNY
Horsepower: 330
Emission: China VI
Fuel: Diesel
Engine: Sinotruk7L
Transmission: Sinotruk
Curb Weight:: 8.27ton
seating capacity: 3Personnel
Rated payload: 16.6ton
Drive 6X2 (8 wheels)
Cargo box type: stake body

Overview

The Sinotruk Sitrak G5 heavy truck 330 hp 6X2(8 wheels) 9.52m stake truck is a Heavy-duty cargo trucks featuring 9.52m cargo length, stake body cargo body, 3Personnel volume and 16.6t payload. Its segment focus covers Agricultural product transport, LTL transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Sinotruk7L engine, 330 hp, 6X2 (8 wheels) drive and China VI emissions.

China VI 330 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1256N56CGF1
Type: Cargo Trucks
Drive type: 6X2
Wheelbase: 1800+4800mm
Box length class: 9.5m
engine: SinotrukMC07H.33-60
transmission: Sinotruk 10-speed
Cab length: 9.25m
Cab width: 2.55m
Cab height: 3m
Front track width: 1998/1998mm
rear track: 1764mm
Curb Weight: 8.27ton
Rated payload: 16.6ton
GVWR: 25ton
Max. speed: 110km/h
Origin: Shandong Zhangqiu
tonnage class: Heavy-duty cargo trucks
Approach angle: 16°
departure angle:
market segment: Agricultural product transport, LTL transport, green channel
Front/rear suspension: 1.45/2.15m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07H.33-60
Engine info: Sinotruk7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.36L
Emission standard: China VI
Max output power: 240kW
Max hp: 330Horsepower
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Model: Sinotruk 10-speed
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.52m
Cargo box width: 2.46m
Cargo box height: 0.6m
*Cargo box interior width: 2.460000038147
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 6500/7000kg
rear axle allowable load: 11500kg
Leaf spring count: 2/2/3+2,3/3/3+2,3/3/9+8,11/11/9+8,5/3/11+9,3/3/3+4,3/3/9+3,3/3/10+9,11/11/10+9
Tire
Tire Size: 295/80R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:

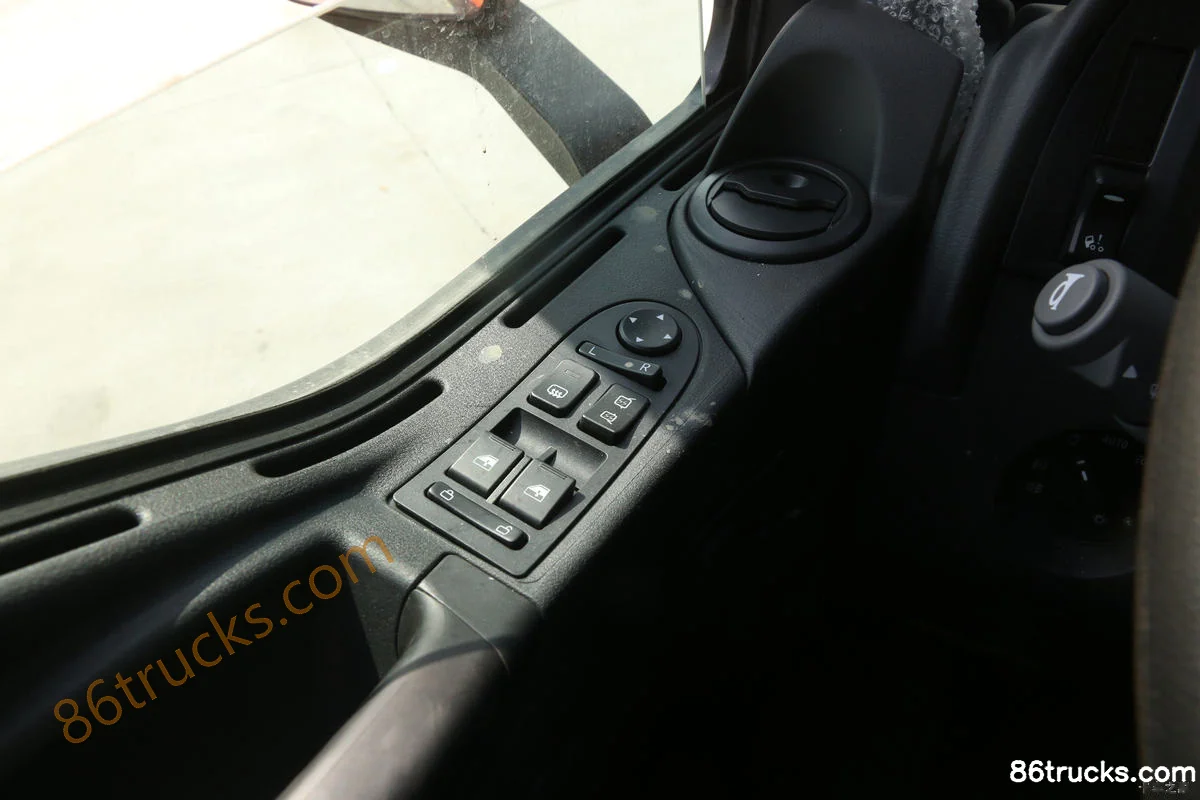

Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:

Photos

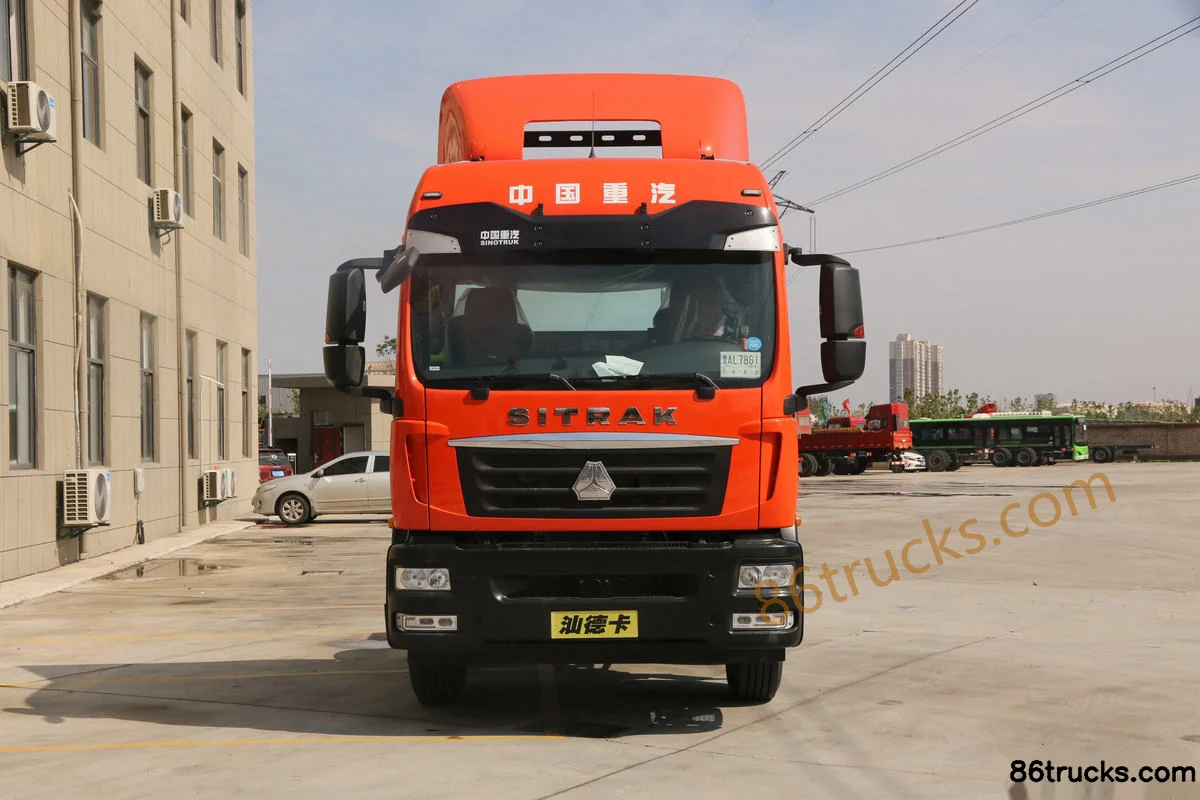

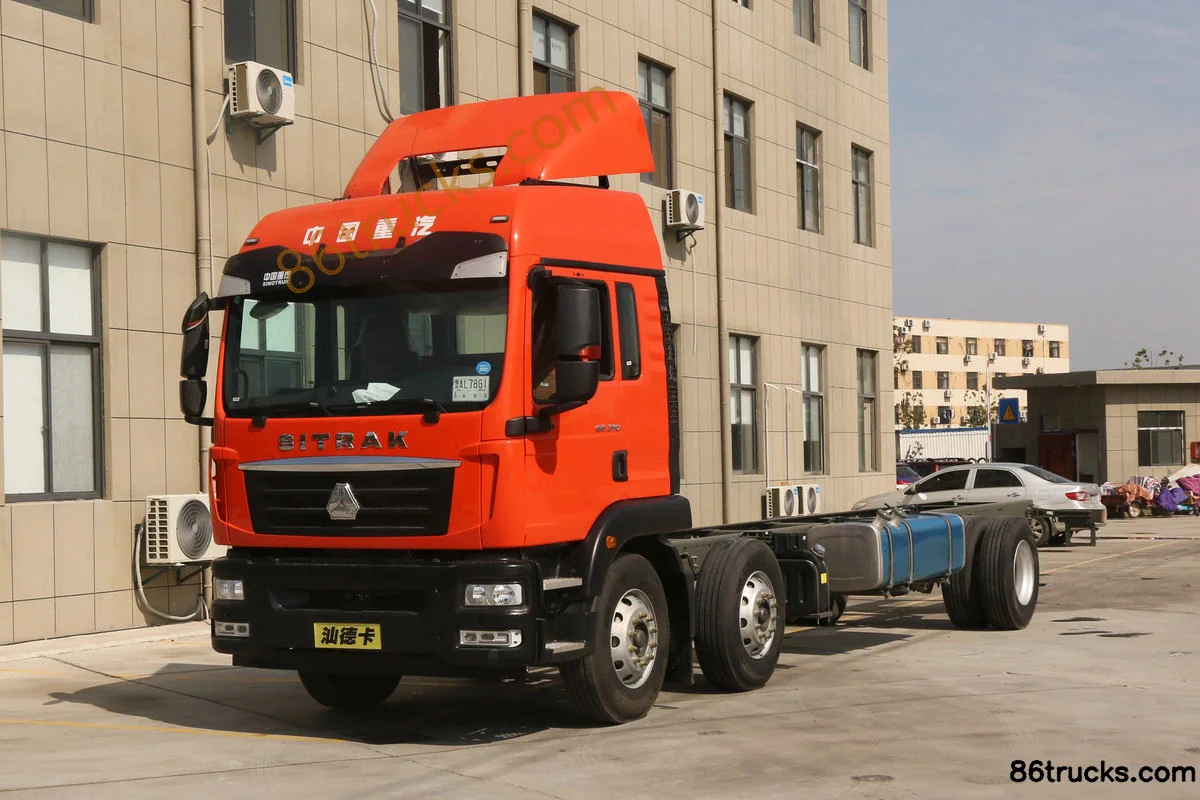

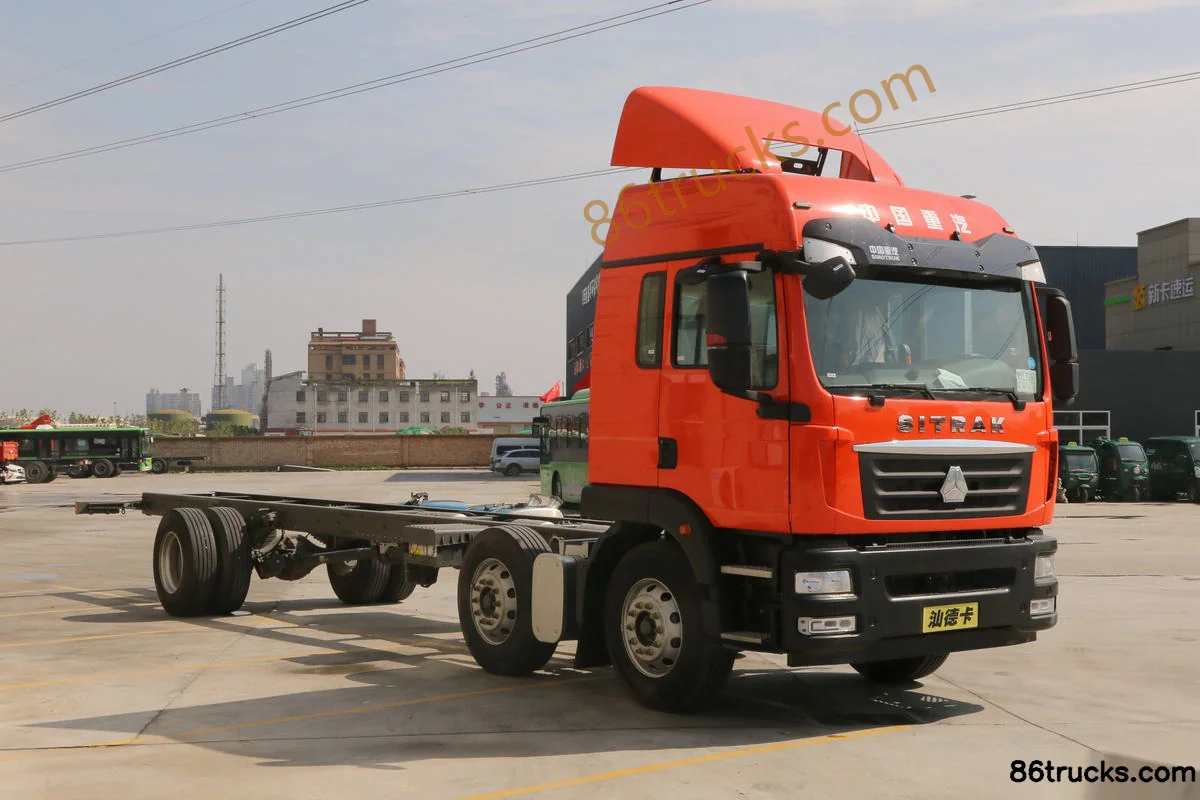

Exterior3

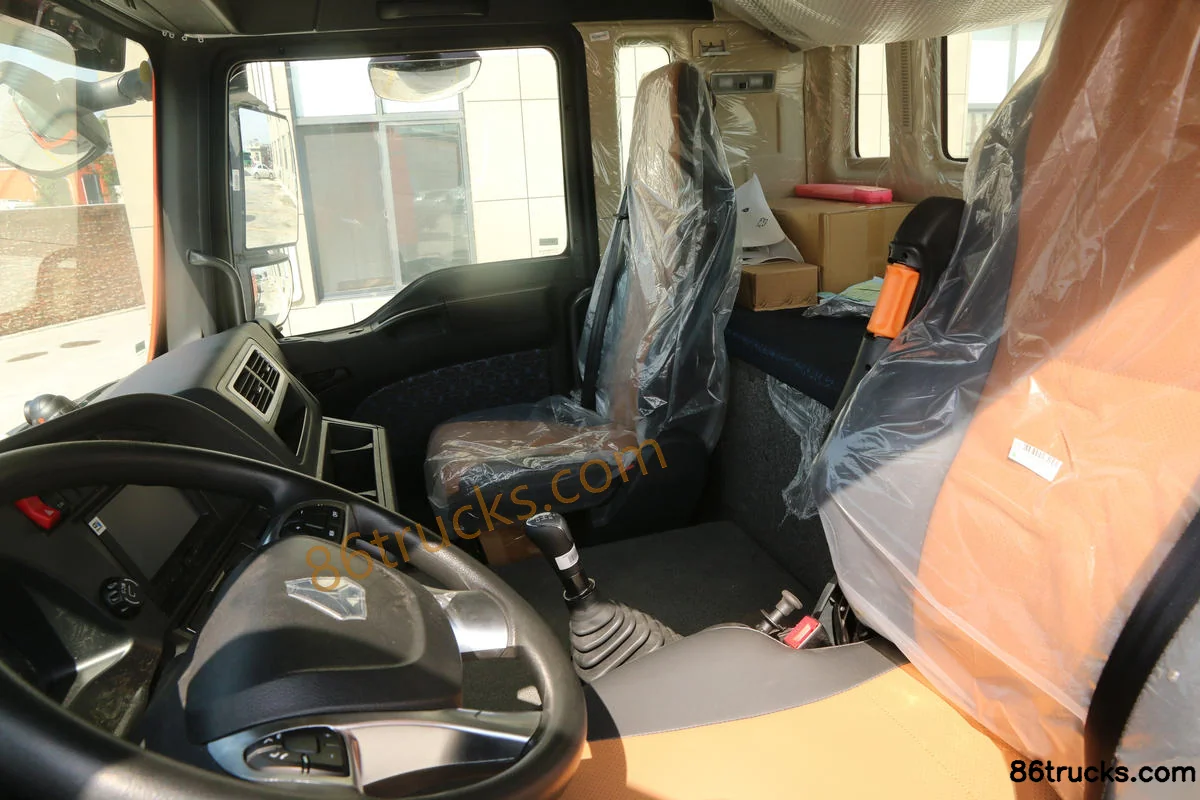

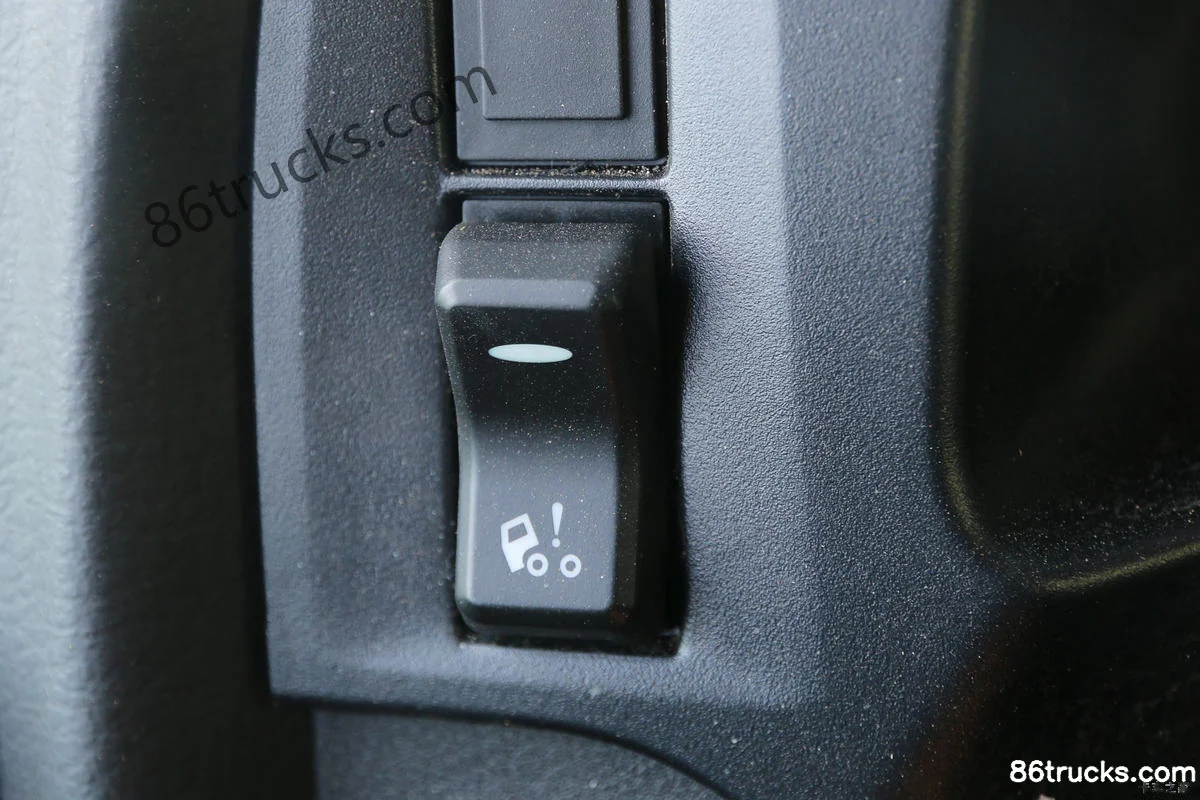

Cab3

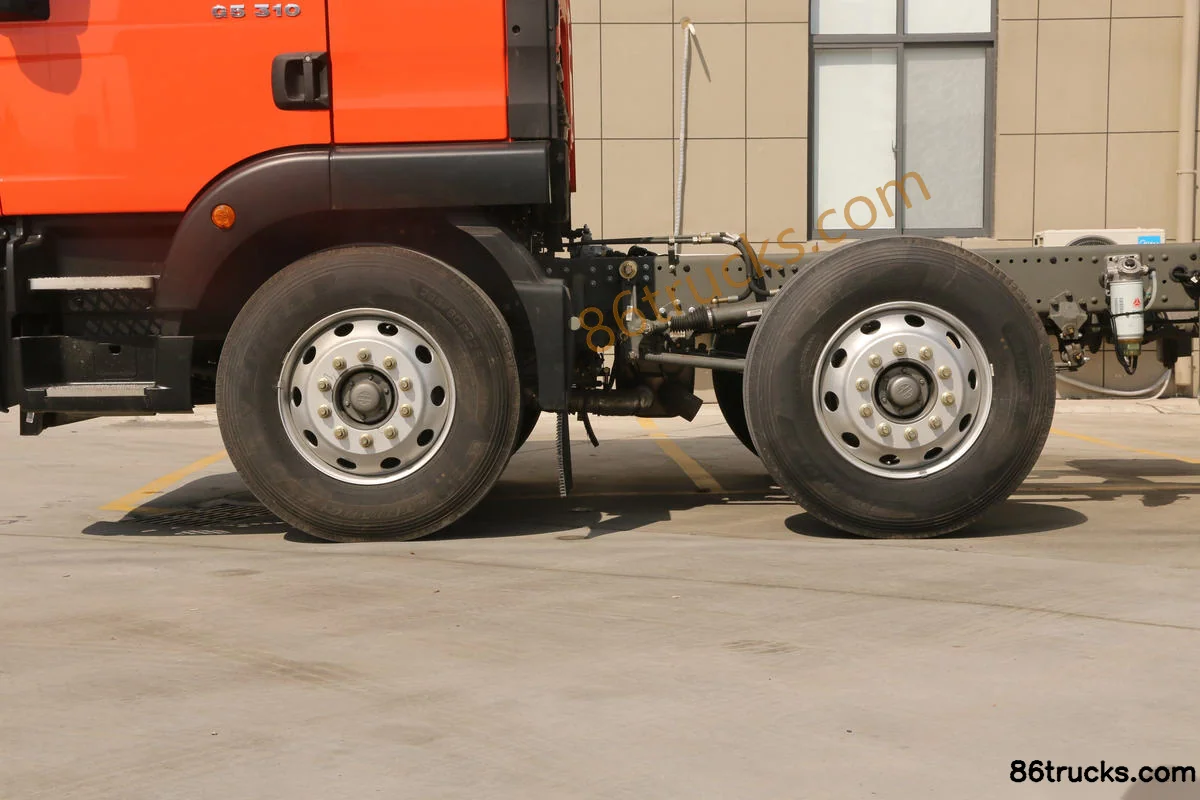

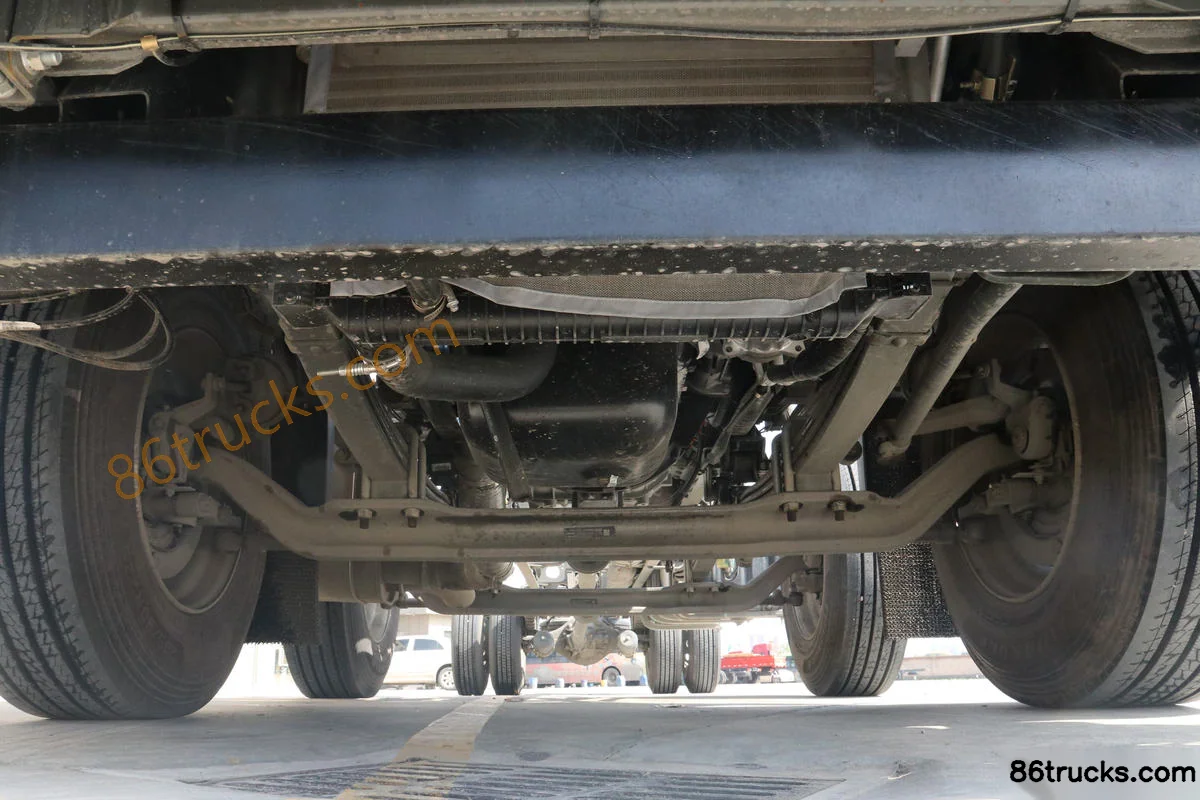

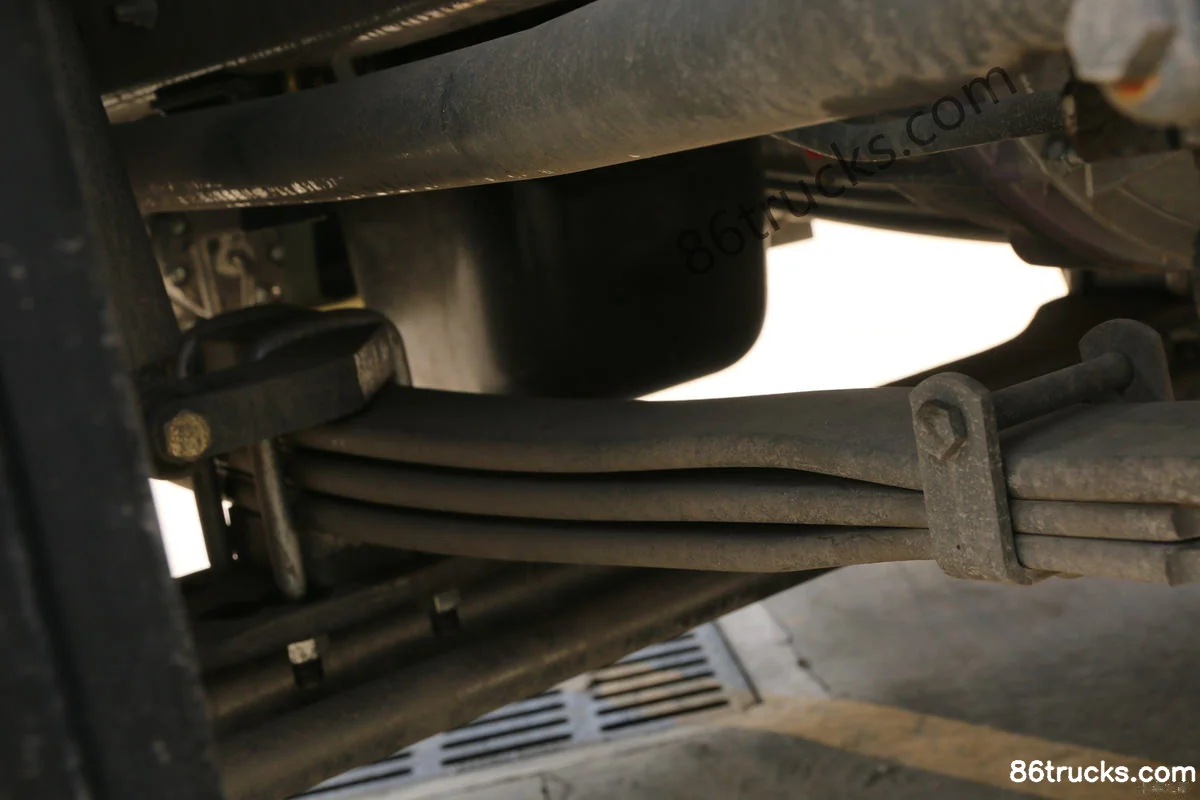

Chassis3

9 photos

FAQ

What is the export price of Sinotruk Sitrak G5 heavy truck 330 hp 6X2(8 wheels) 9.52m stake truck, and what does it include?

Sinotruk Sitrak G5 heavy truck 330 hp 6X2(8 wheels) 9.52m stake truck export reference is about From $41,222; MSRP is ¥29.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Sitrak G5 heavy truck 330 hp 6X2(8 wheels) 9.52m stake truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak G5 heavy truck 330 hp 6X2(8 wheels) 9.52m stake truck?

Key specs of Sinotruk Sitrak G5 heavy truck 330 hp 6X2(8 wheels) 9.52m stake truck: Drive: 6x2; Horsepower: 330 hp; Emission: China VI; Fuel: Diesel; Engine: Sinotruk7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak G5 heavy truck 330 hp 6X2(8 wheels) 9.52m stake truck suited for?

Sinotruk Sitrak G5 heavy truck 330 hp 6X2(8 wheels) 9.52m stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Sitrak G5 heavy truck 330 hp 6X2(8 wheels) 9.52m stake truck differ from other variants in the same series?

Sinotruk Sitrak G5 heavy truck 330 hp 6X2(8 wheels) 9.52m stake truck belongs to Sitrak G5 heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak G5 heavy truck 330 hp 6X2(8 wheels) 9.52m stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak G5 heavy truck 330 hp 6X2(8 wheels) 9.52m stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
