SHACMAN Delong F3000 336 hp 6X4(10 wheels) 4.5 m³ concrete mixer truck (Chengliwei brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 15ton
Wheelbase:: 3975+1400mm
Tire Size:: 11.00R20,12.00R20 16PR,295/80R22.5
Cab dimensions:: 9.85×2.55×3.95m
Truck Type:: concrete mixer truck
Rated payload: 9.87ton
Drive 6X4 (10 wheels)
Horsepower 336
Emission China V

Overview

The SHACMAN Delong F3000 336 hp 6X4(10 wheels) 4.5 m³ concrete mixer truck (Chengliwei brand) is a concrete mixer truck featuring 9.87t payload, 15ton GVW, 6X4 (10 wheels) drive and 9.85×2.55×3.95m cab. On the powertrain side, it comes with 336 hp, China V emissions and Diesel fuel.

China V 336 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.85×2.55×3.95m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 3975+1400mm
Vehicle origin: Suizhou, Hubei
Front/rear track width: Front: 2036,2011mm; Rear: 1860/1860
Curb Weight: 15ton
Rated payload: 9.87ton
Max. speed: 80km/h
Front/rear suspension: 1.525/2.95m
Body Parameters
Mixing drum capacity: 4.5m³
Vehicle certification code: SX5258GJBDR404
Body Brand: Chengliwei
Engine parameters
Engine Model: WeichaiWP10.336E53
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 247kW
Max hp: 336Horsepower
Rated speed: 1900rpm
Engine Type: Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled
Chassis Specs
Chassis Series: Delong F3000
Chassis Model: SX1250FB
Leaf spring count: 9/12
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JS135
Tire
Tire Size: 11.00R20,12.00R20 16PR,295/80R22.5
Number of tires: 10pcs

Photos

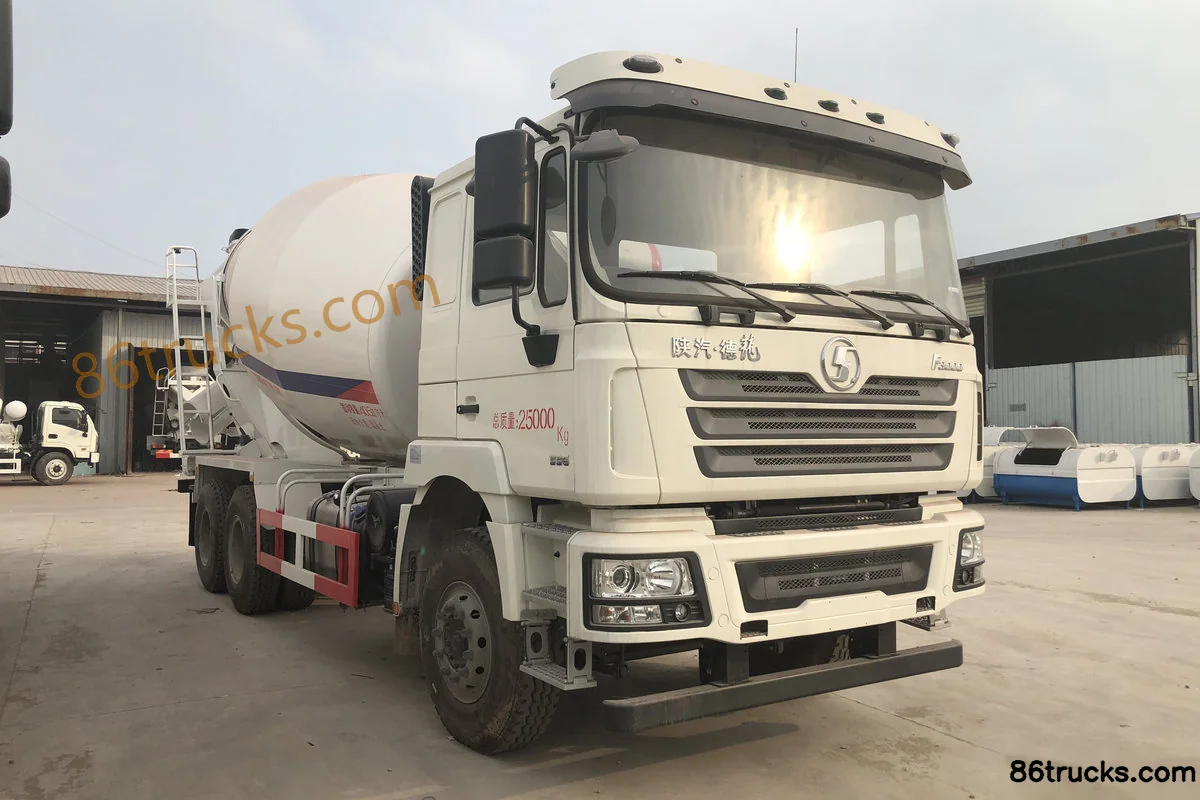

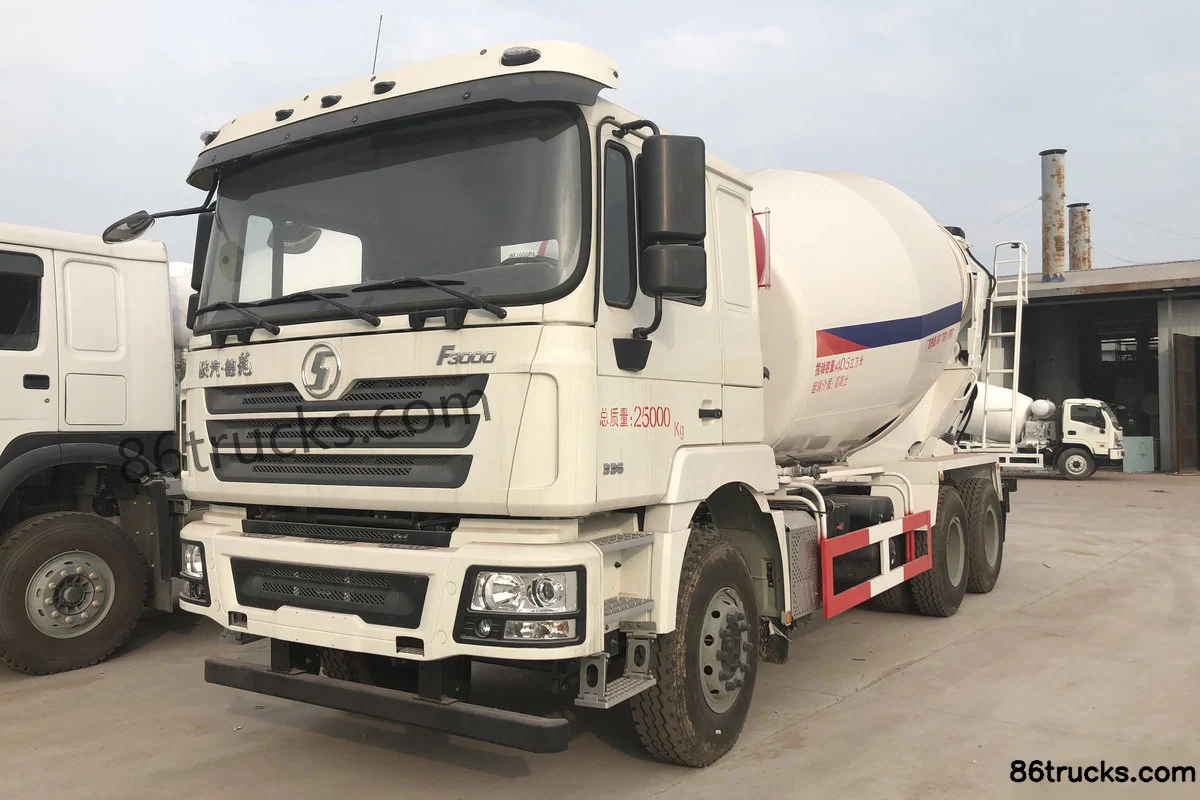

Exterior2

2 photos

FAQ

What emission standard does SHACMAN Delong F3000 336 hp 6X4(10 wheels) 4.5 m³ concrete mixer truck (Chengliwei brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong F3000 336 hp 6X4(10 wheels) 4.5 m³ concrete mixer truck (Chengliwei brand)?

Key specs of SHACMAN Delong F3000 336 hp 6X4(10 wheels) 4.5 m³ concrete mixer truck (Chengliwei brand): Drive: 6x4; Horsepower: 336 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong F3000 336 hp 6X4(10 wheels) 4.5 m³ concrete mixer truck (Chengliwei brand) suited for?

SHACMAN Delong F3000 336 hp 6X4(10 wheels) 4.5 m³ concrete mixer truck (Chengliwei brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong F3000 336 hp 6X4(10 wheels) 4.5 m³ concrete mixer truck (Chengliwei brand) differ from other variants in the same series?

SHACMAN Delong F3000 336 hp 6X4(10 wheels) 4.5 m³ concrete mixer truck (Chengliwei brand) belongs to Chengliwei SHACMAN chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong F3000 336 hp 6X4(10 wheels) 4.5 m³ concrete mixer truck (Chengliwei brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong F3000 336 hp 6X4(10 wheels) 4.5 m³ concrete mixer truck (Chengliwei brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
