FAW Hongta FAW Jiefang Classic 1 Series 102 hp 4X2(6 wheels) 2.295m dump truck

Export reference
From $11,806
MSRP ¥8.5M CNY
Emission: China VI
Fuel: Diesel
Transmission: Mengwo
Curb Weight:: 2.45ton
Wheelbase:: 2600mm
Tire Size:: 6.00R15LT 10PR/245/70R17.5 16PR
Rated payload: 1.425ton
Drive 4X2 (6 wheels)
Horsepower 102
Cargo box type: Rear-dump body

Overview

The FAW Hongta FAW Jiefang Classic 1 Series 102 hp 4X2(6 wheels) 2.295m dump truck is a Light Truck featuring 1.425t payload, 4.2t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD20TCIF14 engine, 102 hp, China VI emissions and Mengwo transmission.

China VI 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3040K3LRE6
Drive type: 4X2
Wheelbase: 2600mm
engine: Yunnei PowerD20TCIF14
transmission: MengwoMW5G28BH
Rear Axle Ratio: 4.33
Cab length: 4.99m
Cab width: 1.89m
Cab height: 2.02m
Front track width: 1361mm
rear track: 1445mm
Curb Weight: 2.45ton
Rated payload: 1.425ton
GVWR: 4.2ton
Origin: Qujing, Yunnan
tonnage class: Light Truck
Approach angle: 22°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD20TCIF14
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2L
Emission standard: China VI
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3600rpm
Transmission Parameters
Transmission Model: MengwoMengwoMW5G28BH
Transmission Brand: Mengwo
Forward gears: 5Gear
Number of Reverse Gears:

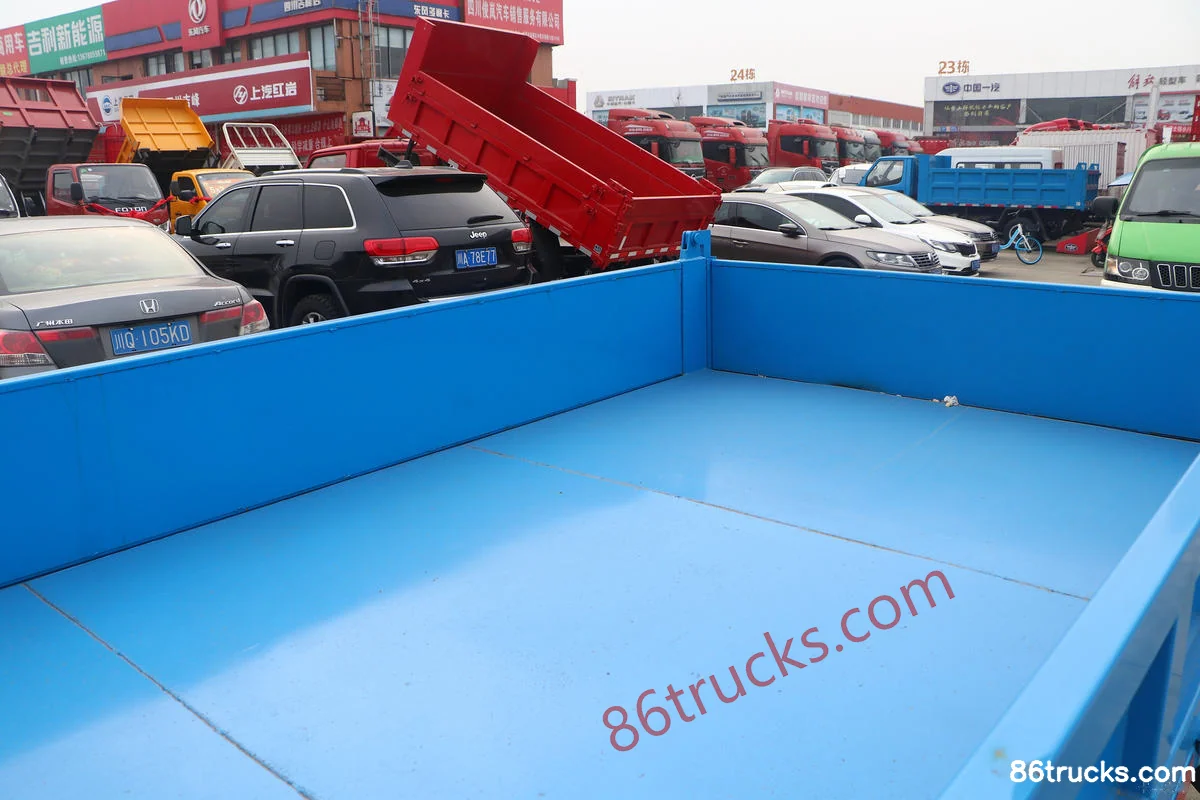

Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 2.295m
Cargo box width: 1.8m
Cargo box height: 0.6m
Cab parameters
Cab: Double cab
seating capacity: 5Personnel
fuel tank
Fuel tank capacity: 53L
Chassis Specs
Front axle allowable load: 1620kg
rear axle description: 2T
rear axle allowable load: 2580kg
Axle ratio: 4.33
Leaf spring count: 4/5+2
Tire
Tire Size: 6.00R15LT 10PR/245/70R17.5 16PR
Number of tires: 4pcs
Control configuration
ABS:
Service brake
Parking brake: Spring brake

Photos

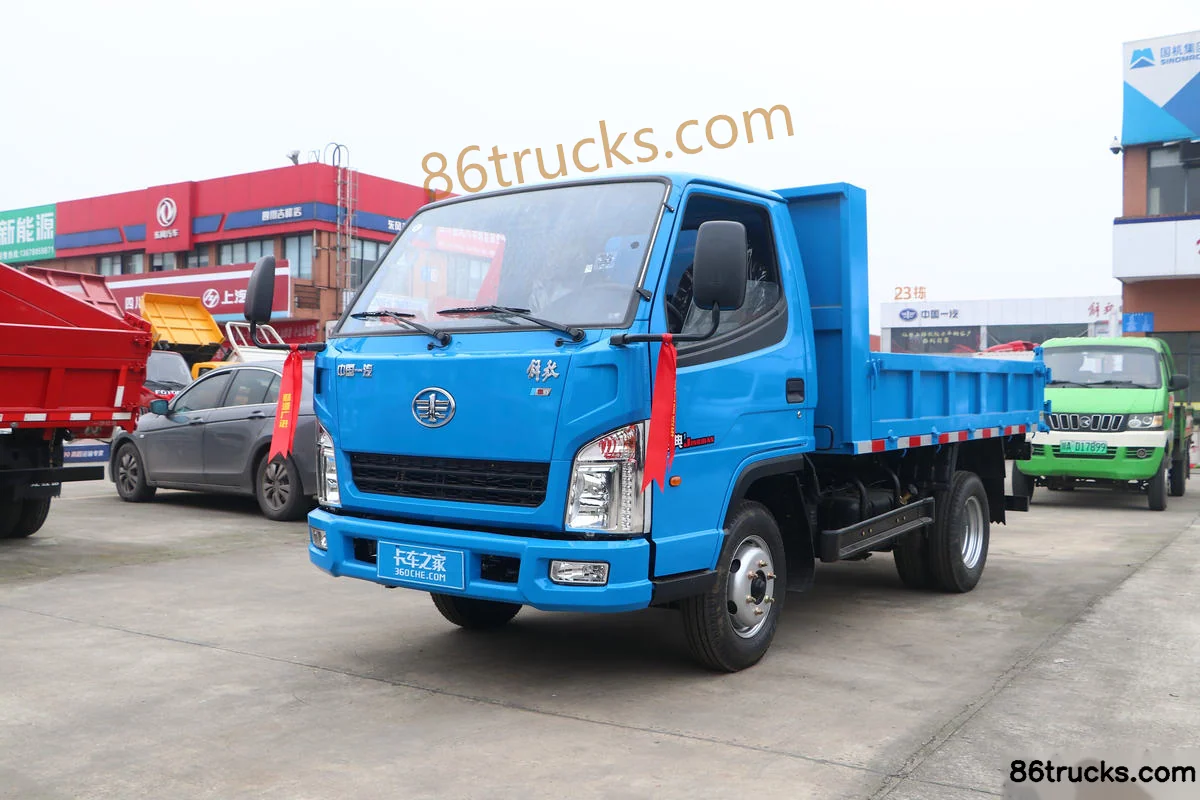

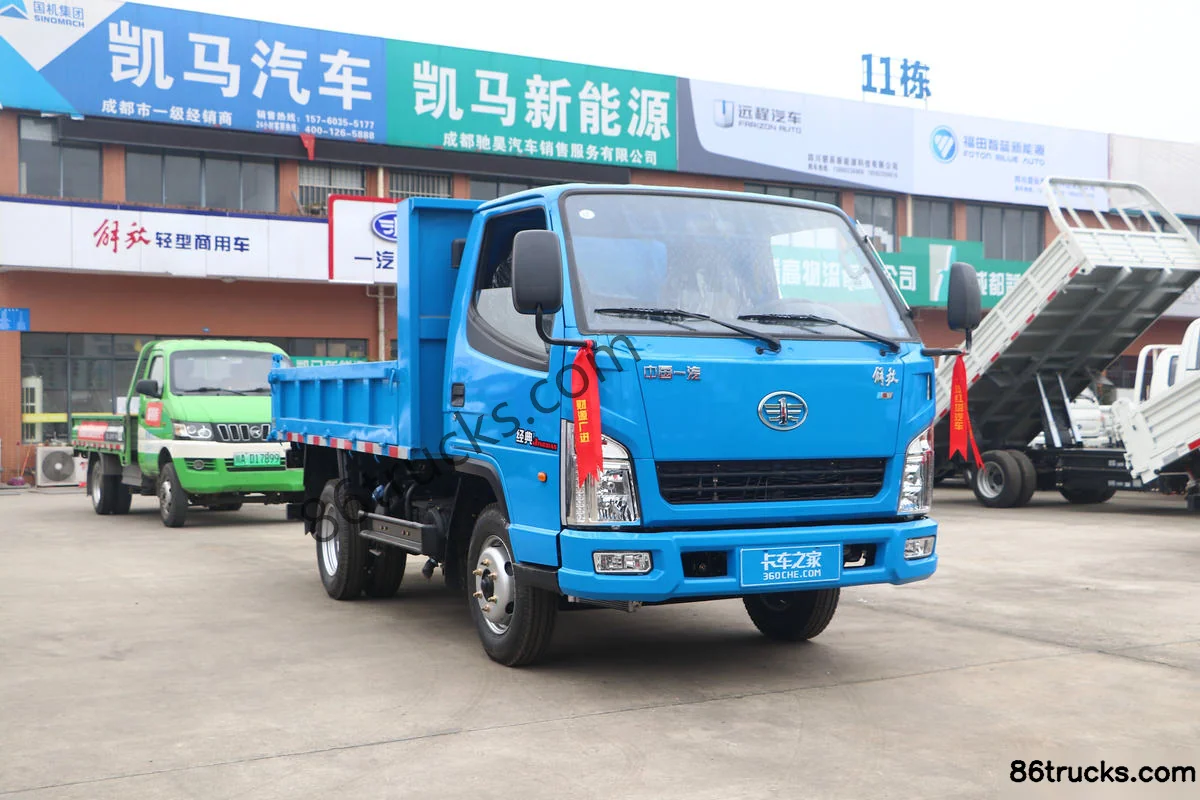

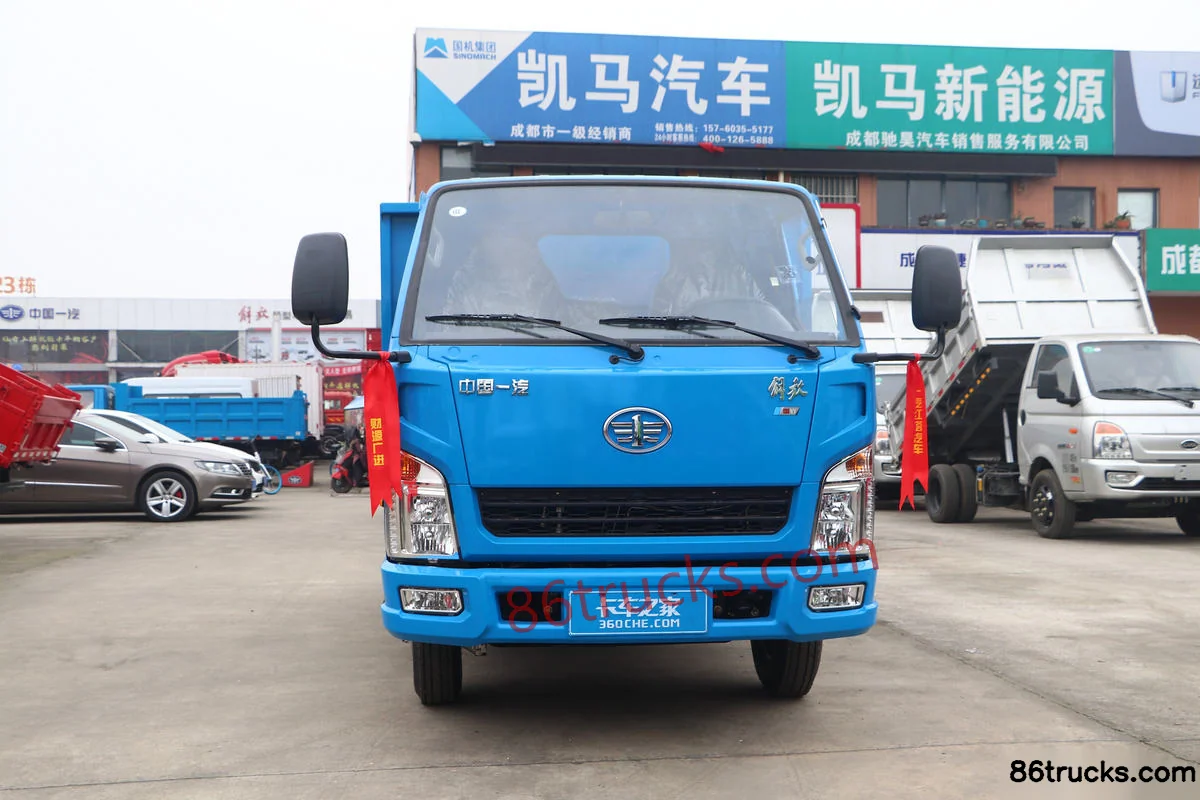

Exterior3

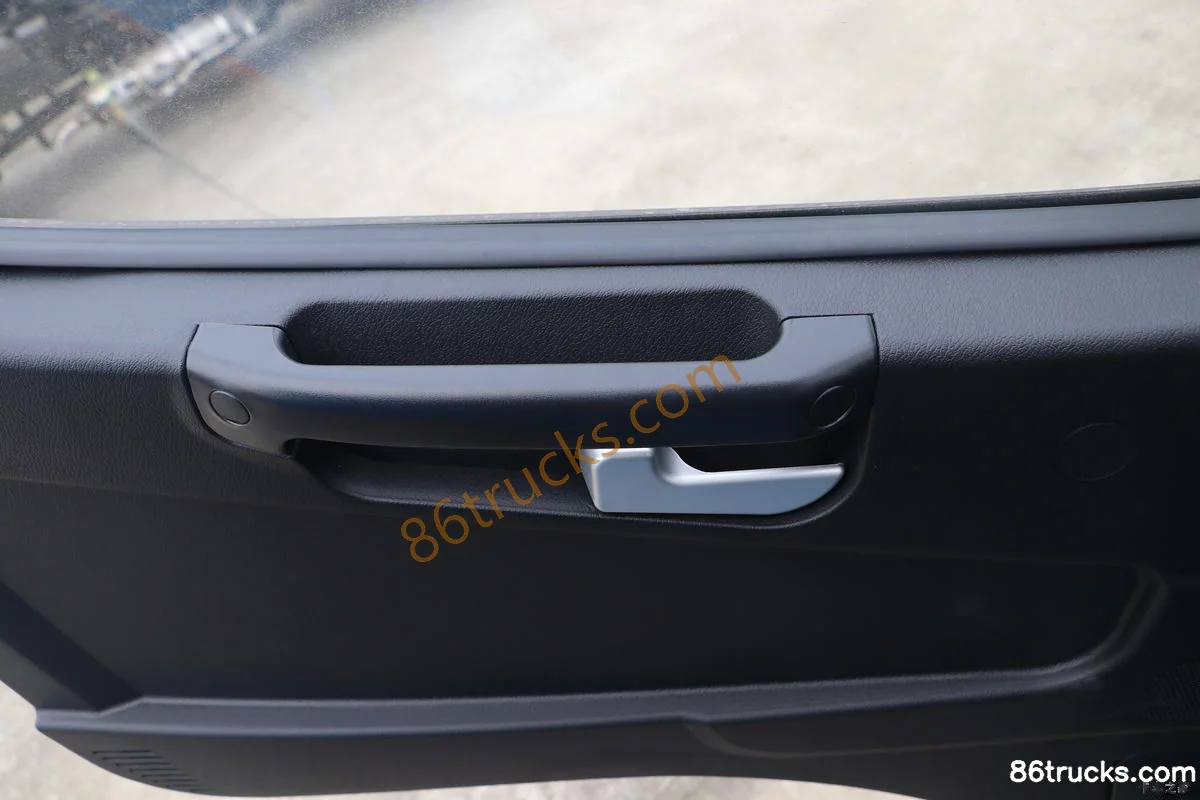

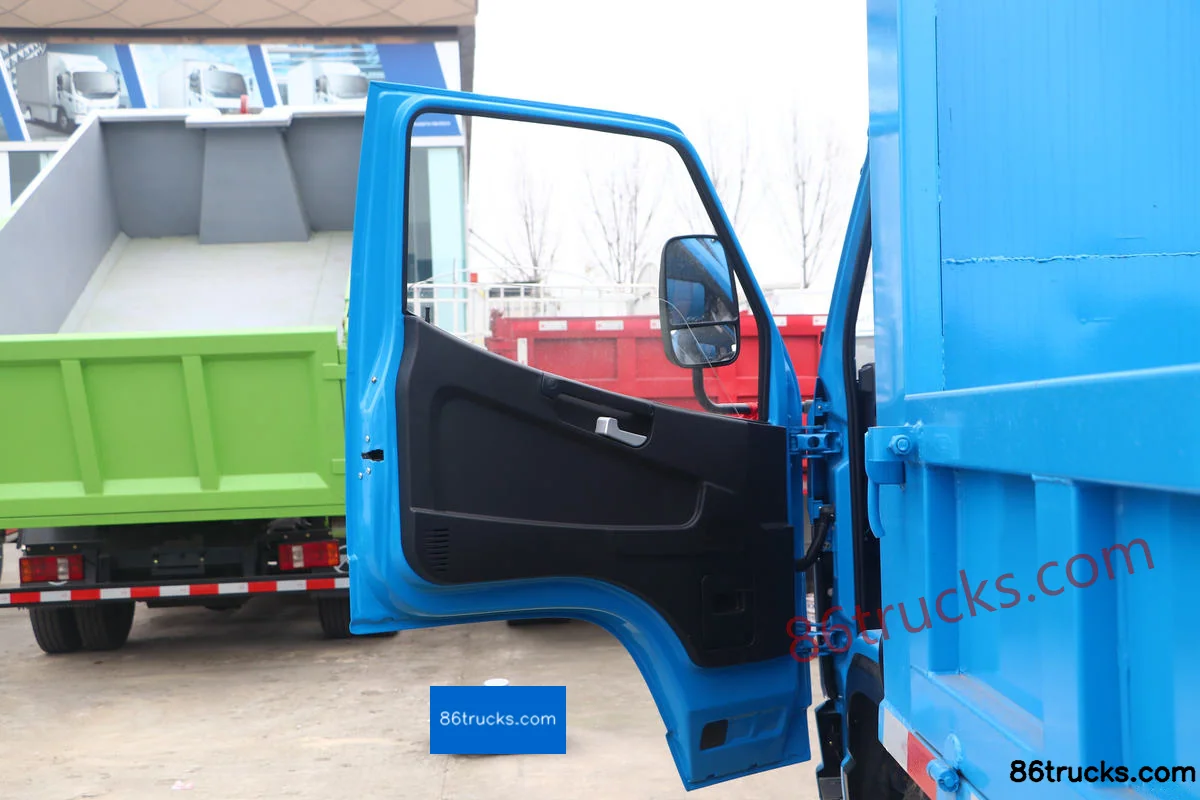

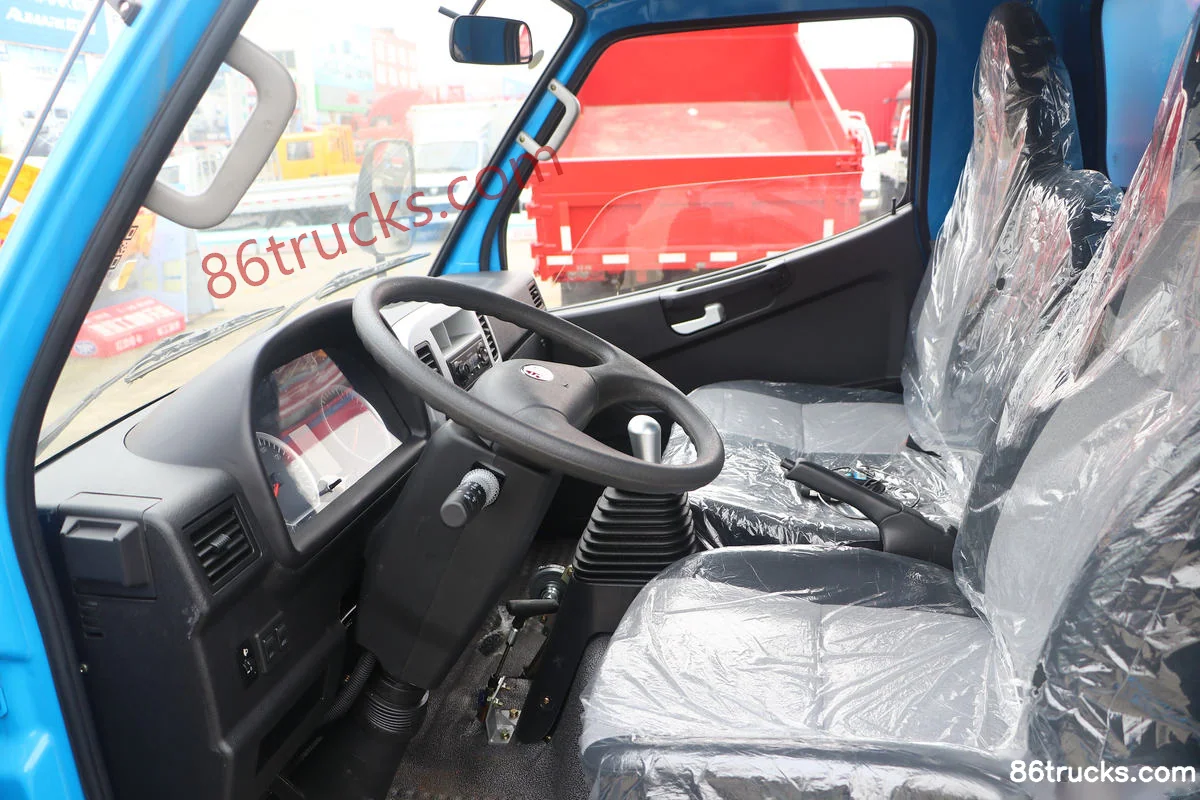

Cab3

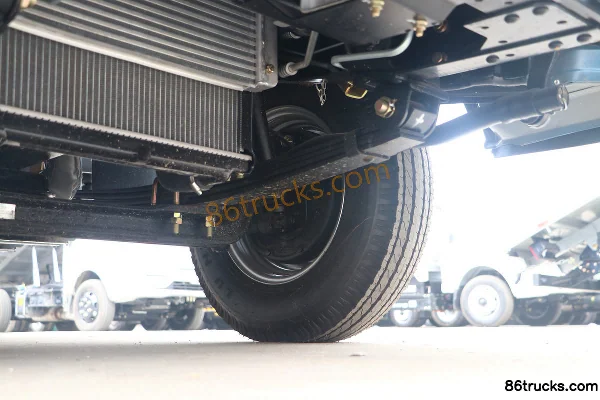

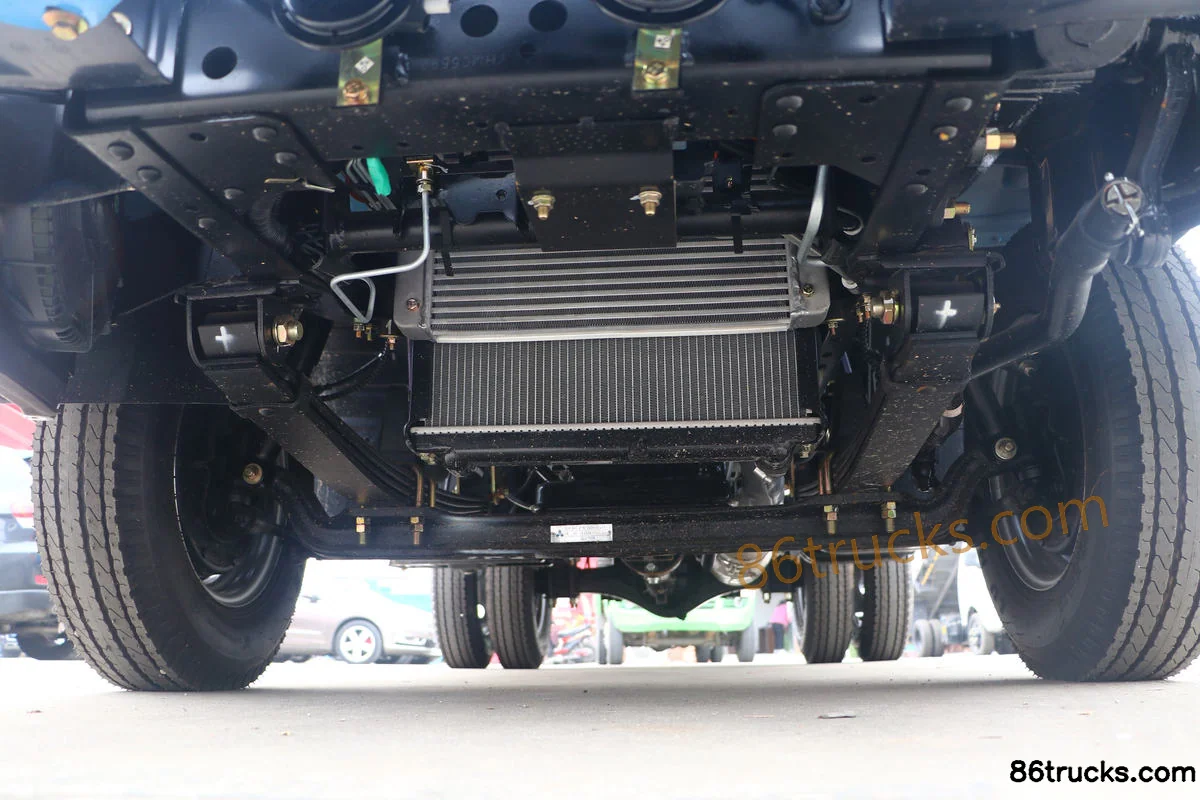

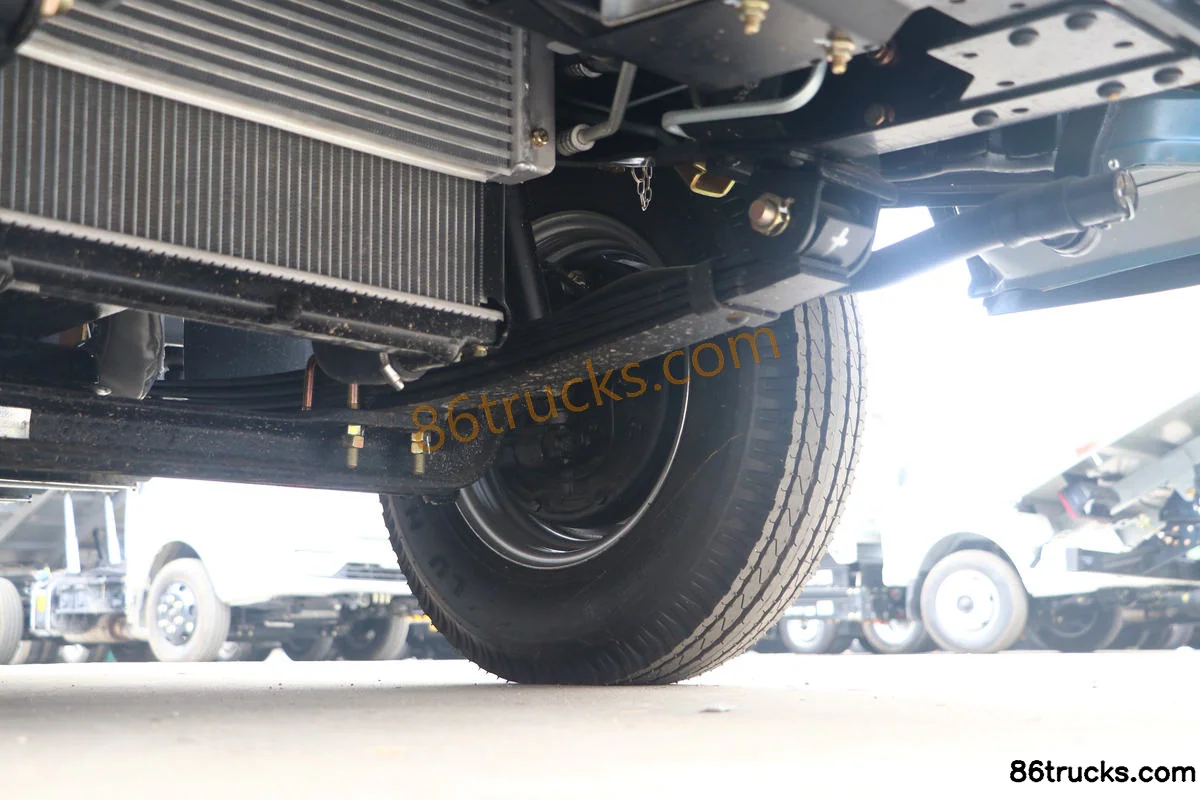

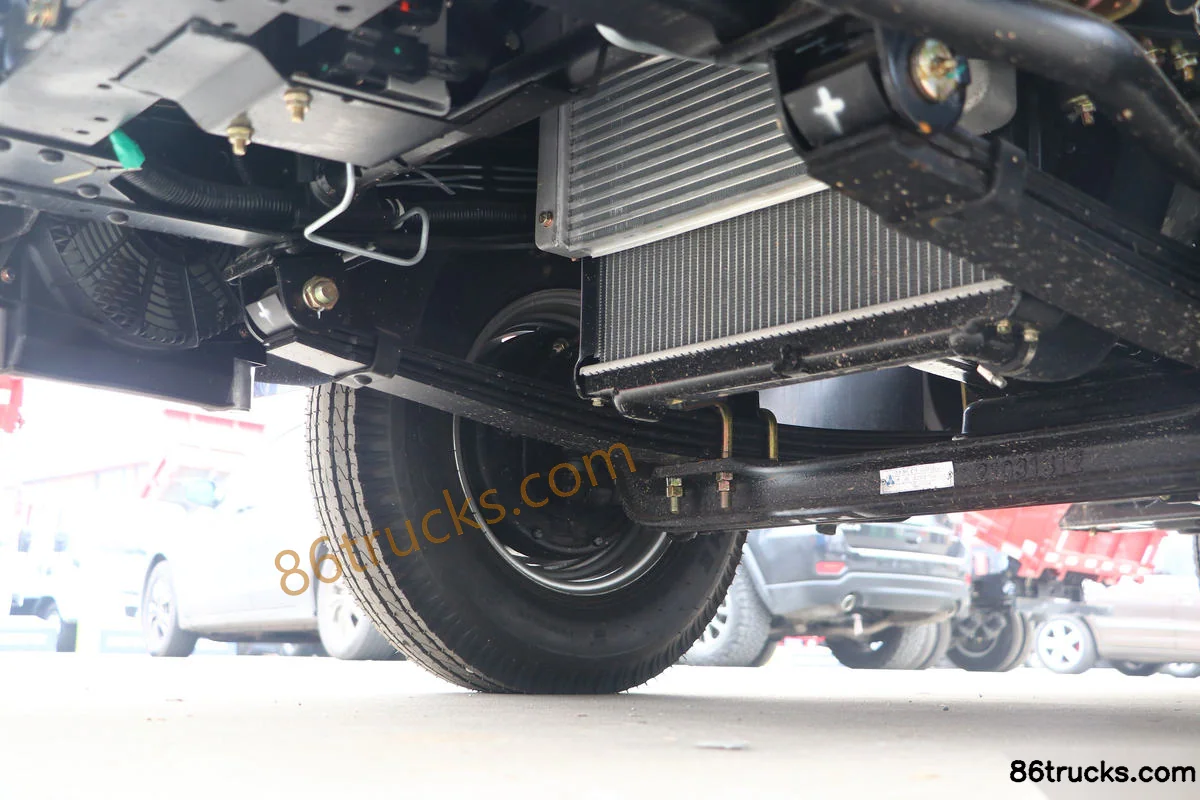

Chassis3

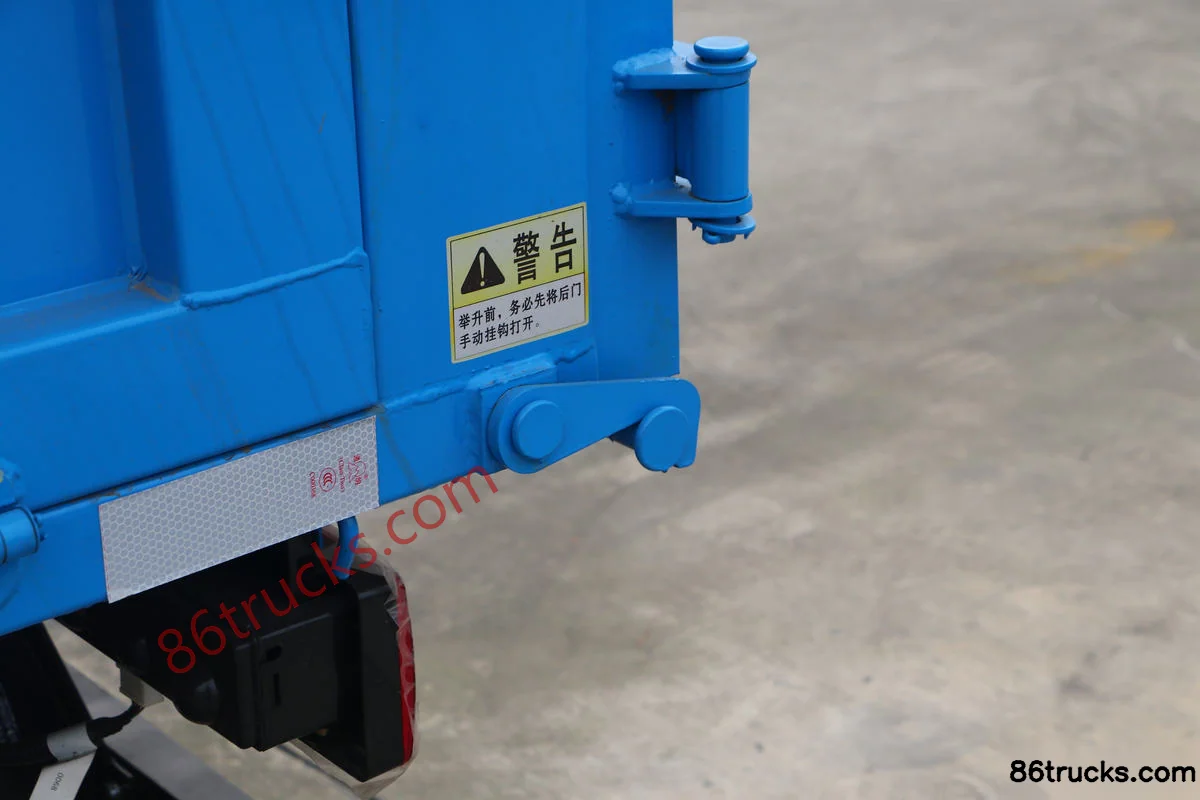

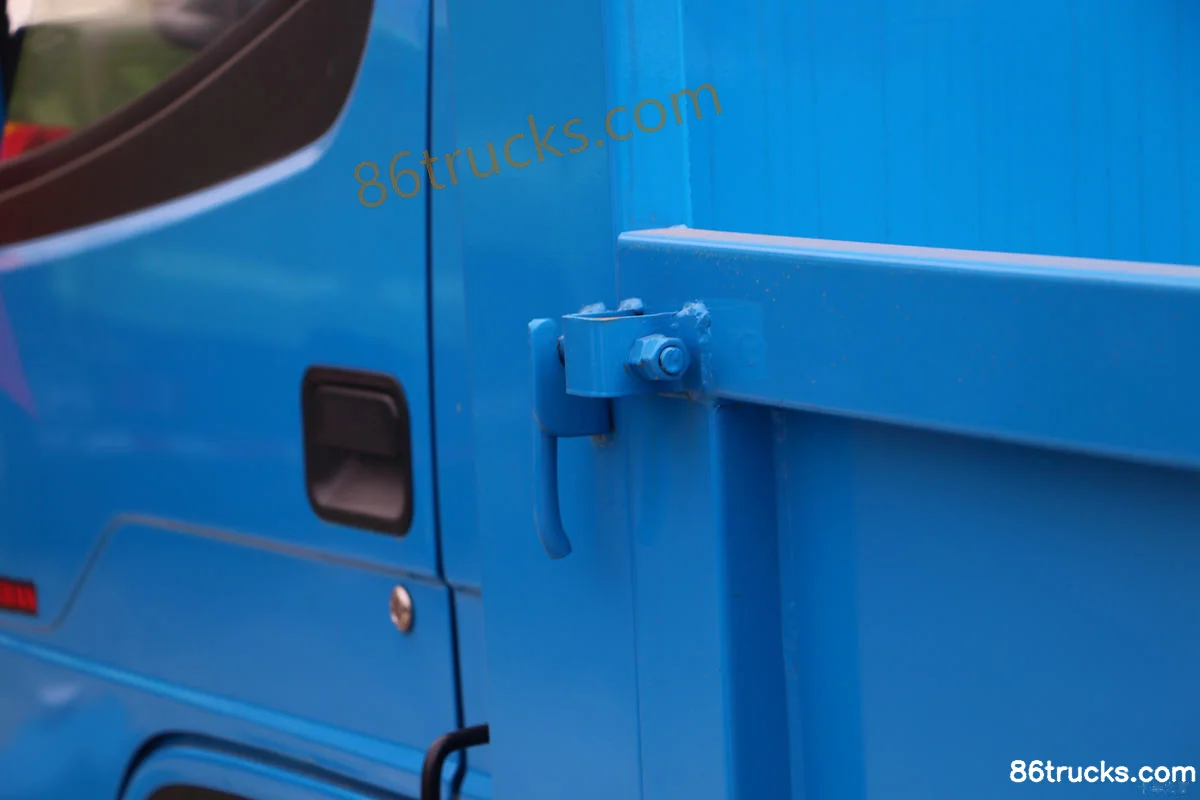

Body3

12 photos

FAQ

What is the export price of FAW Hongta FAW Jiefang Classic 1 Series 102 hp 4X2(6 wheels) 2.295m dump truck, and what does it include?

FAW Hongta FAW Jiefang Classic 1 Series 102 hp 4X2(6 wheels) 2.295m dump truck export reference is about From $11,806; MSRP is ¥8.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Hongta FAW Jiefang Classic 1 Series 102 hp 4X2(6 wheels) 2.295m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Hongta FAW Jiefang Classic 1 Series 102 hp 4X2(6 wheels) 2.295m dump truck?

Key specs of FAW Hongta FAW Jiefang Classic 1 Series 102 hp 4X2(6 wheels) 2.295m dump truck: Drive: 4x2; Horsepower: 102 hp; Emission: China VI; Fuel: Diesel; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Hongta FAW Jiefang Classic 1 Series 102 hp 4X2(6 wheels) 2.295m dump truck suited for?

FAW Hongta FAW Jiefang Classic 1 Series 102 hp 4X2(6 wheels) 2.295m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Hongta FAW Jiefang Classic 1 Series 102 hp 4X2(6 wheels) 2.295m dump truck differ from other variants in the same series?

FAW Hongta FAW Jiefang Classic 1 Series 102 hp 4X2(6 wheels) 2.295m dump truck belongs to FAW Hongta FAW Jiefang Classic 1 Series Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Hongta FAW Jiefang Classic 1 Series 102 hp 4X2(6 wheels) 2.295m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Hongta FAW Jiefang Classic 1 Series 102 hp 4X2(6 wheels) 2.295m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
