JMC Shunda 4X2(6 wheels) 2.85m Double Row Electric Dump Truck CATL 77kWh

Export reference
From $25,389
MSRP ¥18.28M CNY
Rated payload:: 1.78ton
Wheelbase:: 3360mm
Cargo box type:: rear-dump
Model code (announced):: JX5050ZLJTSGA2BEV
Cab length:: 5.995m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
CLTC range: 260km
Motor 1 Brand: Inovance
Curb Weight: 2.89ton

Overview

The JMC Shunda 4X2(6 wheels) 2.85m Double Row Electric Dump Truck CATL 77kWh is a mini truck featuring 260km battery/range, Inovance motor, 4X2 (6 wheels) drive and 1.78t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5050ZLJTSGA2BEV
Drive type: 4X2
Wheelbase: 3360mm
Cab length: 5.995m
Cab width: 2.08m
Cab height: 2.12m
CLTC range: 260km
Curb Weight: 2.89ton
Rated payload: 1.78ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Nanchang, Jiangxi
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ210XS102
Motor Type: Permanent magnet synchronous motor
total rated power: 50kW
Peak power: 105kW
Motor 1 Peak Power: 105kW
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 77kWh
Cargo box parameters
Cargo box type: rear-dump
Cargo box length: 2.85m
Cargo box width: 2m
Cargo box height: 0.4m
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1610kg
rear axle description: Offset electric drive axle
rear axle allowable load: 3385kg
Tire
Tire Size: 6.50R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Multimedia features
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

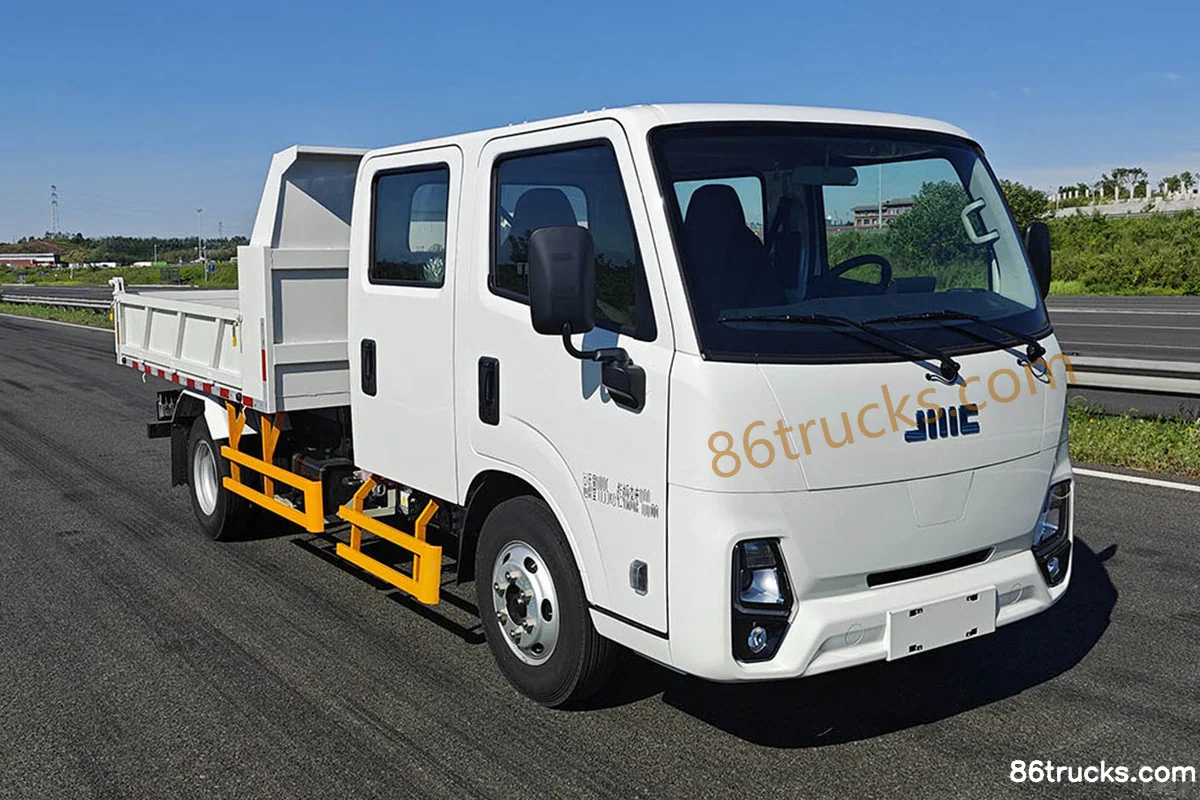

Exterior1

1 photos

FAQ

What is the export price of JMC Shunda 4X2(6 wheels) 2.85m Double Row Electric Dump Truck CATL 77kWh, and what does it include?

JMC Shunda 4X2(6 wheels) 2.85m Double Row Electric Dump Truck CATL 77kWh export reference is about From $25,389; MSRP is ¥18.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of JMC Shunda 4X2(6 wheels) 2.85m Double Row Electric Dump Truck CATL 77kWh?

Key specs of JMC Shunda 4X2(6 wheels) 2.85m Double Row Electric Dump Truck CATL 77kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda 4X2(6 wheels) 2.85m Double Row Electric Dump Truck CATL 77kWh suited for?

JMC Shunda 4X2(6 wheels) 2.85m Double Row Electric Dump Truck CATL 77kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JMC Shunda 4X2(6 wheels) 2.85m Double Row Electric Dump Truck CATL 77kWh differ from other variants in the same series?

JMC Shunda 4X2(6 wheels) 2.85m Double Row Electric Dump Truck CATL 77kWh belongs to JMC E Shunda (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda 4X2(6 wheels) 2.85m Double Row Electric Dump Truck CATL 77kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda 4X2(6 wheels) 2.85m Double Row Electric Dump Truck CATL 77kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
