Foton CTX 170hp 4X2(6 wheels) 6.7m Refrigerated Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 6.305ton
Wheelbase:: 5200mm
Tire Size:: 8.25R20,9.00-20
Cab dimensions:: 8.995×2.51×3.72m
Rated payload: 7.08ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 6.65×2.3×2.3m
Horsepower 170

Overview

The Foton CTX 170hp 4X2(6 wheels) 6.7m Refrigerated Truck is a Refrigerated Truck featuring 6.65×2.3×2.3m cargo body, 7.08t payload, Sleeper cab cab and 5200mm wheelbase. On the powertrain side, it comes with 170 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.995×2.51×3.72m
Drive type: 4X2
Truck Type: Refrigerated Truck
Wheelbase: 5200mm
Vehicle origin: Beijing
Front track width: 1930mm
rear track: 1800mm
Curb Weight: 6.305ton
Rated payload: 7.08ton
Max. speed: 110km/h
Front/rear suspension: 1.3/2.495m
Energy Type: Diesel
Engine parameters
Engine Model: FotonISF3.8s5168
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 592N·m
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Cargo box parameters
Cargo box dimensions: 6.65×2.3×2.3m
Cargo box width: 2.3m
Cargo box height: 2.3m
Body Parameters
Vehicle certification code: BJ5149XLC-F1
Body Brand: Foton
Chassis Specs
Chassis Series: Aoling CTX
Chassis Model: BJ1149VJPEK-F1
Axle ratio: 5.286
Leaf spring count: 8/10+10
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLYWLY6G120
Cab parameters
Cab: Sleeper cab
Tire
Tire Size: 8.25R20,9.00-20
Number of tires: 6pcs

Photos

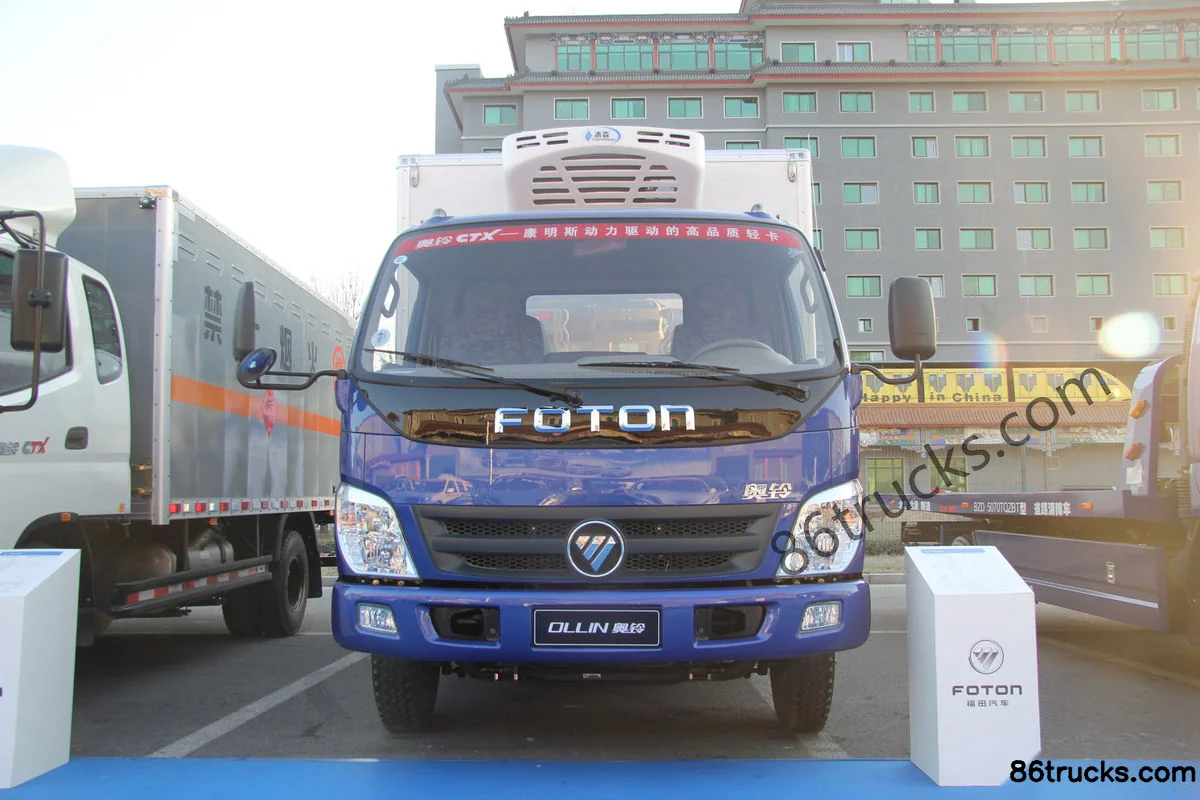

Exterior1

1 photos

FAQ

What emission standard does Foton CTX 170hp 4X2(6 wheels) 6.7m Refrigerated Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton CTX 170hp 4X2(6 wheels) 6.7m Refrigerated Truck?

Key specs of Foton CTX 170hp 4X2(6 wheels) 6.7m Refrigerated Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton CTX 170hp 4X2(6 wheels) 6.7m Refrigerated Truck suited for?

Foton CTX 170hp 4X2(6 wheels) 6.7m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton CTX 170hp 4X2(6 wheels) 6.7m Refrigerated Truck differ from other variants in the same series?

Foton CTX 170hp 4X2(6 wheels) 6.7m Refrigerated Truck belongs to Foton CTX Light Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton CTX 170hp 4X2(6 wheels) 6.7m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton CTX 170hp 4X2(6 wheels) 6.7m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
